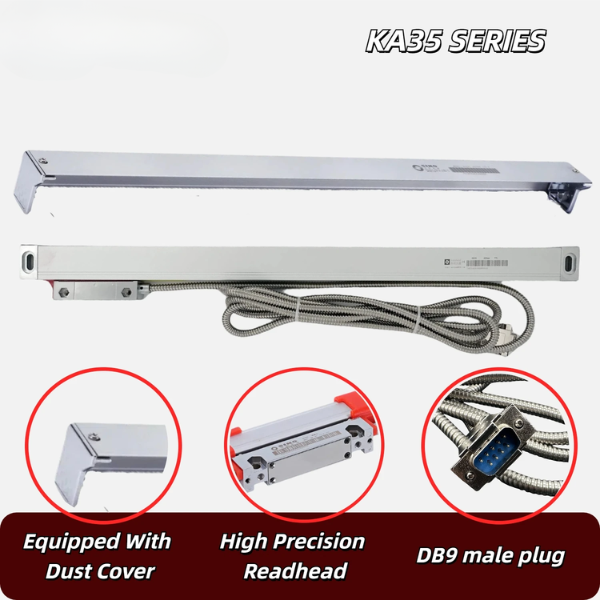

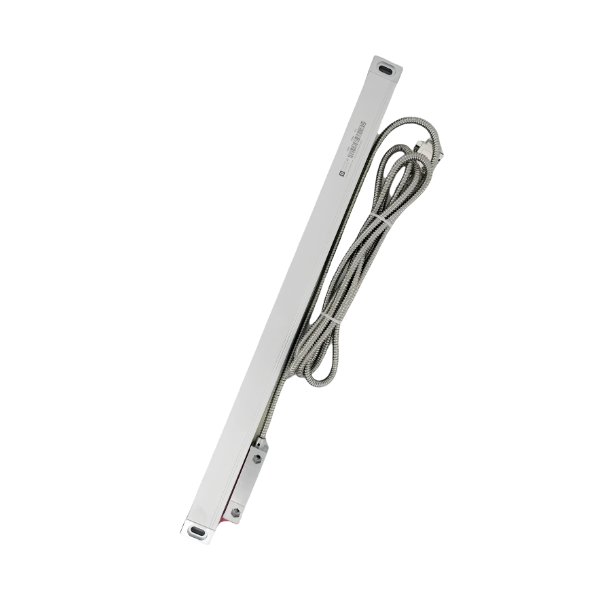

350mm Linear Scale 5μm TTL Optical Encoder

Improve the accuracy and consistency of your machining projects with this 350mm linear scale optical encoder. Designed for digital readout (DRO) systems, it delivers high-precision position feedback for lathes, milling machines, grinders and CNC equipment, helping you achieve more accurate measurements and smoother operation.

Built for demanding workshop environments, this precision encoder is easy to install and compatible with a wide range of DRO systems.

Key Features

• High Precision 5μm Resolution – Delivers accurate position measurement with 0.005mm resolution for precise machining.
• 350mm Travel Length – Ideal for medium-sized milling, lathe and CNC machine applications.
• TTL Output Signal – Provides stable, reliable communication with compatible digital readout systems.
• Wide DRO Compatibility – Suitable for many TTL-based DRO systems used in milling machines, lathes and grinders.
• Durable Optical Encoder Design – Engineered for dependable performance in professional workshop environments.

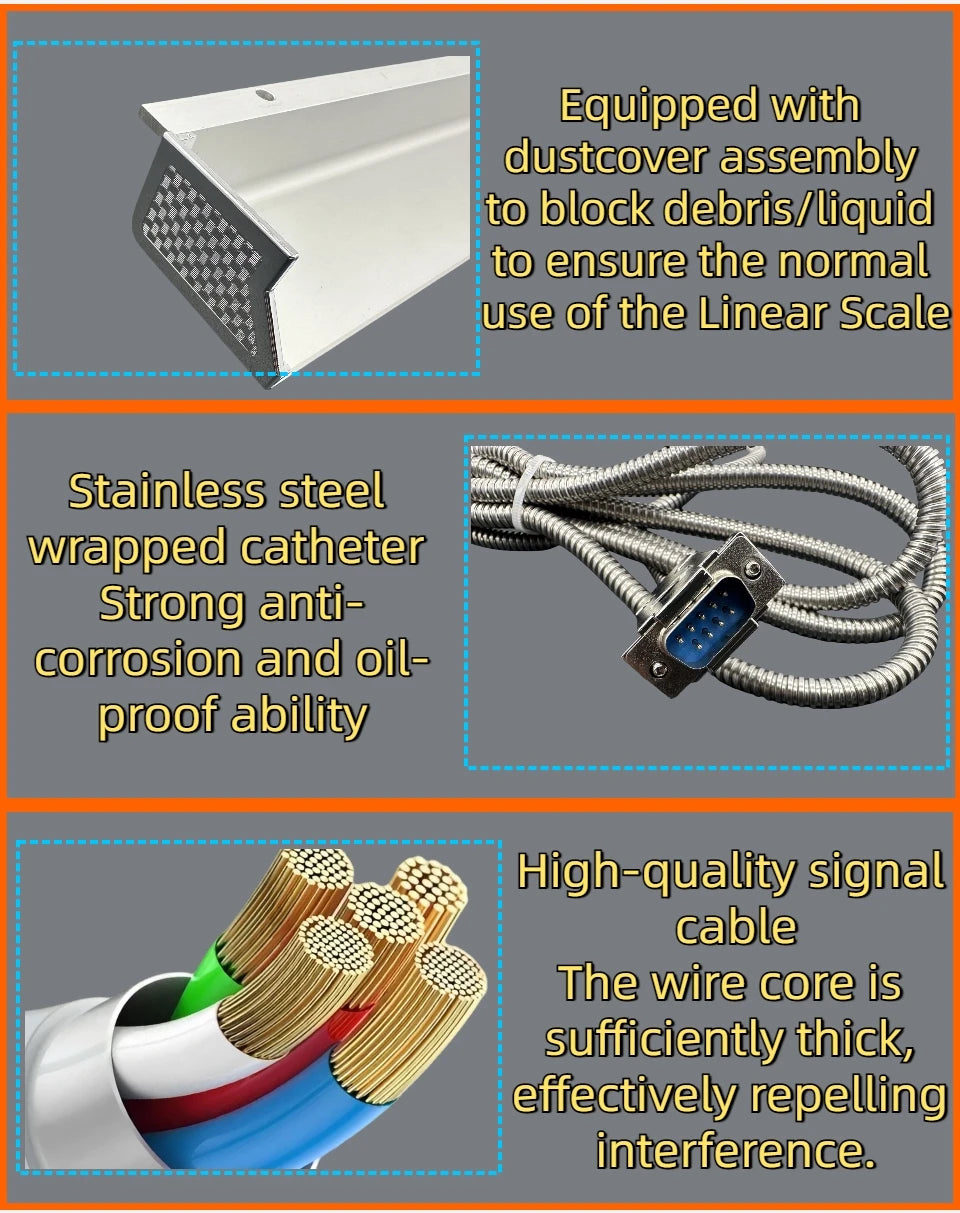

• Robust Aluminium Housing – Helps protect internal components from dust and everyday workshop conditions.
• 3-Metre Connection Cable – Offers flexible installation across a variety of machine configurations.
• Simple Installation – Includes mounting hardware and brackets for convenient setup.
• Versatile Machine Compatibility – Suitable for milling machines, lathes, grinders, CNC equipment and other precision machinery.
• Consistent Measurement Performance – Helps improve machining accuracy, repeatability and productivity.

Specifications

• Product Type: Linear Scale Optical Encoder
• Model: KA35
• Travel Length: 350mm
• Resolution: 5μm (0.005mm)
• Output Signal: TTL
• Input Voltage: 5V DC
• Cross Section: 21.5 × 33.5mm
• Total Scale Length: Travel Length + 140mm
• Mounting Hole Distance: Travel Length + 124mm
• Cable Length: 3m
• Compatible Equipment: Milling Machines, Lathes, Grinders, CNC Machines and Compatible TTL DRO Systems
• Certification: CE

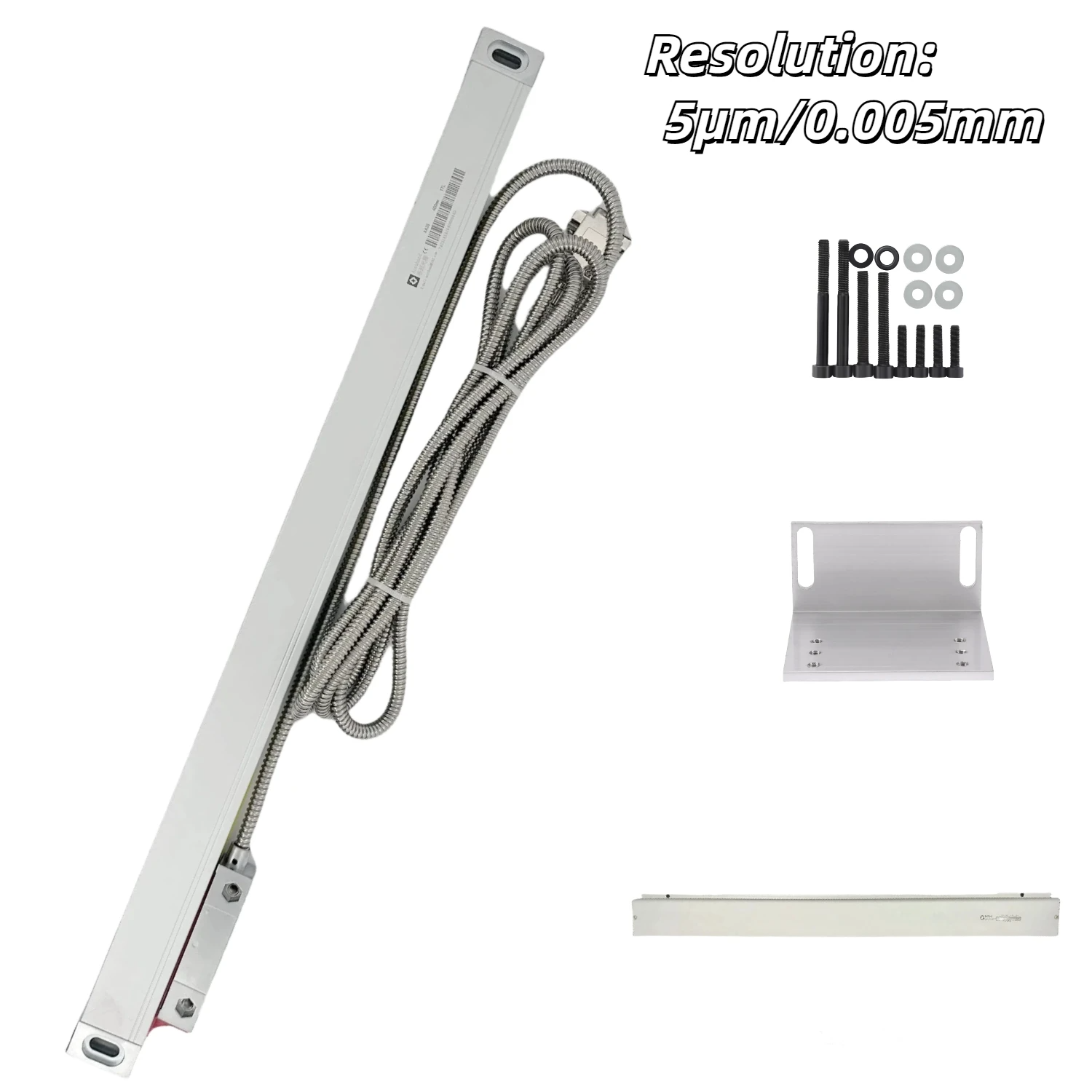

Package Contents

• 1 × 350mm Linear Scale Optical Encoder
• 1 × Protective Scale Cover
• 1 × Mounting Bracket
• 1 × Screw Bag

What Makes This a Smart Buy:

Designed for precision machining, this 350mm linear scale provides accurate position feedback to help improve measurement consistency and machining quality. Its durable construction, TTL compatibility and easy installation make it an excellent upgrade for professional workshops and serious hobbyists alike.
