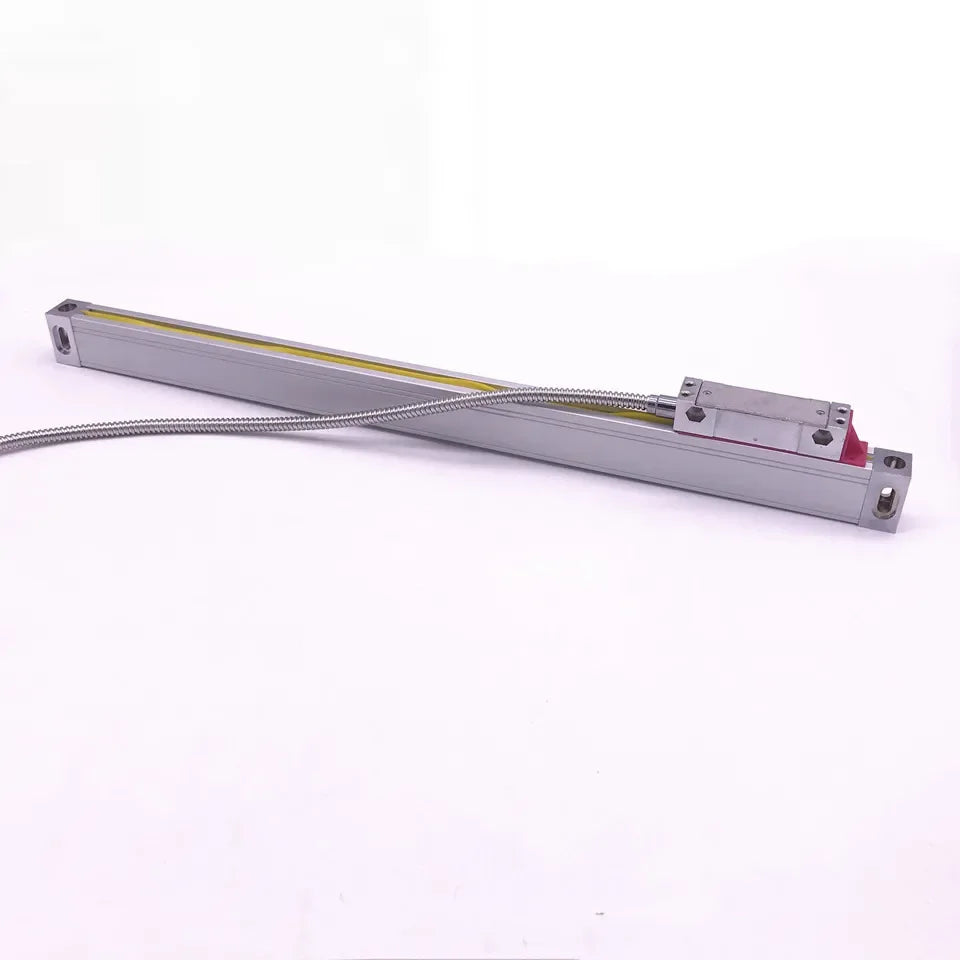

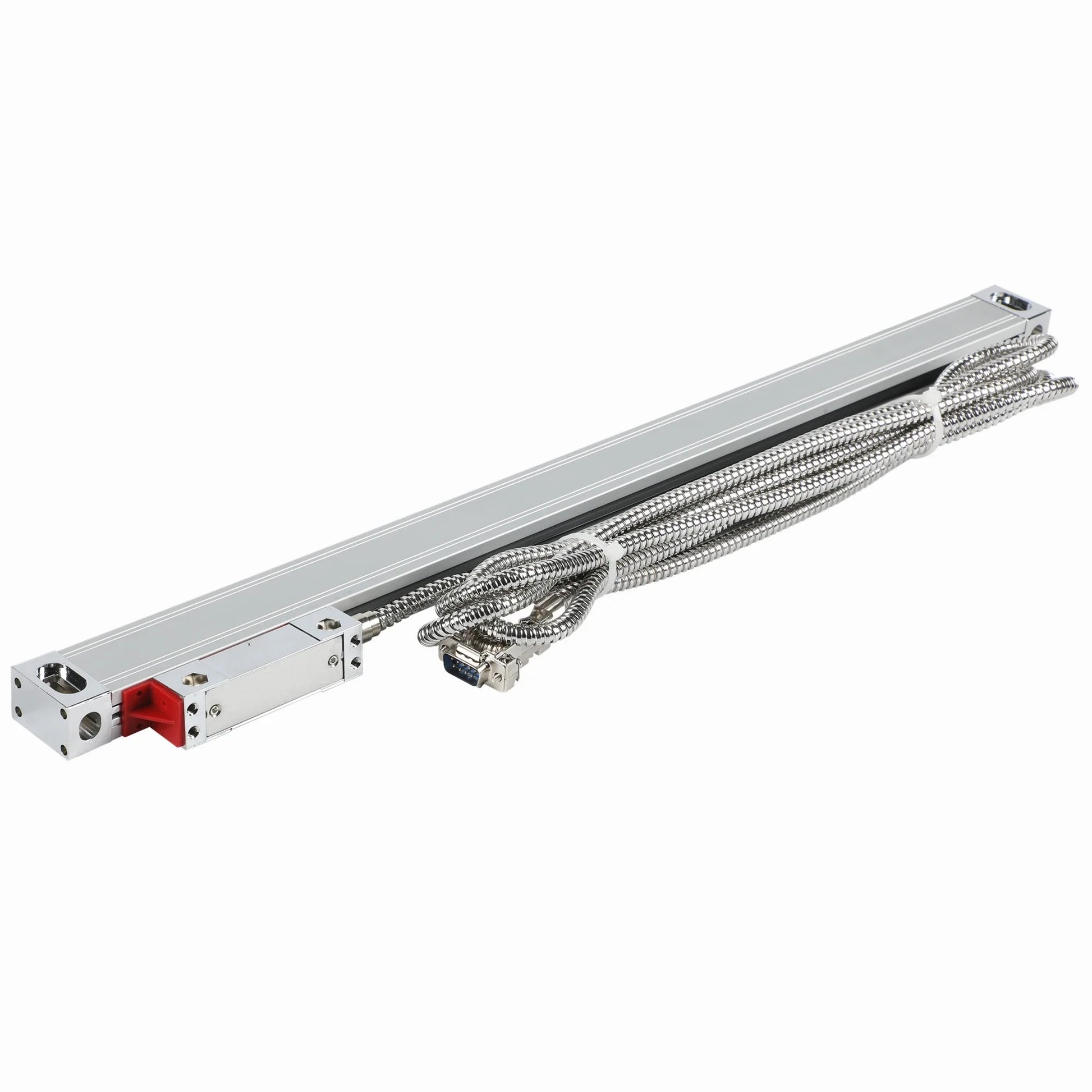

750mm High Precision Linear Scale 5µm DRO Encoder

Upgrade your machining accuracy with this high precision 750mm linear scale encoder, designed for reliable measurement and smooth feedback in CNC and milling applications. It delivers consistent, real-time positioning to help you achieve cleaner cuts and better results every time.

Key Features

• 5µm resolution for precise and accurate measurements
• Smooth optical sensing for stable, reliable performance
• Ideal for CNC machines, lathes, and milling setups
• TTL output signal for wide DRO system compatibility
• Durable aluminium housing for workshop environments
• Pre-fitted cable for easy installation and setup
• Includes mounting accessories for hassle-free fitting

Specifications

• Measuring Length: 750mm
• Total Length: 892mm (travel + 142mm)
• Resolution: 5µm (0.005mm)
• Output Signal: TTL
• Input Voltage: 5V DC
• Grating Pitch: 0.02mm
• Cable Length: Approx. 2.5–3m
• Dimensions: 21mm x 33mm

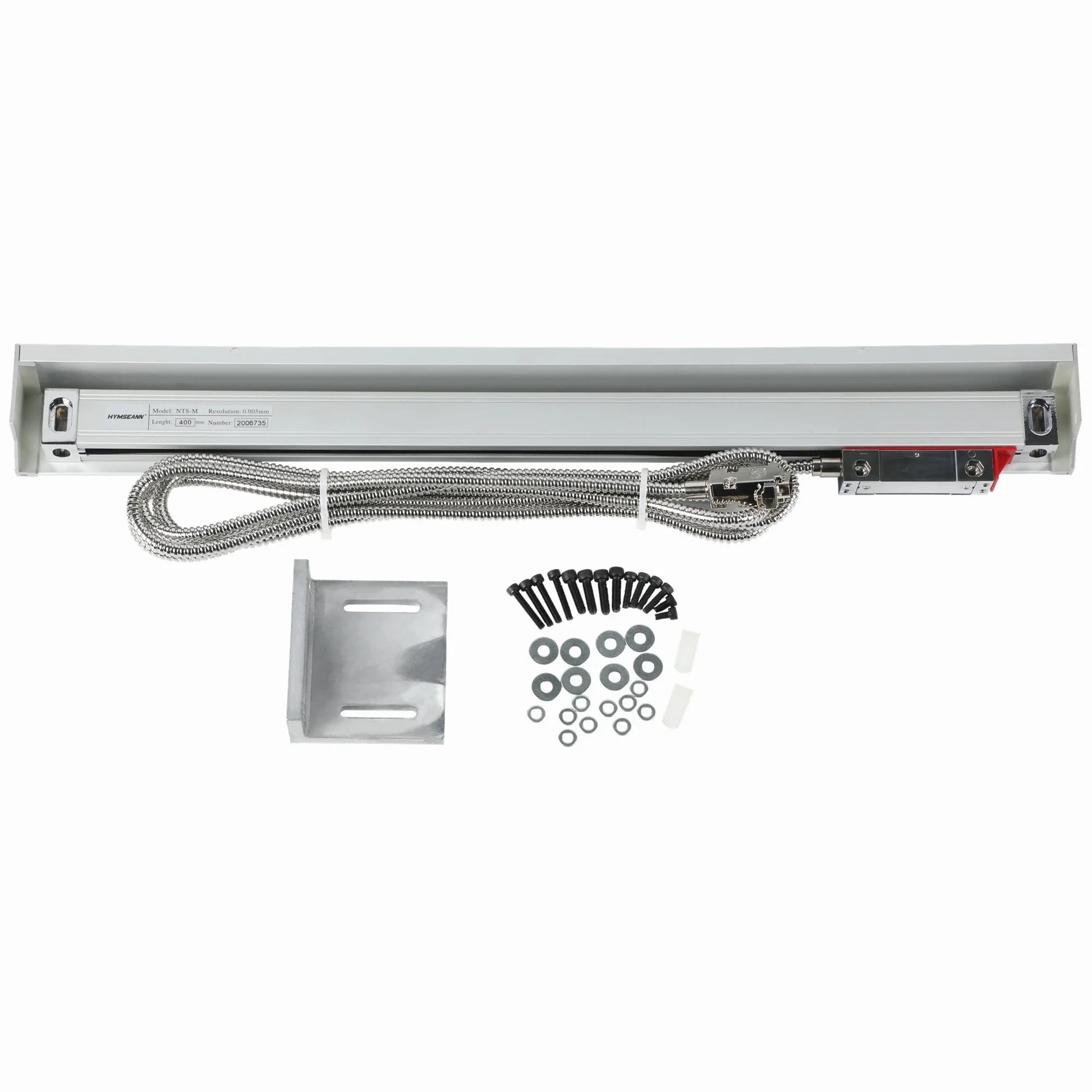

Package Contents

• 1 x 750mm Linear Scale Encoder
• 1 x Scale Cover
• 1 x Mounting Bracket
• 1 x Screw Kit

What Makes This a Smart Buy:
This linear scale gives you reliable, high-precision feedback that improves machining accuracy without complicated setup. It’s a practical upgrade for anyone looking to get cleaner, more consistent results from their equipment.
