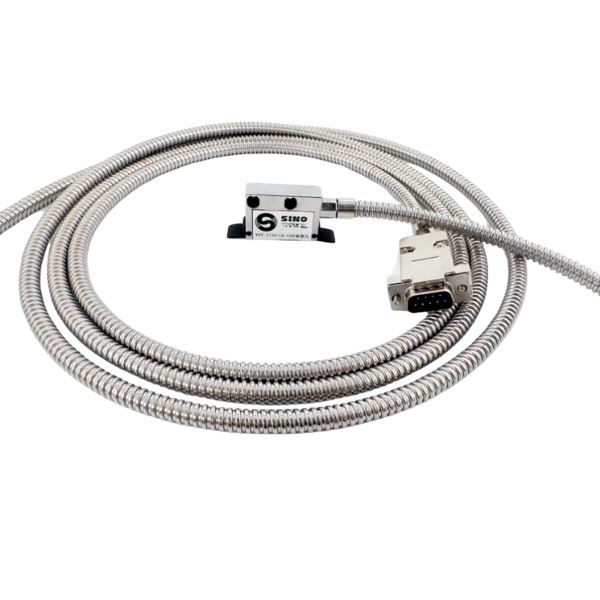

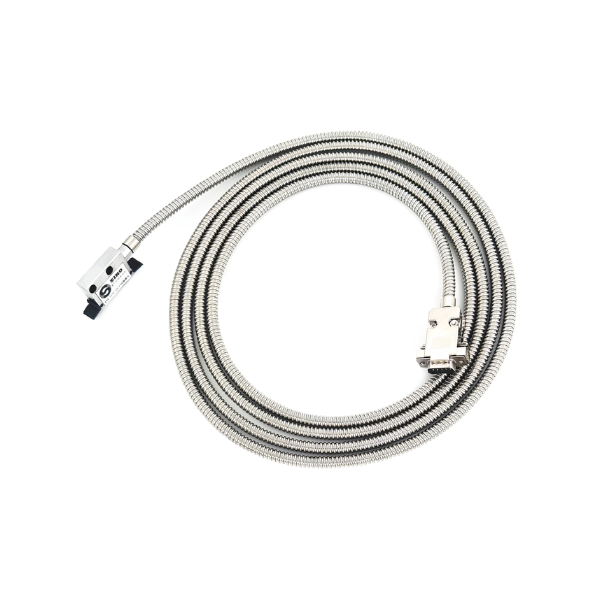

0.001mm Magnetic Linear Scale Sensor 2m Measuring System

Achieve precise linear measurement with this high-resolution magnetic scale system, designed for machine tools, digital readouts and industrial measurement applications. With 0.001mm resolution, non-contact sensing and a durable IP67-rated sensor, it delivers reliable performance in demanding workshop environments.

Key Features

• Ultra-High 0.001mm Resolution: Supports fine linear displacement measurement for precision machining and industrial applications.
• Non-Contact Magnetic Sensing: Minimises wear and tear while providing smooth, reliable measurement performance.
• 2m Magnetic Scale System: Suitable for longer measuring distances across machine tools, workbenches and automation equipment.
• IP67 Sensor Protection: Helps protect the sensor against dust, oil and water exposure.
• Fast Measurement Capability: Supports high-speed movement for efficient operation in demanding applications.

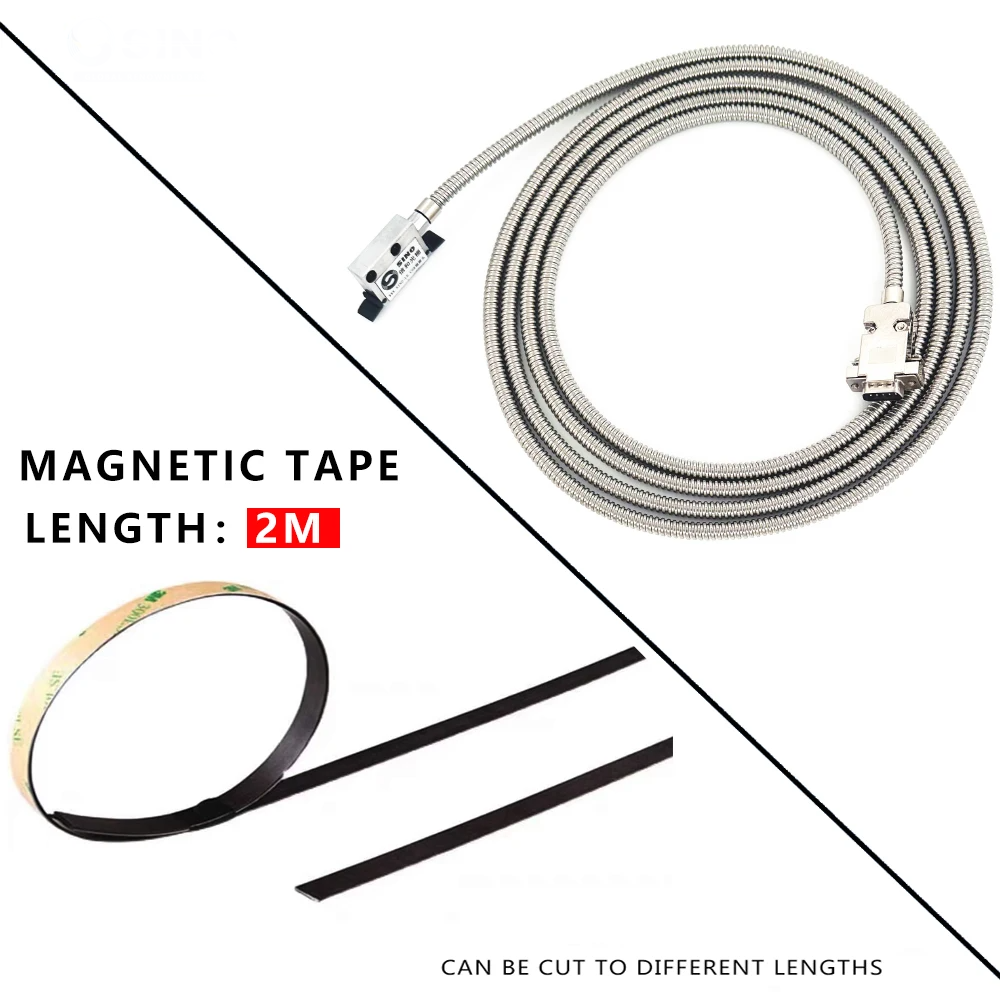

• Flexible Installation: Magnetic tape can be cut and installed to suit different measurement requirements.
• Industrial Compatibility: Designed for use with compatible TTL digital readout systems and industrial control equipment.
• Durable Construction: Protective magnetic scale design helps provide dependable long-term operation.

Specifications

• Resolution: 0.001mm
• Magnetic Tape Length: 2m
• Sensor Type: Magnetic Linear Displacement Sensor
• Output Signal: TTL or RS422
• Input Voltage: DC 5V
• Sensor Protection Rating: IP67
• Sensor Dimensions: 35 x 25 x 10mm
• Magnetic Tape Dimensions: 10 x 1.5mm
• Maximum Speed: Up to 5m/s
• Working Temperature: -20°C to 85°C
• Installation Distance: Maximum 4mm, 2mm recommended
• Cable Length: 3m
• Suitable For: Machine tools, digital readouts, woodworking, stone processing and industrial measurement

Package Contents

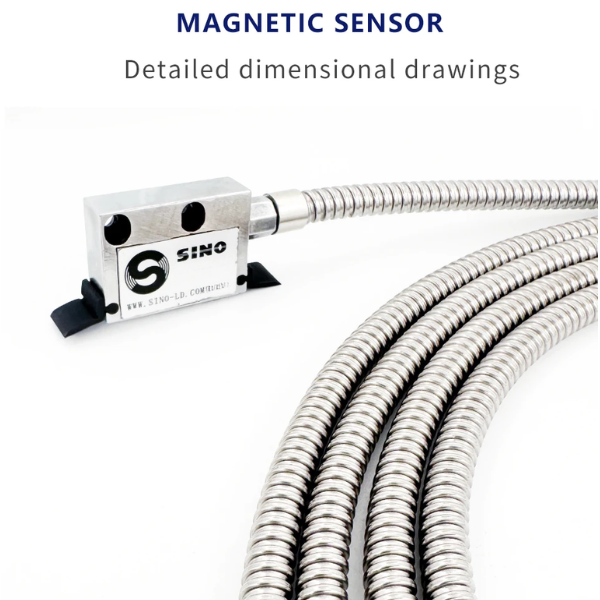

• 1 x Magnetic Sensor Reader

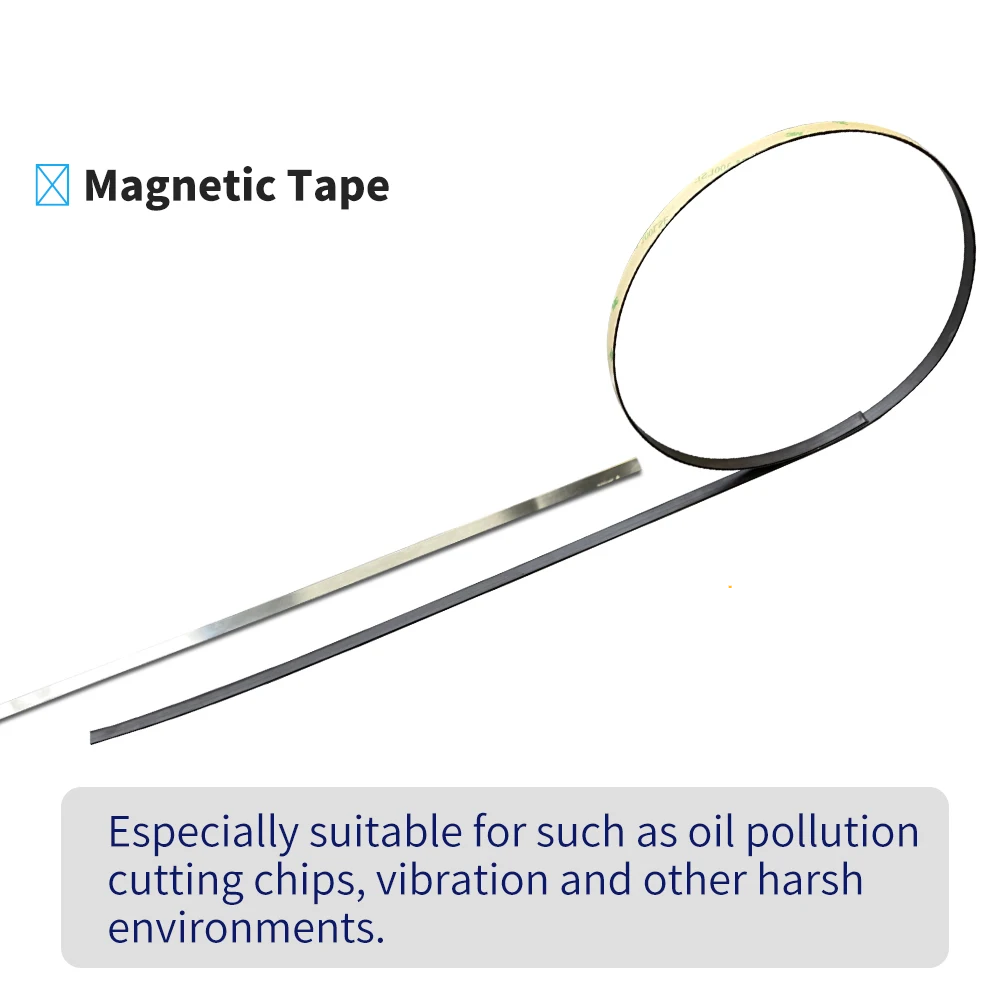

• 1 x 2m Magnetic Scale Tape
• 2 x Screws
• 2 x Plastic Cleaner

What Makes This a Smart Buy:

Combining ultra-fine 0.001mm resolution with durable magnetic sensing, this system is a practical upgrade for precision measurement and machine tool applications. Its flexible installation and reliable non-contact design offer excellent versatility for workshops and industrial equipment.
