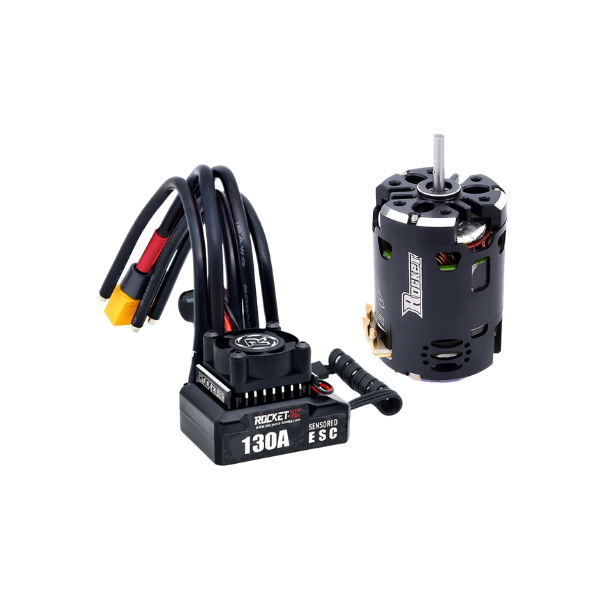

1/10 RC Brushless Motor ESC Combo 130A 6.5T

Upgrade a compatible 1/10 scale RC vehicle with this brushless motor and ESC combo, designed for responsive performance in racing, drifting and off-road driving. The sensored 540 motor pairs with a high-current 130A ESC for precise control and flexible setup options.

Key Features

• 6.5T Brushless Motor: High-performance sensored 540 motor designed for compatible 1/10 scale RC vehicles.
• 130A High-Current ESC: Provides up to 130A continuous current and 240A peak current for demanding RC applications.
• Sensored Performance: Supports smooth, responsive motor control for improved driving precision.
• Racing & Drifting Modes: Switch between racing and drifting modes to suit different driving styles.
• Programmable ESC: Adjustable parameters provide greater control over the vehicle's performance setup.
• Built-In BEC: 6V/5A BEC provides stable power for compatible servos and receivers.
• Durable Motor Construction: CNC-machined T6 aluminium heatsink can helps manage motor heat during operation.
• Replaceable Rotor: Removable rotor design allows convenient servicing and replacement.
• Wide RC Compatibility: Suitable for compatible 1/10 scale on-road, off-road and drift vehicles.
• Forward/Brake/Reverse: Supports forward, braking and reverse functions, with forward/brake set as the factory default.

Specifications

• Motor Type: 540 Sensored Brushless Motor
• Motor Turns: 6.5T

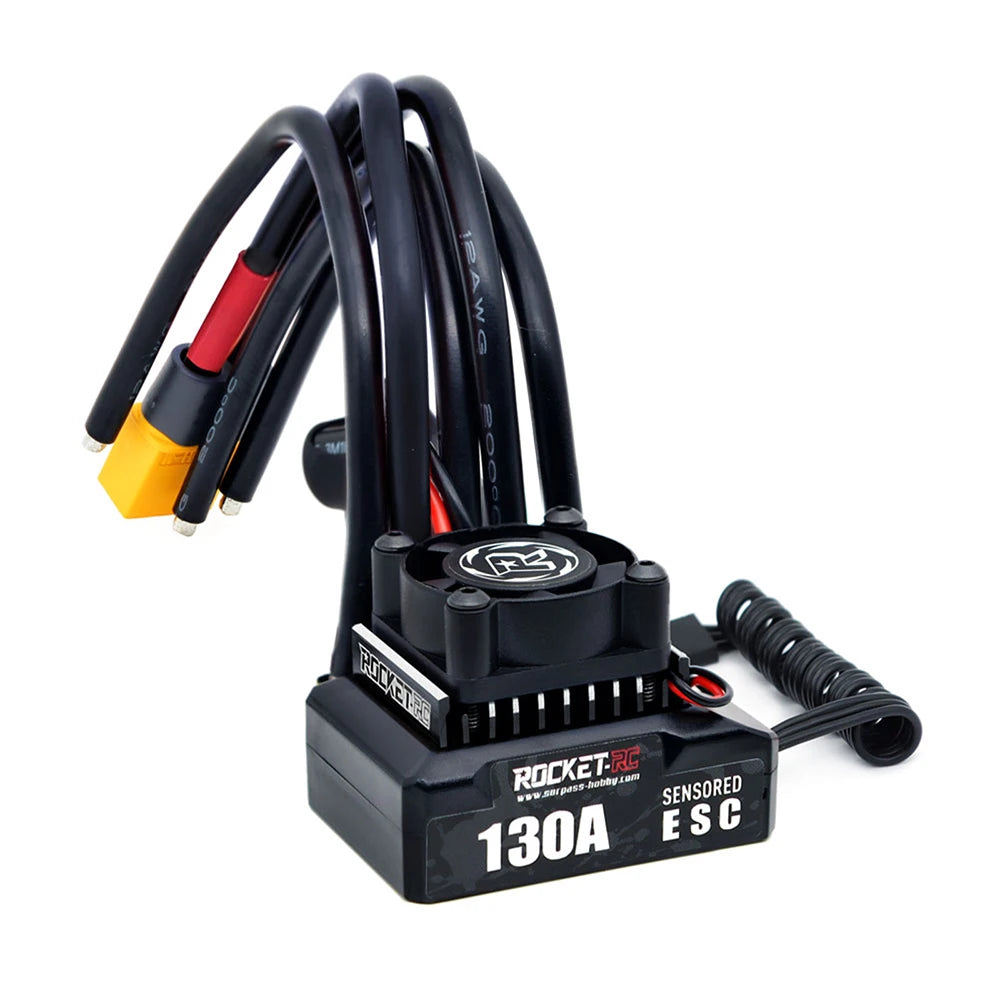

• ESC Type: Sensored Brushless ESC
• Continuous Current: 130A
• Peak Current: 240A
• Motor Limit: ≥5.5T
• Compatible Motors: Sensored 380/390/540 Brushless Motors
• ESC Input Voltage: 6V–11V
• BEC Output: 6V / 5A
• ESC Functions: Forward / Brake / Reverse
• ESC Modes: Racing / Drifting
• ESC Processor: 8-bit

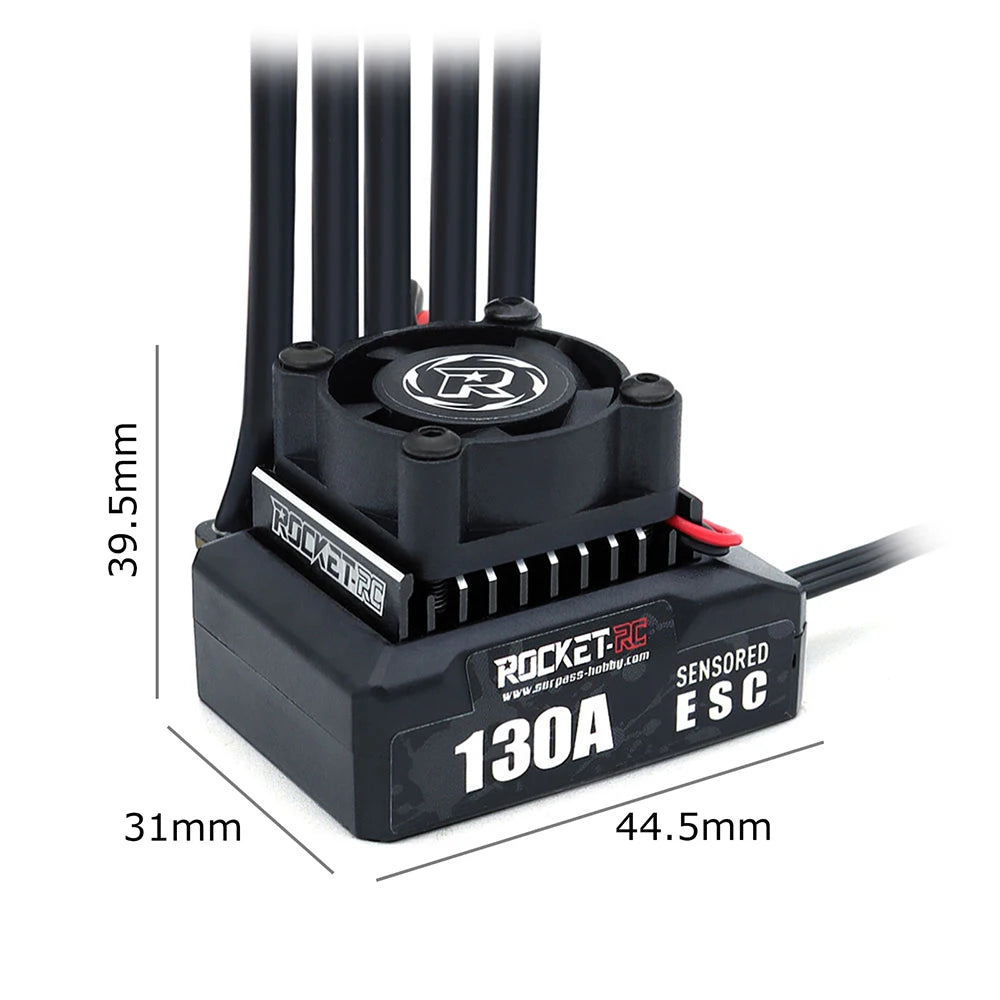

• ESC Dimensions: 44.5 × 39.5 × 31mm, including fan
• ESC Weight: 88.2g, including wires
• Material: Composite Material
• Application: 1/10 Scale RC Vehicles

Package Contents

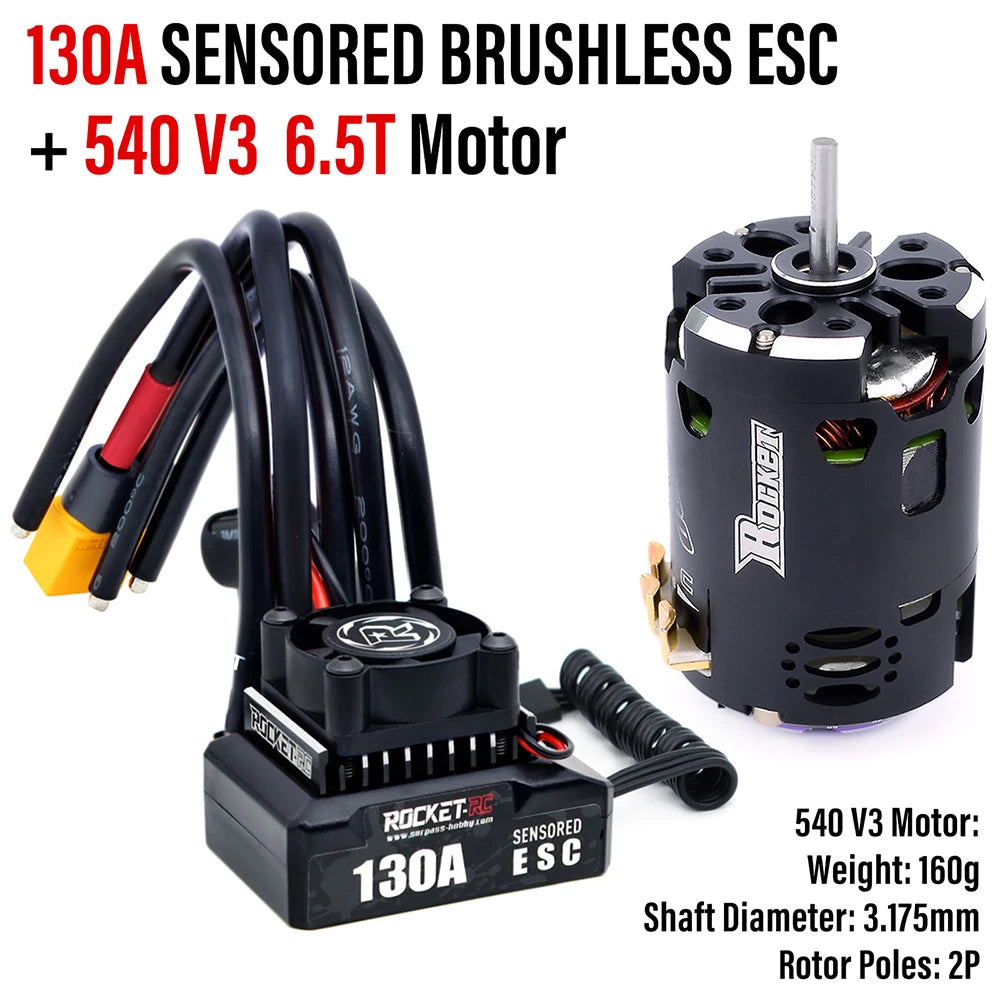

• 1 × 540 6.5T Brushless Sensored Motor (130A ESC 6.5T Motor)
• 1 × 130A Brushless Sensored ESC

What Makes This a Smart Buy:

Combining the motor and ESC in one setup makes it a convenient upgrade for compatible 1/10 scale RC vehicles. With 130A continuous current, adjustable settings and selectable racing or drifting modes, it offers flexibility for different driving styles and applications.
