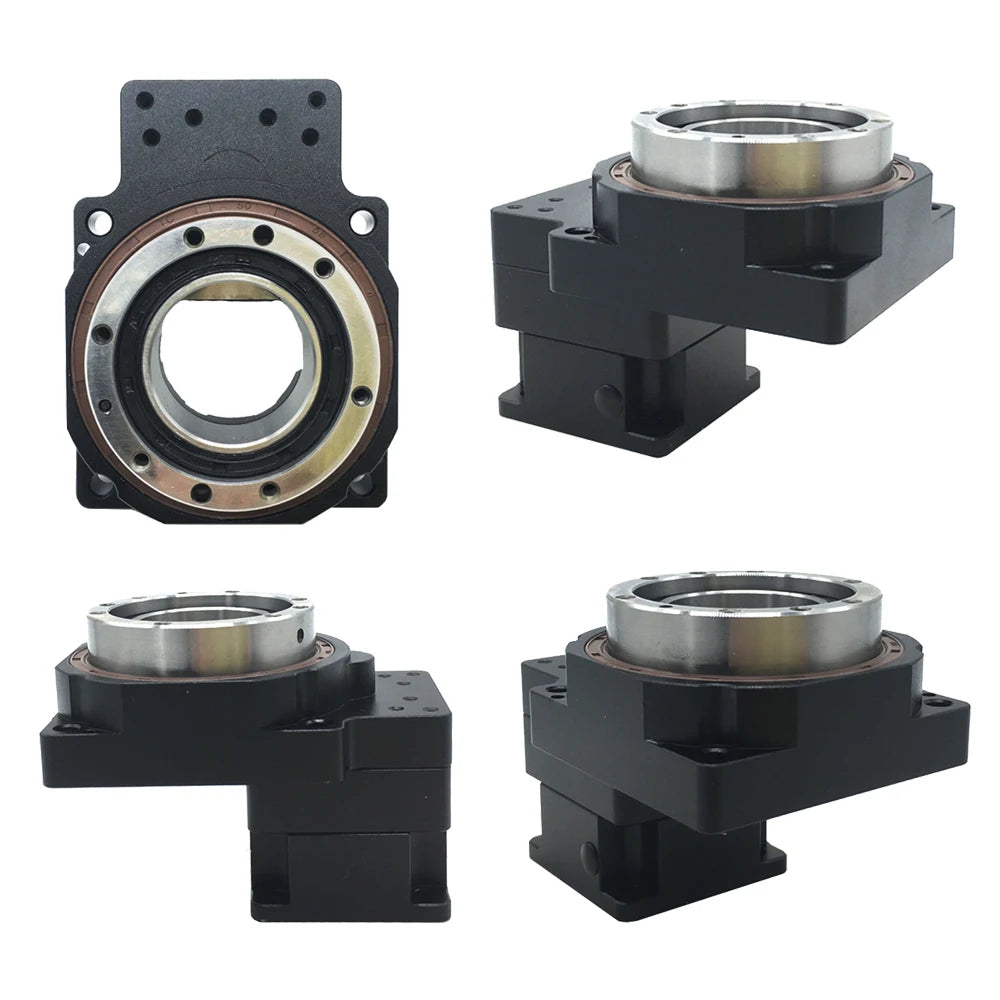

10:1 Precision Hollow Rotary Positioner for NEMA23 Motors

Achieve exceptional positioning accuracy with this 10:1 Precision Hollow Rotary Positioner for NEMA23 Motors. Engineered for industrial automation and motion control applications, it provides smooth rotary movement, high rigidity, and reliable repeatability for demanding manufacturing and engineering tasks.

Whether used in CNC equipment, robotic systems, vision inspection, or precision assembly, this rotary platform helps improve efficiency and positioning accuracy while simplifying mechanical integration.

Key Features

• Precision 10:1 Gear Reduction – Delivers smooth, controlled rotation with excellent torque transmission.
• Compatible with NEMA23 Motors – Designed to integrate with standard NEMA23 stepper motors.
• Large Hollow Shaft Design – Simplifies cable management, pneumatic tubing, and rotary fixture installation.

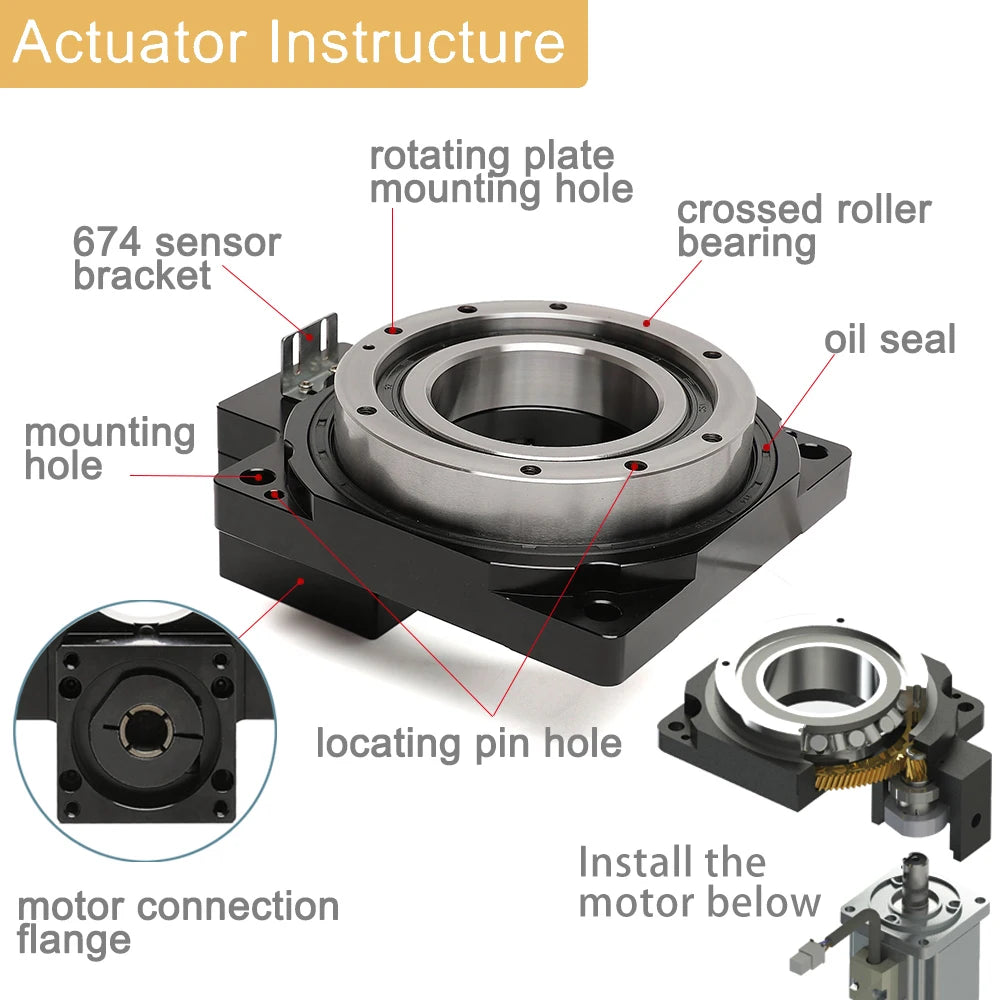

• Cross Roller Bearing System – Offers high rigidity, excellent stability, and resistance to side loads.

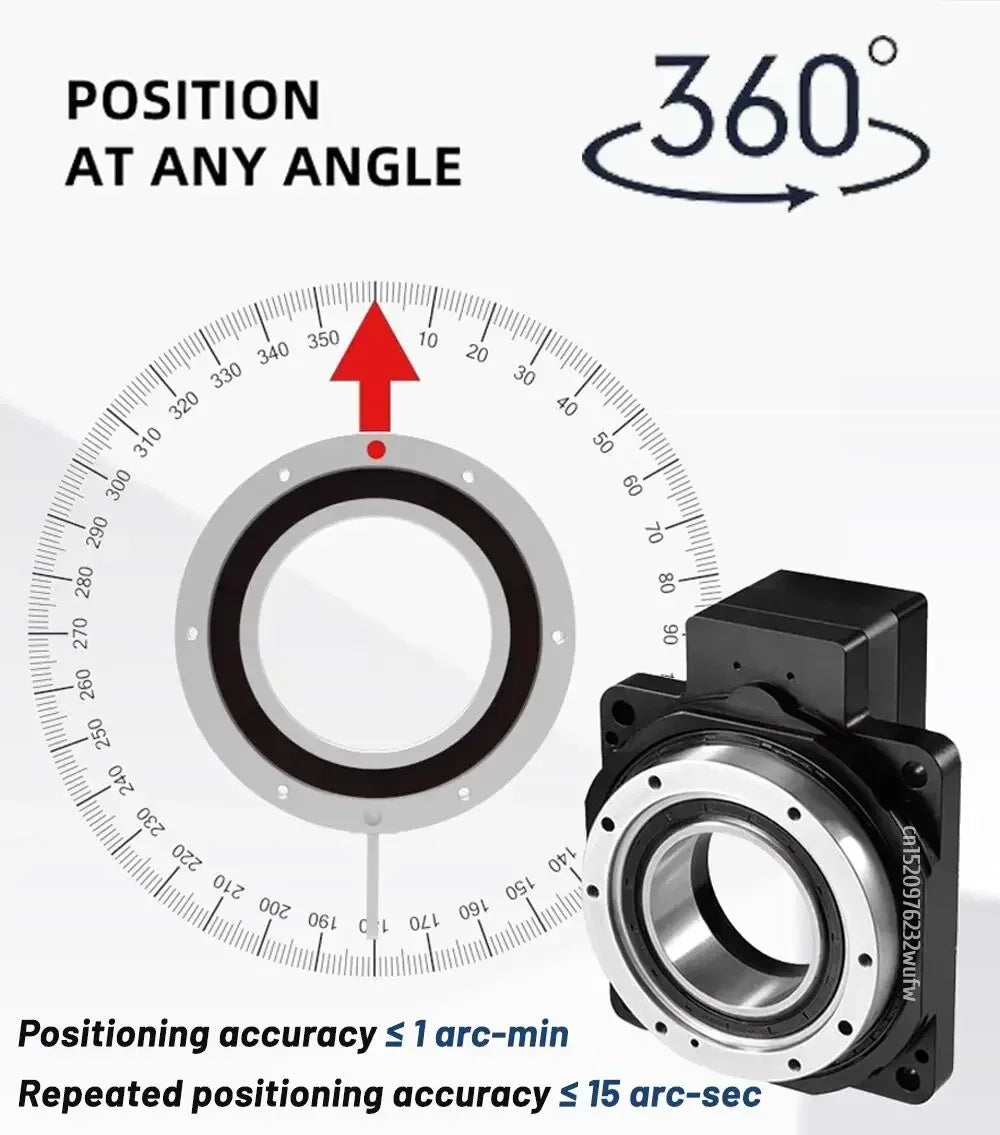

• Ultra-High Positioning Precision – Positioning accuracy below 1 arc-minute with repeatability under 15 arc-seconds.
• Low Backlash Construction – Adjustable gear design minimises backlash for precise motion control.
• High-Strength CNC Aluminium Body – Lightweight yet durable construction for industrial environments.
• Long-Life Lubrication – Factory-lubricated for reliable, low-maintenance operation.
• Versatile Mounting Options – Suitable for multiple installation orientations.
• Ideal for Automation Systems – Perfect for robotics, indexing tables, laser processing, packaging equipment, machine tools, and inspection systems.

Specifications

• Product Type: Hollow Rotary Positioner
• Motor Compatibility: NEMA23 Stepper Motor
• Speed Ratio: 10:1
• Through-Hole Diameter: 33mm
• Positioning Accuracy: Less than 1 Arc-Minute
• Repeat Positioning Accuracy: Less than 15 Arc-Seconds
• Maximum Axial Load: 500N
• Bearing Type: Cross Roller Bearing
• Transmission Efficiency: 95%
• Protection Rating: IP50
• Installation Method: Multi-Directional
• Lubrication: Long-Life Internal Lubrication

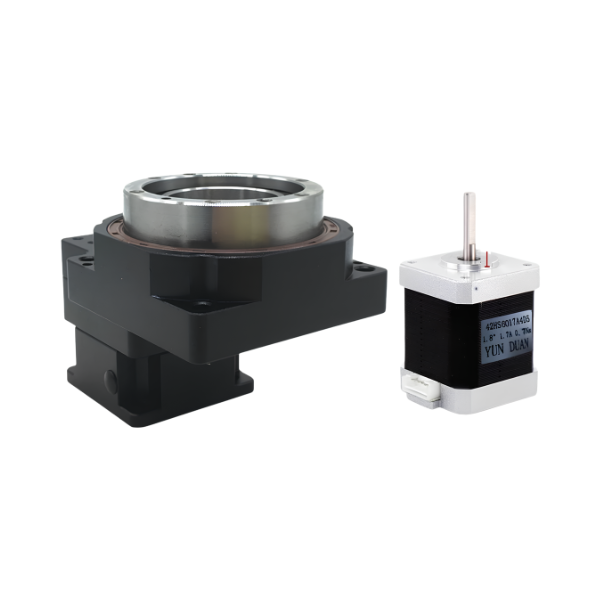

Package Contents

• 1 × TS060 Hollow Rotating Platform (Speed ratio 10 to 1)

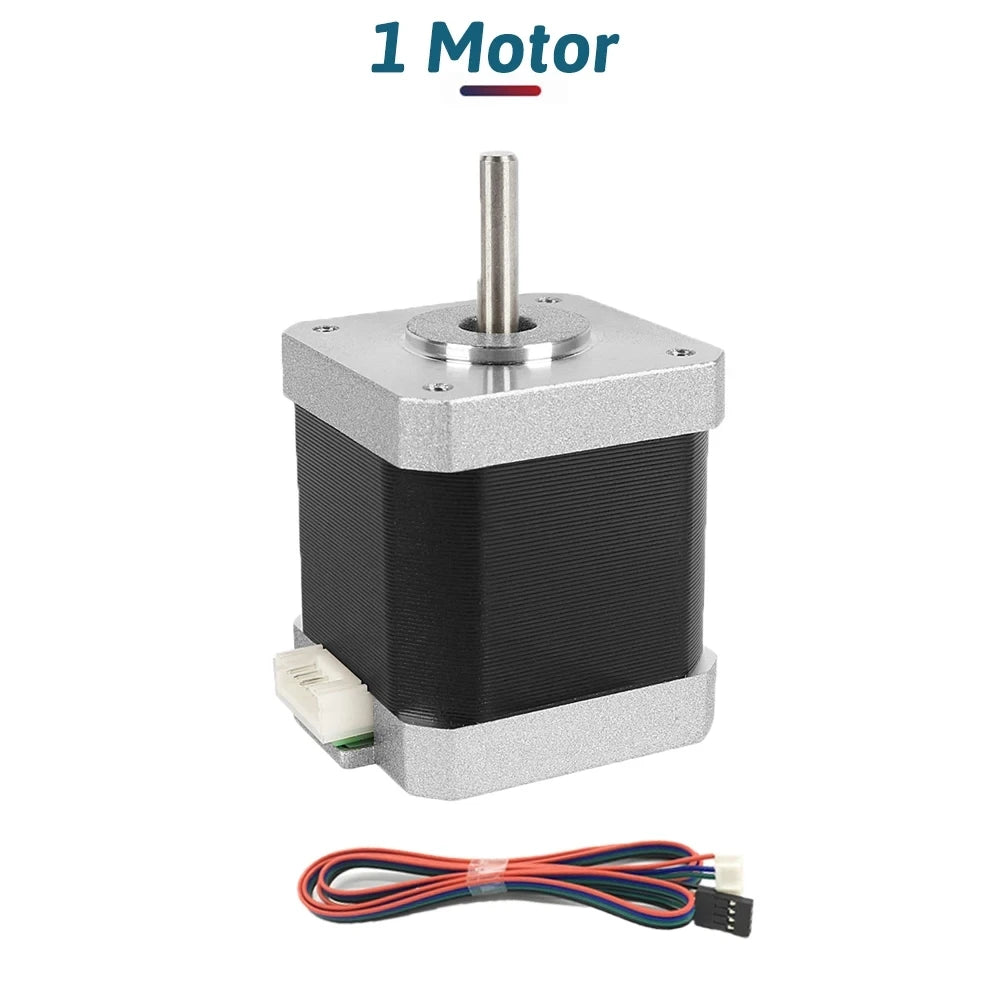

• 1 × Nema 17 0.7Nm Stepper Motor

What Makes This a Smart Buy:

Designed for demanding automation applications, this precision rotary positioner delivers exceptional accuracy, rigidity, and long-term reliability. Its hollow-shaft design and high load capacity make it an ideal upgrade for engineers and machine builders seeking precise rotary motion with minimal maintenance.
