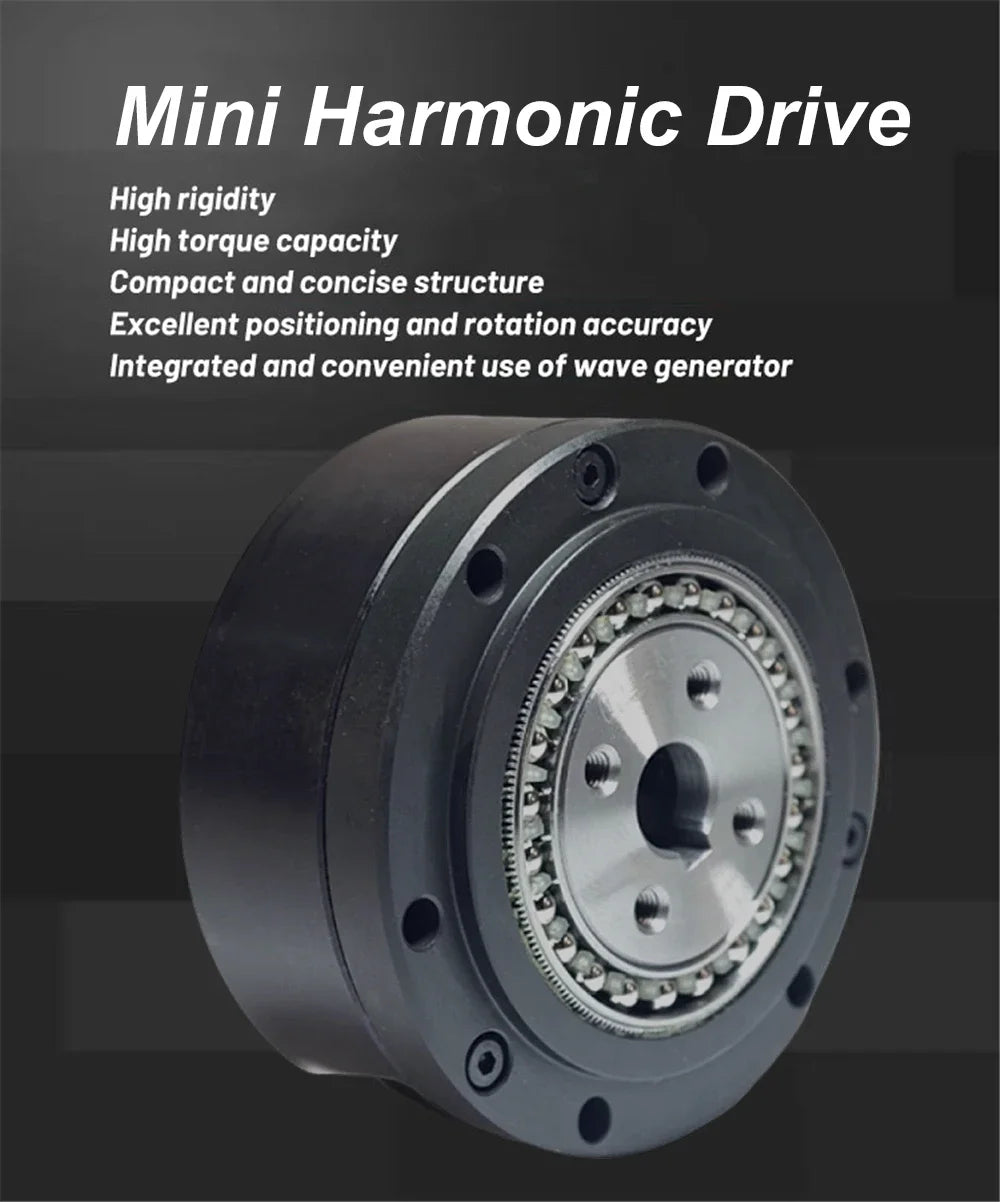

100:1 Harmonic Drive Reducer ZXZ14 High Precision Low Noise

A high-precision harmonic gearbox designed for ultra-smooth motion control in robotics and advanced automation systems. Engineered for accuracy and compact performance, it delivers exceptional torque transmission with minimal backlash, making it ideal for robotic joints, CNC systems, and precision positioning equipment.

Key Features

• Ultra-precise harmonic drive with ≤30 arcsec backlash
• High reduction ratio for strong torque in compact design
• Smooth, low-noise operation with no gear impact
• High load capacity with multi-tooth simultaneous engagement
• Lightweight structure ideal for robotic arm integration
• Stable performance for continuous precision motion control
• Suitable for CNC, automation, and robotic systems
• High transmission efficiency with long service life

Specifications

• Model: ZXZ14
• Gear Ratio: 100:1
• Backlash: ≤30 arcsec
• Gearing Type: Harmonic (strain wave)
• Shaft Size: 8mm standard (11mm optional)
• Input Speed: Up to 8500 rpm (max), 3500 rpm rated
• Material: Precision alloy housing
• Weight: Lightweight industrial design
• Torque Capacity: High-torque precision output (varies by load stage)
• Operating Principle: Strain wave gear transmission
• High-concerned chemical: None

Package Contents

• 1 × Harmonic Reducer (ZXZ14, 100:1)

What Makes This a Smart Buy:
This reducer delivers exceptional positioning accuracy and smooth motion control in a compact form. Its ultra-low backlash and high torque efficiency make it a powerful upgrade for robotics and precision automation where performance and reliability are critical.
