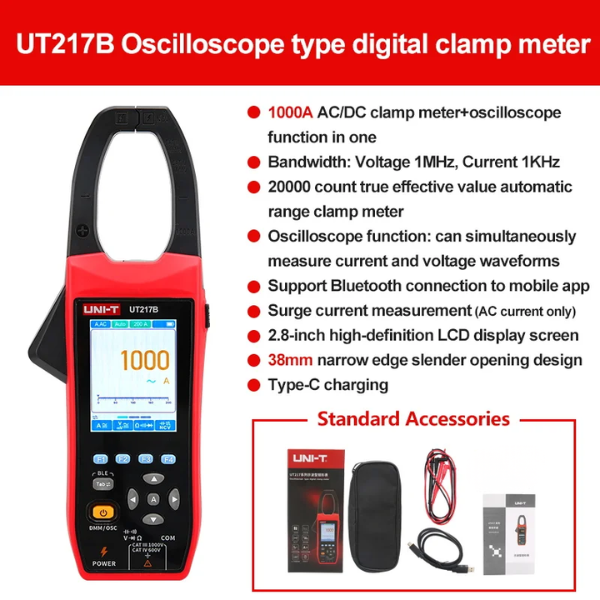

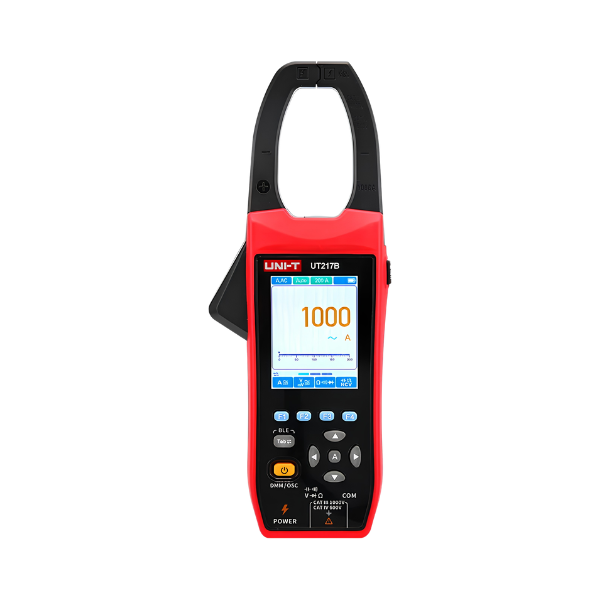

1000A Bluetooth Digital Clamp Meter with Oscilloscope

Take professional electrical testing to the next level with this 1000A Bluetooth Digital Clamp Meter with Oscilloscope. Combining a high-capacity True RMS clamp meter and a built-in oscilloscope, it allows electricians, technicians, and engineers to diagnose electrical systems with speed, accuracy, and confidence.

Ideal for industrial maintenance, automotive diagnostics, renewable energy systems, and electrical installations, this all-in-one tool simplifies complex measurements while delivering reliable performance in the field.

Key Features

• 1000A AC/DC Current Measurement – Measures high-current electrical systems safely without disconnecting wiring.
• Integrated Oscilloscope – View voltage and current waveforms for advanced troubleshooting and signal analysis.
• True RMS Accuracy – Delivers precise readings for both linear and non-linear electrical loads.

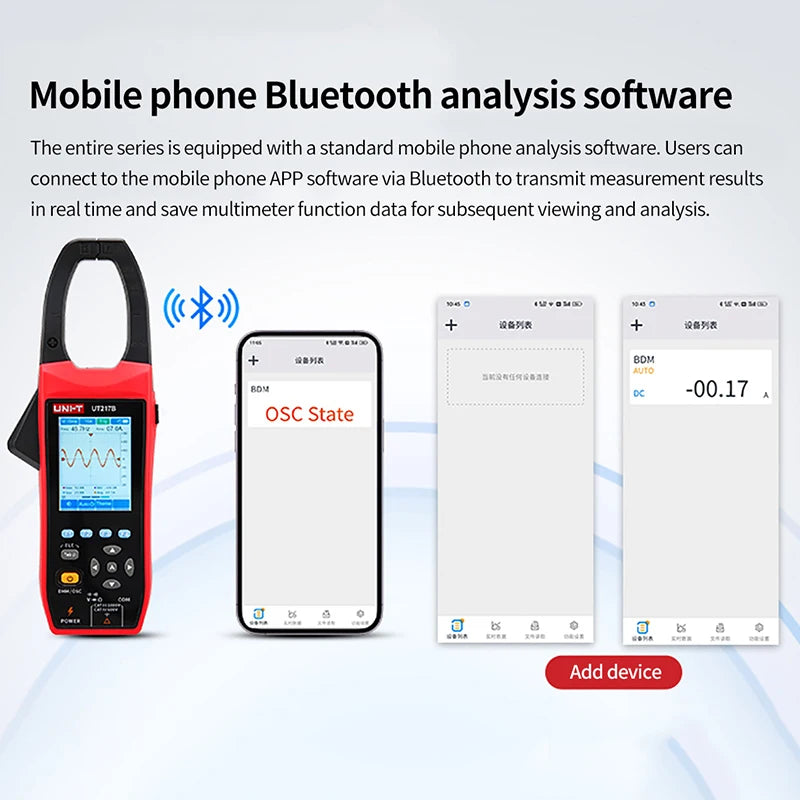

• Bluetooth Connectivity – Wirelessly sync measurement data to your smartphone for remote monitoring, recording, and CSV export.
• 2.8-Inch HD LCD Display – Large colour display with dual viewing themes for excellent readability in various lighting conditions.
• 1000V AC/DC Voltage Measurement – Suitable for a wide range of residential, commercial, and industrial applications.

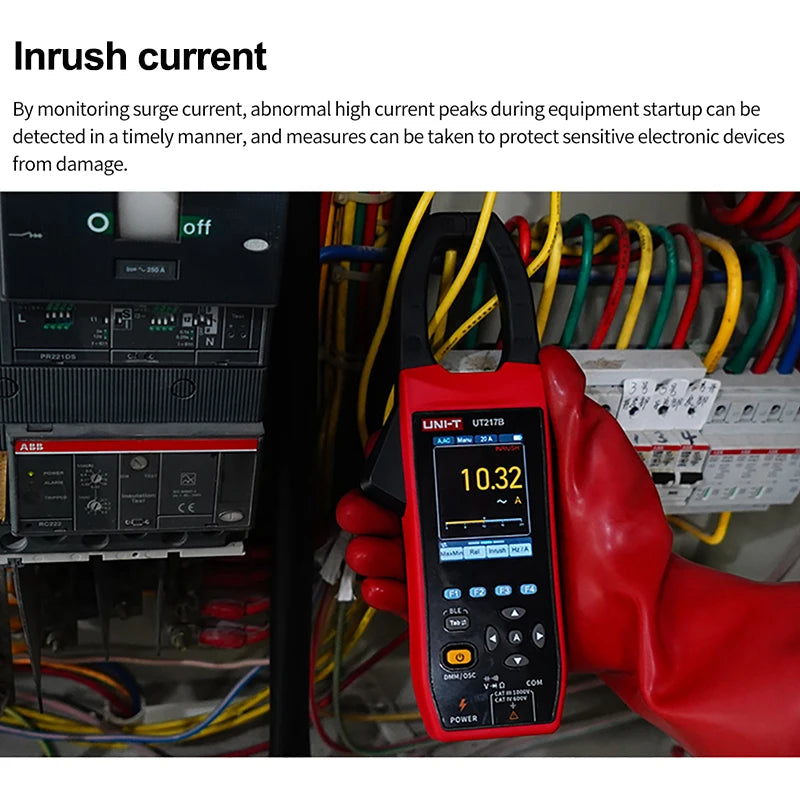

• Inrush Current Testing – Captures startup current for motors, compressors, and electrical equipment.

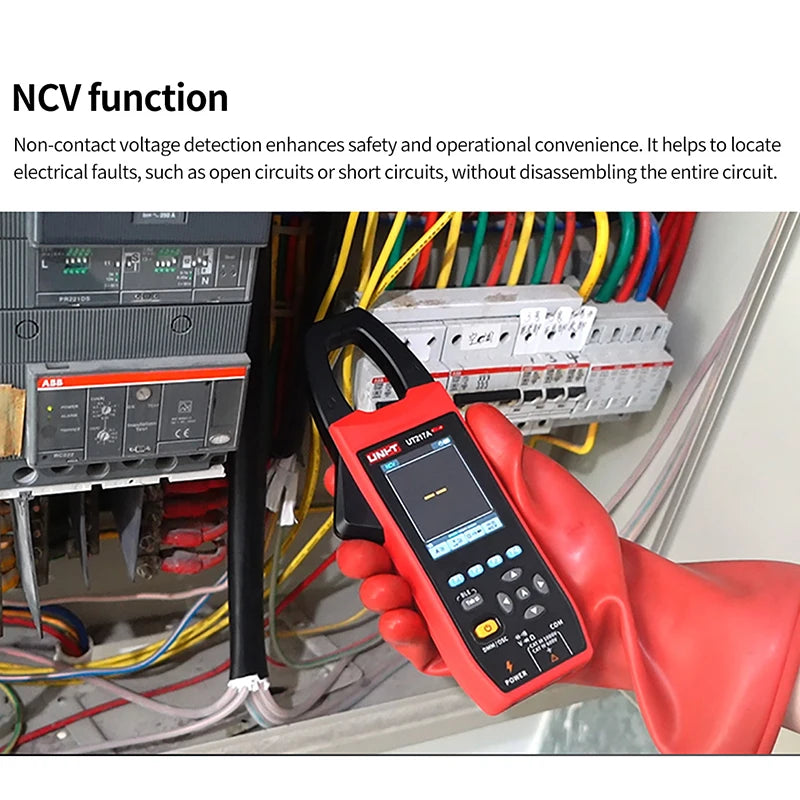

• Non-Contact Voltage (NCV) Detection – Quickly identifies live circuits without direct contact.
• Comprehensive Testing Functions – Measures resistance, capacitance, frequency, continuity, diode testing, duty cycle, and more.
• 5.0 MSa/s Real-Time Sampling – Provides accurate waveform capture for detailed signal analysis.
• Rechargeable Battery – Built-in 2600mAh lithium battery with convenient USB Type-C charging.
• Automatic Power-Off & Data Hold – Helps extend battery life while making measurements easier to record.

Specifications

• Maximum Current: 1000A AC/DC
• Maximum Voltage: 1000V AC/DC
• Display: 2.8-Inch HD LCD
• Oscilloscope Bandwidth: Voltage 1MHz / Current 1kHz
• Sampling Rate: 5.0 MSa/s
• True RMS: Yes
• Bluetooth: Yes
• Jaw Opening: 38mm
• Frequency Range: Up to 20MHz
• Resistance Range: Up to 100MΩ
• Capacitance Range: Up to 20mF
• NCV Detection: Yes
• Power Source: Built-in 3.7V 2600mAh Rechargeable Battery
• Charging Interface: USB Type-C
• Dimensions: 248 × 94.5 × 37.8mm
• Weight: Approximately 0.35kg

Package Contents

• 1 × Digital Clamp Meter with Oscilloscope (UT217A 1000A)
• 1 × USB Charging Cable
• 1 × Test Leads
• 1 × Cloth Bag
• 1 × User Manual

What Makes This a Smart Buy:

Combining a True RMS clamp meter, oscilloscope, Bluetooth connectivity, and advanced diagnostic functions in one portable device, this tool reduces the need to carry multiple instruments. It's an excellent choice for professionals seeking greater efficiency, precision, and convenience on every job.
