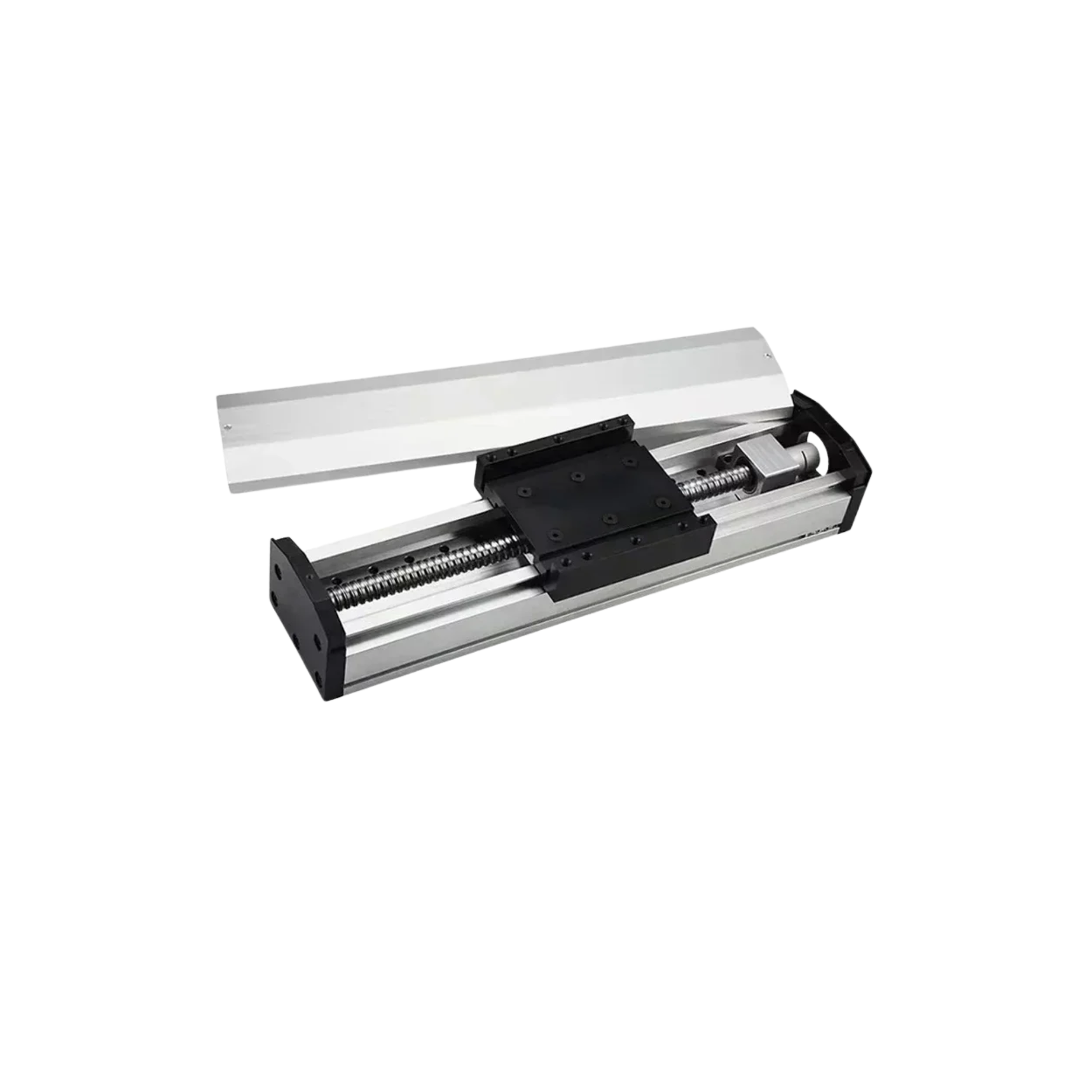

100mm Stroke Linear Slide Table with Ball Screw Drive

Upgrade your CNC setup or automation project with this precision 100mm stroke linear slide table. Designed for smooth motion and high repeatability, it’s perfect for machining, 3D printing, and other precise linear applications.

Key Features

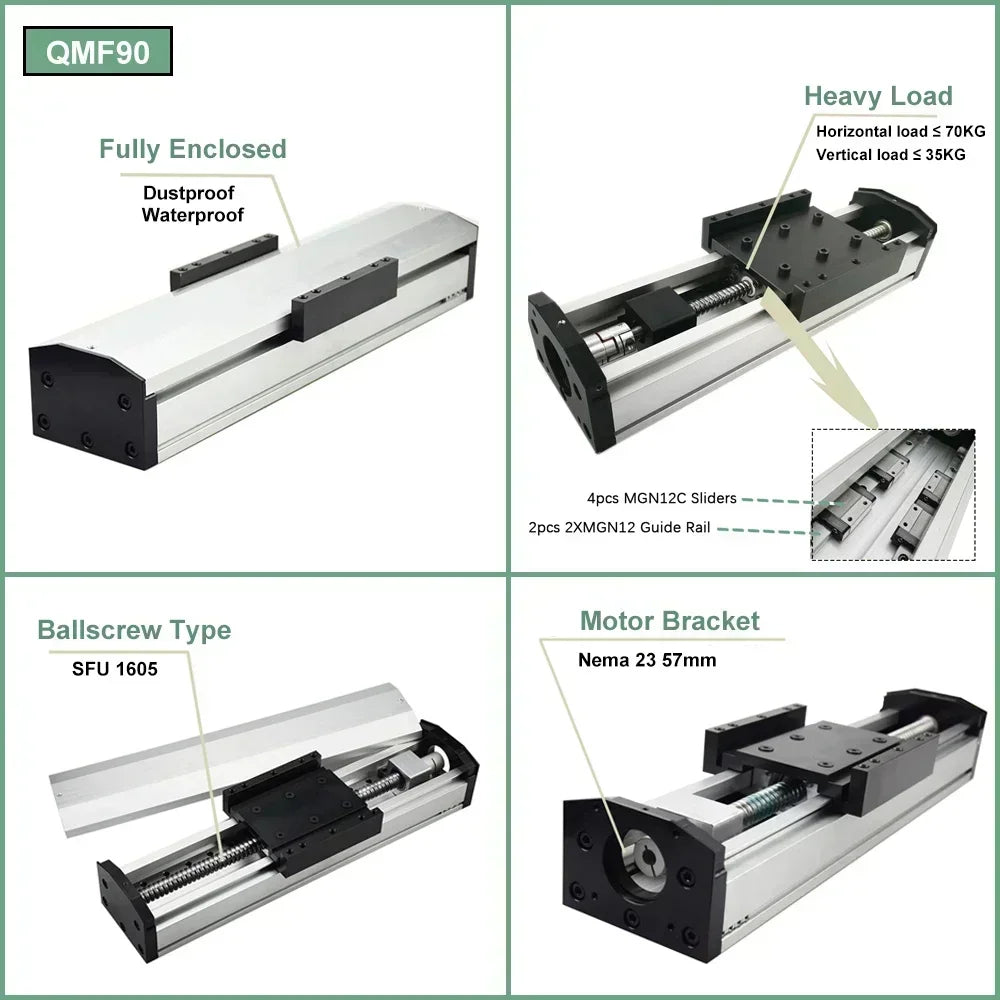

• Smooth, high-precision linear motion for CNC, robotics, and industrial projects

• Fully enclosed design protects internal components from dust and debris

• Compatible with Nema23 stepper motors and standard couplings

• Precision SFU1605 ball screw and MGN12C rails for reliable positioning

• Handles horizontal loads up to 70kg and vertical loads up to 35kg

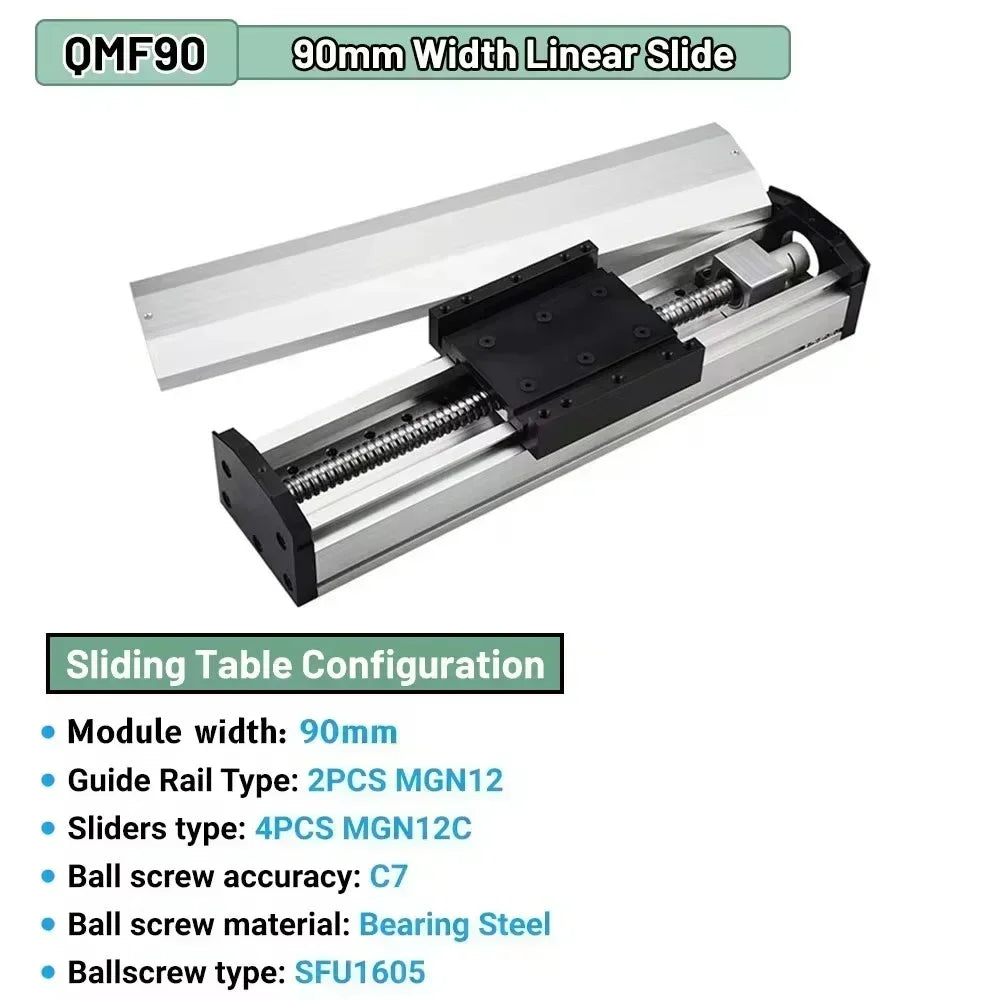

Specifications

• Ball screw accuracy: C7, type SFU1605

• Module width: 90mm, industrial aluminum profile

• Effective stroke: 100mm (adjustable to 300mm)

• Repeat positioning accuracy: 0.03–0.05mm

• Total length: Effective stroke + 170mm

• Motor bracket: Nema23 57mm stepper compatible

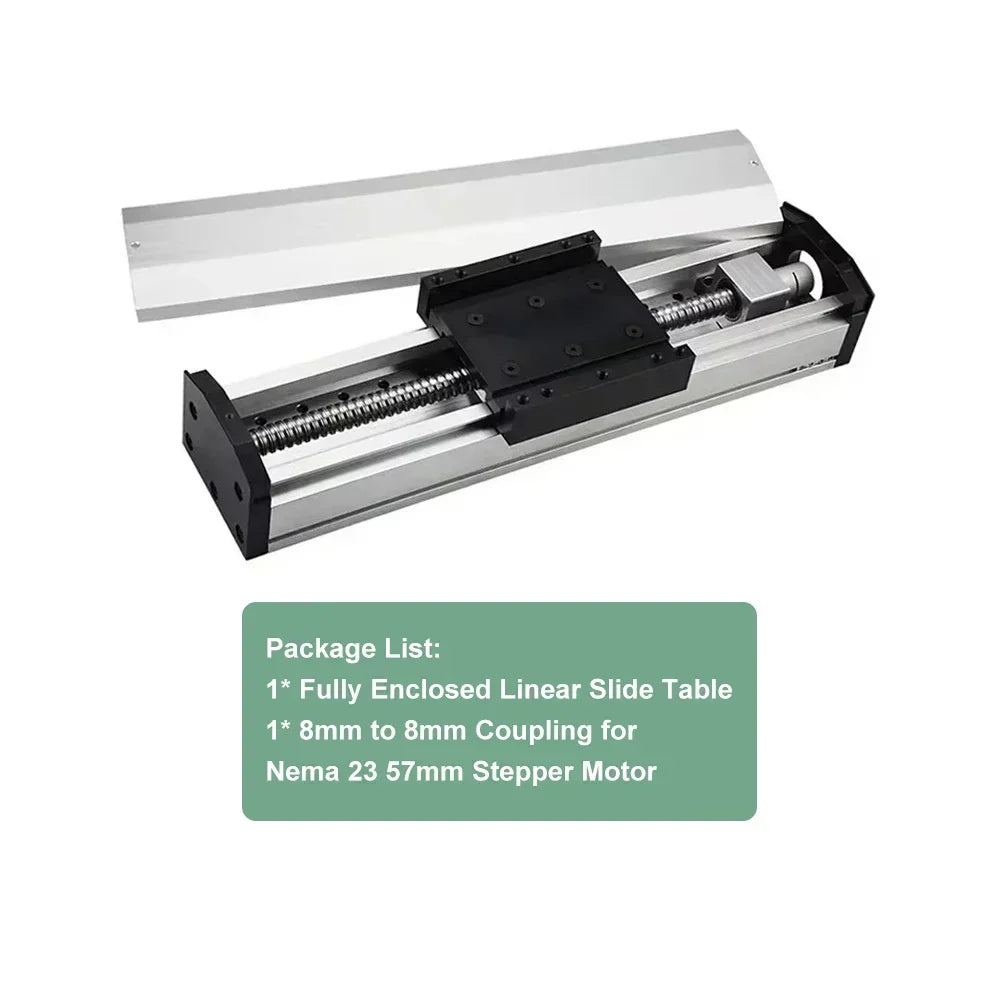

Package Contents

• 1 × Fully enclosed linear slide table (Single slide table)

• 1 × 8mm-to-8mm coupling for Nema23 motor

What Makes This a Smart Buy:
This slide table combines industrial-grade materials with precision engineering, giving you smooth, reliable motion for any project. Its modular design ensures quick installation and long-term durability.
