Achieve enhanced flexibility with the 100mm stroke CNC Z-Axis slide table. Perfect for larger milling or engraving tasks, its digital counter allows precise measurement, while the robust rails handle moderate loads with ease.
Key Features
100mm stroke for extended vertical range
Accurate digital counter for repeatable CNC positioning

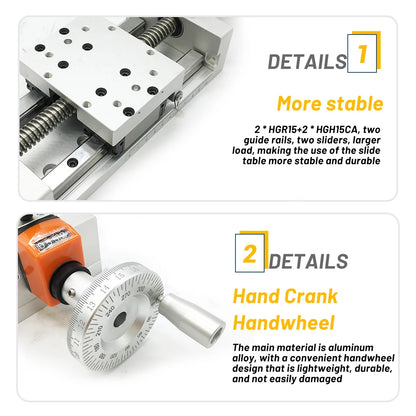

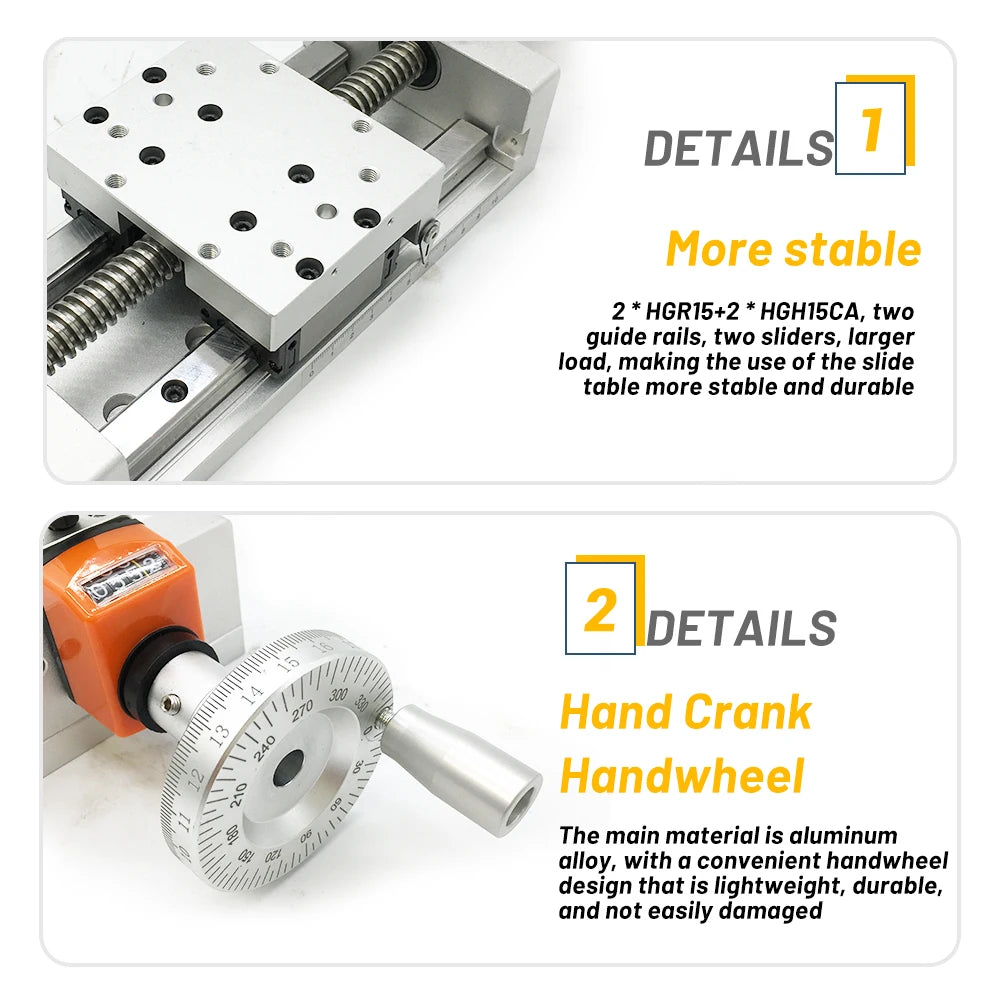

Sturdy stainless steel rails for reliable, smooth movement
Supports horizontal loads up to 98kg and vertical loads up to 48kg

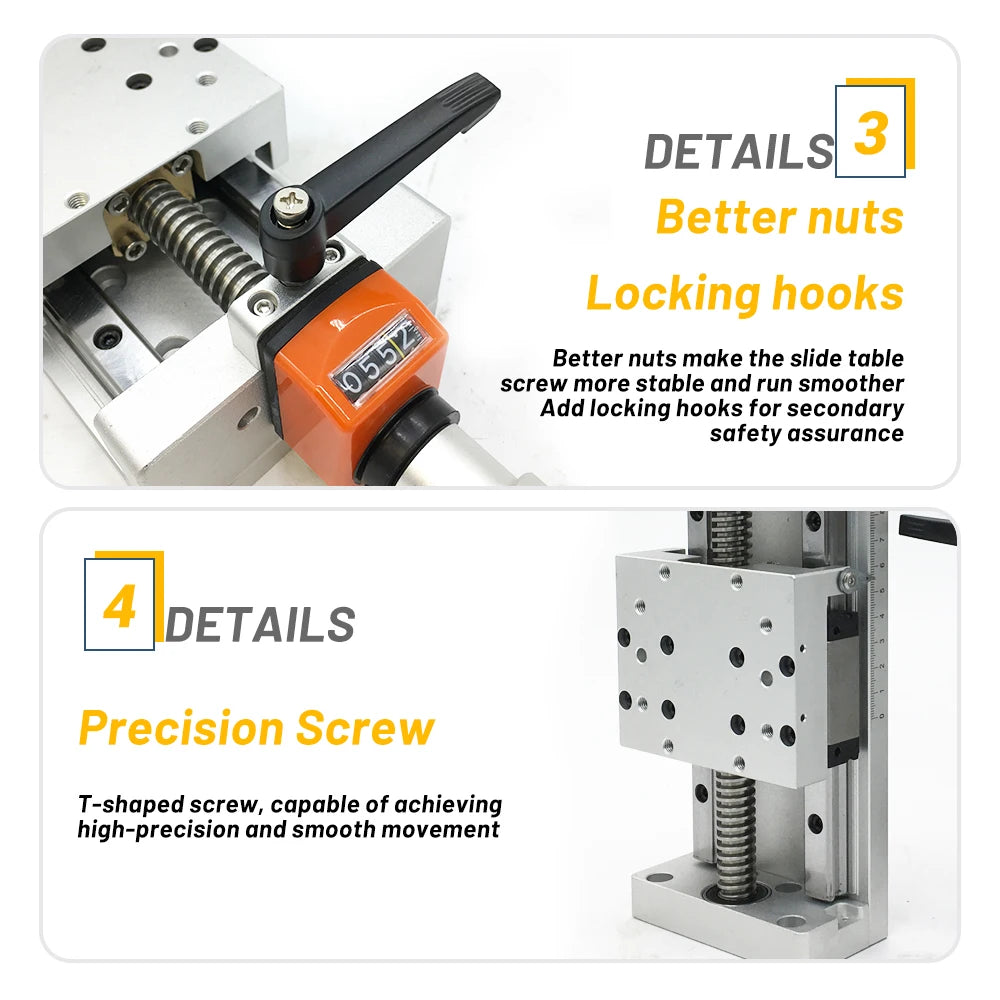

T-type 16mm lead screw with 4mm pitch for precise motion control
Specifications

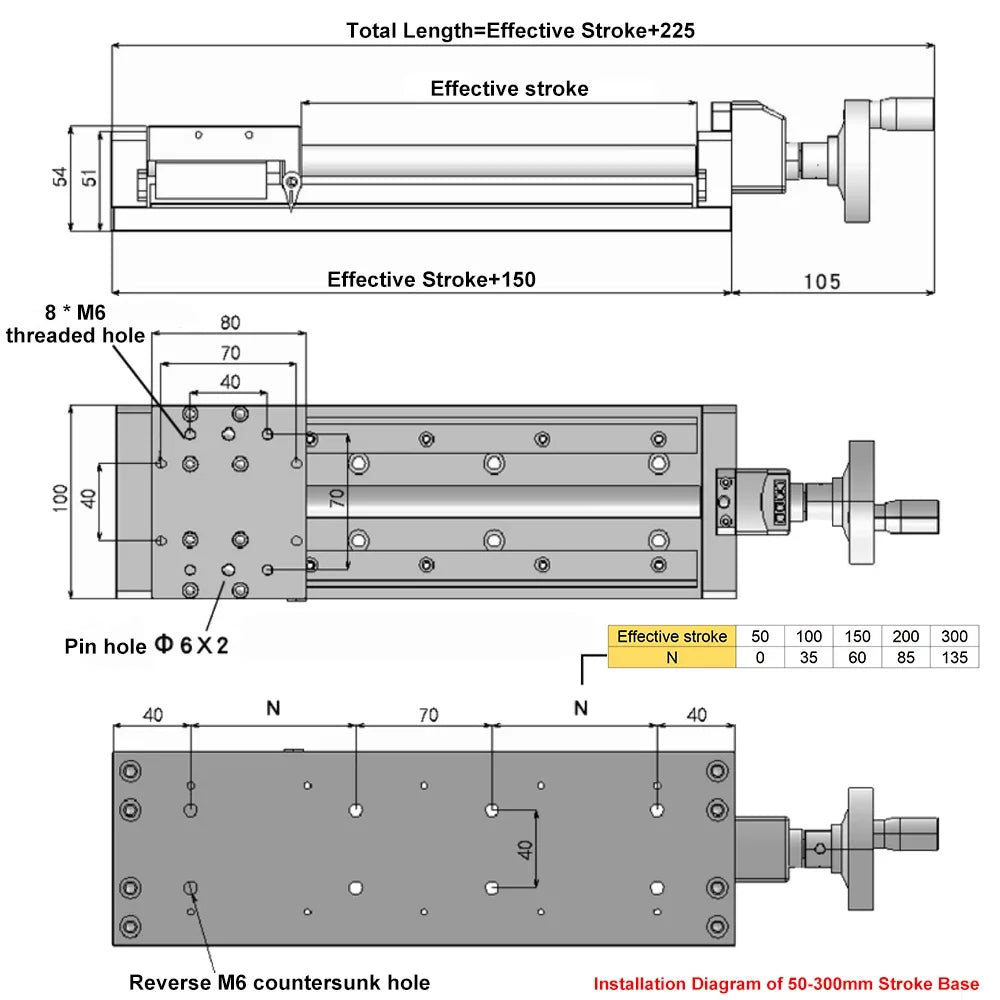

Effective Stroke: 100mm
Total Length: 325mm
Module Size: 100×80mm
Horizontal Load: 98kg; Vertical Load: 48kg

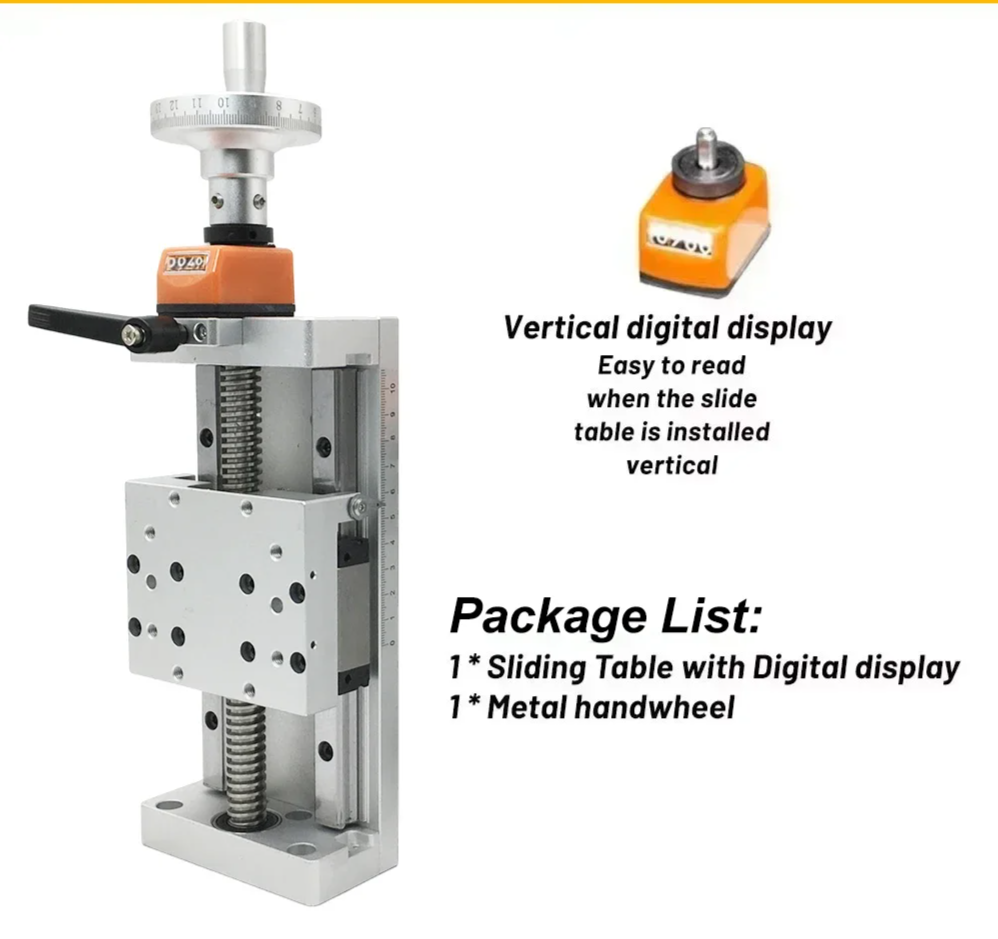

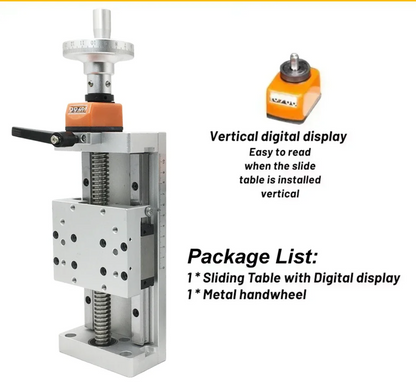

Package Contents
1× CNC Z-Axis Sliding Table with Digital Display (100mm Stroke)
1× Metal Handwheel
What Makes This a Smart Buy:
Offers a perfect balance between stroke length and load capacity, making it ideal for mid-size CNC operations with high precision demands.
