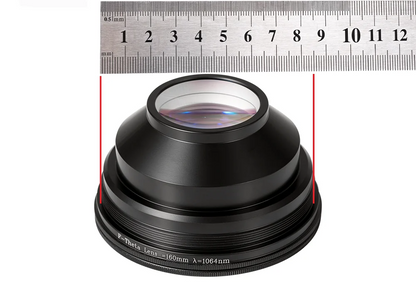

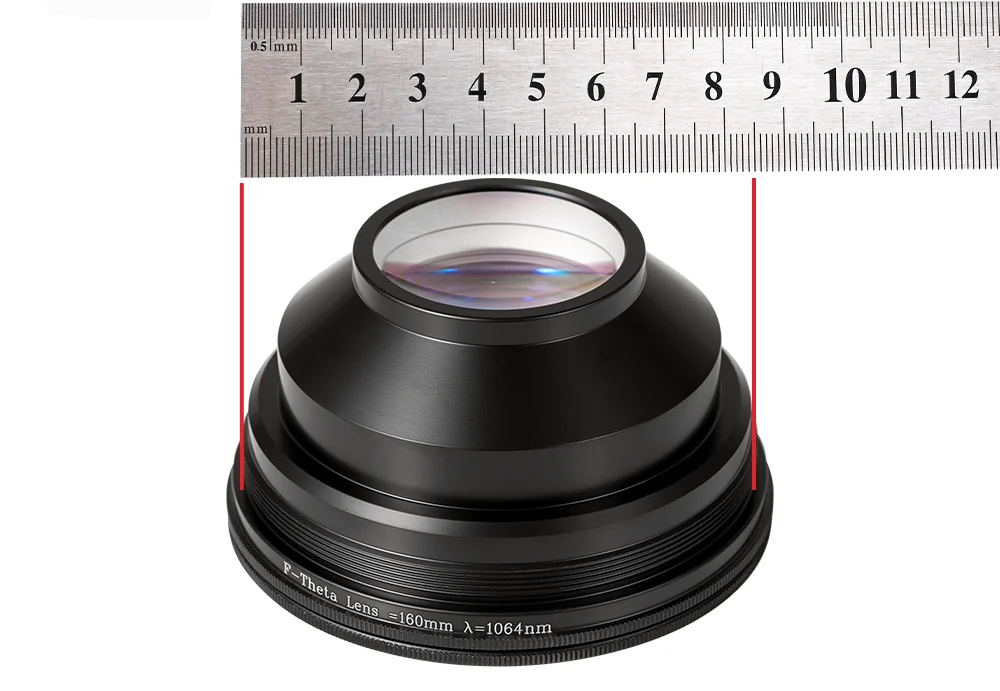

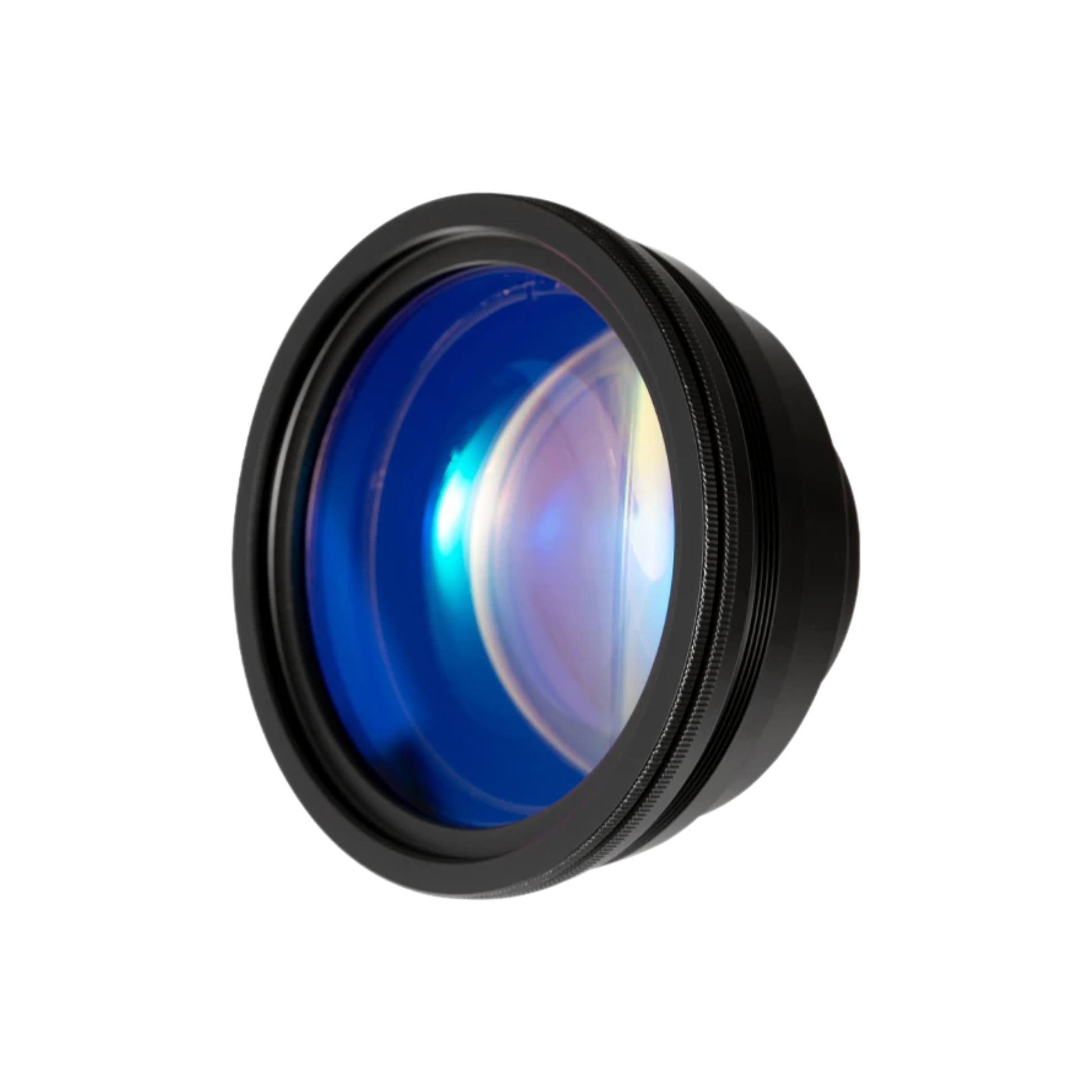

1064nm Fiber Laser Scan Lens 300x300 F420

Designed for large-format marking, this 1064nm F-Theta scan lens provides an expansive 300x300mm working area for bigger parts and batch production. Ideal for higher-powered fibre laser systems, it delivers stable focus across the entire field.

Made from high purity fused silica, it’s engineered for durability and consistent output in demanding industrial applications.

Key Features

• Large 300x300mm scan field for oversized projects

• F420 focal length for extended working distance

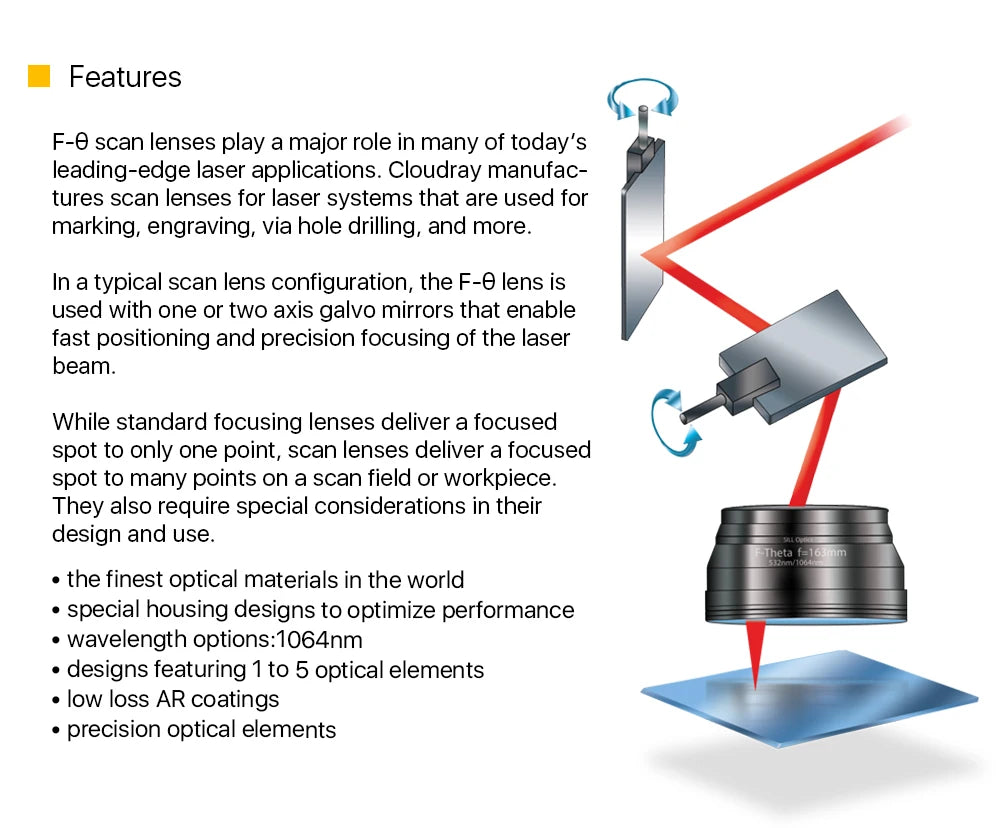

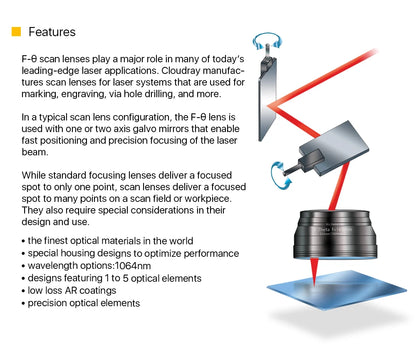

• Suitable for fibre and YAG laser galvo systems

• Recommended for machines over 50W for optimal clarity

• Fused silica construction for improved lifespan

• ±28° scan angle for consistent beam alignment

• M85 x 1 mounting thread

• Ideal for industrial marking and large surface engraving

Specifications

• Wavelength: 1064nm

• Scan Field: 300x300mm

• Focal Length: 420mm

• Material: High Purity Fused Silica

• Mount Thread: M85 x 1

• Scan Angle: ±28°

• Application: Laser Marking Machine

Package Contents

• 1 x 1064nm Fiber Laser Scan Lens 300x300 F420

What Makes This a Smart Buy:
If you need a larger engraving area without sacrificing consistency, this lens is a practical solution. It’s perfect for workshops handling bigger components or batch jobs, giving you flexibility and efficiency in one upgrade.
