1080P 230FPS USB3.0 Machine Vision Camera IMX577

Capture high-resolution images and fast-moving subjects with this compact USB 3.0 machine vision camera. Featuring a 12MP sensor, up to 4K/60fps recording and 1080p/230fps high-speed capture, it is well suited to industrial inspection, robotics, embedded systems and specialised imaging applications.

Key Features

• 12MP Ultra HD Imaging: Captures detailed images up to 4000 × 3000 resolution for demanding visual applications.
• High-Speed Recording: Supports up to 230fps at 1080p or 720p for smooth capture of fast-moving subjects.
• 4K Recording: Supports up to 3840 × 2160 at 60fps via USB 3.0 using MJPEG.
• Sony IMX577 Sensor: Uses a 1/2.3-inch 12MP colour CMOS sensor for detailed image capture.
• USB 3.0 Connectivity: High-speed USB 3.0 enables rapid image transmission and reliable connection to compatible devices.
• UVC Plug & Play: Driver-free UVC compatibility allows the camera to be recognised by supported systems without complicated installation.
• Adjustable Image Settings: Customise brightness, contrast, saturation, hue, sharpness, gamma, white balance, exposure and backlight compensation.
• Low-Light Performance: Minimum illumination of 0.1 lux helps capture usable images in lower-light environments.
• Compact Metal Housing: Small aluminium alloy construction makes the camera easy to integrate into equipment and specialised setups.
• Flexible Application: Suitable for machine vision, robotics, quality inspection, document imaging, laboratory observation, traffic monitoring and embedded vision projects.
• USB-C Interface: Combines power and high-speed data transmission through a compact USB Type-C connection.
• Wide System Compatibility: Supports Windows, Linux, macOS and Android platforms with compatible UVC applications.
• Mounting Flexibility: Integrated mounting points make it easier to install within custom equipment and vision systems.

Specifications

• Product Type: USB 3.0 Machine Vision Camera
• Sensor: 1/2.3-inch IMX577 Colour CMOS
• Maximum Resolution: 12MP, 4000 × 3000
• 4K Resolution: 3840 × 2160 up to 60fps
• 1080p Frame Rate: Up to 230fps
• 720p Frame Rate: Up to 230fps
• Image Formats: MJPEG / YUY2

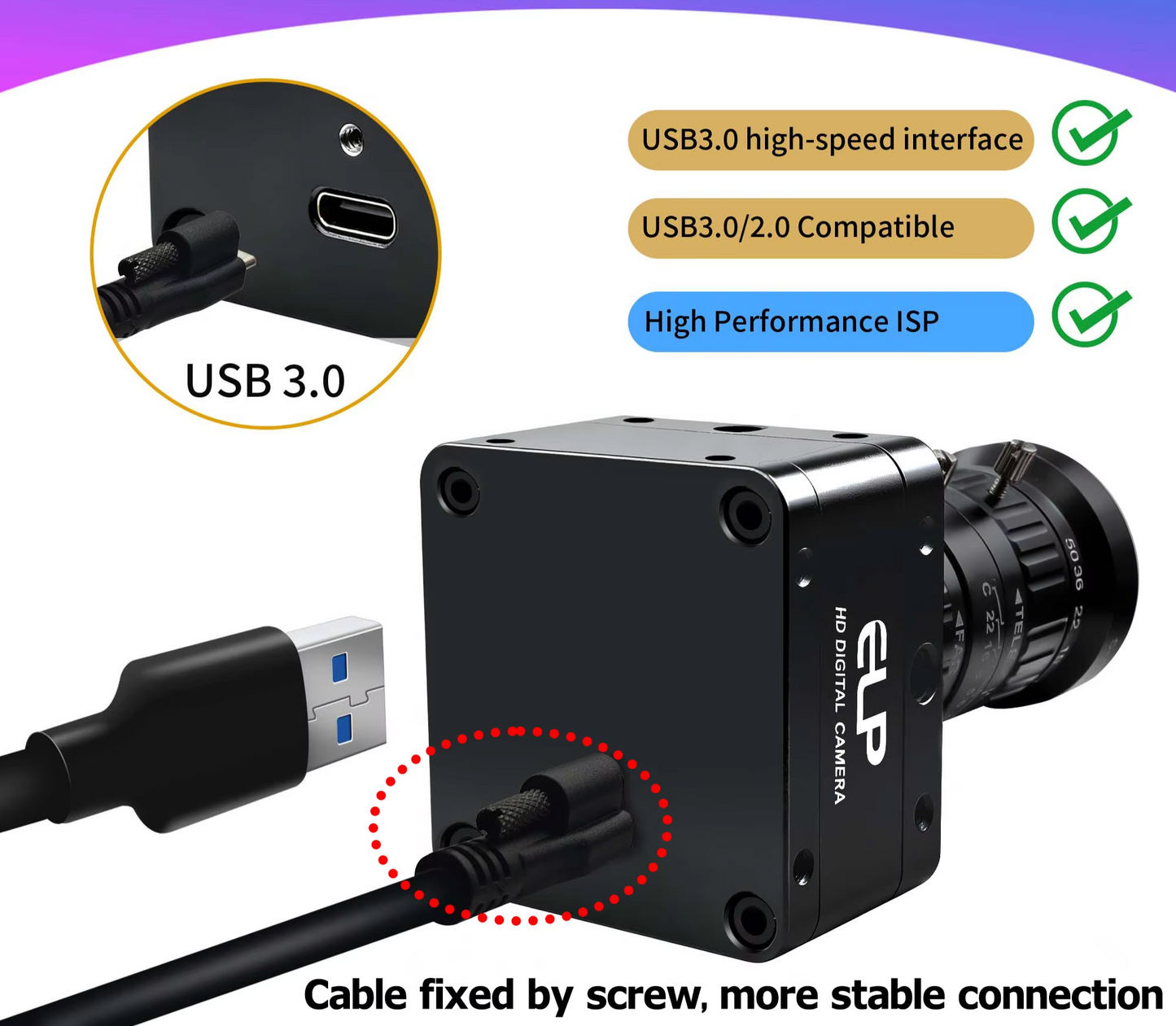

• Interface: USB 3.0 Type-C
• USB Compatibility: Backward compatible with USB 2.0
• Lens: Without lens
• Lens Mount: CS mount compatible
• Minimum Illumination: 0.1 lux
• Signal-to-Noise Ratio: 49dB
• Power Supply: DC 5V via USB
• Power Current: 180–260mA
• Housing Material: Aluminium alloy
• Camera Size: 38 × 38 × 48.8mm
• Working Temperature: -10°C to 65°C
• Storage Temperature: -20°C to 85°C
• Automatic Controls: AEC / AWB / AGC
• Supported Systems: Windows, Linux, macOS and Android
• Connection: UVC plug and play

Package Contents

• 1 × 12MP USB 3.0 Machine Vision Camera (Without Lens)
• 1 × 1.5m USB-C to USB 3.0 Type-A Cable
• 1 × User Manual

Note: This version is supplied without a lens. A compatible CS-mount lens is required for image capture.

What Makes This a Smart Buy:

With 12MP imaging, 4K/60fps capability and ultra-high-speed 1080p/230fps capture, this compact camera offers exceptional flexibility for specialised imaging projects. Its USB 3.0 interface, UVC plug-and-play design and adjustable image controls make integration straightforward across a wide range of compatible systems.
