1080p HDMI Video Mixer 2 Input 2 Output USB-C Recording

Stream, record and switch between multiple HDMI sources with this compact 1080p video mixer. Designed for live streaming, presentations, interviews, gaming and event production, it combines two HDMI inputs with flexible video output, USB-C capture and audio mixing in one versatile desktop solution.

Key Features

• 2 HDMI Inputs: Connect two cameras, laptops, game consoles or other HDMI sources
• 1080p at 60Hz: Supports Full HD input and output for smooth, clear video
• Flexible Video Output: Supports a single HDMI output or dual-output configuration depending on the selected option
• USB-C Capture and Streaming: Capture video through the Type-C 3.0 interface for compatible streaming and recording setups
• PIP Picture-in-Picture: Supports four picture-in-picture modes with adjustable image sizing
• Multiple Display Layouts: Supports side-by-side and top-and-bottom image arrangements
• Audio Mixing: Mix HDMI embedded audio with microphone or line-in audio
• HD Audio Following: Supports audio following the selected program output
• Wide Software Compatibility: Works with popular streaming and media software such as OBS Studio, PotPlayer and VLC
• UVC Capture Support: Supports YUY2 video format and UVC 1.0 for compatible capture applications
• Power-Off Settings Memory: Saves selected settings for convenient repeat use
• Compact Desktop Design: Easy to integrate into streaming desks, production setups and event equipment
• Versatile Applications: Ideal for live streaming, interviews, speeches, school presentations, event production and gaming content

Specifications

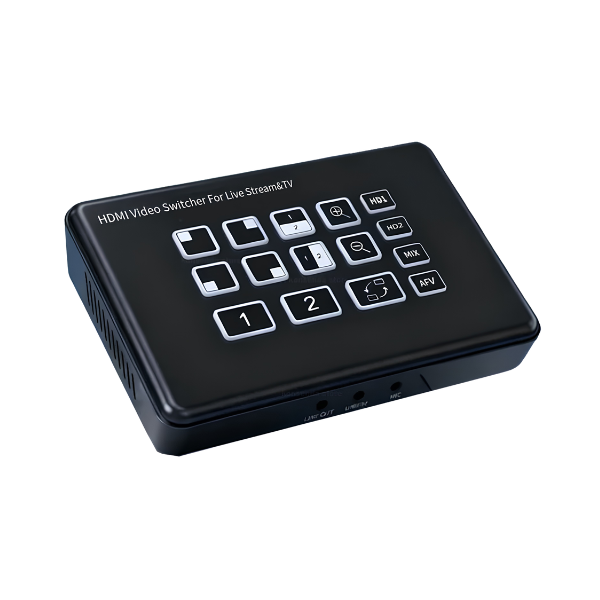

• Product Type: HDMI Video Mixer and Switcher
• HDMI Inputs: 2

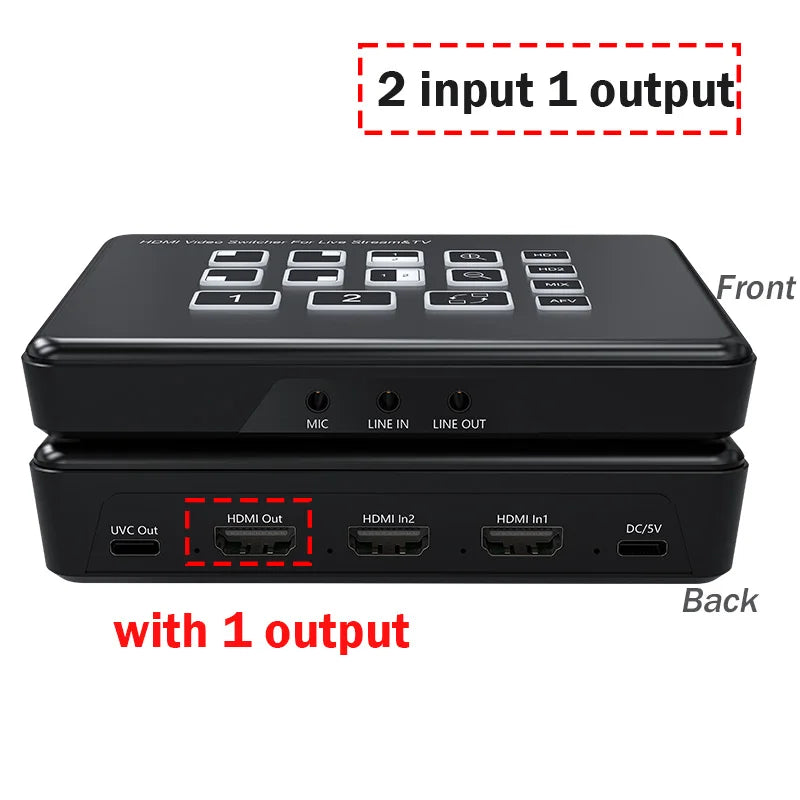

• HDMI Outputs: 1 or 2, depending on selected option
• HDMI Input Resolution: Up to 1920 × 1080 at 60Hz
• HDMI Output Resolution: Up to 1920 × 1080 at 60Hz
• USB-C Capture: Type-C 3.0
• Capture Formats: YUY2 and MJPEG
• Capture Standard: UVC 1.0
• Audio Format: PCM
• Audio Inputs: HDMI embedded audio and external microphone/line-in audio
• Picture-in-Picture: 4 PIP modes
• Maximum Bandwidth: 148.5MHz
• Maximum Transmission Rate: 1.65 × 3Gbps
• HDCP: HDCP 1.4
• Maximum Working Current: 0.8A
• Working Temperature: 0°C to 45°C
• Dimensions: Approximately 136 × 98 × 29mm

Package Contents

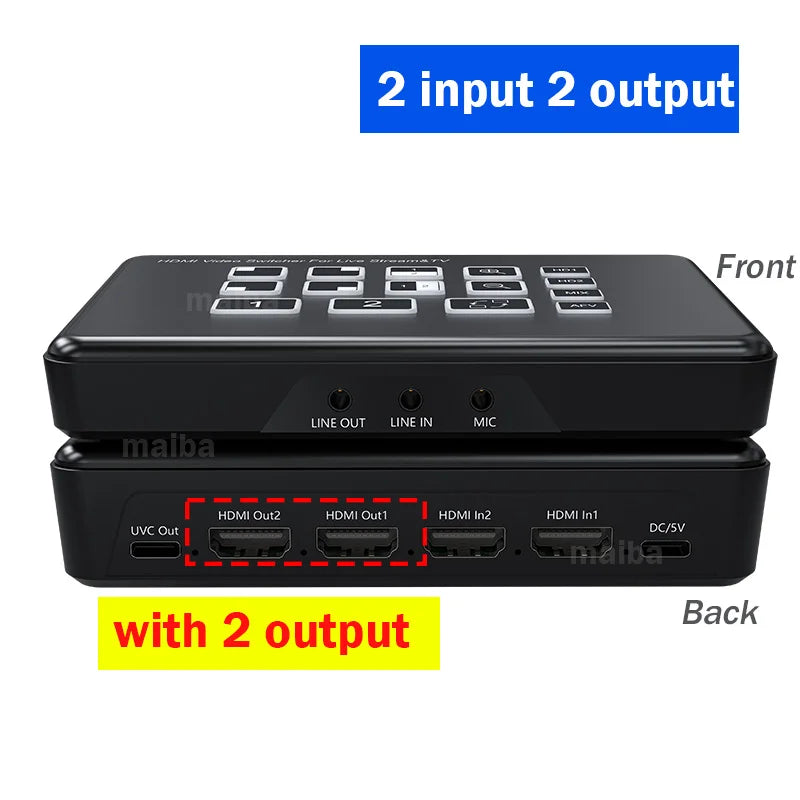

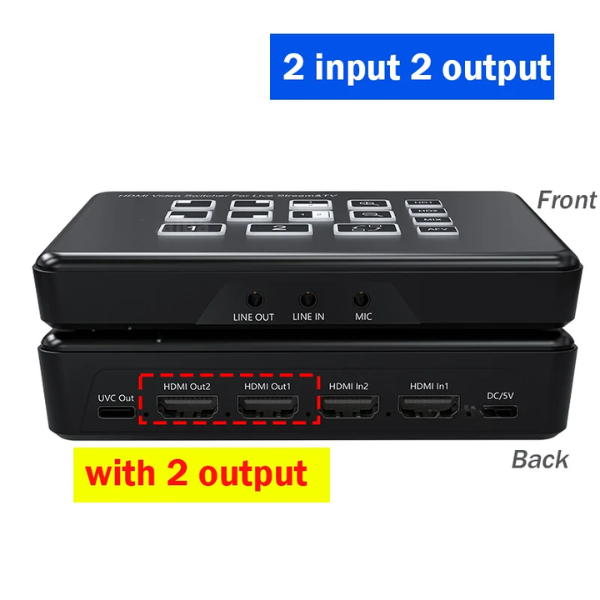

• 1 × HDMI Video Switcher (2 input 2 output)
• 1 × USB-C to USB 3.2 Cable
• 1 × Power Adapter (AU Plug)
• 1 × User Manual

What Makes This a Smart Buy:

This compact video mixer gives creators and presenters a flexible way to combine two HDMI sources, manage audio and capture Full HD video for streaming or recording. With USB-C capture, PIP layouts and broad software compatibility, it is a versatile solution for content creation, events, gaming and live production.
