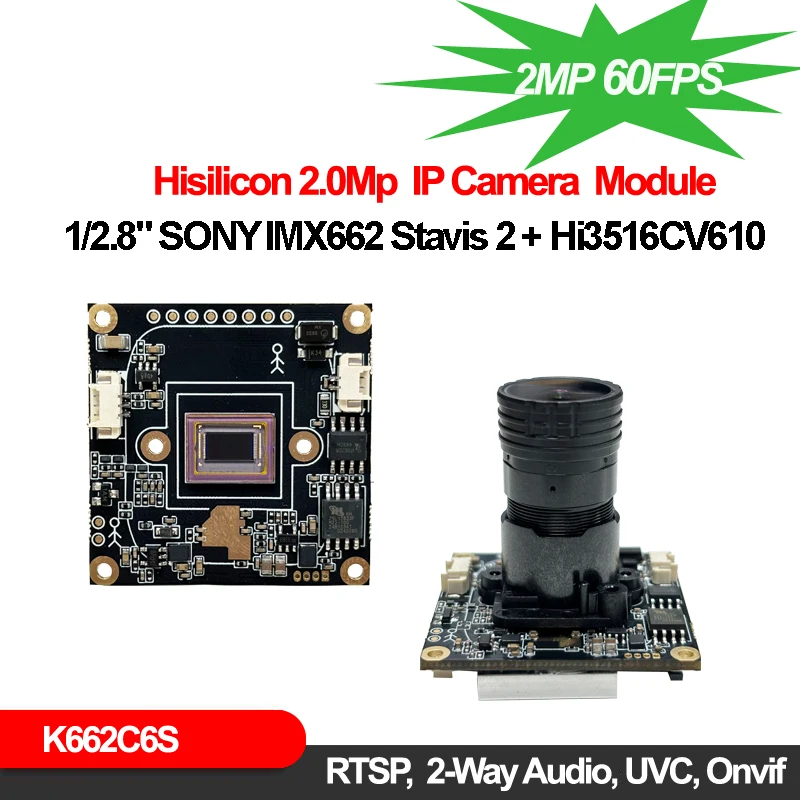

1080P IMX662 Starlight IP Camera Module 60FPS USB PoE

Capture clear, detailed video with this compact 1080p IP camera module featuring a high-sensitivity 2MP CMOS sensor and 60FPS recording. Designed for low-light performance, network integration and flexible installation, it’s a versatile choice for DIY surveillance, streaming, monitoring and custom camera projects.

Key Features

• 1080p Full HD Video: Produces sharp 2MP video for reliable monitoring and everyday recording.
• 60FPS High Frame Rate: Helps capture smoother footage and clearer movement, particularly for fast-moving subjects.

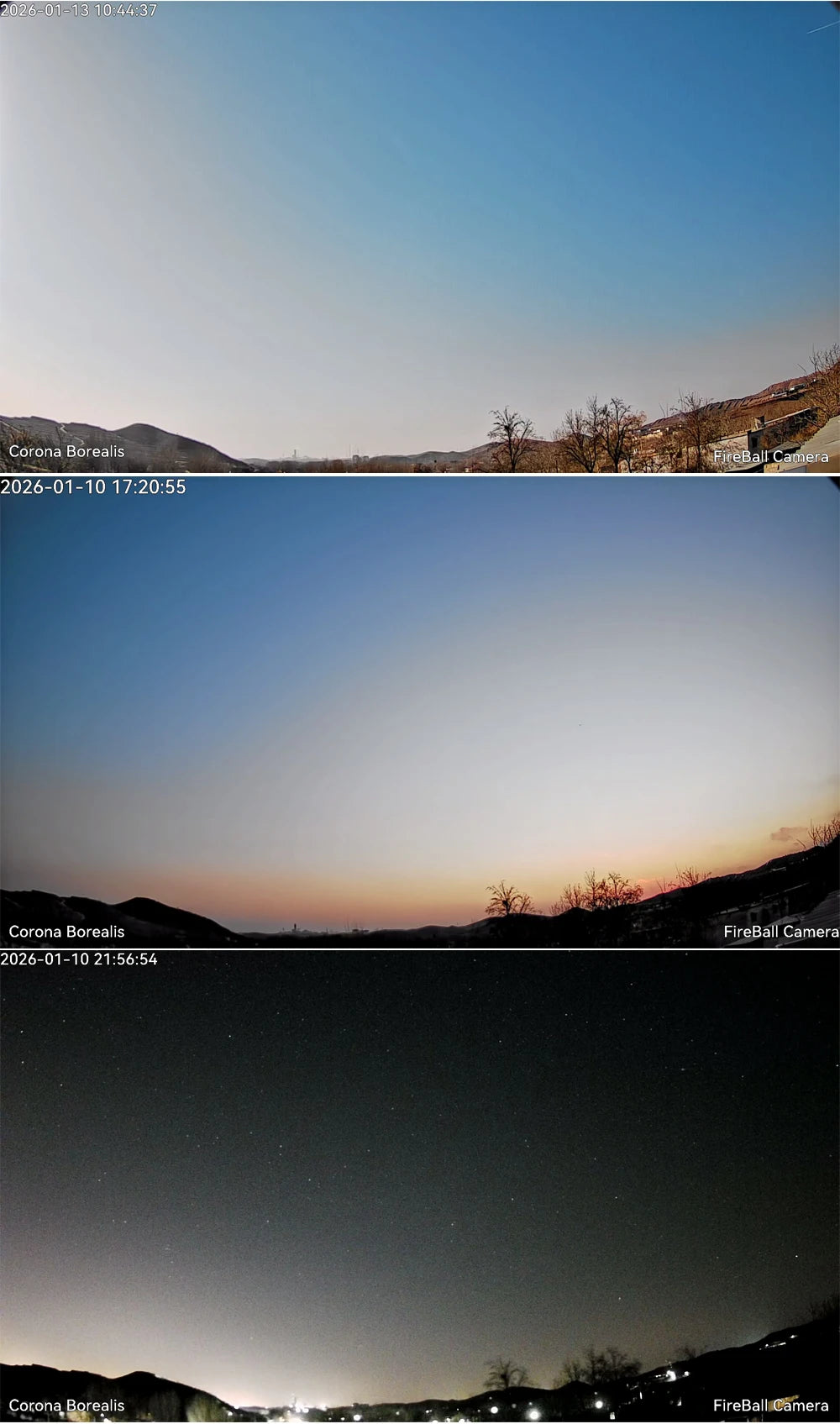

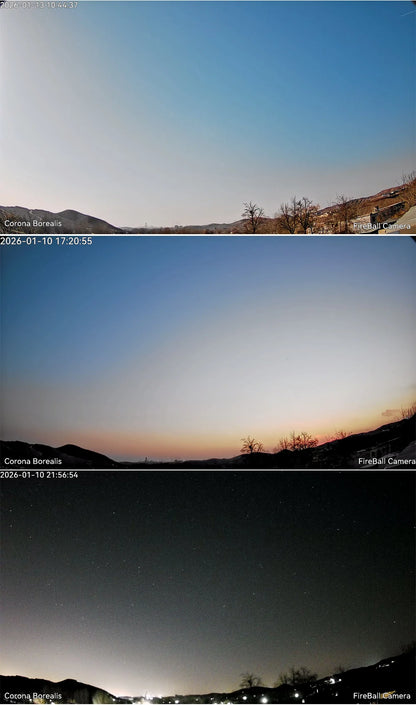

• Excellent Low-Light Performance: High sensitivity down to 0.0001 Lux enables improved image capture in very dim conditions.

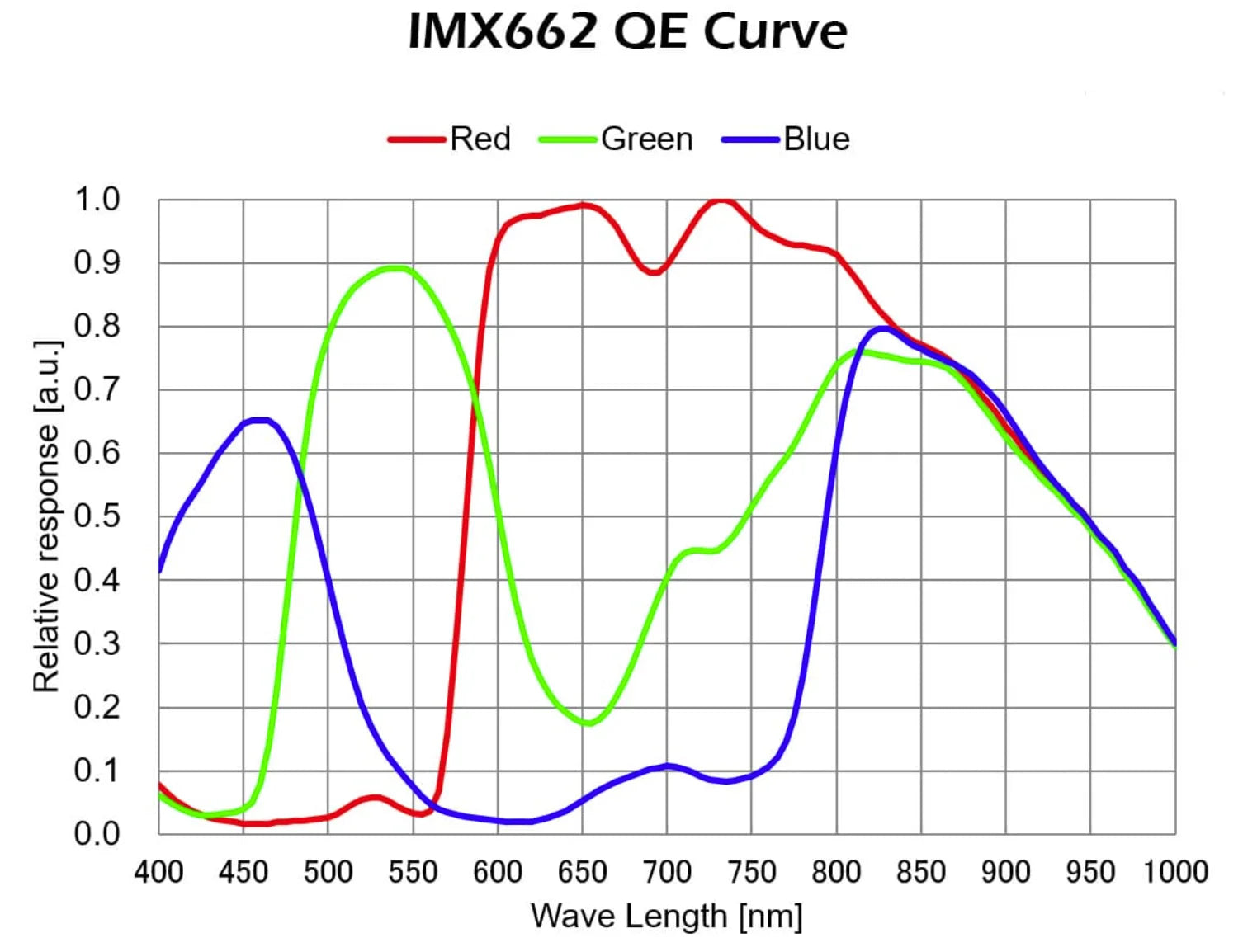

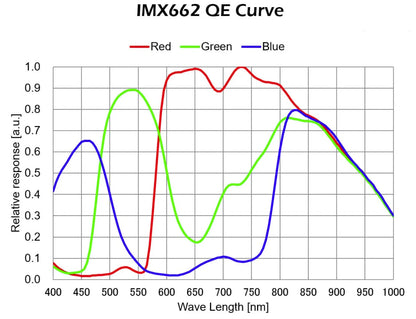

• STARVIS 2 Sensor Technology: Back-illuminated sensor design delivers enhanced sensitivity and reduced image noise in challenging lighting.

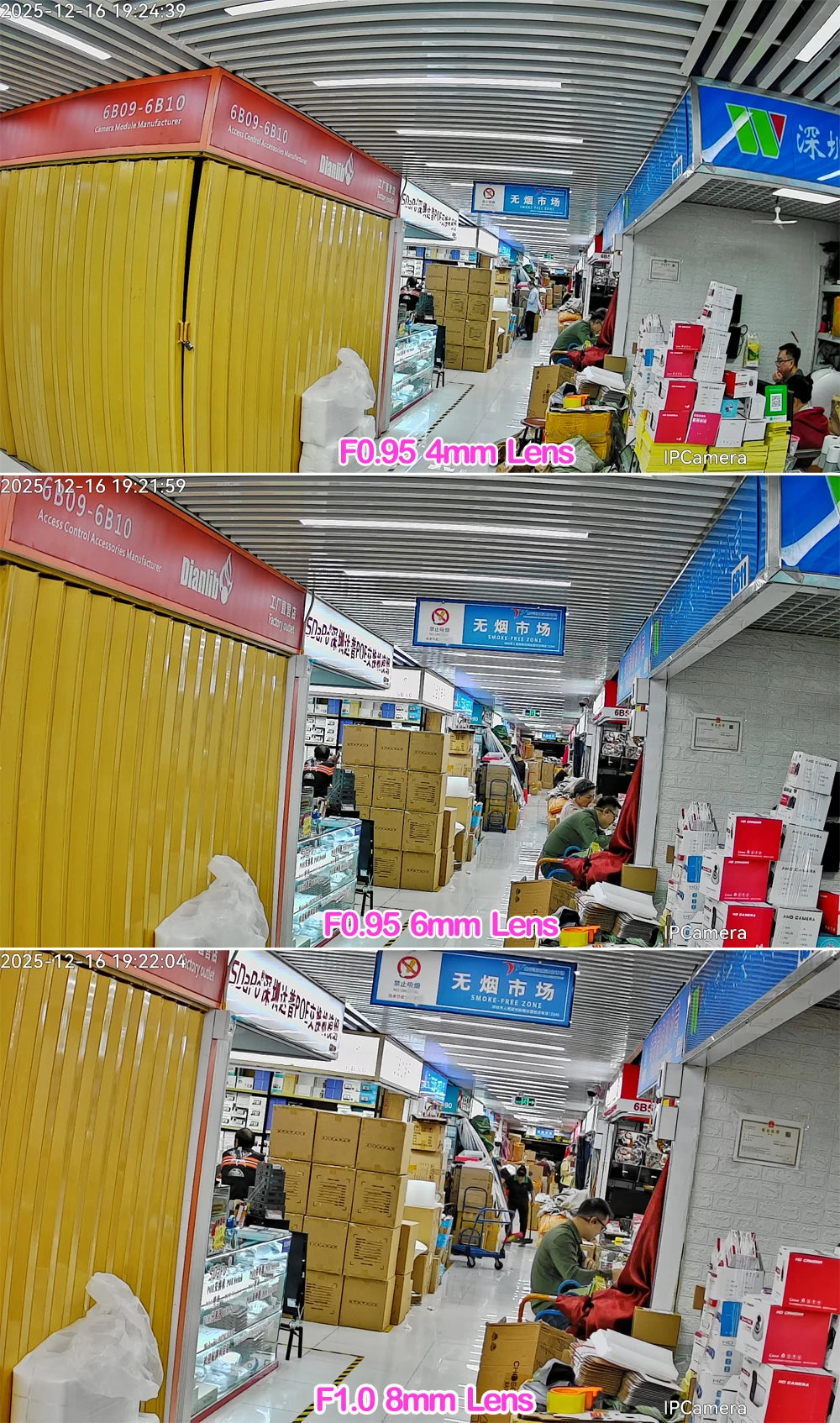

• Multiple Lens Options: Available with 4mm, 6mm or 8mm lens configurations to suit different viewing requirements.
• Wide Connectivity Support: Supports ONVIF, RTSP, API, SDK, CGI and UVC protocols for flexible system integration.
• H.265/H.264 Compression: Efficient video compression helps reduce bandwidth and storage requirements while maintaining image quality.
• USB Camera Capability: UVC support allows compatible setups to use the module as a USB camera for applications such as OBS and Windows Camera.
• PoE Power Option: Compatible with a 48V PoE cable configuration for convenient network and power connectivity.
• 12V Power Support: Can also operate using a standard 12V power connection.
• Smart Image Processing: Features DWDR, 3D noise reduction and white balance adjustment for improved image quality.

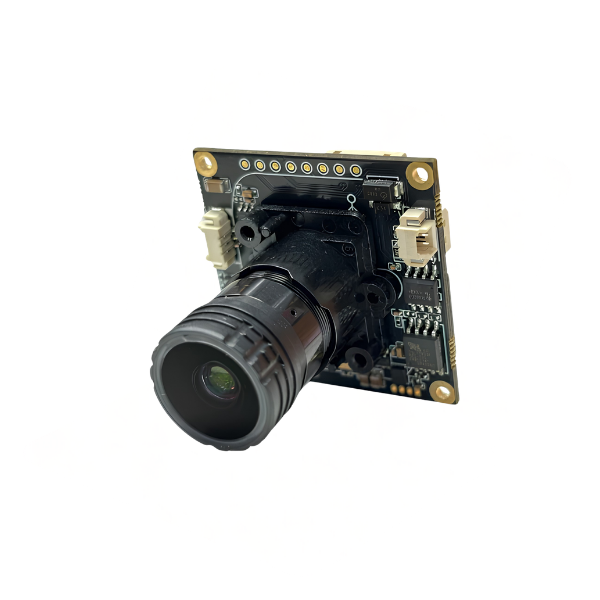

• Compact Design: Small 38 x 38mm module is suitable for custom enclosures, installations and DIY camera projects.
• Indoor & Outdoor Applications: Suitable for a variety of monitoring, security, streaming and custom surveillance applications.
• Motion Detection: Built-in smart functionality helps support motion-based monitoring applications.
• Audio & Control Interfaces: Supports audio, UART, reset and related control functions for compatible setups.

Specifications

• Video Resolution: 1920 x 1080, 2MP
• Frame Rate: Up to 60FPS
• Image Sensor: 1/2.8" CMOS
• Sensor Technology: STARVIS 2
• Minimum Illumination: 0.0001 Lux @ F1.2
• Lens Options: 8mm
• Aperture: F0.95 8mm lens
• Lens Quantity: Single lens
• Optical Zoom: None
• Video Compression: H.265+, H.265, H.264, MJPEG
• Protocols: ONVIF, RTSP, API, SDK, CGI, GB28181
• USB Protocol: UVC
• Connectivity: Wired IP/Network, USB, PoE
• Power: PoE
• Power Consumption: Approx. 3W
• Dimensions: 38 x 38mm
• Storage: No internal storage
• Battery: None
• Smart Functions: Motion detection, image adjustment
• Image Features: DWDR, 3DNR, white balance
• Supported Mobile Systems: Android, iOS
• Supported Operating Systems: Windows 7, Windows 8, Windows 10, macOS
• Installation: Standard installation
• Recommended Applications: Surveillance, monitoring, streaming, DIY camera systems and custom installations

Package Contents

• 1 x 1080P IP Camera Module with 48V POE Cable (8mm)

What Makes This a Smart Buy:

With Full HD 60FPS video, strong low-light sensitivity, flexible lens options and extensive network protocol support, this compact camera module is built for more than basic surveillance. Its USB, IP and PoE capabilities make it a versatile solution for custom monitoring systems, streaming setups and DIY camera projects.
