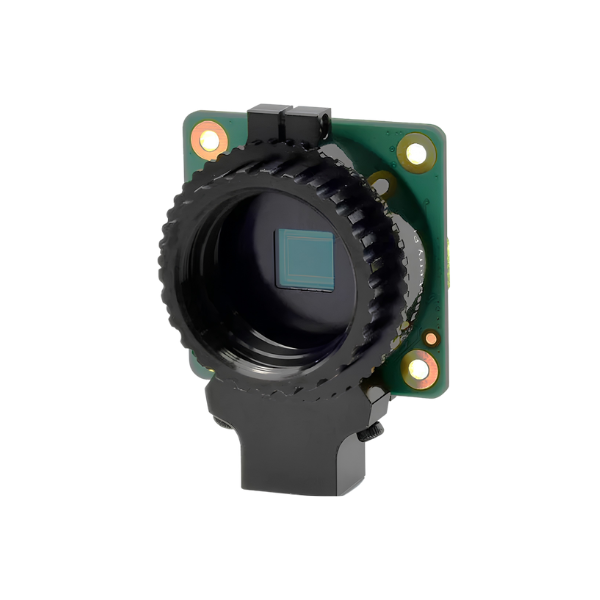

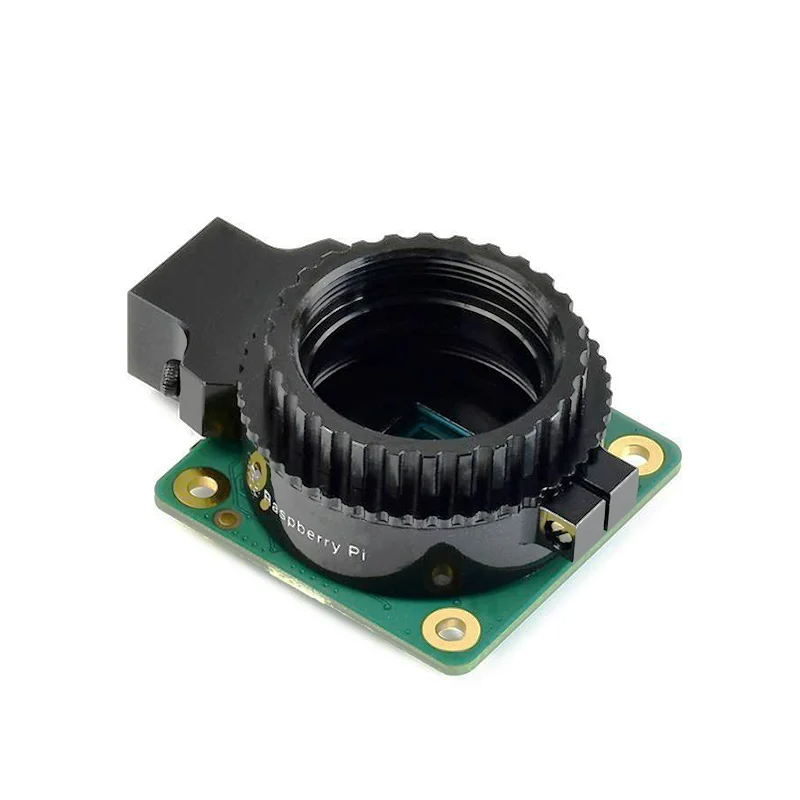

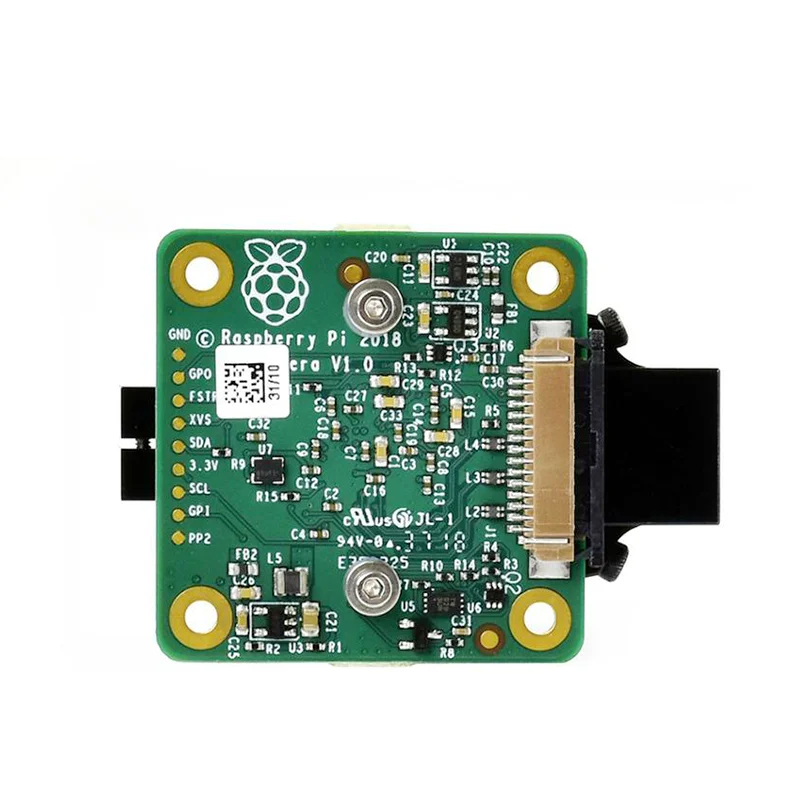

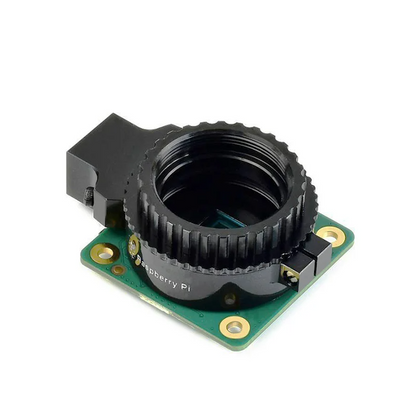

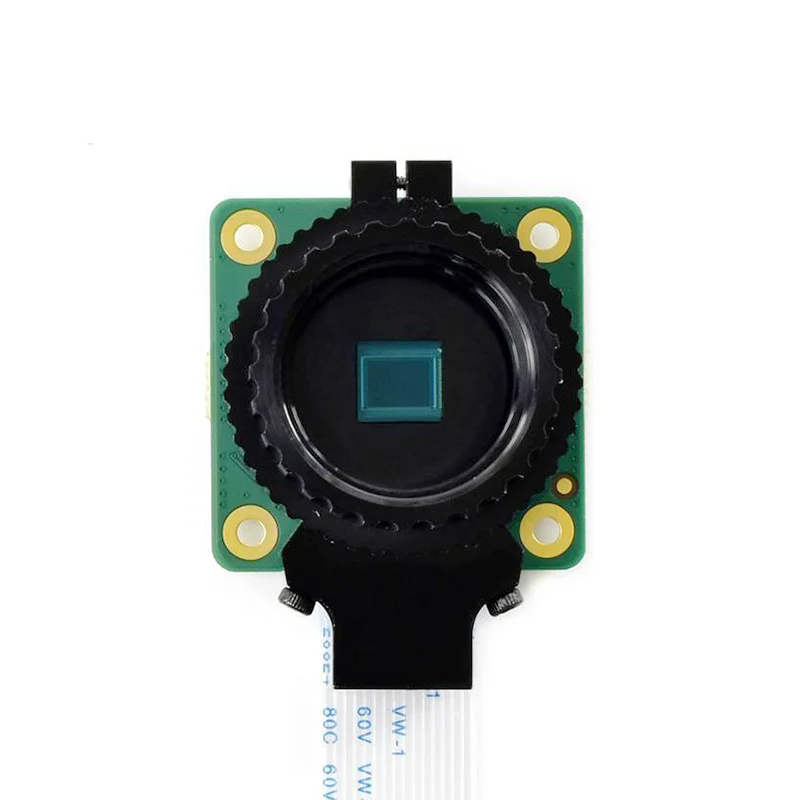

12.3MP High Quality Camera IMX477 Sensor C/CS Mount

Capture sharper, more detailed images with this 12.3MP camera module featuring a high-sensitivity IMX477 sensor. Designed for compatible Raspberry Pi boards, it supports C-mount and CS-mount lenses, making it suitable for education, security, computer vision and specialist imaging projects.

Key Features

• 12.3MP Sony IMX477R CMOS sensor for high-resolution imaging
• 4056 × 3040 pixel resolution for detailed image capture
• High-sensitivity sensor design improves performance in lower-light conditions
• Supports interchangeable C-mount and CS-mount lenses
• Includes C-CS adapter for flexible lens compatibility
• Adjustable back focus from 12.5mm to 22.4mm
• Integrated IR cut filter for balanced daytime image capture
• RAW12, RAW10, RAW8 and COMP8 output formats
• 1/4"-20 tripod mounting point for flexible installation
• Suitable for security cameras, education, computer vision and specialist optical projects
• Compatible with Raspberry Pi series boards using the appropriate camera interface
• Compact camera board design for DIY and embedded applications

Specifications

• Product Type: High Quality Camera Module
• Sensor: Sony IMX477R
• Resolution: 12.3MP
• Maximum Resolution: 4056 × 3040
• Sensor Type: CMOS
• Sensor Diagonal: 7.9mm
• Pixel Size: 1.55 × 1.55µm
• Image Output: RAW12 / RAW10 / RAW8 / COMP8
• Lens Mount: C-Mount / CS-Mount
• Adapter: C-CS Adapter Included
• Back Focus: Adjustable 12.5–22.4mm
• IR Cut Filter: Integrated
• Tripod Mount: 1/4"-20
• Compatibility: Compatible Raspberry Pi Series Boards
• Typical Applications: Education, Learning, Security, Computer Vision and Specialist Imaging
• Battery: Not Required

Package Contents

• 1 × High Quality Camera Module
• 1 × C-CS Adapter
• 1 × Dust Cap
• 1 × FPC Ribbon Cable
• 1 × Screwdriver

What Makes This a Smart Buy:
With a 12.3MP high-sensitivity sensor and interchangeable C/CS lens support, this camera offers far more flexibility than a basic fixed-lens module. It is a versatile choice for Raspberry Pi projects requiring detailed imaging, custom optics and reliable visual data.
