A powerful linear actuator designed for smooth, reliable push-and-pull motion in automation and mechanical applications. Built for strength and durability, it’s ideal for projects requiring controlled movement such as lifts, adjustable furniture, and industrial equipment.
Key Features
- Heavy-duty 120N force for strong, stable linear movement
- 500mm stroke length for extended push and pull range

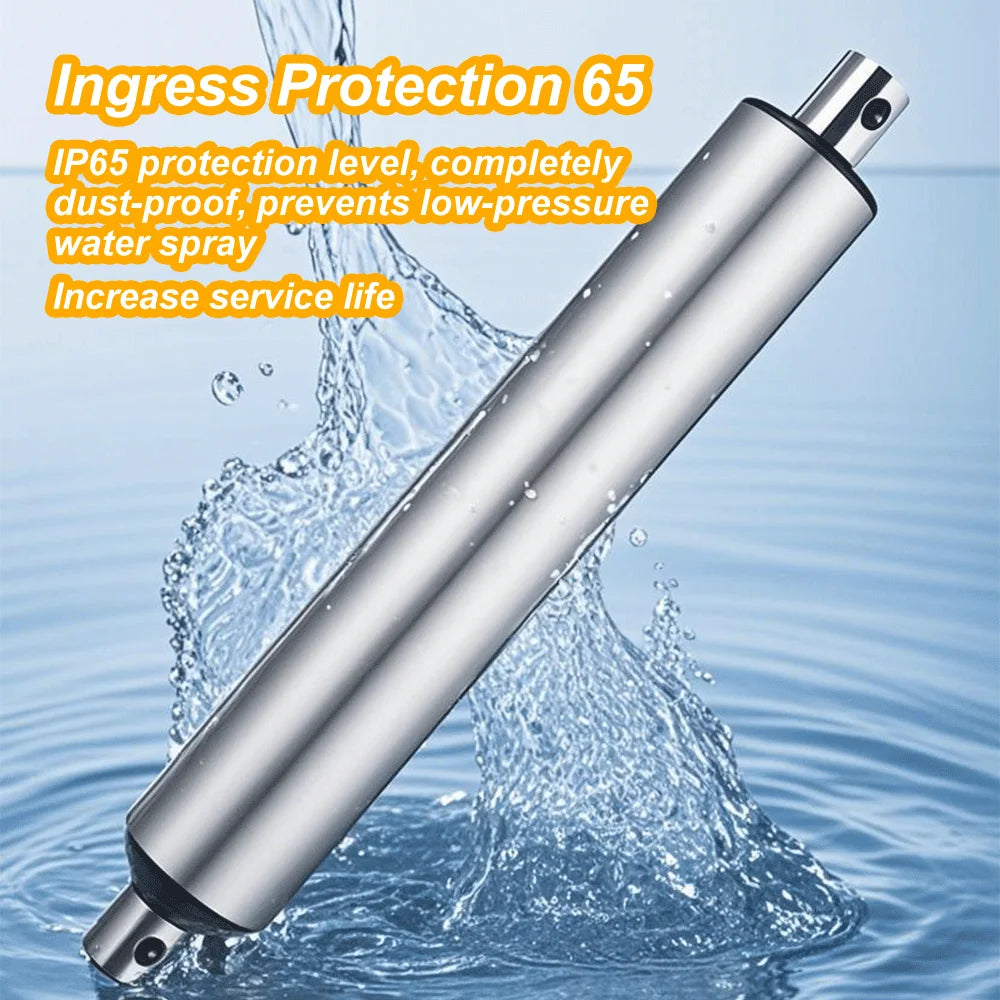

- IP65 protection for resistance against dust and water exposure
- Smooth electric actuation with precise directional control
- Built-in micro switch for reliable end-position stopping
- High durability design rated for up to 50,000 cycles
- Suitable for automation, smart home, and mechanical systems
- Works across a wide temperature range for flexible use
Specifications
- Voltage: DC 12V (supports 24V/36V options)
- Stroke Length: 500mm
- Force Output: 120N (part of 10–2000N range)
- Speed: 50mm/s (varies by load)
- Protection Rating: IP65
- Operating Temperature: -20°C to 65°C
- Duty Cycle: 20%
- Maximum Self-Locking Force: Up to 2000N
- Lifespan: Up to 50,000 cycles
- Material: Aluminium alloy housing
- Model: BST-YF-BS
Package Contents
- 1 × Electric Linear Actuator (500mm, 120N)
What Makes This a Smart Buy:
This actuator delivers dependable lifting and pushing power in a compact, weather-resistant design. Its strong load capacity and long service life make it a practical solution for automation projects that require durability and consistent performance.
