12W CNC Laser Engraving Machine Wood Cutter

Bring detailed engraving and cutting capabilities to your workshop with this 12W CNC laser engraving machine. Its fixed-focus laser, large working area and compatibility with popular engraving software make it suitable for DIY projects, personalised products, signage and creative work.

Key Features

• 12W Optical Laser Power: Delivers concentrated laser energy for detailed engraving and cutting applications

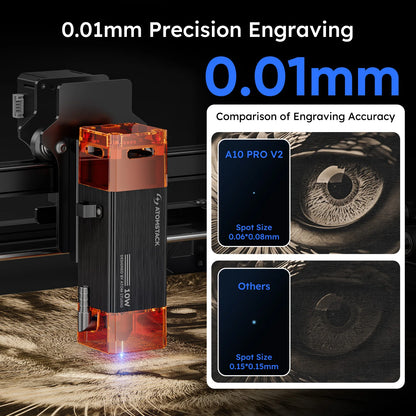

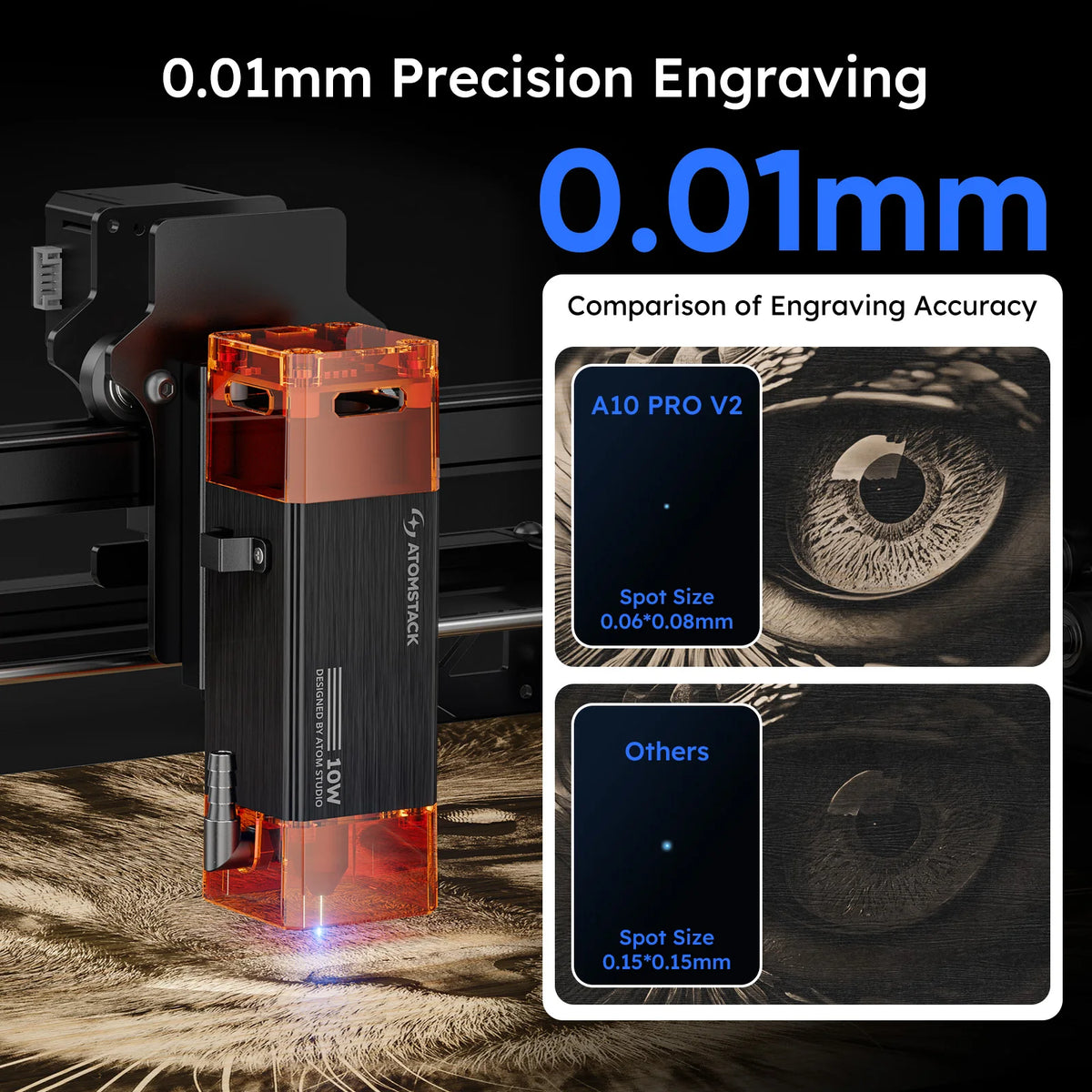

• Fine 0.06 × 0.08mm Laser Spot: Produces precise, detailed engraving with a focused fixed-point laser

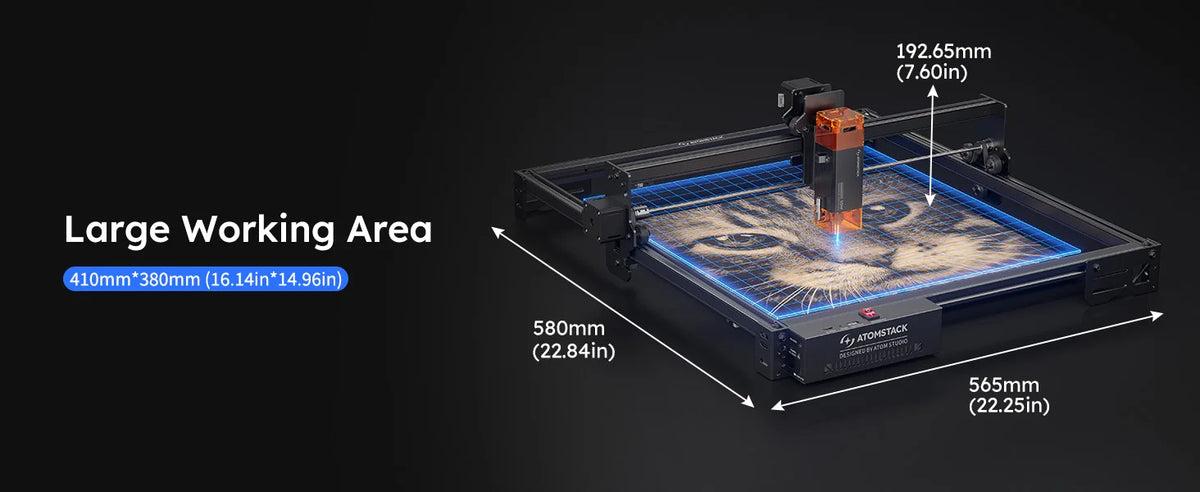

• Large Working Area: 410 × 380mm engraving area provides plenty of space for larger projects
• Fixed-Focus Laser: No manual focusing adjustment required for straightforward operation
• CNC Engraving & Cutting: Suitable for a range of creative, workshop and DIY applications
• Wide Material Compatibility: Can engrave materials including wood, bamboo, cardboard, leather, slate, glass, ceramics and selected coated metals
• Cutting Capability: Suitable for cutting cardboard, fabric, wood, acrylic, selected thin plastics and other compatible materials
• Aluminium Alloy Construction: Rigid frame design helps maintain positioning accuracy during operation
• 0.01mm Claimed Precision: Designed for detailed and accurate engraving work
• LaserGRBL & LightBurn Compatible: Works with popular engraving software for flexible project creation
• Multiple File Formats: Supports NC, BMP, JPG, PNG and DXF files
• USB Connection: Wired data transmission provides a straightforward connection to a compatible computer
• Tilt Protection: Automatically stops operation if the machine tilts beyond approximately 15°

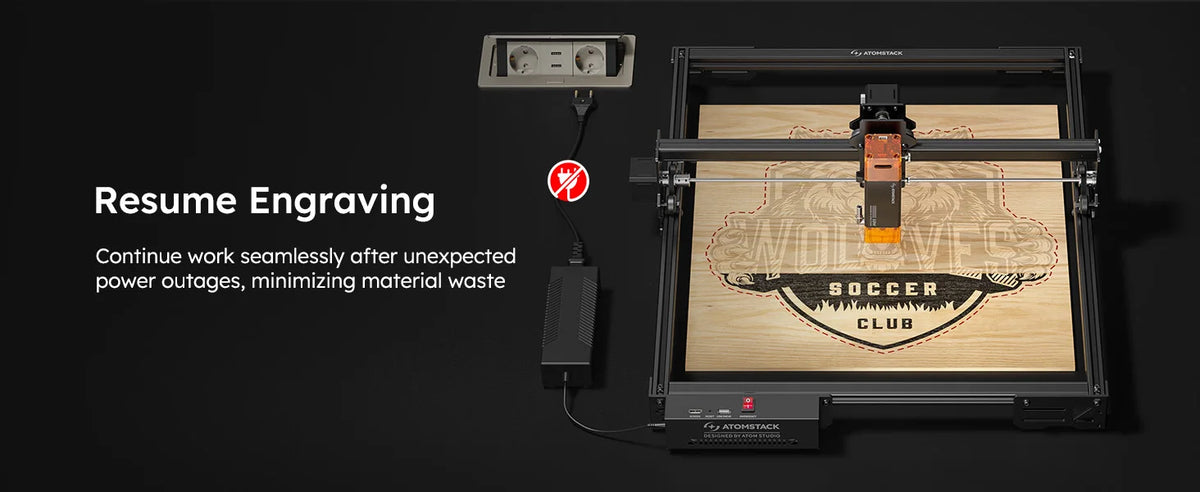

• Power-Off Resume: Compatible control functionality can resume a paused engraving position after an unexpected power interruption when the workpiece remains in position
• Modular Design: Frame can be expanded with compatible components for a larger engraving area
• Protective Laser Cover: Includes a protective cover designed to reduce direct exposure to the laser beam

Specifications

• Product Type: CNC Laser Engraving & Cutting Machine
• Laser Optical Power: 10–12W
• Laser Electrical Power: 50W
• Laser Wavelength: 455 ± 5nm
• Laser Type: Fixed Focus
• Laser Spot Size: Approx. 0.06 × 0.08mm
• Engraving Area: 410 × 380mm
• Expandable Area: Up to 410 × 850mm with compatible frame components
• Engraving Accuracy: 0.01mm claimed
• Focusing: Fixed focus, no manual focusing required
• Limit Switches: 2
• Supported Software: LaserGRBL, LightBurn
• Supported Operating Systems: Windows XP, 7, 8 and 10; Mac supported with compatible LightBurn setup
• File Formats: NC, BMP, JPG, PNG, DXF
• Connection: USB
• Power Input: 100–240V AC, 50/60Hz
• Power Output: 12V / 5A
• Suitable Engraving Materials: Wood, bamboo, cardboard, plastic, leather, PCB board, coated metals, glass, ceramic, cotton cloth and slate
• Suitable Cutting Materials: Cardboard, non-woven fabric, wooden boards, acrylic, selected thin plastic boards and sponge
• Protective Cover: Included
• Auto Levelling: Supported
• Wireless Connectivity: Not supported
• Bluetooth/WiFi: Not supported

Package Contents

• 1 × CNC Laser Engraving Machine
• 1 × Power Cord
• 1 × Type-C Cable
• 1 × Installation Kit
• 1 × X Axis Connection Cable
• 1 × Focusing Plates
• 1 × Power Adapter (AU Plug)
• 1 × Safety Glasses
• 1 × Pen Drive USB
• 1 × Manual

Important Safety Information

• Always use the supplied protective laser cover correctly during operation.
• Never look directly into the laser beam or operate the machine with the protective cover improperly installed.
• Do not engrave highly reflective surfaces directly, as reflected laser energy can create a safety hazard.
• The laser can generate significant heat and cause burns; do not touch the laser beam or active work area.
• Keep the machine away from children. Users under 14 should not operate the machine, while users over 14 require adult supervision.
• Operate in a suitable, well-ventilated workspace and follow the operating instructions for the selected material.

What Makes This a Smart Buy:

With a generous 410 × 380mm work area, 12W optical output and compatibility with LaserGRBL and LightBurn, this machine gives DIY makers plenty of room for detailed engraving and cutting projects. Its fixed-focus design and modular frame make it a versatile choice for creative workshops and home fabrication.
