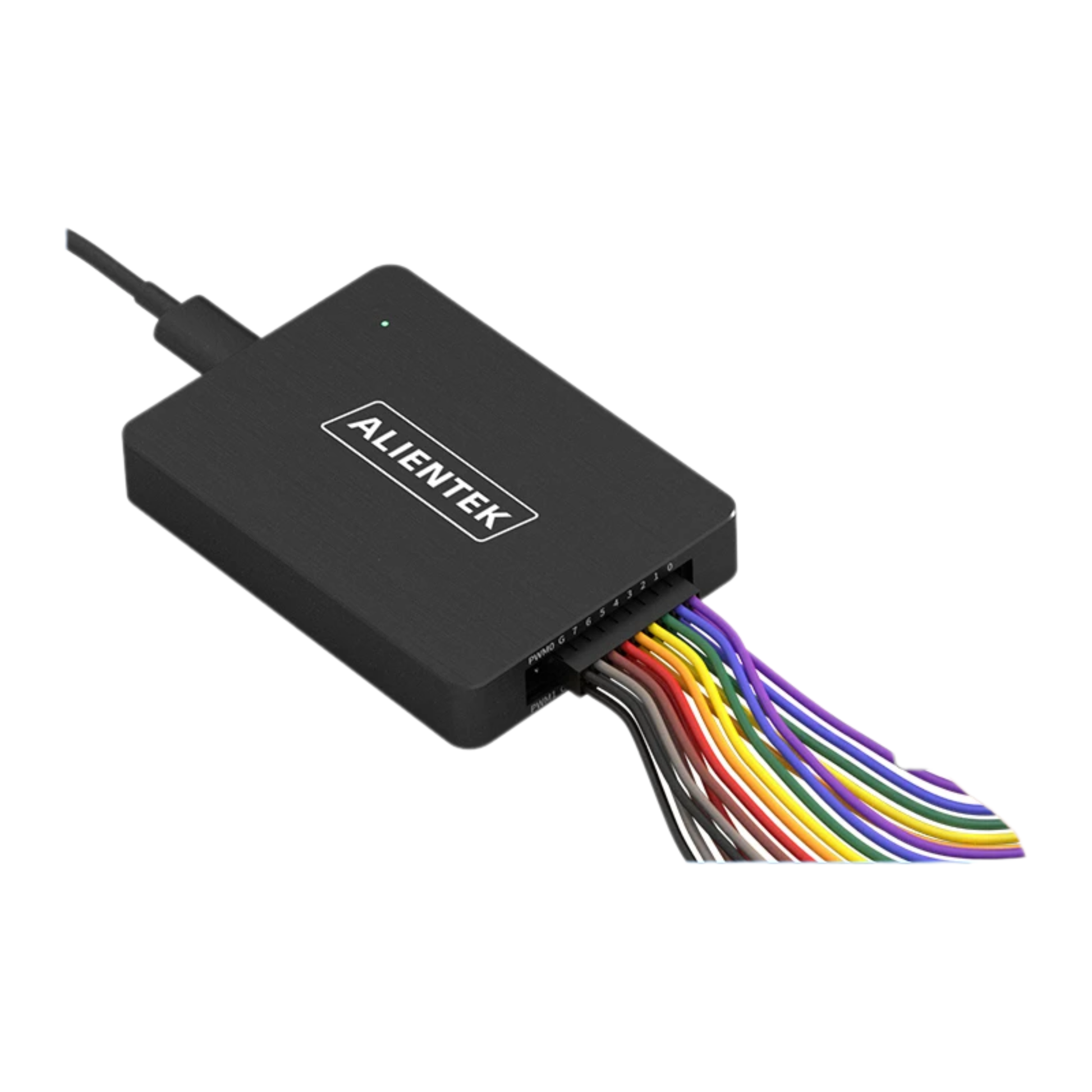

16-Channel Logic Analyzer 250MHz High-Speed Debug Tool

Unlock the power of precise digital signal analysis with this 16-channel logic analyzer. Perfect for engineers, hobbyists, and electronics enthusiasts, it captures, displays, and diagnoses digital circuits with professional accuracy.

Key Features

• 16 digital channels for complex circuit analysis

• Maximum real-time sampling rate of 250MHz

• Supports Stream mode for extended sampling duration

• RLE hardware data compression for efficient storage

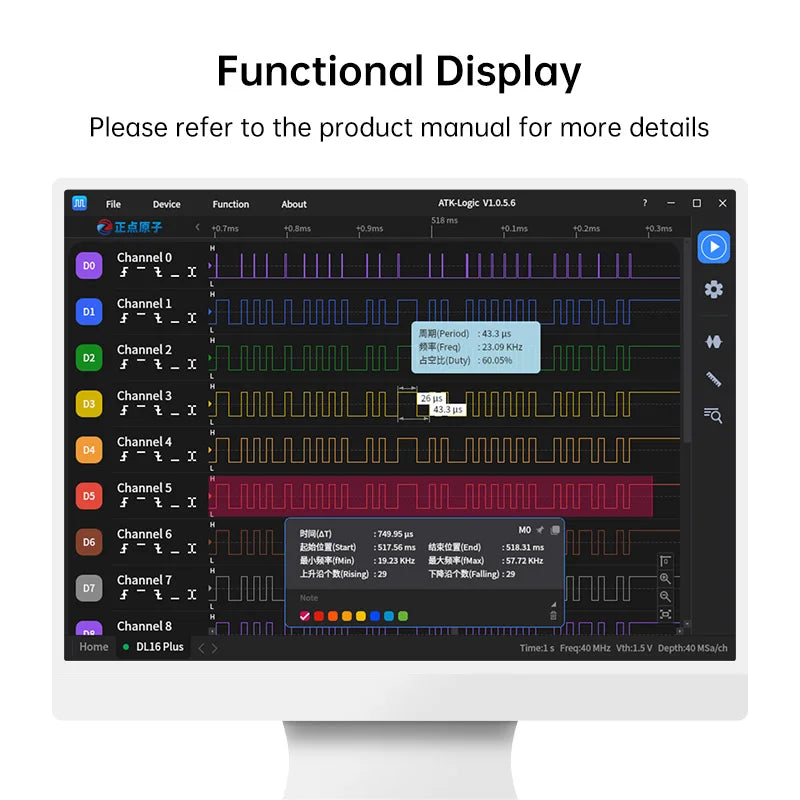

• Visual, user-friendly software compatible with Windows, Ubuntu, Mac

• Open protocol decoding library, supports over 120 protocols

• Dual PWM output channels adjustable from 1Hz to 20MHz

• Multiple trigger and acquisition modes for precise testing

• CNC metal shell for superior heat dissipation and durability

Specifications

• Digital Channels: 16ch

• Real-Time Sampling Rate: 250MHz

• Record Length: Up to 1G hardware storage

• Software Compatibility: Windows, Ubuntu, Mac

• Protocols Supported: 120+ (customizable via open library)

• PWM Output: 2 channels, 1Hz–20MHz adjustable

• Dimensions & Weight: Compact, portable, all-metal shell

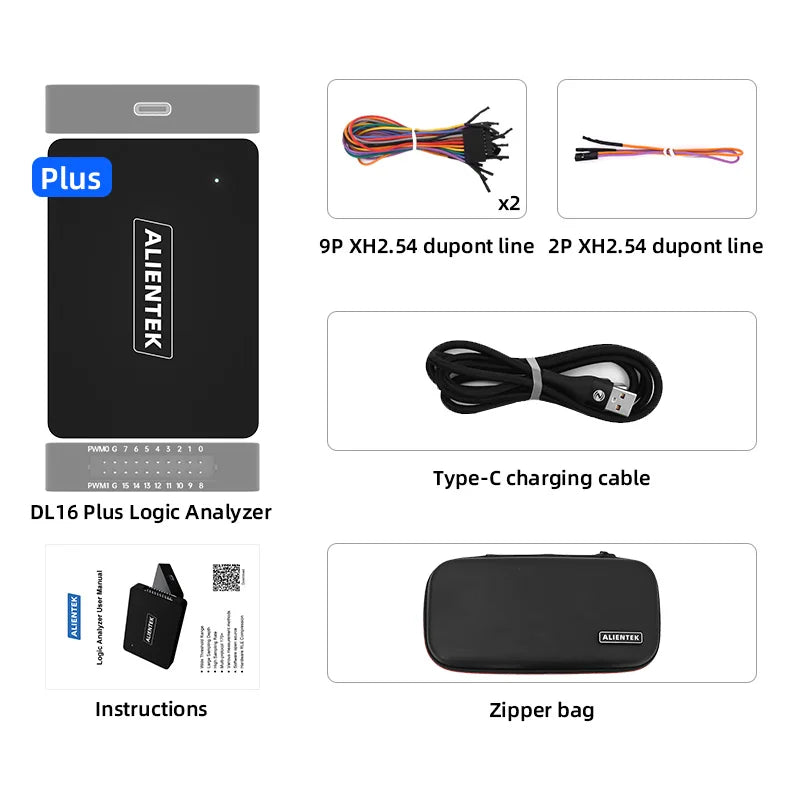

Package Contents

• 1 × 16-Channel Logic Analyzer

• 2 × 9P XH2.54 Dupont Line

• 1 × 2P XH2.54 Dupont Line

• 1 × Charging Cable

• 1 × Zipper Bag

• 1 × User Manual

What Makes This a Smart Buy:
This logic analyzer provides professional-grade performance in a compact, easy-to-use package. Whether troubleshooting circuits or testing complex systems, it saves time, enhances accuracy, and brings advanced signal analysis within reach.
