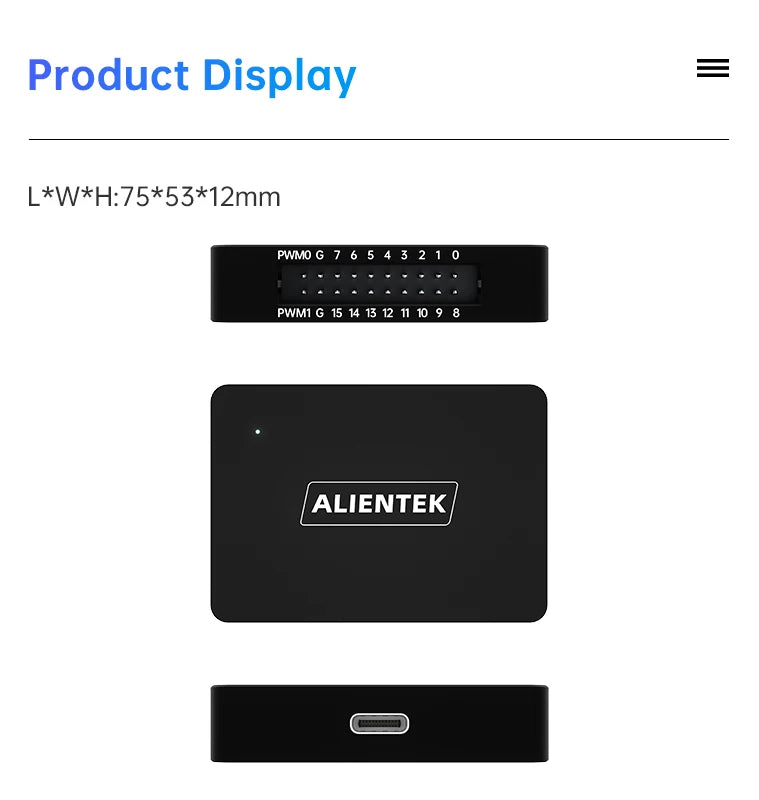

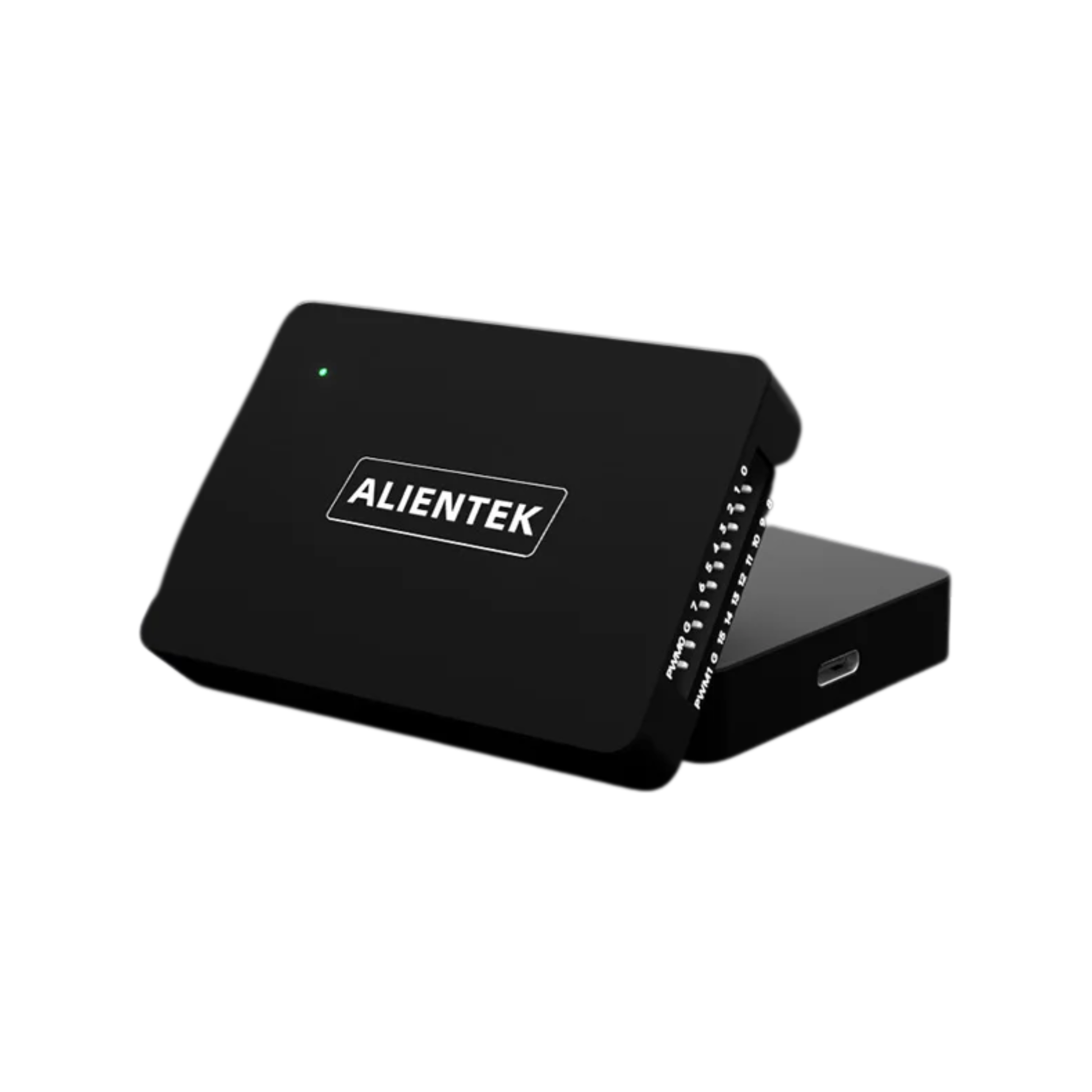

16-Channel USB Logic Analyzer 250MHz Sample Rate

Capture, analyse, and optimise digital circuits with ease using this 16-channel USB logic analyzer. Designed for engineers, hobbyists, and electronics enthusiasts, it offers precise timing and waveform analysis to streamline debugging and improve system performance.

Key Features

• 16 digital channels with 250MHz real-time sampling rate

• Supports over 120 protocols with ongoing updates

• Stream mode with extended sampling time

• RLE hardware data compression for higher efficiency

• Open protocol decoding library for custom protocol analysis

• Dual PWM output channels adjustable from 1Hz–20MHz

• Multiple trigger and acquisition modes for flexible testing

• Visual software operation with easy-to-use interface

• Supports mouse/label/parameter measurement, data search

• Compatible with Windows, Ubuntu, and Mac

Specifications

• Maximum hardware storage depth: 1G

• Digital channels: 16

• Protocol decoding: Open library, 120+ protocols

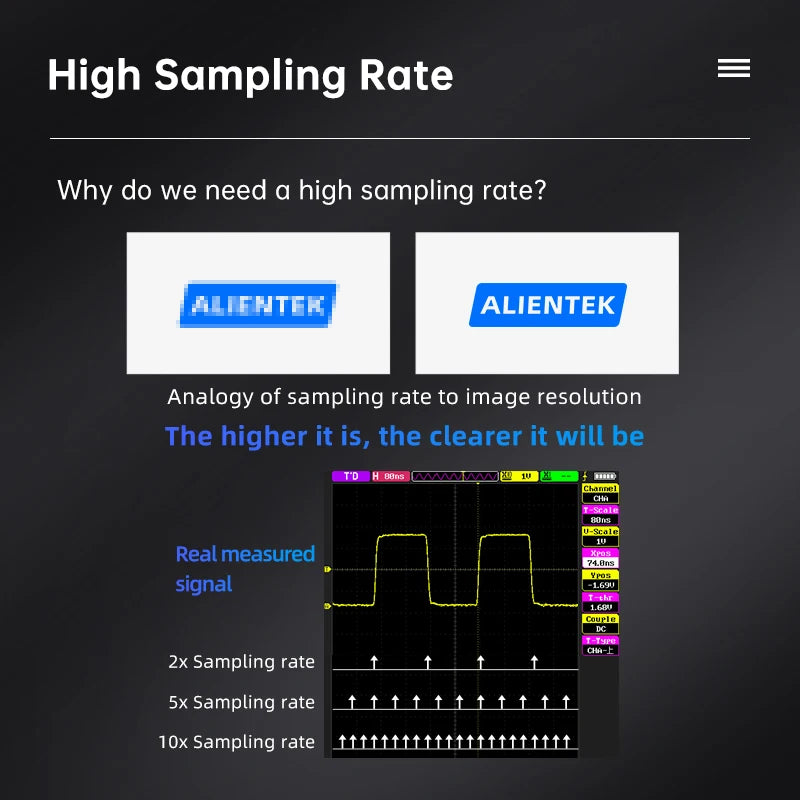

• Sample rate: 250MHz

• Software platforms: Windows / Ubuntu / Mac

• Data compression: RLE hardware

• PWM output: 2 channels, 1Hz–20MHz adjustable

• Material: CNC metal shell

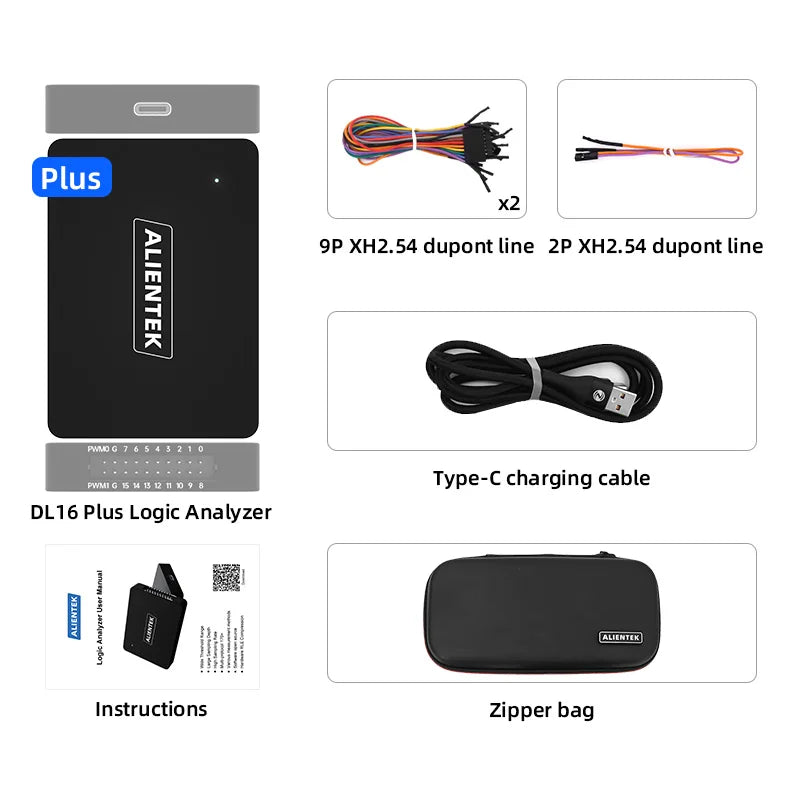

Package Contents

• 1 × 16-Channel USB Logic Analyzer

• 2 × 9P XH2.54 Dupont Line

• 2 × 2P XH2.54 Dupont Line

• 1 × Zipper Bag

• 1 × USB Cable

• 1 × User Manual

What Makes This a Smart Buy:
This analyzer combines high-speed sampling with flexible protocol decoding, making it ideal for professionals and DIY electronics projects alike. Its compact, durable design ensures reliable performance for precise circuit analysis every time.
