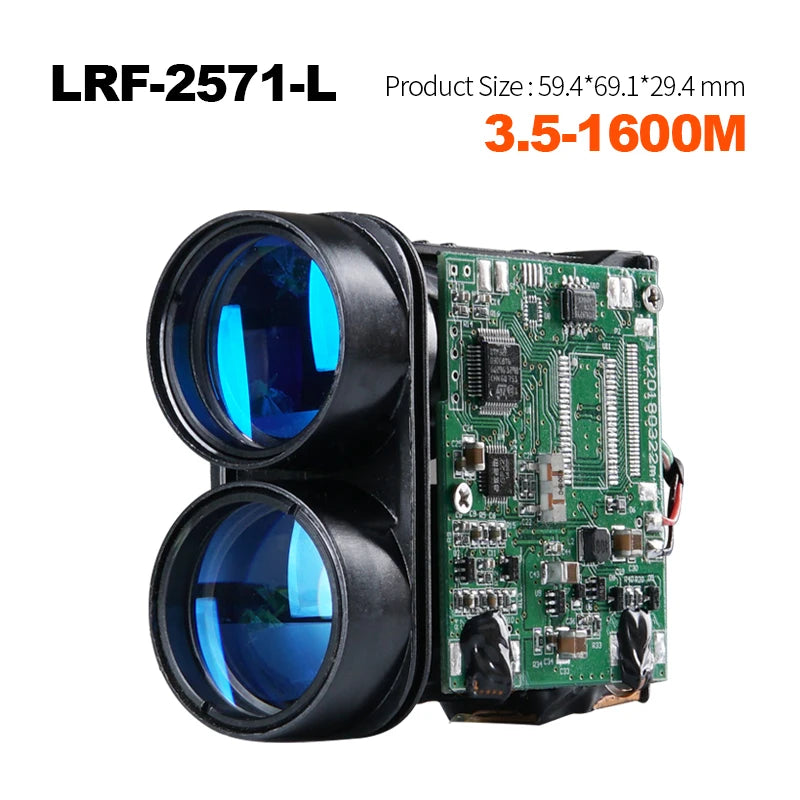

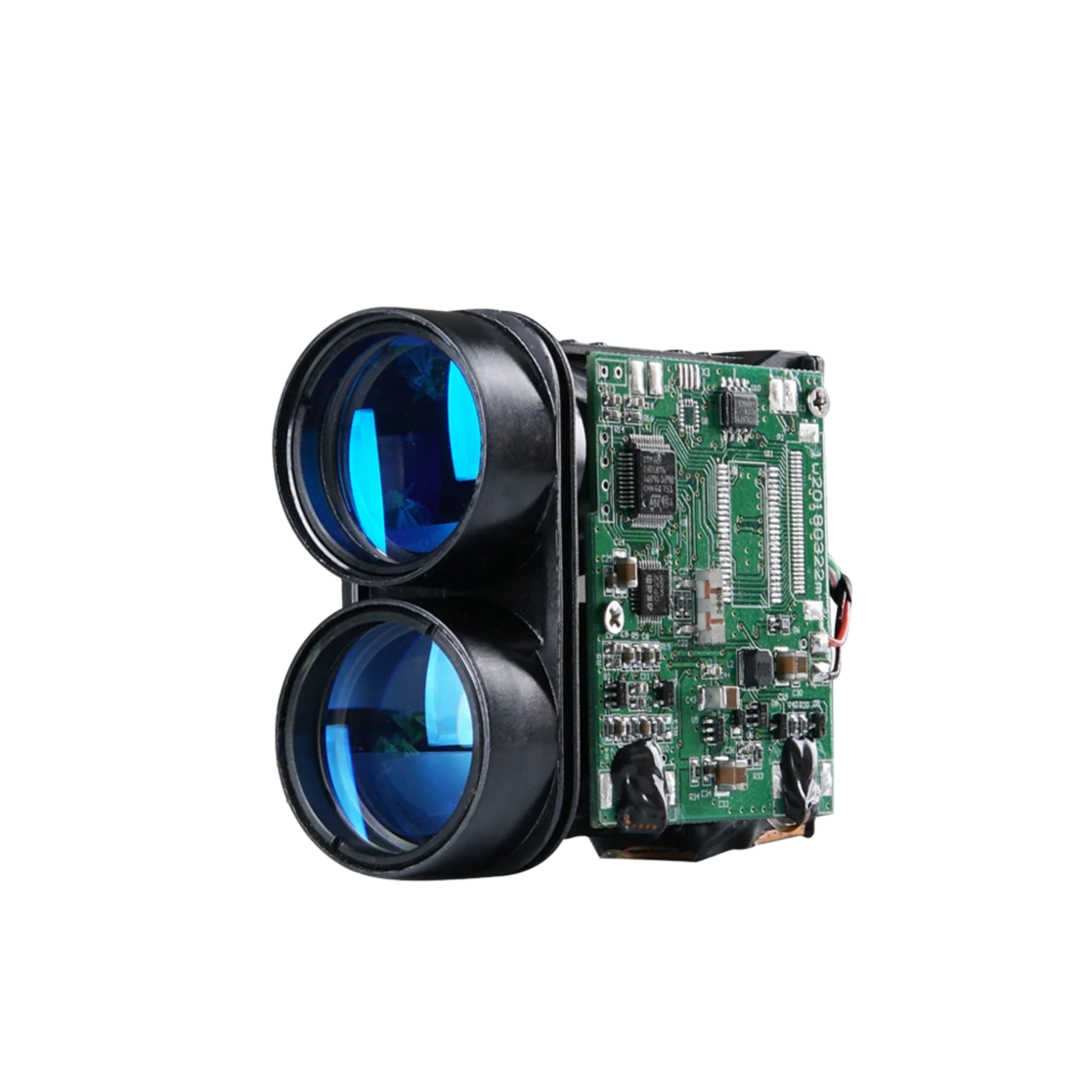

1600M Laser Rangefinder Module Long Distance Smart Sensor

This high-precision laser rangefinder module is designed for long-distance measurement applications where accuracy and reliability matter. With a powerful ranging capability up to 1600m, it’s ideal for integration into robotics, industrial systems, smart devices, and automation projects requiring precise distance detection.

Engineered for custom development and embedded use, this module supports program-based communication and flexible system integration, making it suitable for engineers, developers, and advanced technical applications.

Key Features

• Long-range measurement capability up to 1600m
• High-precision laser sensing for reliable distance detection
• Class 1 laser safety rating for controlled power output
• Supports programmable integration via communication protocol
• Designed for robotics, automation, and industrial applications
• Customisable size and integration options for system design flexibility
• Suitable for obstacle detection, monitoring, and smart systems
• Stable performance for continuous measurement tasks
• Low power consumption design for embedded applications

Specifications

• Model: LRF-2571-L
• Measuring range: 3.5–1600m
• Accuracy: ±1m
• Resolution: 0.1m
• Laser type: LD
• Laser safety level: Class 1 (<1mW)
• Power supply: 3.3V ± 500mV (battery powered support)
• Power consumption: <160mW (static 120mW)
• Communication: UART (9600 baud rate)

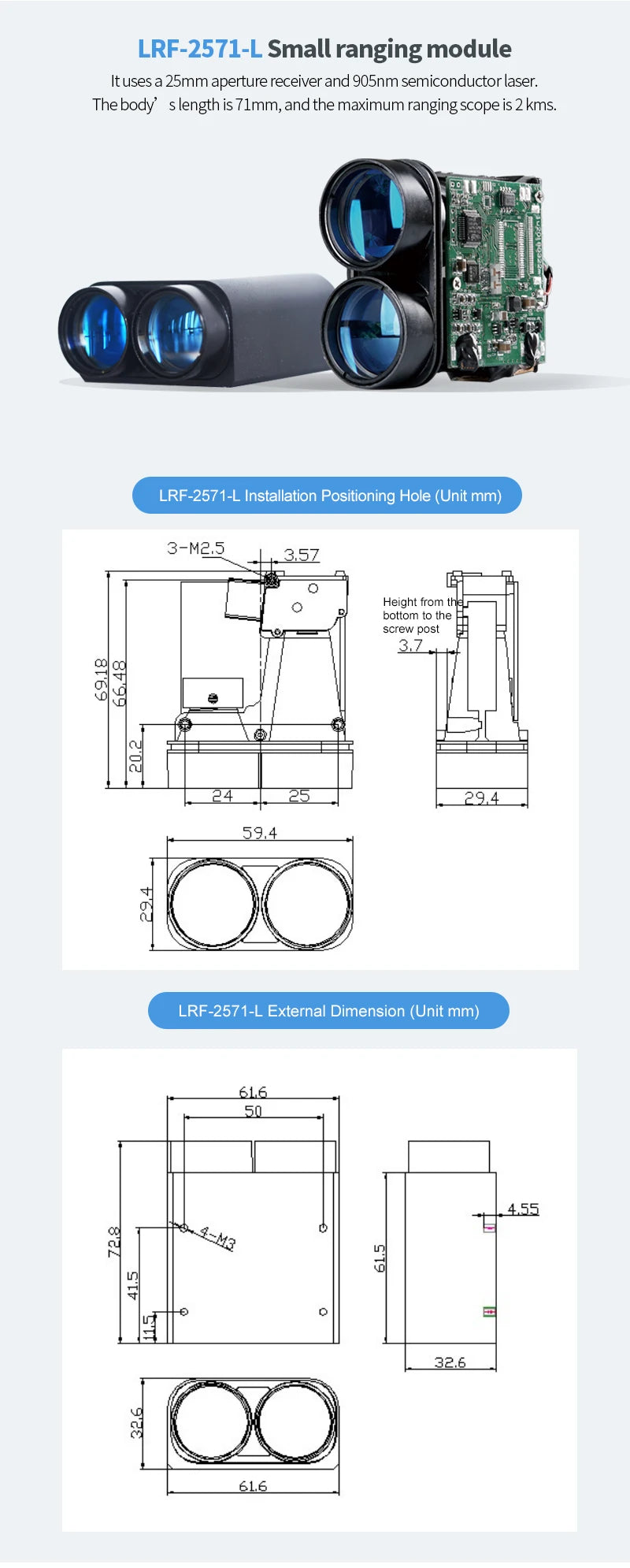

• Size: 59.4 × 69.1 × 29.4 mm
• Certifications: CE, FCC, RoHS

Package Contents

• 1 x Laser rangefinder module

What Makes This a Smart Buy:
This module offers long-range, high-precision measurement in a compact and integrable form, making it a strong choice for developers building advanced sensing, automation, or robotics systems that require dependable distance data.
