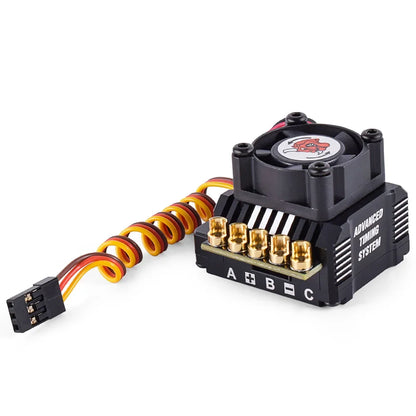

160A Brushless Sensored ESC with Bluetooth for 1/10 RC Cars

Take your 1/10 RC car to the next level with a high-performance 160A brushless ESC designed for responsive power delivery and precise control. Bluetooth app programming makes setup simple, while adjustable BEC output supports a wide range of servos and onboard electronics.

Key Features

• 160A High-Performance Output: Delivers up to 160A continuous current and 850A peak current for demanding RC applications.

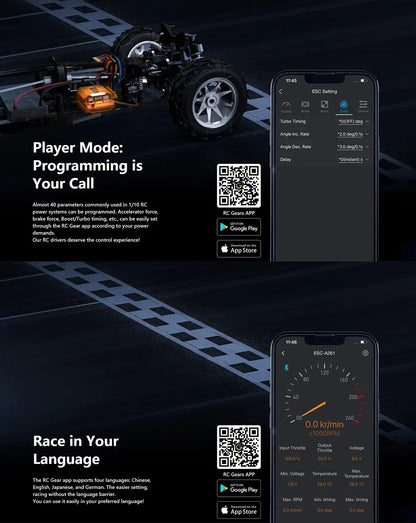

• Bluetooth App Control: Configure ESC settings conveniently through a compatible mobile app.
• Real-Time Data Monitoring: View racing and operating data through the app for easier performance tracking.
• Sensored & Sensorless Support: Automatically switches between sensored and sensorless operating modes for flexible motor compatibility.
• Adjustable Boost Timing: Supports RPM Mode and Throttle Mode to fine-tune motor response and performance.
• 15A Built-In BEC: Provides up to 15A output with selectable 6.0V or 7.4V voltage for standard and high-voltage servos and peripherals.
• Efficient Heat Dissipation: Aluminium enclosure helps manage heat during demanding driving sessions.
• Multiple Protection Systems: Includes overvoltage, low-voltage, motor stall and over-temperature protection.
• Responsive Power Control: Optimised control algorithms provide quick throttle response and precise power management.
• Versatile RC Applications: Suitable for 1/10 touring cars, buggies and crawlers.

Specifications

• ESC Type: Brushless Sensored & Sensorless
• Continuous Current: 160A
• Peak Current: 850A
• Compatible Motors: Brushless sensored and sensorless
• Compatible Vehicles: 1/10 Touring Car, 1/10 Buggy, 1/10 Crawler
• Motor Compatibility: Touring Car ≥4.5T; Buggy ≥5.5T
• Battery: 2–3S LiPo / 6–9S NiMH
• BEC Output: 6.0V or 7.4V adjustable
• Maximum BEC Current: 15A
• Programming: Mobile app
• Net Weight: 97g
• Operating Temperature: -10°C to 40°C
• Storage Temperature: -20°C to 50°C
• Material: Composite material with aluminium enclosure
• Recommended Age: 14+

Package Contents

• 1 × 160A Brushless Sensored ESC with Bluetooth Dongle

What Makes This a Smart Buy:

With high-current output, flexible motor support and convenient Bluetooth programming, this ESC gives RC enthusiasts greater control over setup and performance. Its adjustable BEC and built-in protection features make it a versatile upgrade for demanding 1/10 RC cars.
