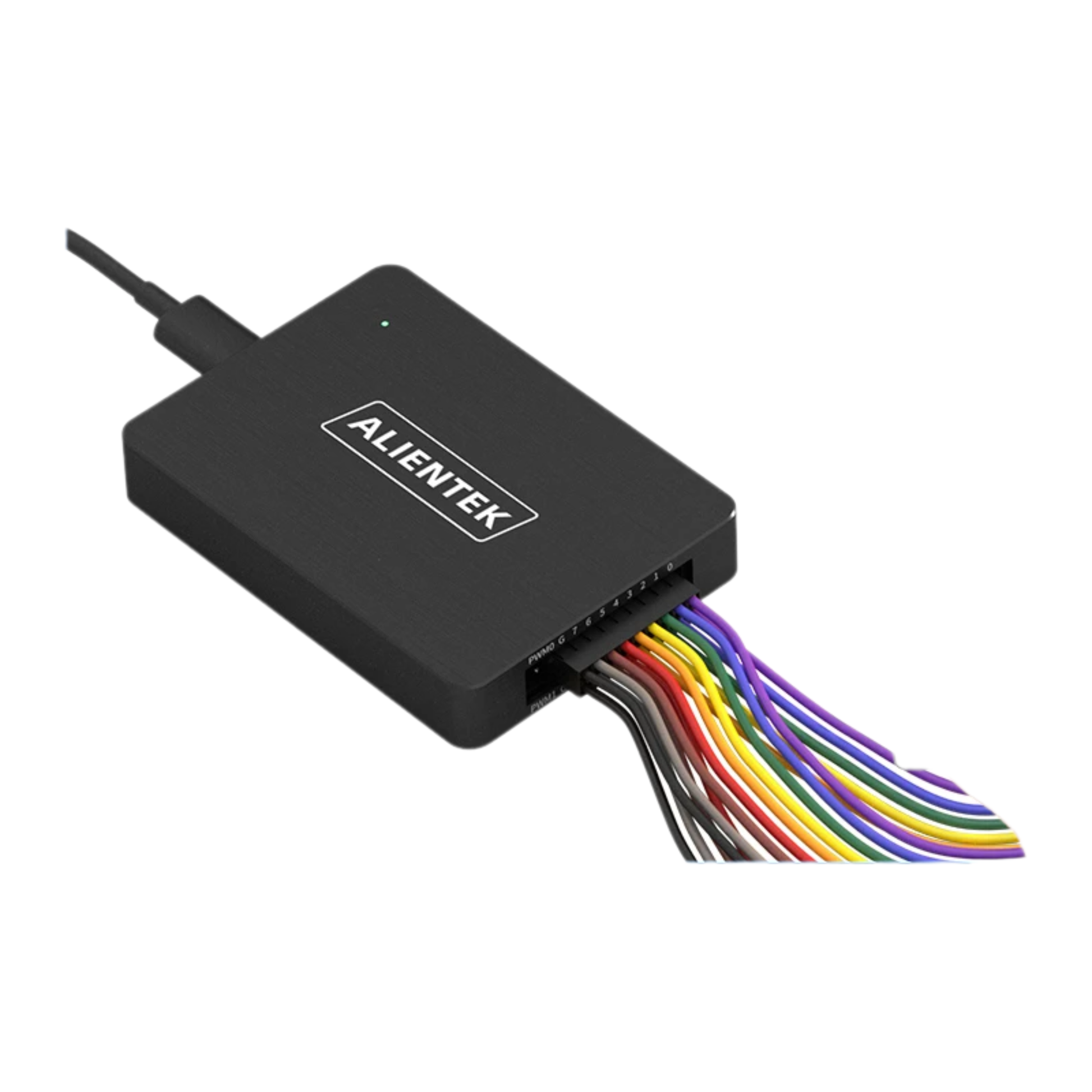

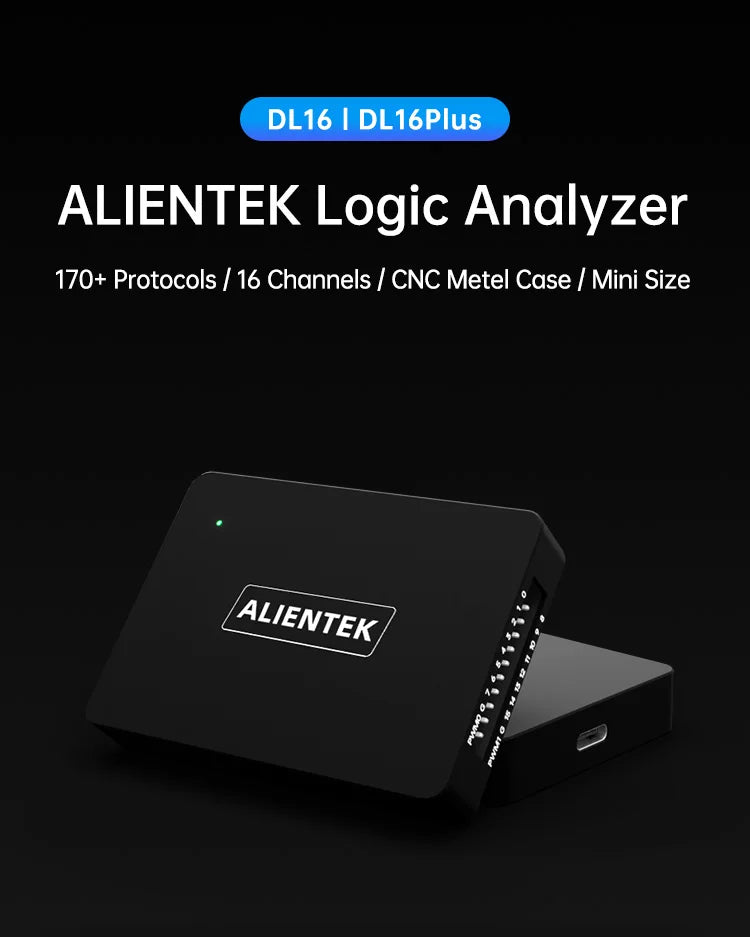

16CH High-Speed Logic Analyzer with Full Protocol Support

Capture, decode, and troubleshoot digital signals effortlessly with this 16-channel high-speed logic analyzer. Its extensive protocol support and robust features make it a must-have for electronics development.

Key Features

• 16 channels with 250MHz maximum sampling

• Over 120 protocols supported, continuously updated

• Open protocol library for custom decoding

• Stream mode allows longer capture times

• Dual PWM outputs, 1Hz–20MHz adjustable

• Multiple trigger modes for precise testing

• RLE hardware compression for efficient storage

• Compatible with Windows, Ubuntu, Mac

• CNC metal shell for durability and heat management

Specifications

• Digital Channels: 16

• Sampling Rate: 250MHz

• Record Length: 1G max

• Software Platforms: Windows, Ubuntu, Mac

• PWM Output: 2 channels, 1Hz–20MHz

• Build: Metal CNC shell

• Protocols: 120+ (customizable)

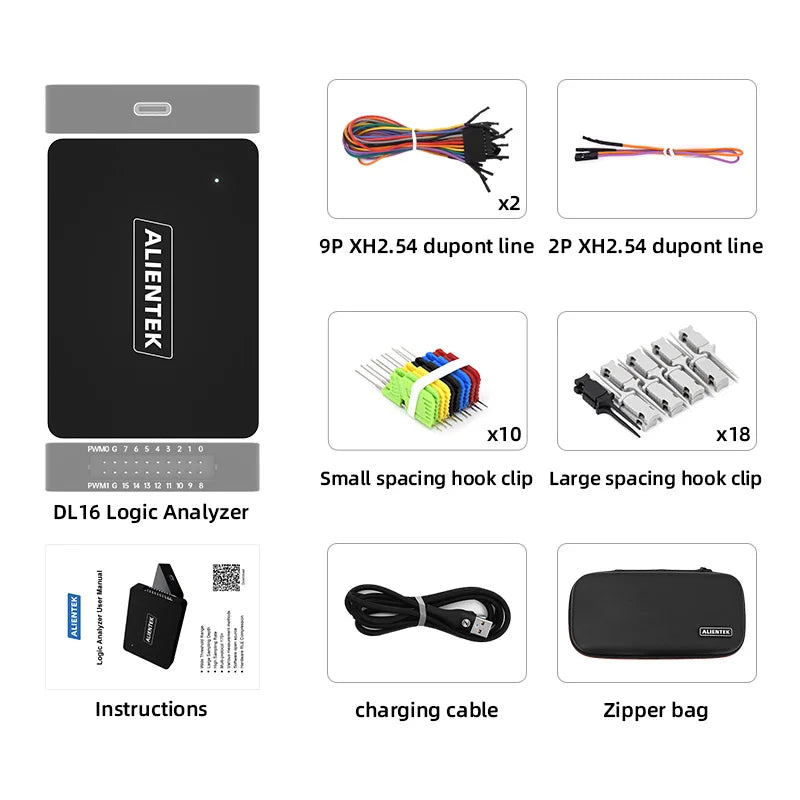

Package Contents

• 1 × 16CH Logic Analyzer

• 2 × 9P XH2.54 Dupont Line

• 1 × 2P XH2.54 Dupont Line

• 10 × Small Spacing Hook Clip

• 18 × Large Spacing Hook Clip

• 1 × Zipper Bag

• 1 × USB Cable

• 1 × User Manual

What Makes This a Smart Buy:
With unmatched speed, protocol versatility, and robust build quality, this logic analyzer equips you to tackle complex digital troubleshooting with confidence and efficiency.
