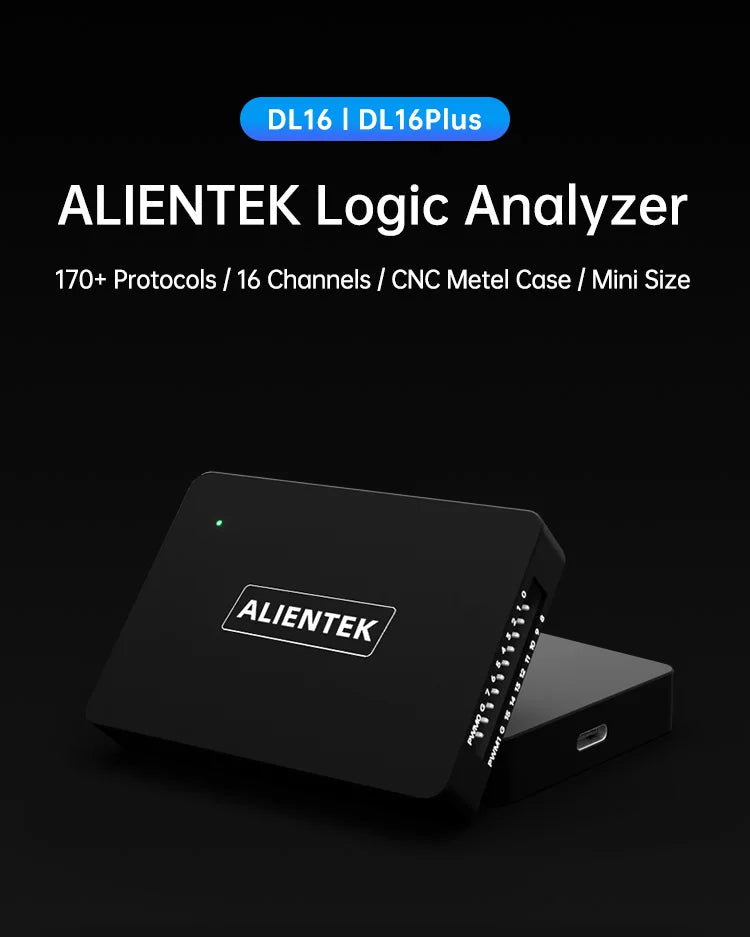

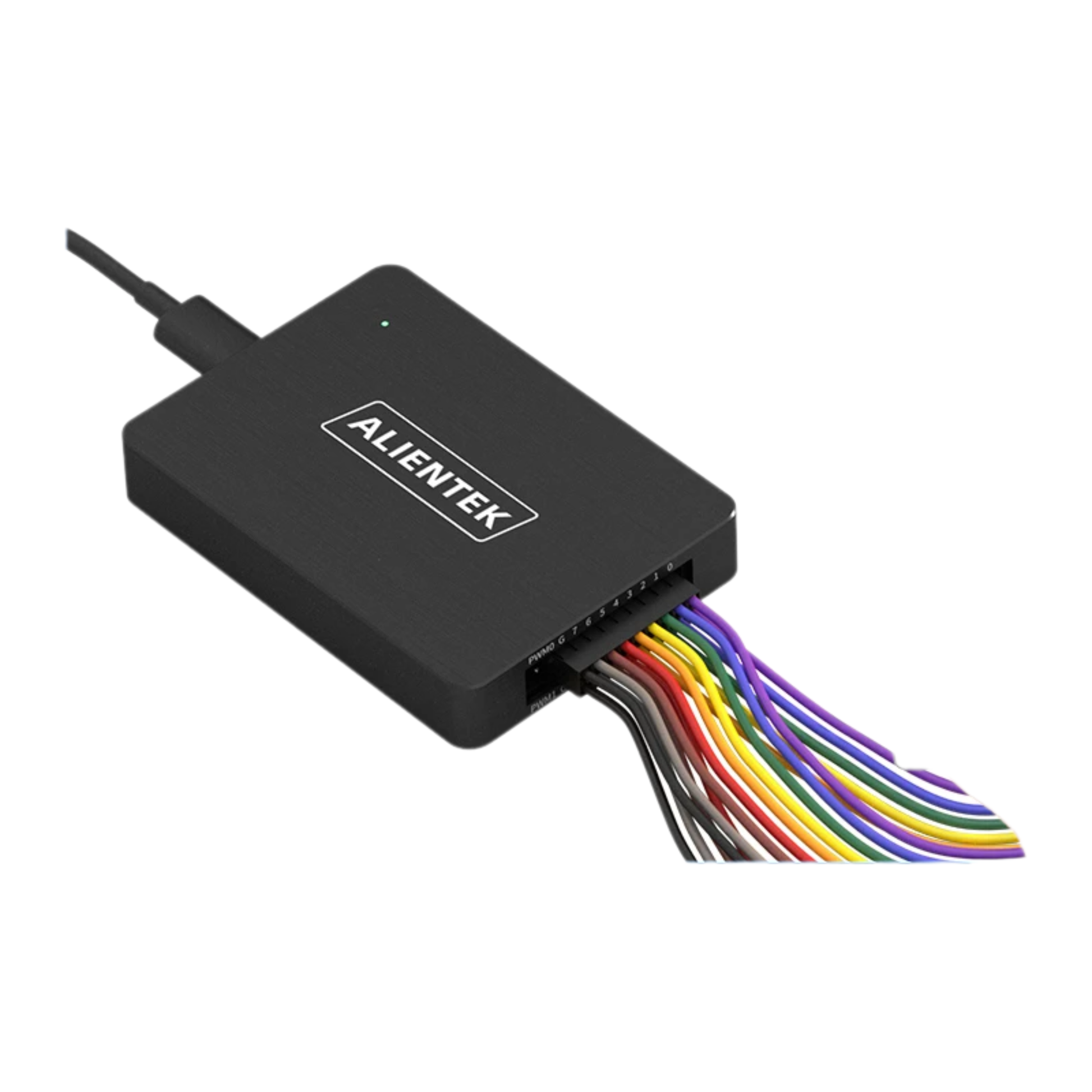

16CH Logic Analyzer Set with Protocol Decoding Software

Streamline your digital diagnostics with this 16-channel logic analyzer set. Designed for engineers and electronics makers, it combines high-speed sampling with advanced protocol decoding to simplify troubleshooting and verification.

Key Features

• Supports 16 channels for detailed digital analysis

• 250MHz maximum sampling rate

• Advanced protocol decoding with over 120 supported protocols

• Open library allows custom protocol development

• Stream mode for extended data capture

• RLE compression for efficient memory usage

• Dual adjustable PWM channels for signal generation

• Compatible with Windows, Ubuntu, Mac

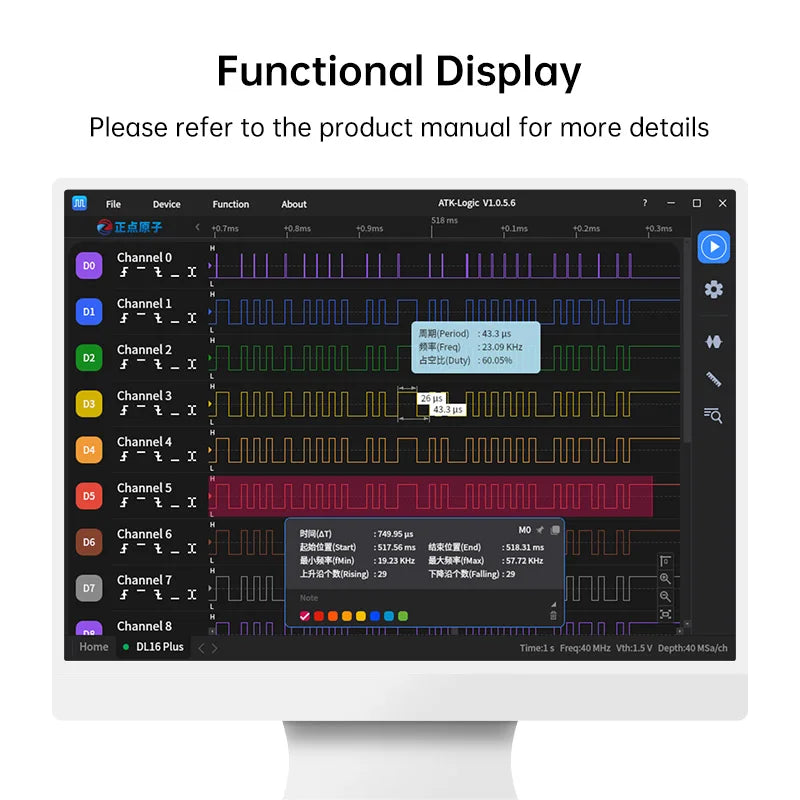

• Easy visual software interface for fast operation

Specifications

• Channels: 16

• Sampling Rate: 250MHz

• Record Length: Up to 1G

• Software: Visual interface for Windows/Ubuntu/Mac

• Protocols: 120+ (customizable)

• PWM: 2 channels, 1Hz–20MHz

• Build: Metal CNC shell

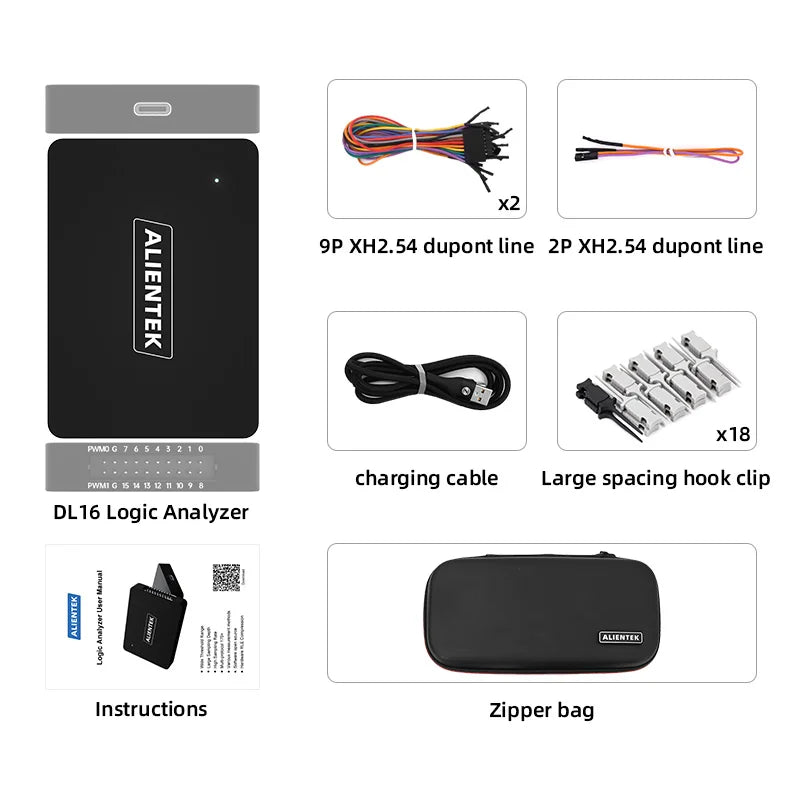

Package Contents

• 1 × 16CH Logic Analyzer

• 2 × 9P XH2.54 Dupont Line

• 1 × 2P XH2.54 Dupont Line

• 18 × Large Spacing Hook Clip

• 1 × Zipper Bag

• 1 × USB Cable

• 1 × User Manual

• 1 × Protocol Decoding Software

What Makes This a Smart Buy:
This set combines high-speed capture and powerful protocol analysis, letting you verify circuits faster and more accurately than ever, all in a single, durable tool.
