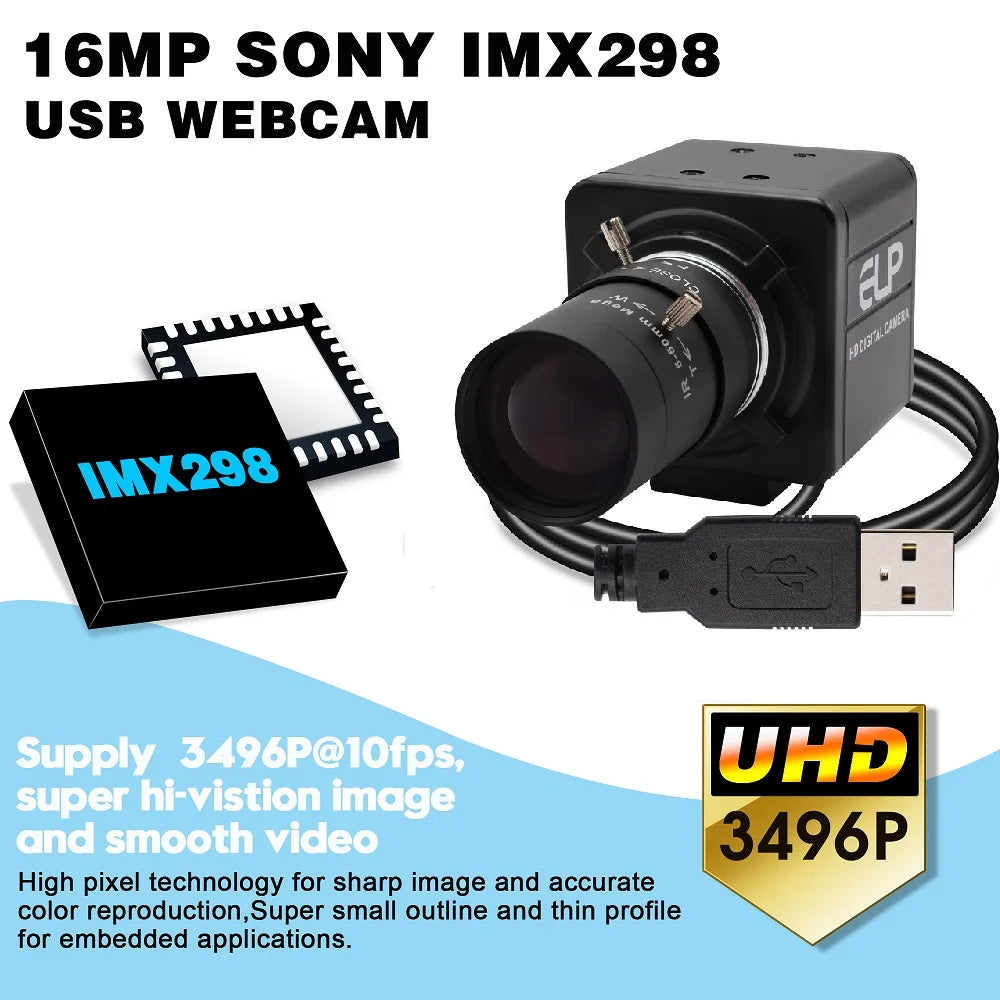

16MP 4K USB Webcam with 10X Zoom Industrial Camera

Capture highly detailed video and images with this compact 16MP USB camera, featuring a high-resolution CMOS sensor and adjustable varifocal lens. Its plug-and-play UVC design makes it a versatile choice for video conferencing, document scanning, streaming, industrial inspection and embedded applications.

Key Features

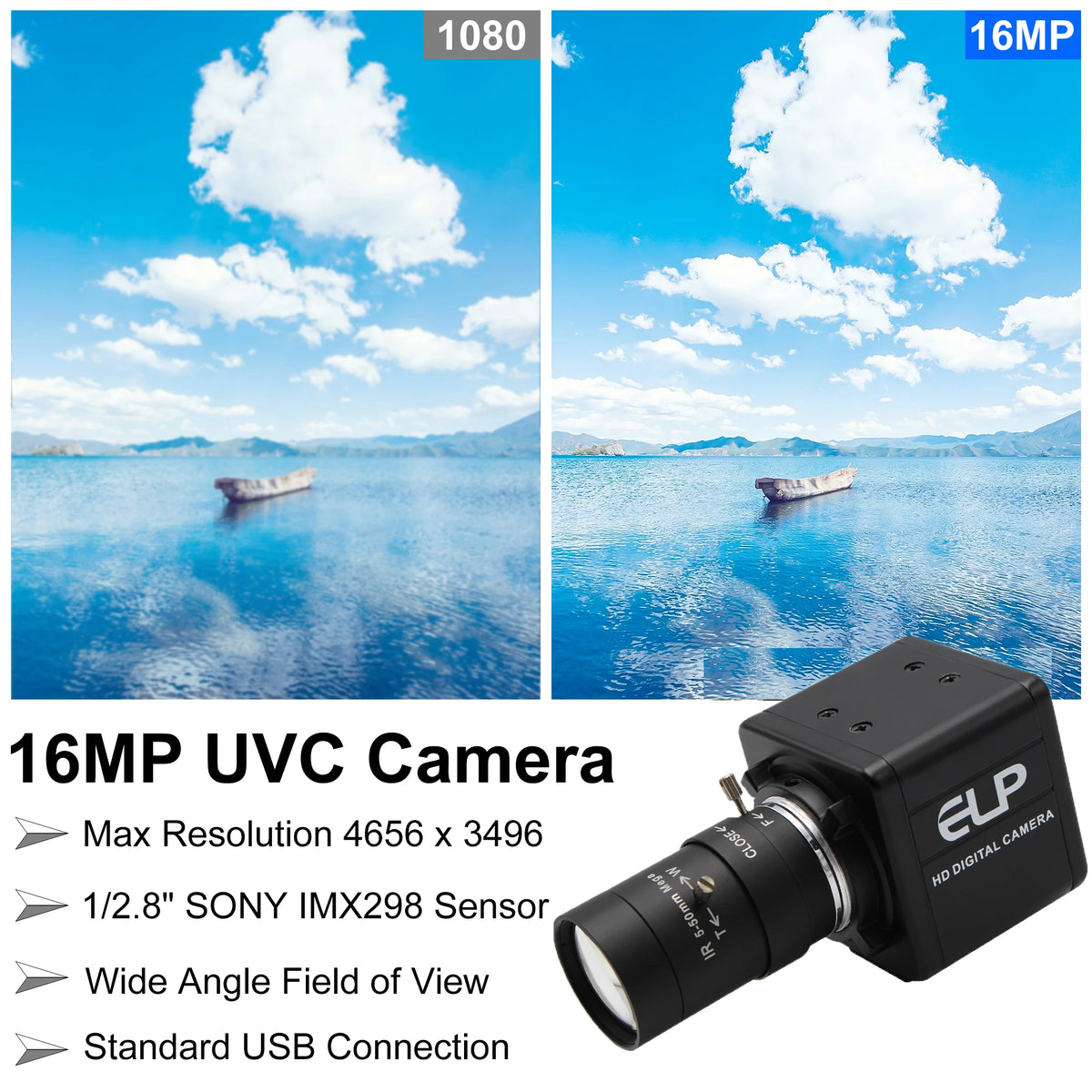

• 16MP Ultra HD Resolution: Captures images up to 4656 x 3496 for highly detailed video and imaging applications.
• 10X Optical Zoom: Adjustable varifocal lens provides flexible framing for close-up and wider shots.
• Varifocal Lens: Available lens options include 2.8–12mm, 5–50mm and 6–60mm configurations.
• UVC Plug & Play: Driver-free USB Video Class compatibility allows easy connection to supported devices.
• Compact Mini Design: Small 38 x 38mm camera board is ideal for embedded and space-constrained applications.
• Wide Compatibility: Supports Windows, macOS, Linux, Android, Ubuntu and compatible UVC systems.
• USB 2.0 High Speed: Provides straightforward wired connectivity for computers and compatible devices.
• High Frame Rate: Supports up to 30fps at selected resolutions for smoother video.
• Low-Light Performance: Minimum illumination of 0.5 lux helps capture usable images in lower-light environments.
• Adjustable Image Settings: Supports adjustments for brightness, contrast, saturation, hue, sharpness, gamma, gain, white balance and exposure.
• Automatic Image Control: Supports automatic exposure, white balance and gain control.
• Versatile Applications: Suitable for video conferencing, live streaming, document scanning, industrial inspection, education, scientific applications and embedded systems.
• OTG Support: Can connect to compatible Android devices using suitable OTG hardware.

Specifications

• Camera Type: Mini USB Camera
• Maximum Resolution: 4656 x 3496
• Resolution: 16MP
• Sensor: 1/2.8-inch CMOS
• Sensor Model: IMX298
• Pixel Size: 1.12μm
• Lens: Varifocal
• Lens Options: 2.8–12mm / 5–50mm / 6–60mm
• Optical Zoom: 10X
• Viewing Angle: Approx. 80°
• Minimum Illumination: 0.5 lux
• Compression: MJPEG / YUY2 (YUYV)
• Interface: USB 2.0 High Speed
• Protocol: UVC (USB Video Class)
• Power Supply: USB Bus Powered, 5V
• Working Current: Approx. 150–240mA
• Cable Length: 3m
• Camera Board Size: Approx. 38 x 38mm
• Weight: Approx. 30g
• Operating Temperature: -10°C to 70°C
• Compatible Systems: Windows, macOS, Linux, Android, Ubuntu and other UVC-compatible systems
• Storage: No internal or TF card storage

Package Contents

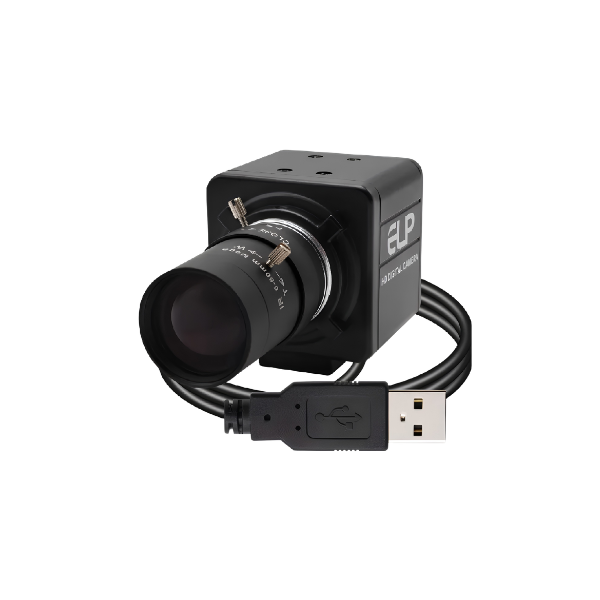

• 1 x 16MP USB Camera with Varifocal Lens (6-60mm Lens)
• 1 x 3m USB Cable

What Makes This a Smart Buy:
With 16MP resolution, 10X optical zoom and a compact embedded design, this USB camera offers far more flexibility than a standard webcam. Its UVC plug-and-play connectivity makes it a versatile solution for everything from video conferencing and streaming to document imaging and specialised equipment.
