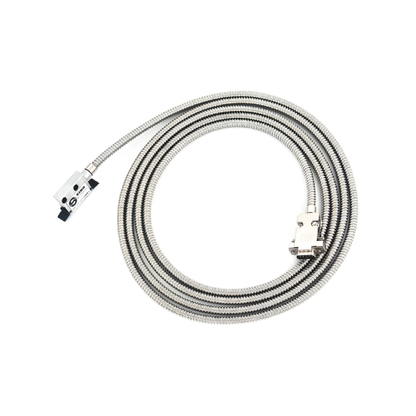

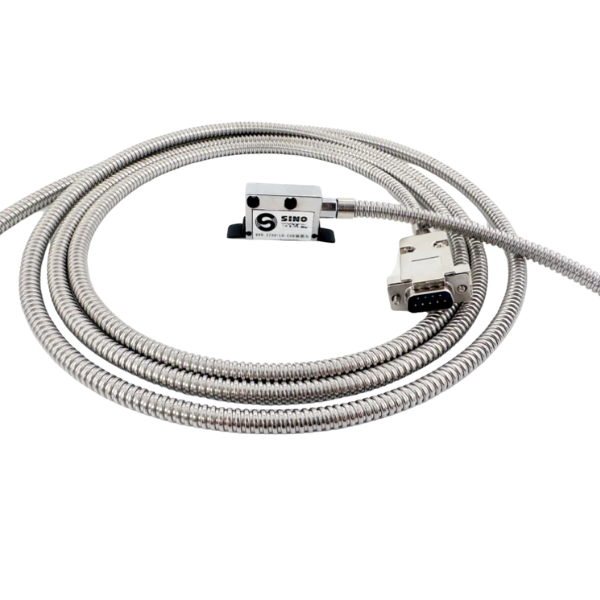

1m Magnetic Scale Tape with 0.001mm Precision Sensor

Designed for accurate linear measurement in compact machine setups, this 1m magnetic scale system combines ultra-fine 0.001mm resolution with non-contact sensing. It is a practical choice for digital readouts, machine tools, woodworking equipment and precision measurement applications.

Key Features

• 0.001mm Resolution: Delivers highly detailed linear displacement measurement for precision applications.

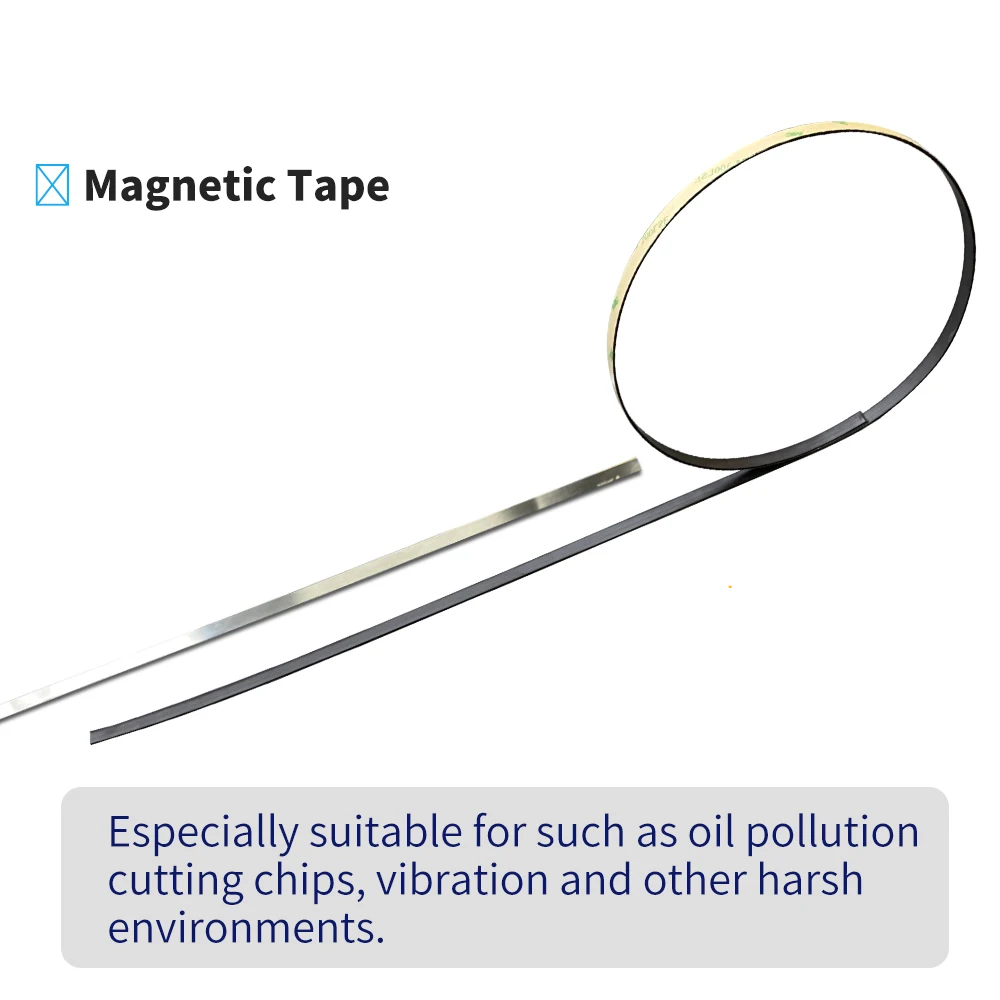

• 1m Magnetic Scale Tape: Ideal for compact machines, workbenches and shorter measuring distances.
• Non-Contact Operation: Reduces mechanical wear for smooth and dependable long-term performance.
• IP67 Sensor Protection: Helps resist dust, oil and water in demanding workshop environments.
• Easy to Install: Compact sensor design and flexible magnetic tape make installation straightforward.
• Customisable Magnetic Scale: The magnetic tape can be cut and positioned to suit different machine layouts.
• Fast Response: Supports high-speed movement for efficient machine monitoring and measurement.
• Broad Application Range: Suitable for machine tools, digital display systems, woodworking and industrial automation.

Specifications

• Resolution: 0.001mm

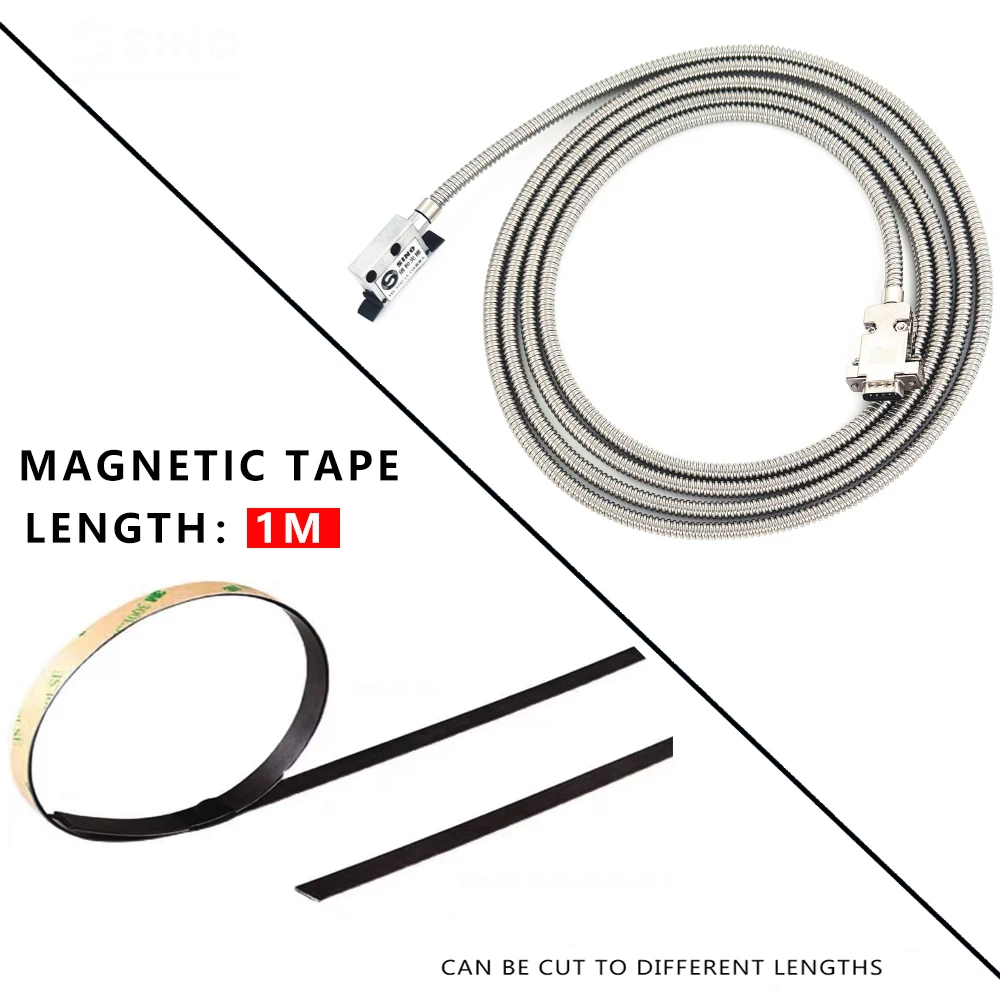

• Magnetic Tape Length: 1m

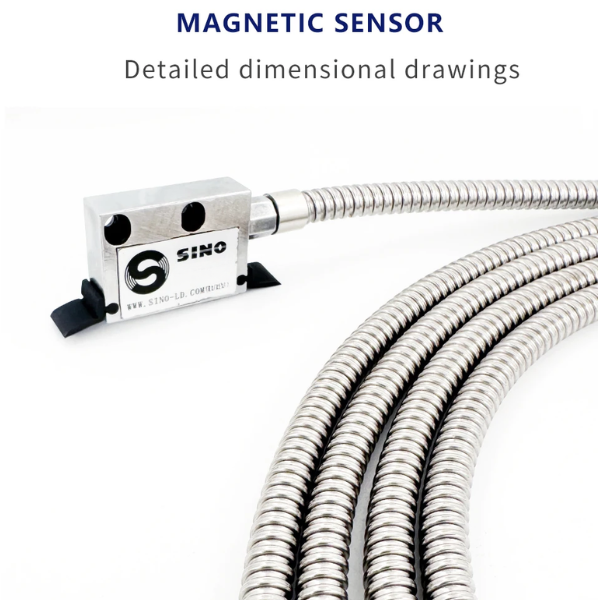

• Sensor Type: Magnetic Linear Displacement Sensor
• Output Signal: TTL or RS422
• Input Voltage: DC 5V
• Sensor Protection Rating: IP67
• Sensor Dimensions: 35 x 25 x 10mm
• Magnetic Tape Dimensions: 10 x 1.5mm
• Maximum Speed: Up to 5m/s
• Working Temperature: -20°C to 85°C
• Installation Distance: Maximum 4mm, 2mm recommended
• Cable Length: 3m
• Suitable For: Machine tools, digital readouts, woodworking, stone processing and industrial measurement

Package Contents

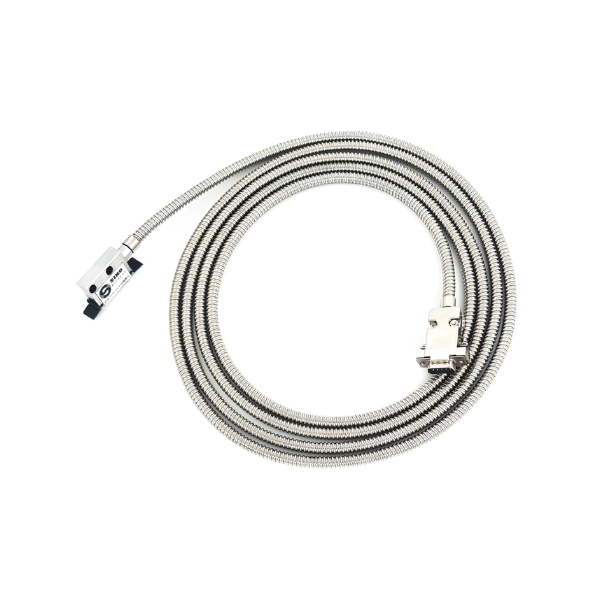

• 1 x Magnetic Sensor Reader
• 1 x 1m Magnetic Scale Tape
• 2 x Screws
• 2 x Plastic Cleaner

What Makes This a Smart Buy:

This compact 1m measuring system delivers impressive 0.001mm resolution without relying on contact-based components that can wear over time. It is a versatile, space-efficient solution for precision measurement and machine monitoring.
