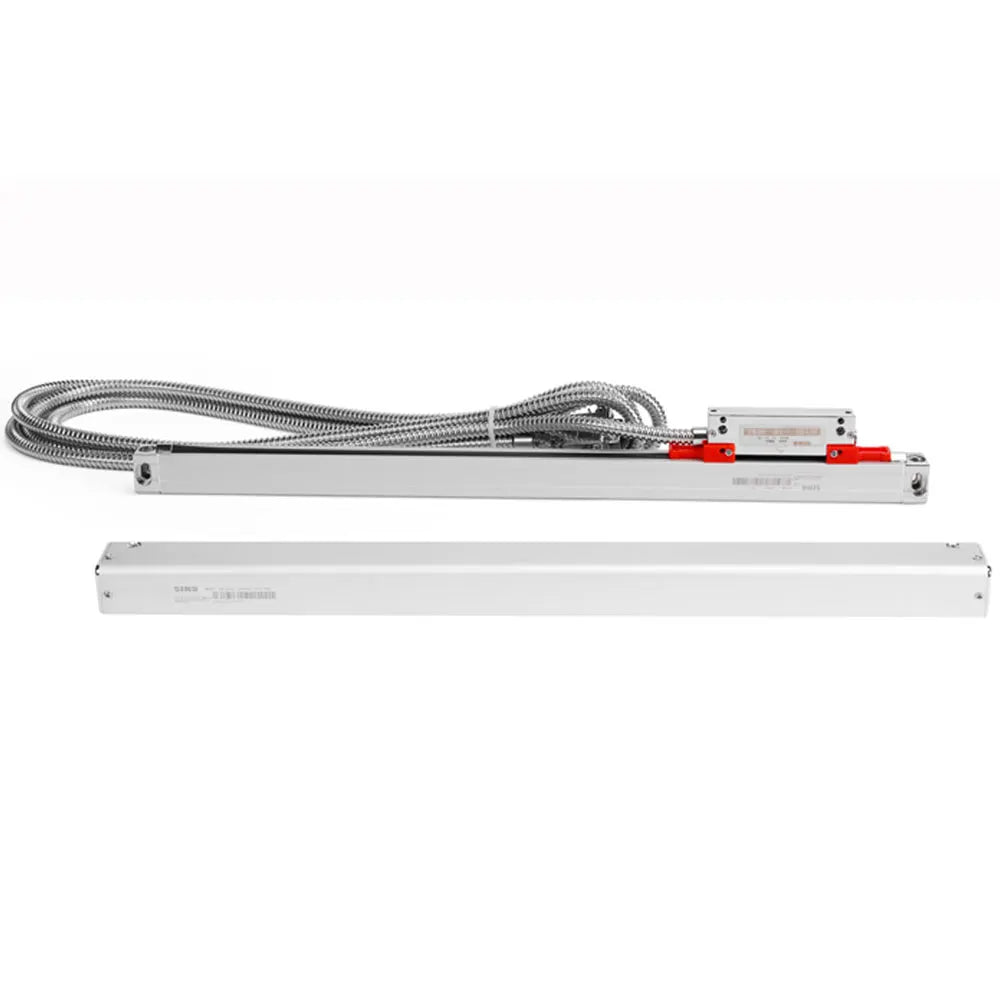

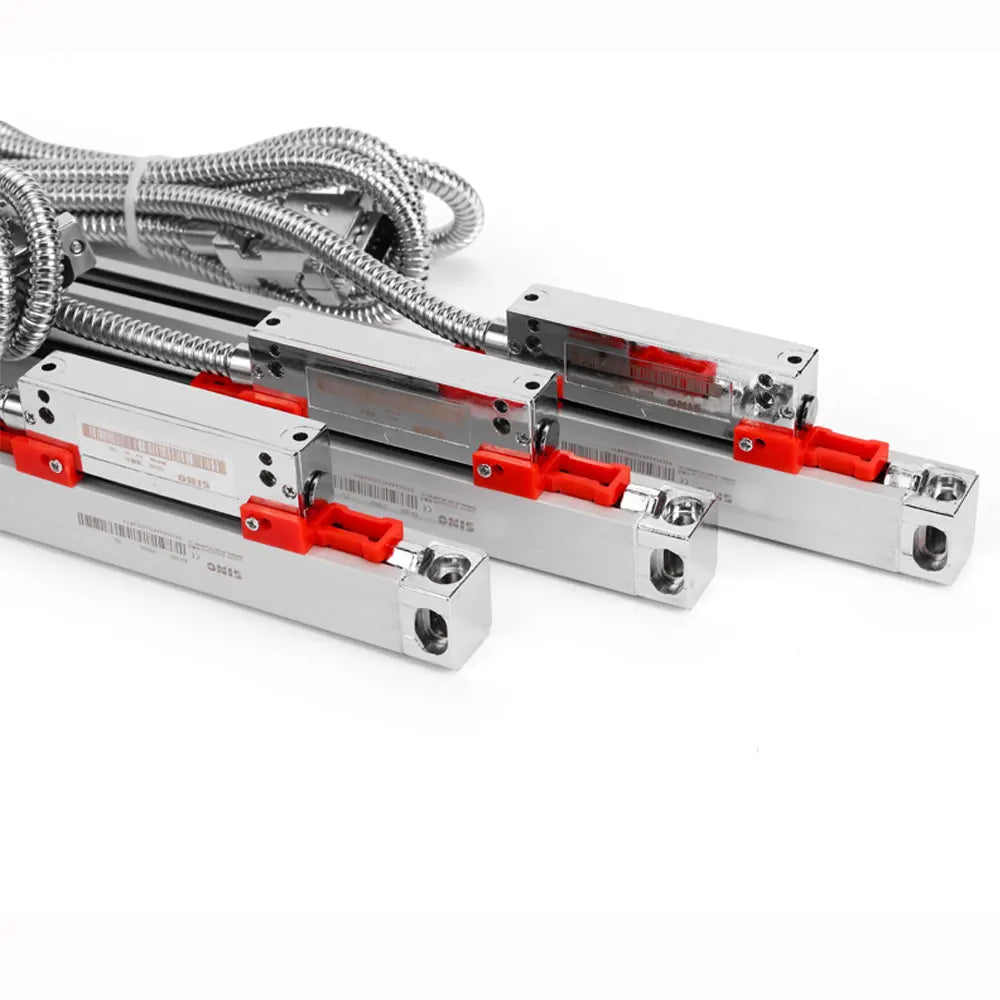

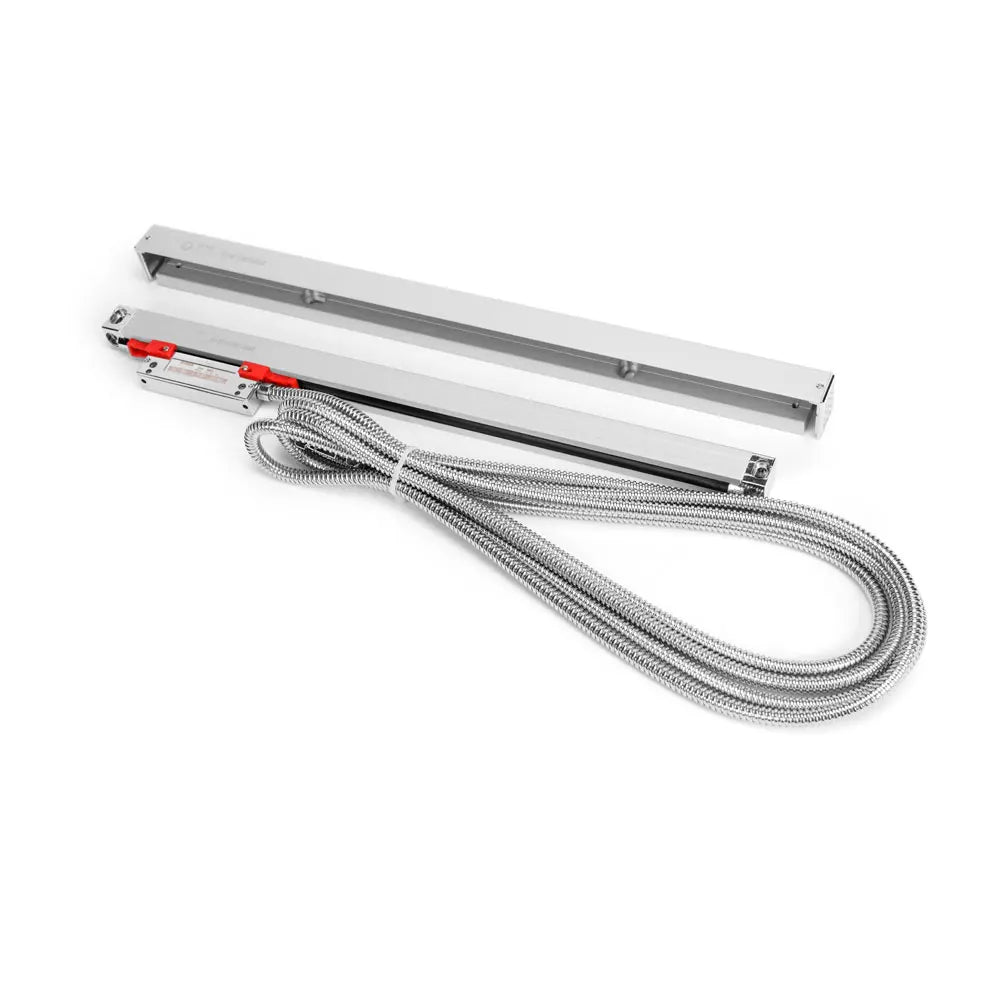

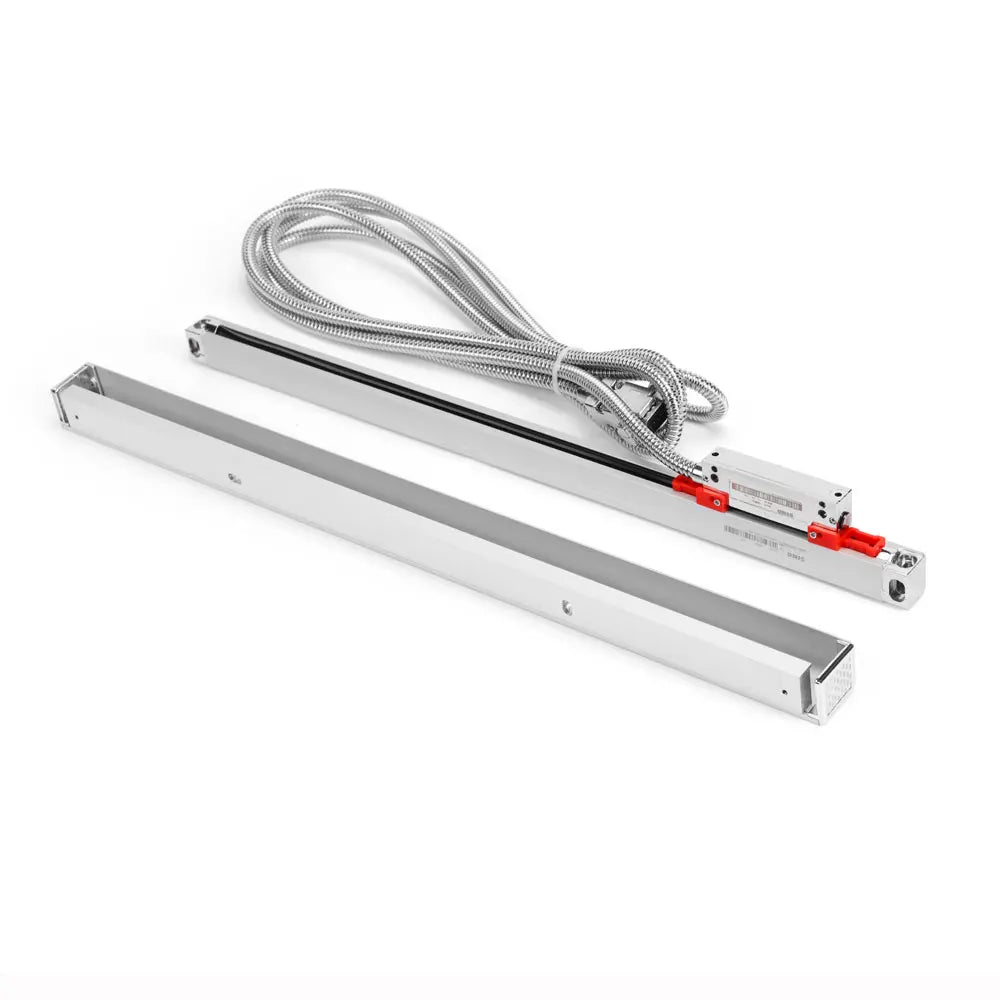

1um High Precision Digital Linear Encoder Ruler

Improve measurement accuracy on compatible machine tools with this high-precision optical linear encoder and digital grating ruler. Designed for precise position measurement, it is a practical component for lathe, milling machine and DRO setups where reliable linear positioning is important.

Key Features

• 1um High Precision: Designed for fine linear measurement and accurate position feedback.

• Optical Grating Technology: Uses optical measurement technology for precise linear positioning.

• Incremental Encoder: Provides incremental position feedback for compatible digital readout systems.

• TTL Output: Designed for compatible TTL-based digital readout and control systems.

• Linear Measurement: Helps monitor precise movement and positioning along a machine axis.

• Machine Tool Compatible: Suitable for compatible lathes, milling machines and machining equipment.

• DRO Ready: Designed for integration with compatible digital readout systems.

• Professional Workshop Tool: Useful for machining, fabrication, engineering and precision measurement applications.

• Reliable Position Feedback: Helps improve control and repeatability during machining operations.

Specifications

• Product Type: Optical linear encoder / grating ruler

• Measurement Resolution: 1um

• Encoder Type: Incremental

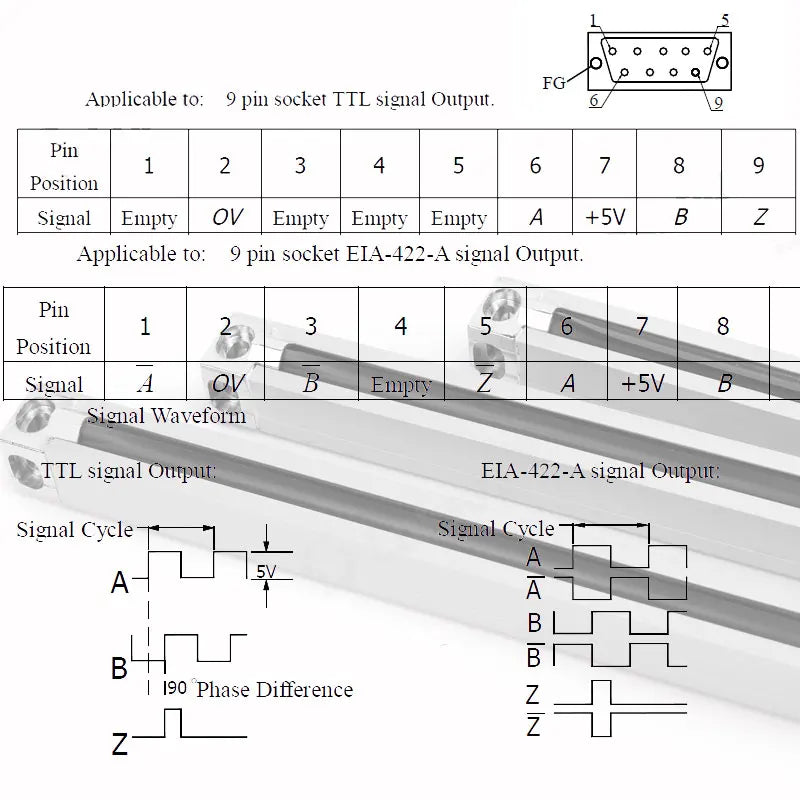

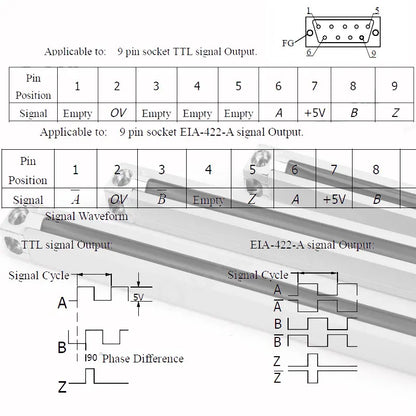

• Output Type: TTL

• Measurement Method: Optical

• Application: Linear position measurement

• Compatible Equipment: Compatible lathe and milling machines

• Main Use: Digital readout and machine positioning

• Recommended Applications: Machining, engineering, fabrication and precision measurement

Available Variants

• 320mm 1um TTL 5V
• 220mm 1um TTL 5V

Package Contents

• 1 x Optical Linear Encoder Grating Ruler

• 1 x Mounting Accessories Set

• 1 x User Guide

What Makes This a Smart Buy:

With 1um measurement resolution and TTL incremental output, this encoder is designed for applications where precise machine positioning matters. It provides a practical way to upgrade compatible lathe or milling setups with more accurate linear position feedback.
