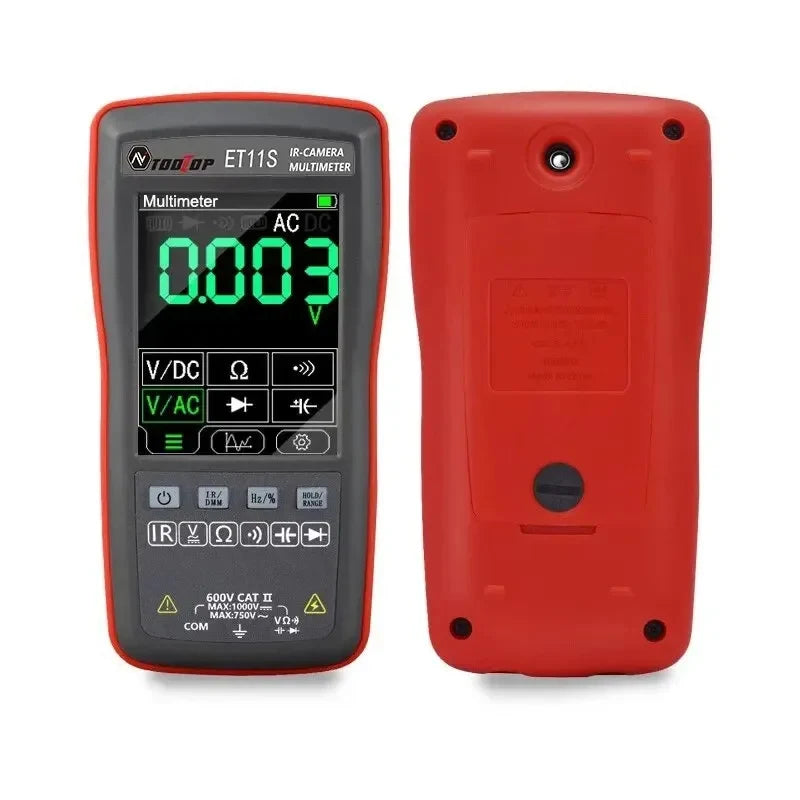

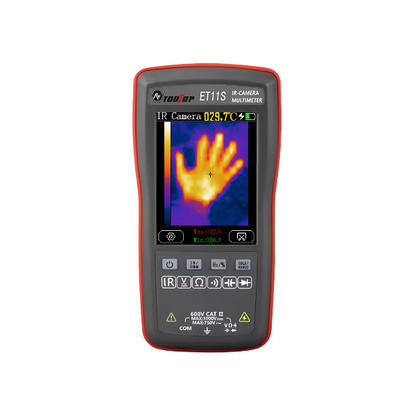

2.8 Inch Thermal Imager AC DC Multimeter Temperature Tester

Combine thermal inspection and electrical testing in one compact handheld tool. This 2-in-1 thermal imager and digital multimeter helps you quickly identify general temperature patterns while measuring key electrical values, making it a practical choice for troubleshooting, maintenance and DIY projects.

Key Features

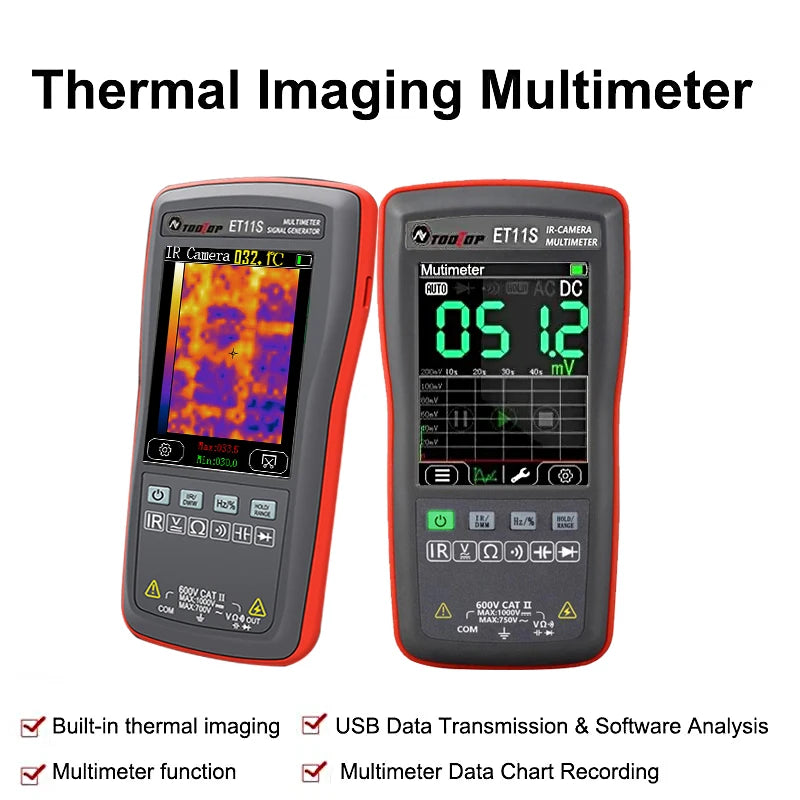

• 2-in-1 testing tool: Combines thermal imaging and digital multimeter functions in one compact device.

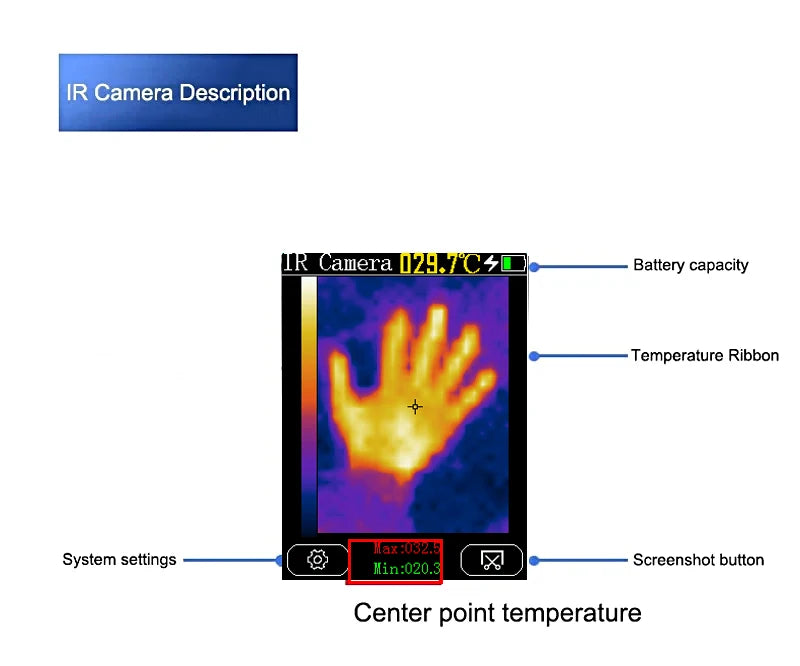

• Thermal temperature measurement: Measures temperatures from -40°C to 300°C for general heat distribution checks.

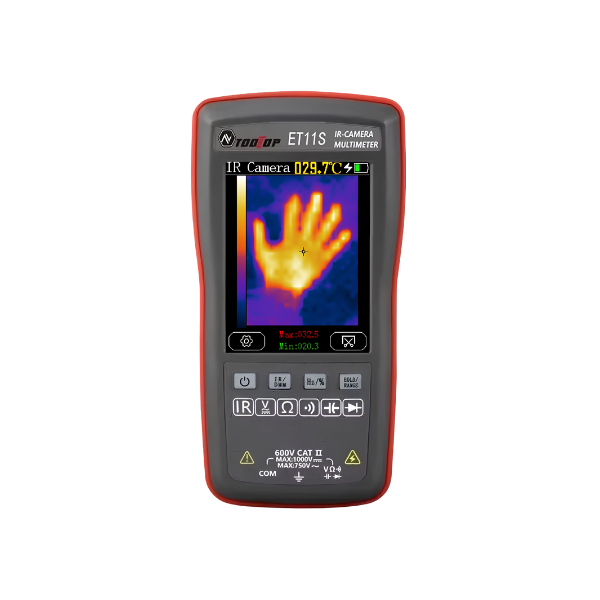

• 24 x 32 thermal resolution: Provides a thermal view for identifying noticeable temperature differences across surfaces and components.

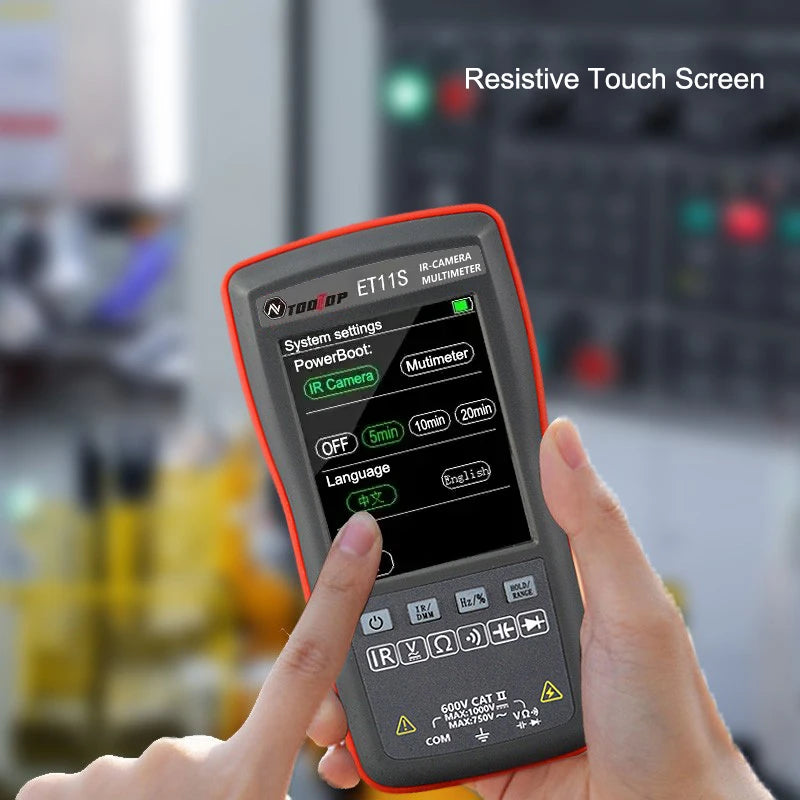

• 2.8-inch touchscreen: Resistive touch display provides convenient control and clear viewing of measurements and thermal images.

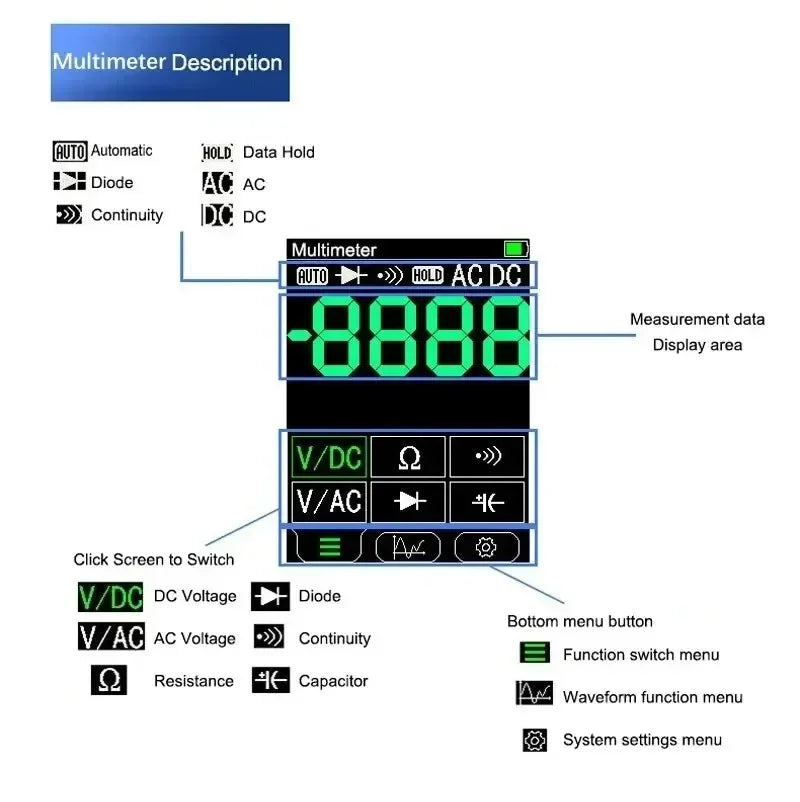

• Multimeter functionality: Measures AC/DC voltage, resistance, capacitance, diode values and continuity.
• High measurement capacity: Supports up to 1000V DC and 750V AC input measurements, with resistance measurement up to 40MΩ.
• Built-in rechargeable battery: Integrated lithium battery supports convenient USB charging for portable use.

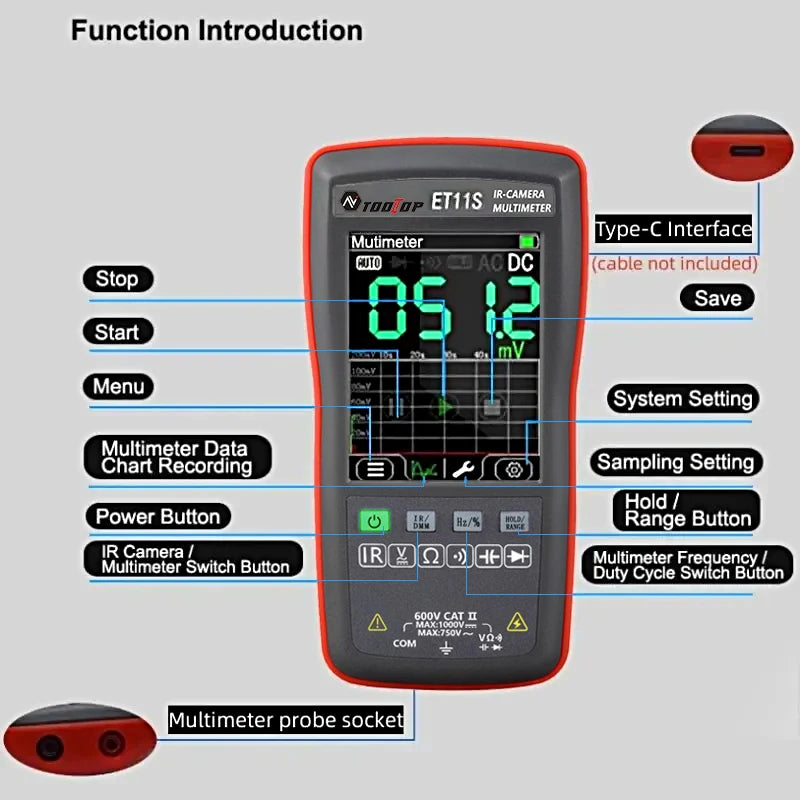

• USB-C connectivity: Transfer saved thermal images and measurement records to a computer for further analysis.
• PC analysis support: Compatible with PC software for reviewing stored thermal images and measurement data.

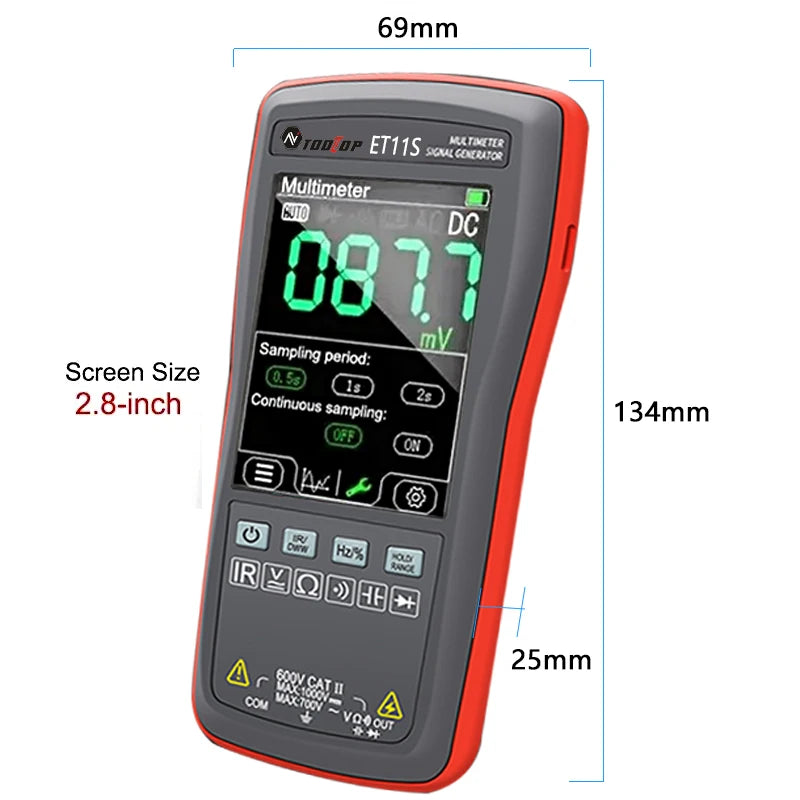

• Compact and lightweight: Measuring just 134 x 69 x 25mm and weighing approximately 125g, it's easy to carry between jobs.
• Automatic calibration: The thermal detector performs periodic mechanical calibration to help maintain measurement consistency.

Specifications

• Product Type: Thermal Imager & Digital Multimeter
• Thermal Imaging Resolution: 24 x 32 pixels
• Thermal Sensor: Uncooled focal plane
• Image Capture Frequency: 16Hz
• Field of View: 55° H x 35° V
• Temperature Range: -40°C to +300°C
• Emissivity: 0.1–0.99 adjustable
• Temperature Display Accuracy: 0.1°C / 0.1°F
• Thermal Accuracy: Above 0°C: ±2°C / ±2%; 0°C or below: ±5°C / ±5%
• Colour Palettes: Iron Red, Rainbow
• Multimeter Counts: 4000 counts
• Refresh Rate: 3 times per second
• Maximum DC Input Voltage: 1000V
• Maximum AC Input Voltage: 750V
• Maximum Resistance: 40MΩ
• Capacitance Measurement: Up to 100µF
• Duty Cycle: 0.1%–99.9%
• Diode Measurement: 0–1.5V
• Continuity Detection: Up to 30Ω
• Display: 2.8-inch resistive touchscreen
• Interface: USB-C
• Storage Capacity: 3.5MB
• Image Format: BMP
• Battery: Built-in lithium rechargeable battery
• Working Temperature: 0–50°C
• Storage Temperature: -20–60°C
• Working Humidity: Less than 85% RH, non-condensing
• Product Dimensions: 134 x 69 x 25mm
• Product Weight: 125g

Package Contents

• 1 x Thermal Imager Multimeter
• 1 x Pair of Test Leads
• 1 x User Manual
