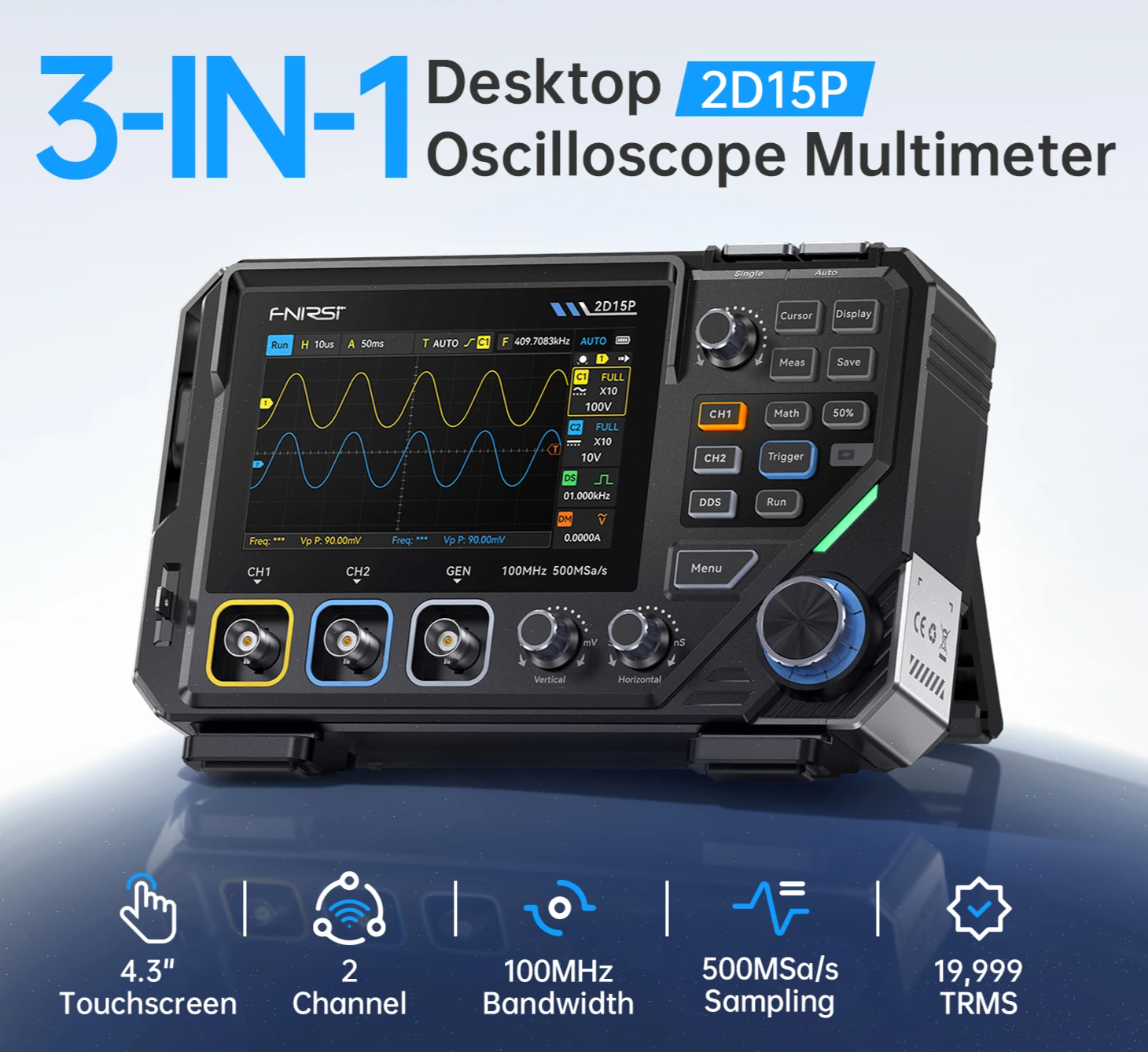

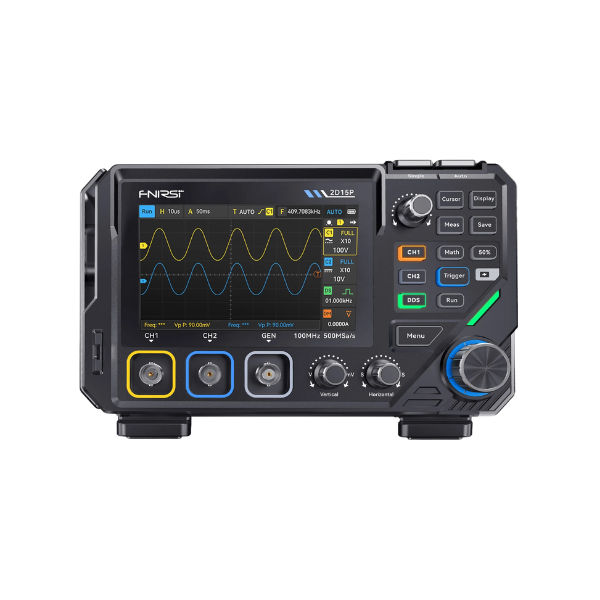

2 Channel 100MHz Digital Oscilloscope Multimeter 3in1

Take your electrical testing and signal analysis to the next level with this versatile 3-in-1 digital oscilloscope, multimeter and signal generator. With dual-channel measurement, a 100MHz bandwidth and a responsive 4.3-inch touchscreen, it combines essential testing tools in one convenient unit.

Key Features

• 3-in-1 Testing Solution: Combines a 2-channel digital oscilloscope, True RMS digital multimeter and signal generator in one compact device.
• 100MHz Oscilloscope Bandwidth: Delivers up to 100MHz bandwidth in single-channel operation and 50MHz per channel when using both channels.
• 500MSa/s Sampling Rate: Captures fast-changing signals with detailed waveform visibility for troubleshooting and analysis.
• 4.3-Inch Capacitive Touchscreen: Enjoy intuitive control alongside physical buttons and a control knob for flexible operation.
• Dual-Channel Testing: Monitor two signals simultaneously for easier comparison and real-time analysis.

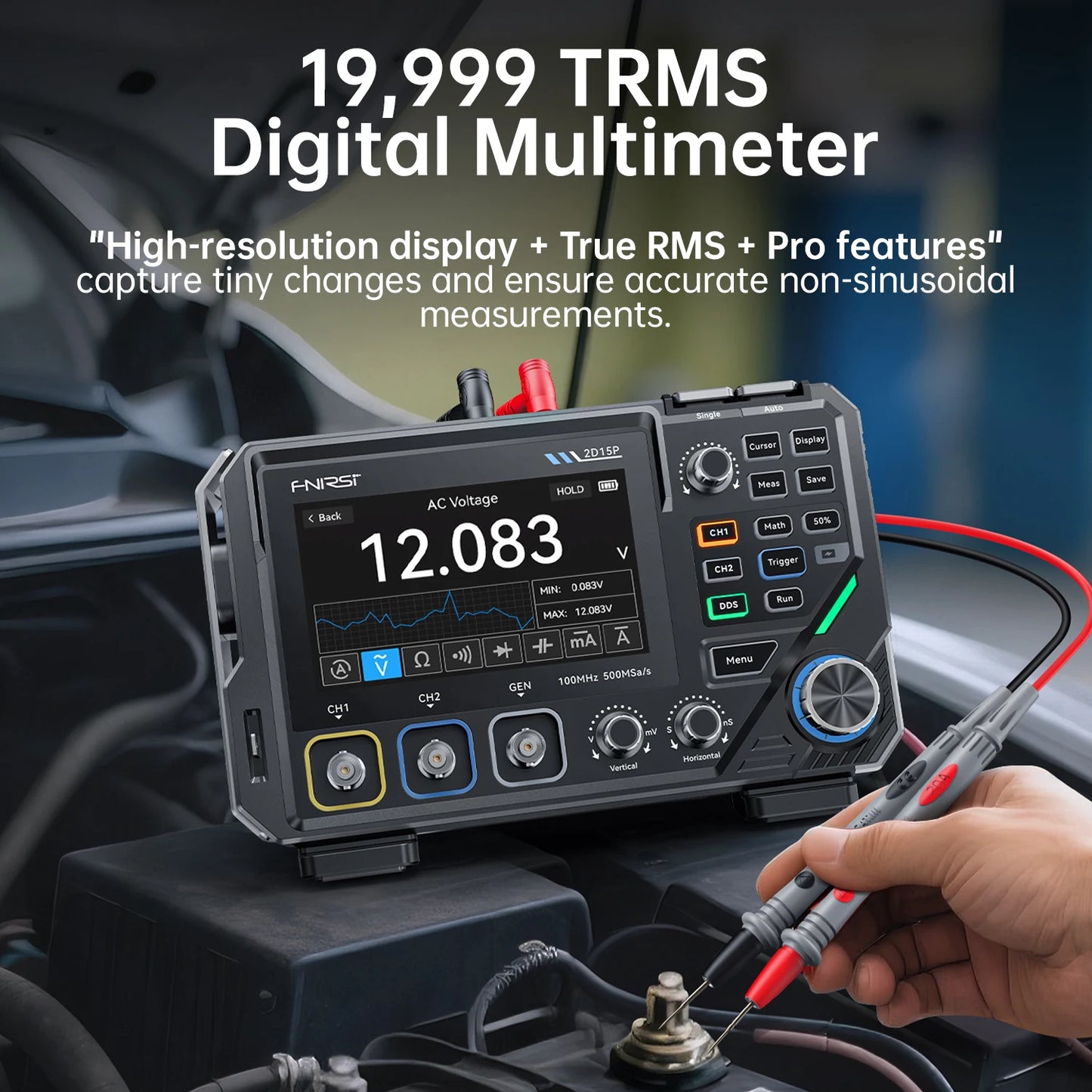

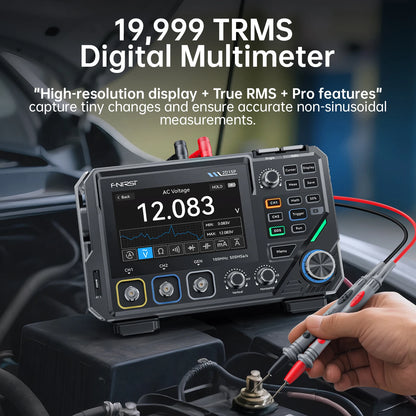

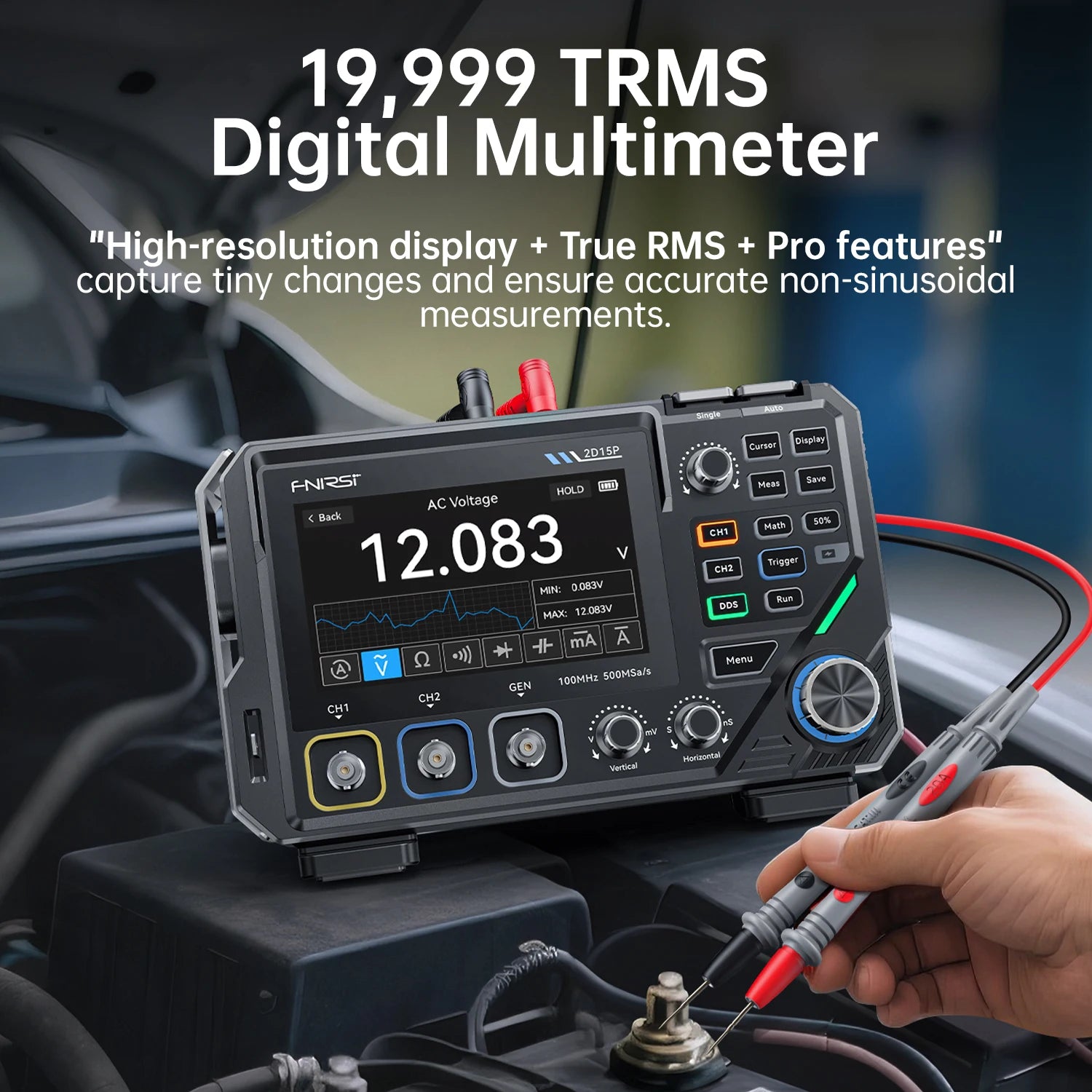

• 20,000-Count True RMS Multimeter: Accurately measure AC/DC voltage and current, resistance and capacitance, with diode and continuity testing.
• Built-In 10MHz Signal Generator: Produce common waveforms with adjustable frequency, amplitude and duty cycle for testing and circuit development.
• Multiple Waveform Options: Supports sine, square, triangle, DC, noise, half-wave, full-wave and staircase waveforms.

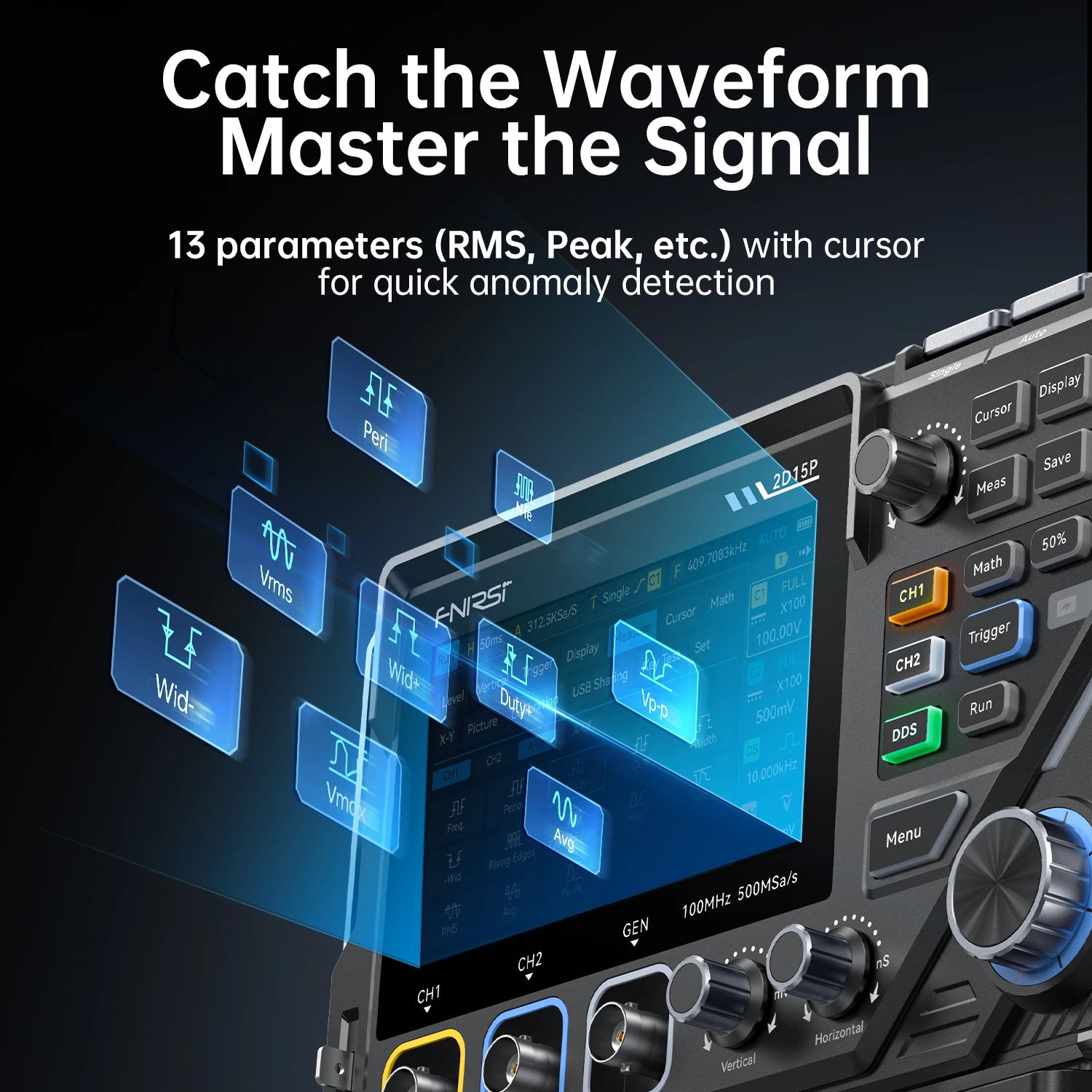

• Advanced Waveform Analysis: Includes cursor measurement, waveform capture, waveform export and six mathematical operations.
• Flexible Memory Depth: Select from 10K, 100K or 1M memory depth to suit different testing requirements.

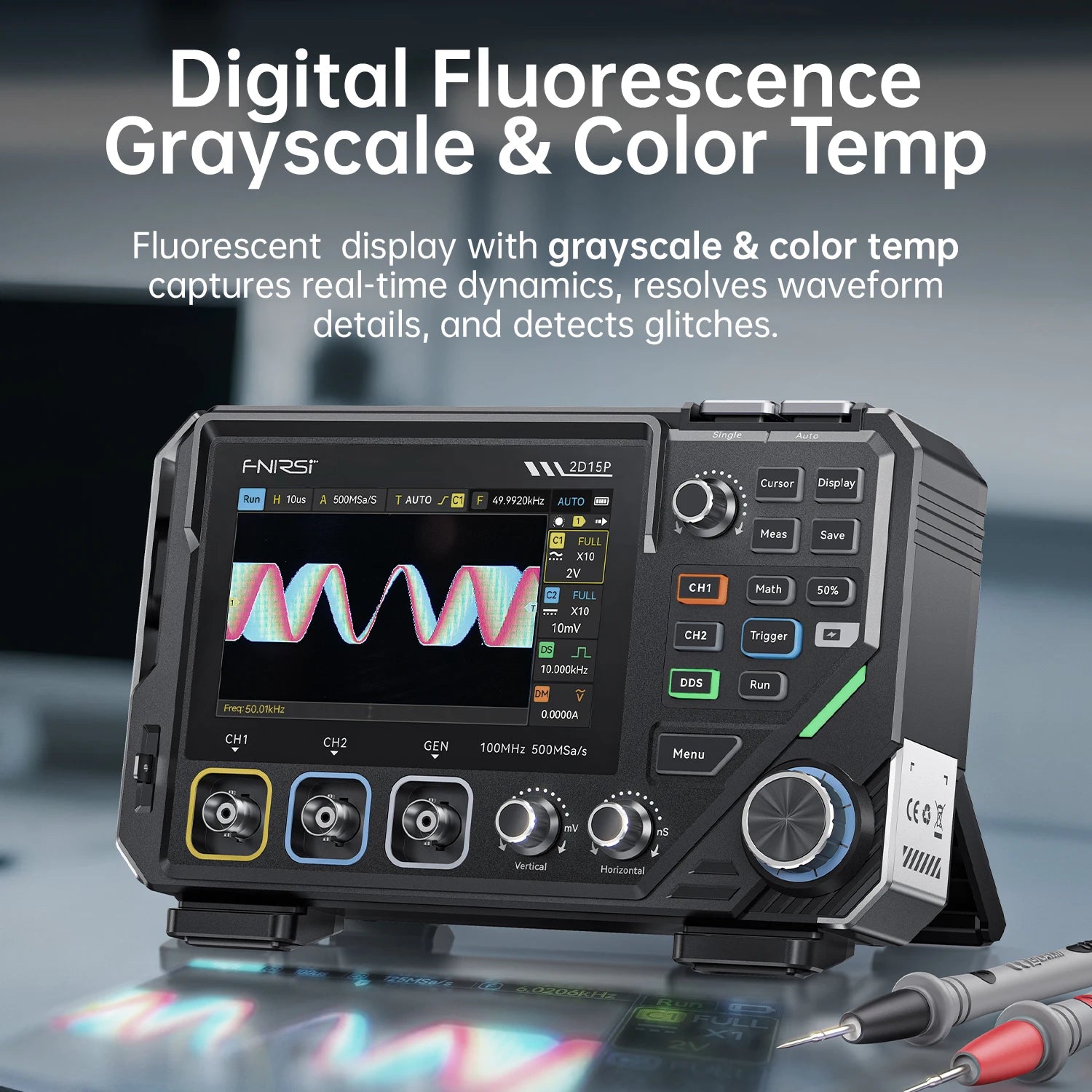

• Clear Waveform Visualisation: 128-level grayscale, persistence and colour-temperature display modes help make waveform details easier to interpret.
• Adjustable Triggering: Auto, Normal and Single trigger modes with rising, falling and both-edge trigger types.
• Rechargeable Battery: Built-in 5000mAh rechargeable battery provides convenient cordless operation around the workbench or job site.

Specifications

• Product Type: 3-in-1 Digital Oscilloscope, Multimeter & Signal Generator
• Channels: 2 Oscilloscope Channels
• Analog Bandwidth: 100MHz single channel / 50MHz dual channel
• Sampling Rate: 500MSa/s
• Memory Depth: 10K / 100K / 1M
• Screen: 4.3-inch Capacitive Touchscreen
• Operation: Touchscreen, Physical Buttons & Knob
• Input Impedance: 1MΩ
• Time Base: 5ns/div – 50s/div
• Vertical Sensitivity: 10mV/div – 10V/div
• Maximum Input Voltage: 800V with ×10 Probe
• Coupling: AC / DC
• Trigger Modes: Auto / Normal / Single
• Trigger Types: Rising / Falling / Both Edges
• Display Modes: Dot / Vector / Colour Temperature
• Persistence: Minimum / 2s / 5s / 10s / 20s / 50s / Infinity
• Math Functions: 6 Basic Operations
• Waveform Capture: Supported
• Waveform Export: Supported
• Cursor Measurement: Supported
• DC Voltage: 1.9999V / 19.999V / 199.99V / 1000V
• AC Voltage: 1.9999V / 19.999V / 199.99V / 750V
• AC/DC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A
• Resistance: 199.99Ω to 19.999MΩ
• Capacitance: 9.999nF to 99.99mF
• Diode Test: Supported
• Continuity Test: Supported
• Signal Generator: 1 Channel
• Generator Frequency: 0–10MHz
• Generator Amplitude: 0.1–3.0Vpp
• Duty Cycle: 0–100%
• Generator Waveforms: Sine, Square, Triangle, DC, Noise, Half-Wave, Full-Wave, Positive Staircase & Negative Staircase

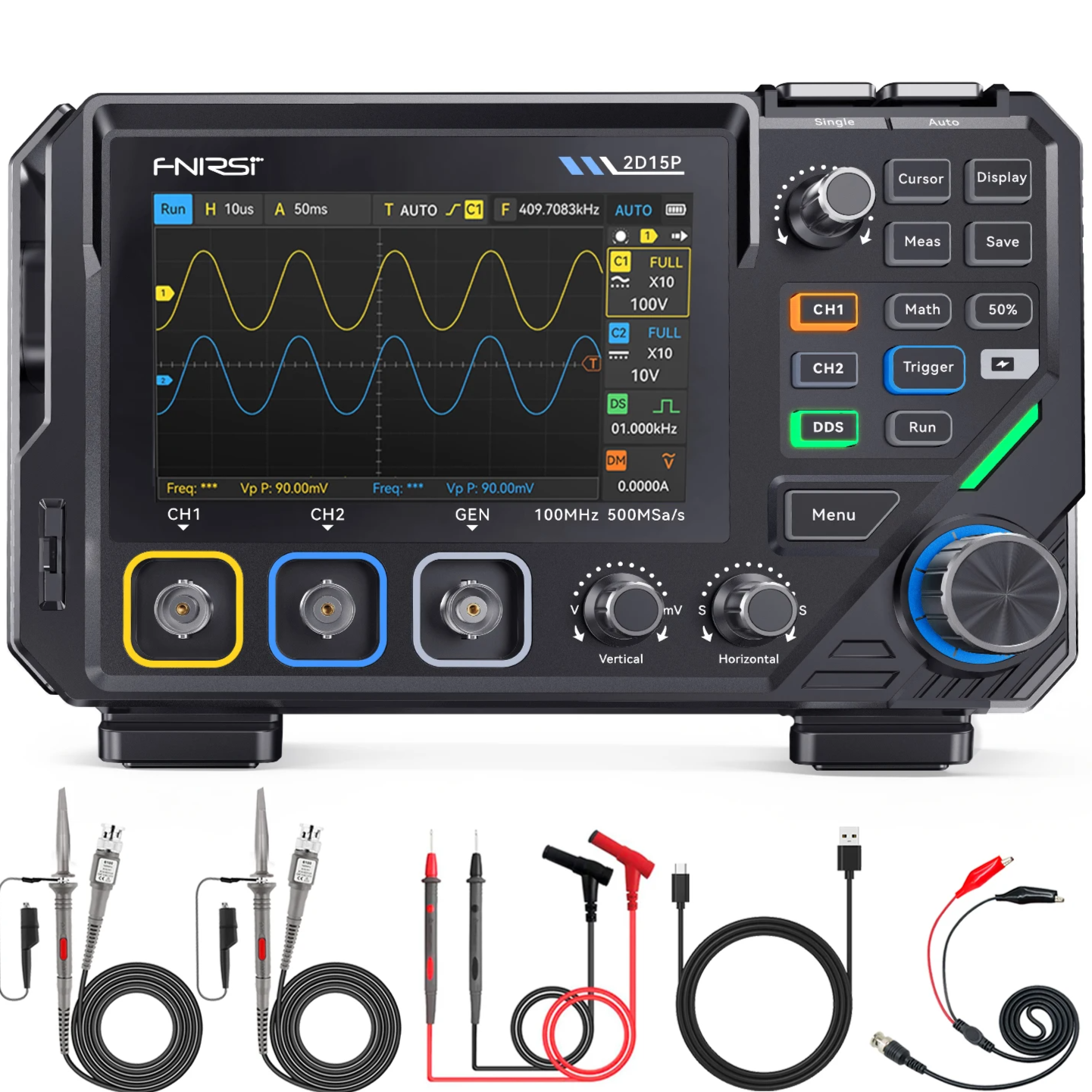

Package Contents

• 1 x Digital Oscilloscope Multimeter Signal Generator
• 2 x Probes
• 1 x Multimeter Probe
• 1 x Alligator Clip Probe
• 1 x USB-A to USB-C Cable
• 1 x User Manual

What Makes This a Smart Buy:

Instead of carrying separate testing instruments, this 3-in-1 unit puts oscilloscope, multimeter and signal-generation functions in one versatile device. With dual-channel analysis, high-speed sampling and rechargeable operation, it is a practical choice for electronics testing, troubleshooting, repairs and DIY projects.
