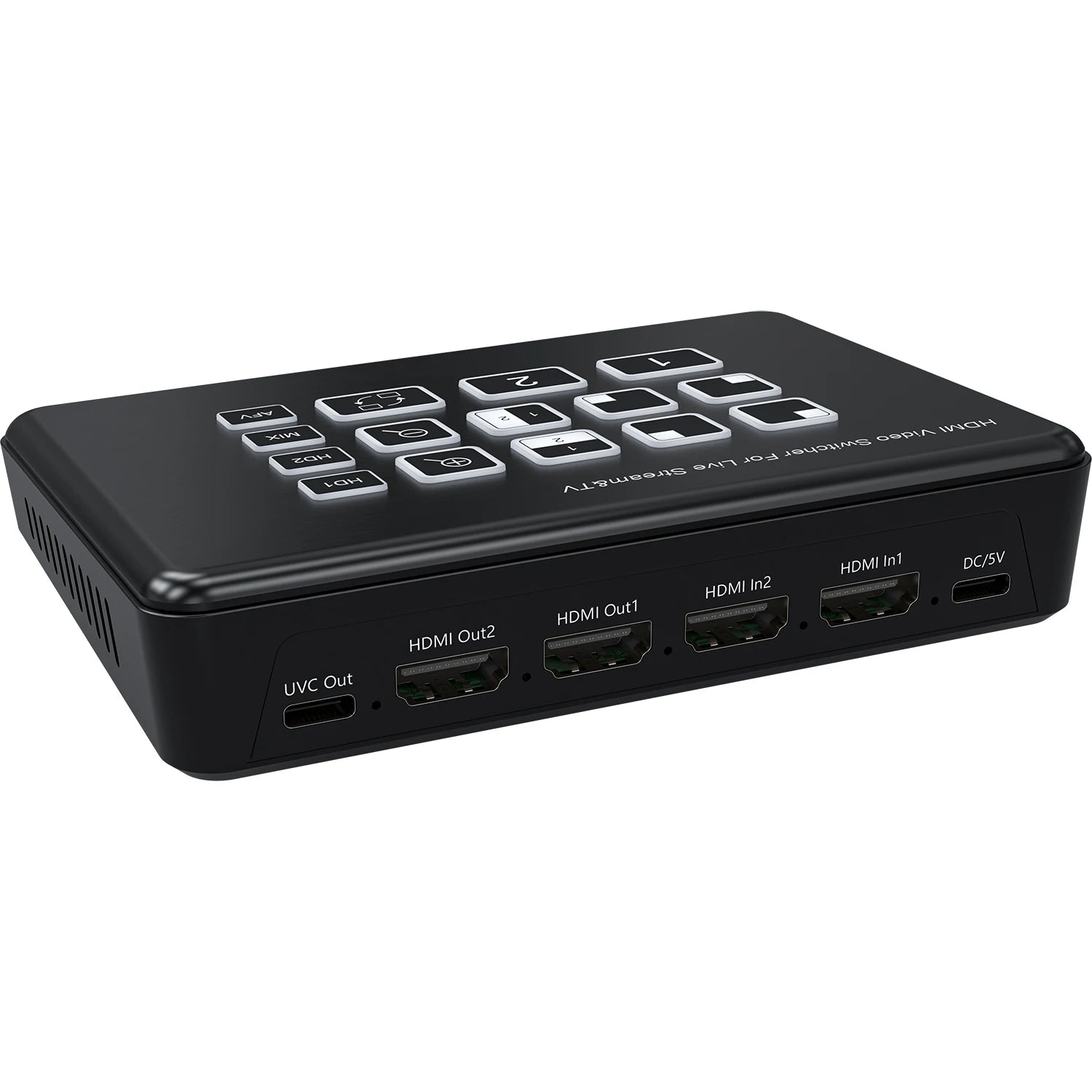

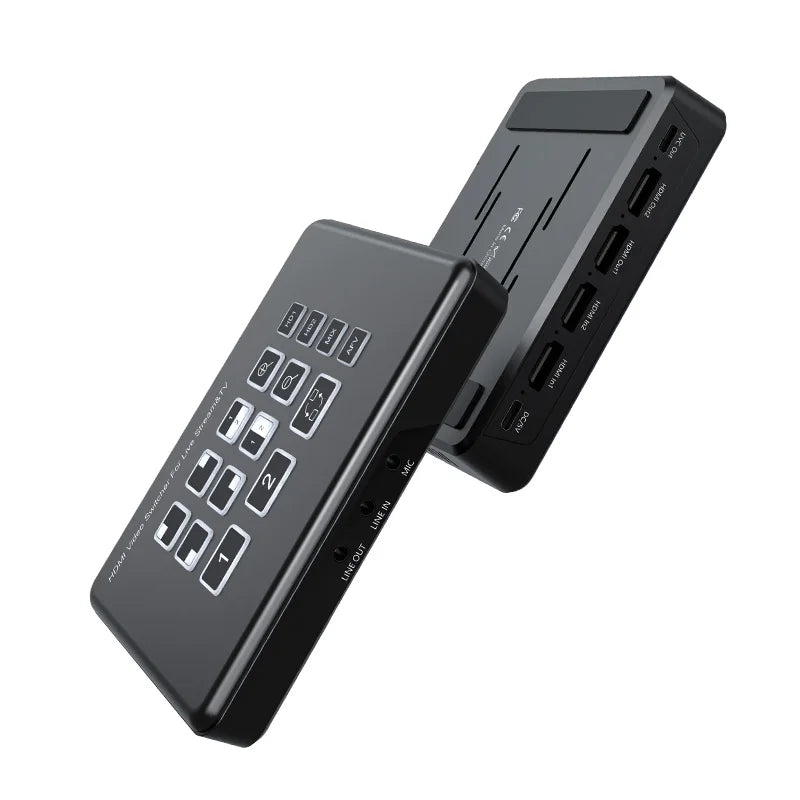

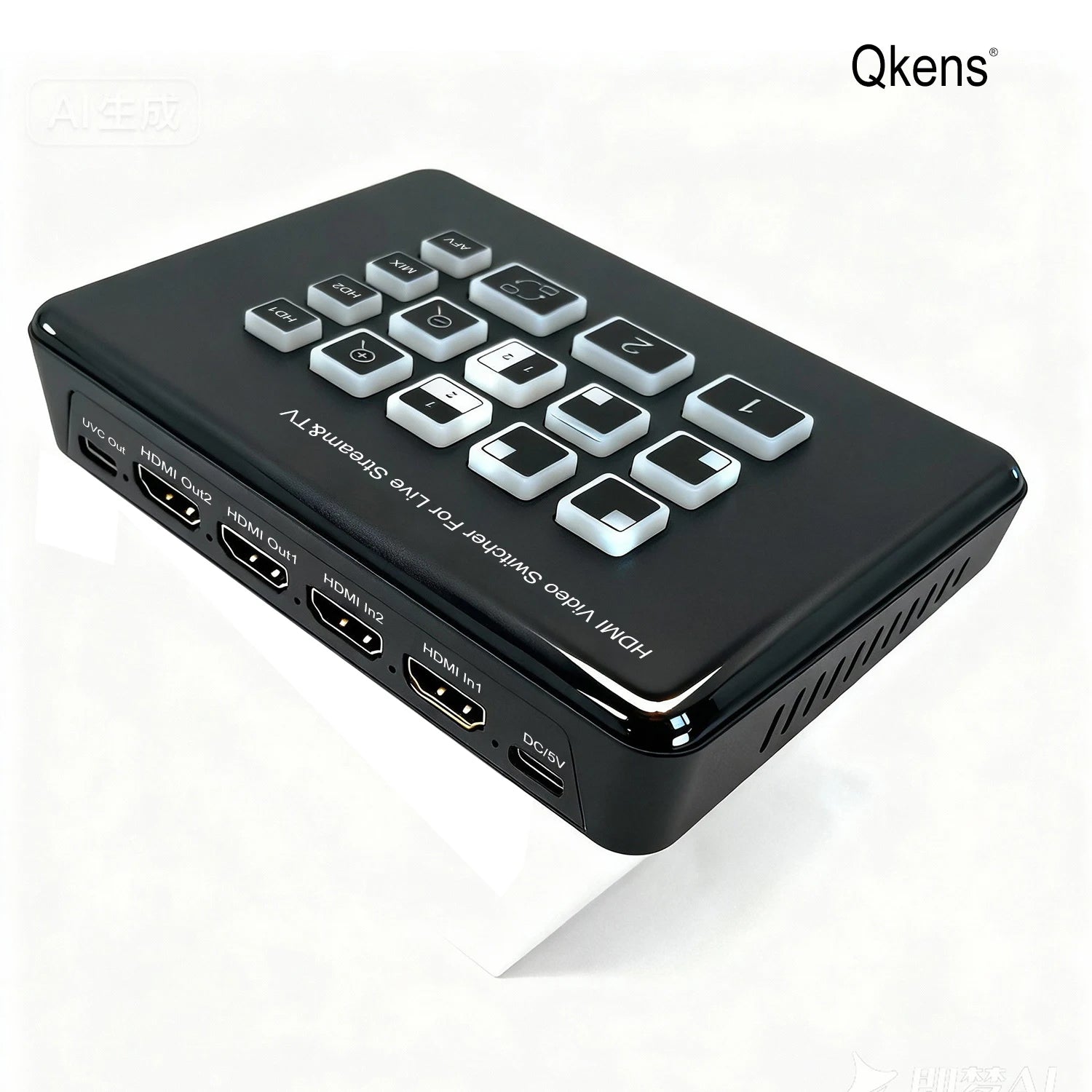

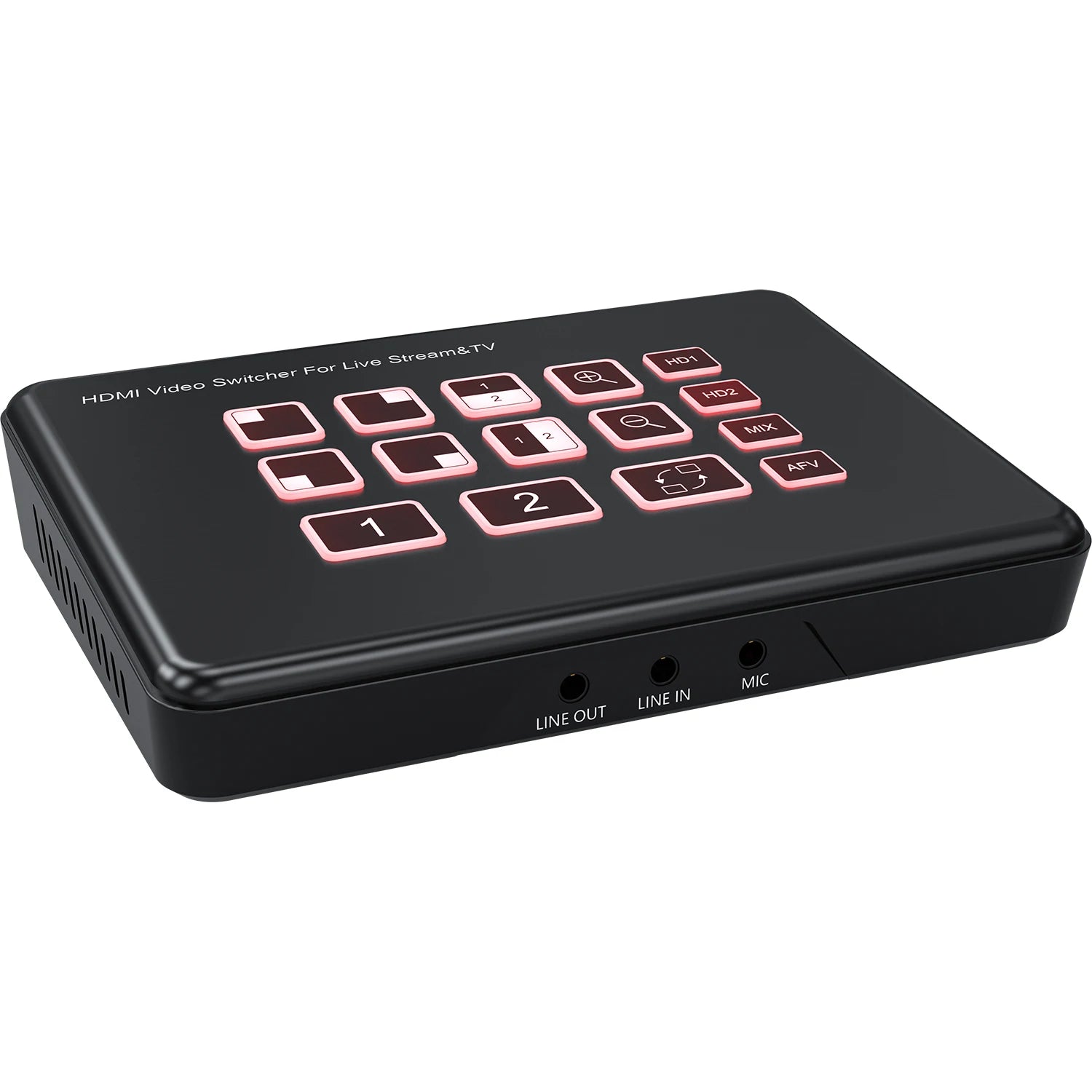

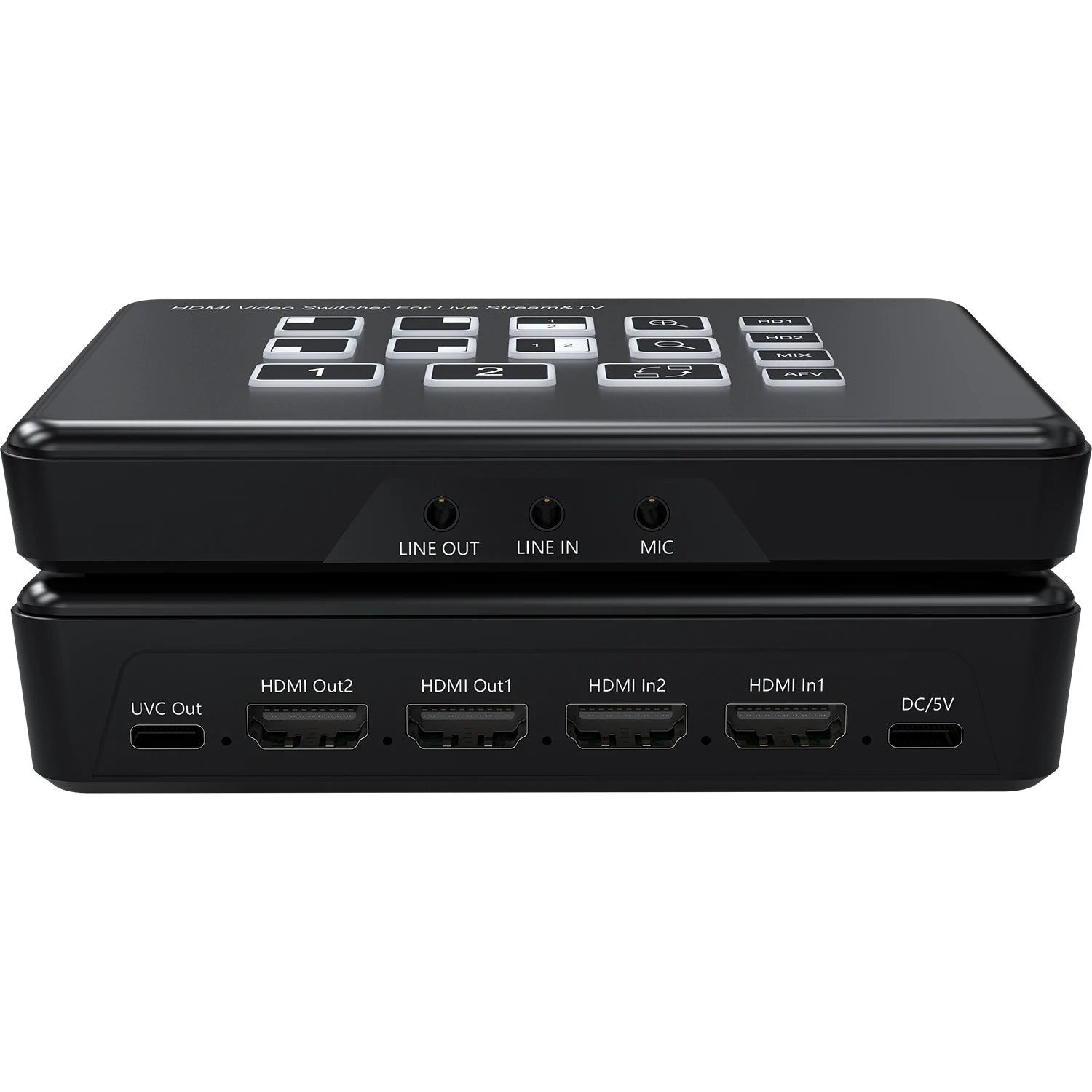

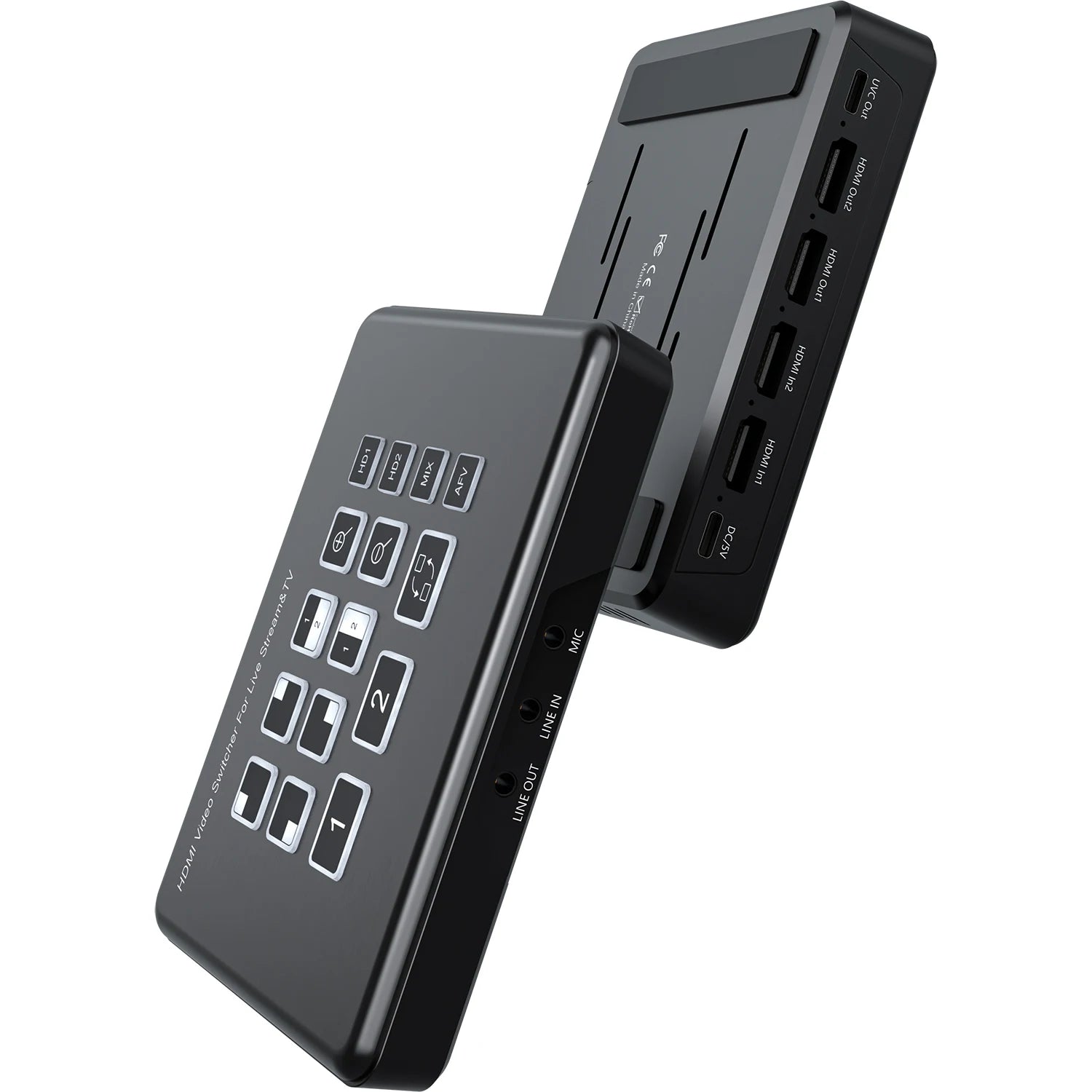

2 Channel HDMI Video Mixer Switcher with PIP Audio

Create professional live productions with ease using this 2 Channel HDMI Video Mixer Switcher. Designed for livestreaming, presentations, interviews and event broadcasting, it allows seamless switching between two HDMI sources while supporting Picture-in-Picture effects, external audio mixing and USB video capture.

Key Features

• Dual HDMI inputs and dual HDMI outputs for flexible video production
• Supports Full HD 1080p at 60Hz for smooth, high-quality video
• Picture-in-Picture (PIP) with four display layouts
• Preview (PVW) and Program (PGM) outputs for professional live switching
• USB Type-C 3.0 UVC output for direct streaming to a computer
• Mix HDMI embedded audio with external microphone or line input
• Supports HDMI audio embedding and analog audio output
• On-screen display shows input source, resolution and audio information
• Compatible with popular streaming software including OBS Studio, VLC and PotPlayer
• Saves settings automatically after power-off for added convenience
• Illuminated control buttons for quick operation in low-light environments
• Ideal for live streaming, gaming, online teaching, conferences, church services and video production

Specifications

• Product Type: HDMI Video Mixer Switcher
• HDMI Inputs: 2
• HDMI Outputs: 2
• Video Resolution: Up to 1920 × 1080 at 60Hz
• Preview Output: Yes (PVW)
• Program Output: Yes (PGM)
• USB Capture Output: USB Type-C 3.0 (UVC 1.0)
• Supported Video Formats: YUY2, MJPEG
• Audio Support: PCM
• Audio Inputs: HDMI Audio, Microphone, Line In
• Audio Outputs: HDMI Embedded Audio, Line Out
• Picture-in-Picture Modes: 4
• HDMI Standard: HDCP 1.4 Compatible
• Maximum Bandwidth: 148.5MHz
• Maximum Data Rate: 1.65 × 3Gbps
• Maximum HDMI Cable Length: Up to 15m (1080p 60Hz)
• Maximum Working Current: 0.8A
• Operating Temperature: 0°C to 45°C
• Dimensions: 136 × 98 × 29mm
• Weight: Approximately 185g

Package Contents

• 1 × HDMI Video Mixer Switcher (2 in 1 Out)
• 1 × USB Type-C to USB 3.2 Gen 1 Cable
• 1 × USB Type-C Power Cable
• 1 × User Manual

What Makes This a Smart Buy

This compact video mixer combines professional switching, audio mixing and USB streaming in one easy-to-use device. Whether you're producing live events, online classes or content for social media, it delivers reliable Full HD performance without the complexity or cost of larger broadcast equipment.
