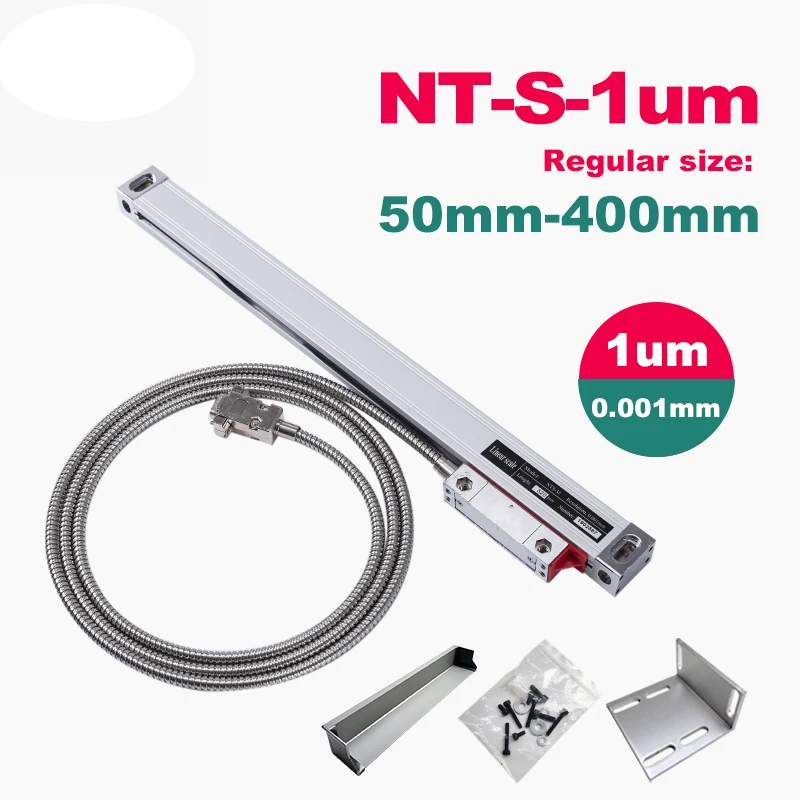

200mm Glass Scale for Lathes and Grinders

Enhance your machining projects with this 200mm Linear Glass Scale. Designed for lathes, grinders, and milling machines, it provides reliable high-resolution readings for precise work.

Key Features

• Compact 20×27mm slim design for small machines

• High-resolution 0.001mm (1µm) accuracy

• Compatible with all China brand DRO systems via TTL signal

• 3-meter cable for flexible positioning

• Industrial-grade IP54 protection

• Comes with scale cover, bracket, and screws for easy installation

Specifications

• Travel length: 200mm

• Scale overall length: 342mm

• Input voltage: 5VDC ±5%, 100mA

• Max measuring speed: 60m/min

• Operating temperature: 0–50°C

• Interface type: 20µm, DB9

• Protection grade: IP54

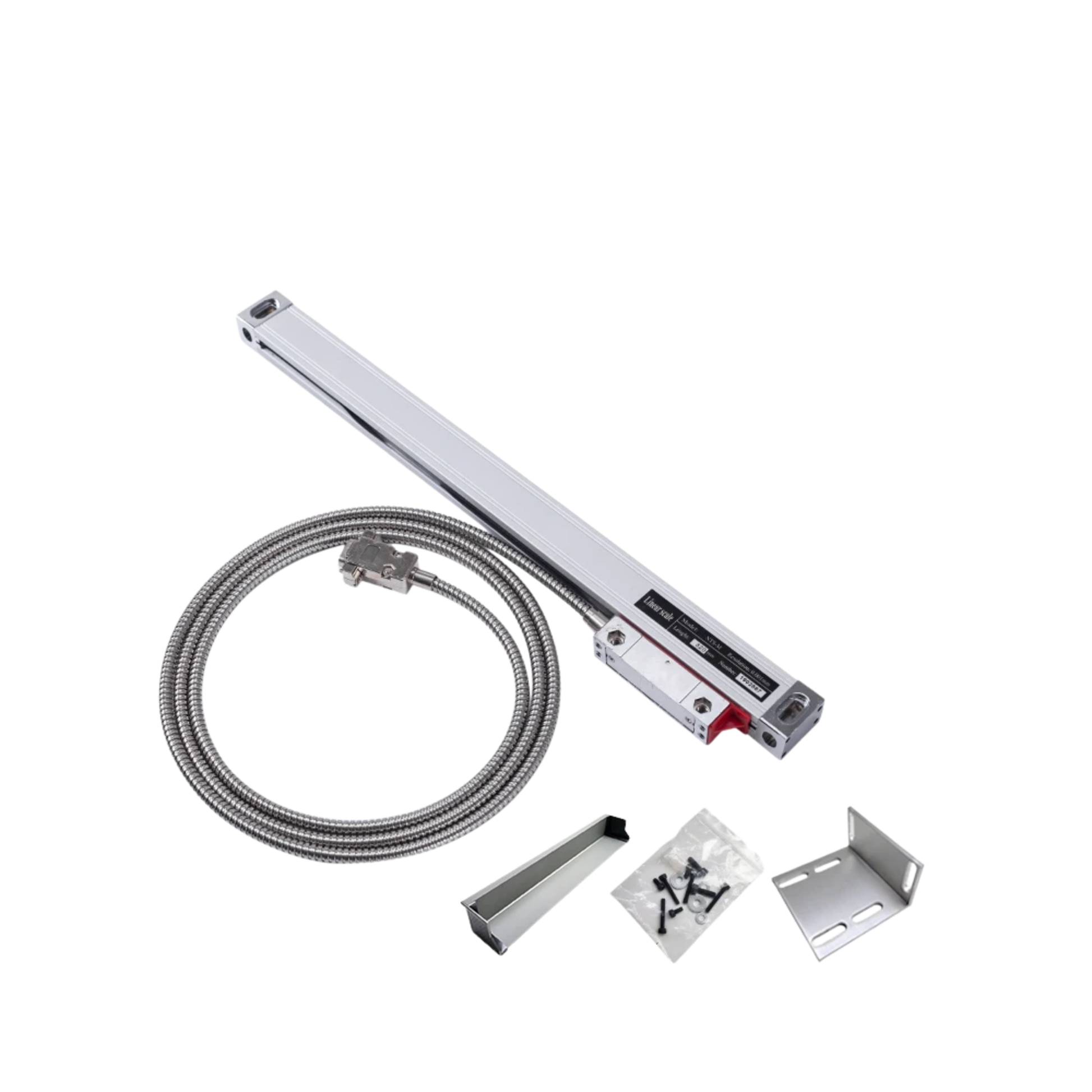

Package Contents

• 1 × 200mm NT-S scale (200mm travel 0.001mm)

• Scale cover

• Mounting bracket

• Screw bag

What Makes This a Smart Buy:
The 200mm scale delivers precise measurements in a compact form factor, making it ideal for small lathes or grinders. It’s a versatile, easy-to-install upgrade for accurate, repeatable machining.
