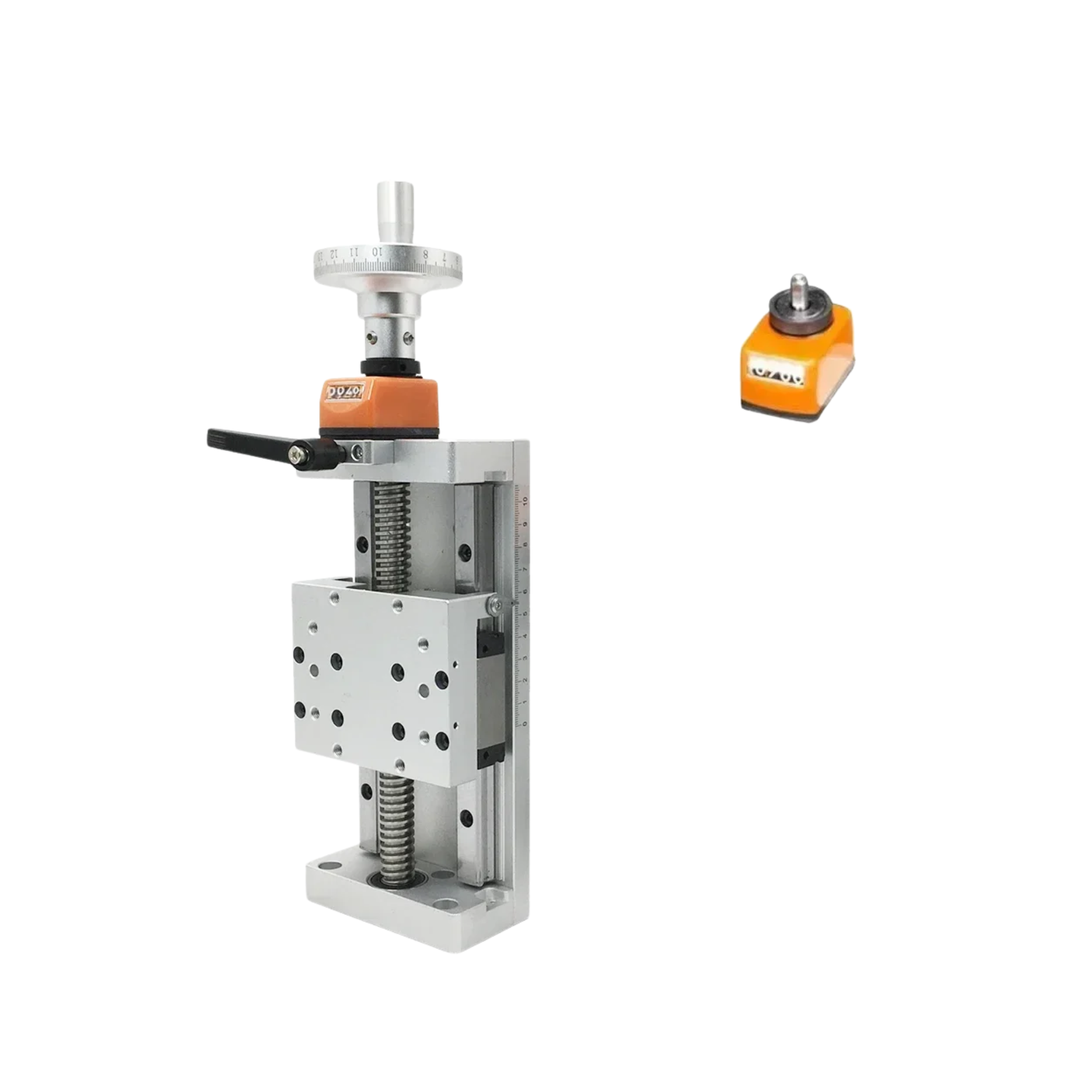

A precision manual linear slide table designed for accurate positioning and stable load handling in CNC setups, lab equipment, and mechanical adjustment systems. With a built-in digital display and robust stainless steel construction, it delivers smooth, controlled movement with reliable measurement feedback.
Key Features
- Built-in digital position counter for accurate movement tracking
- Heavy-duty 100kg horizontal load capacity for stable operation
- Vertical locking system for secure positioning during use
- Smooth T-type lead screw for precise manual adjustment

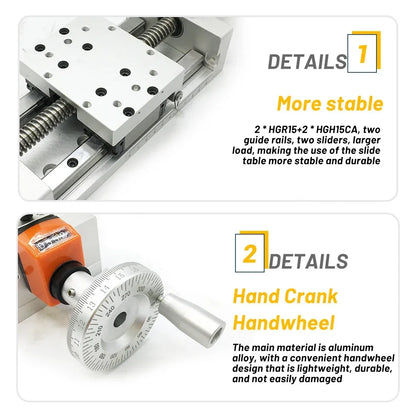

- Dual rail EGR15 guide system for improved stability and control
- Stainless steel construction for durability and long service life
- Compact industrial design suitable for CNC and precision setups

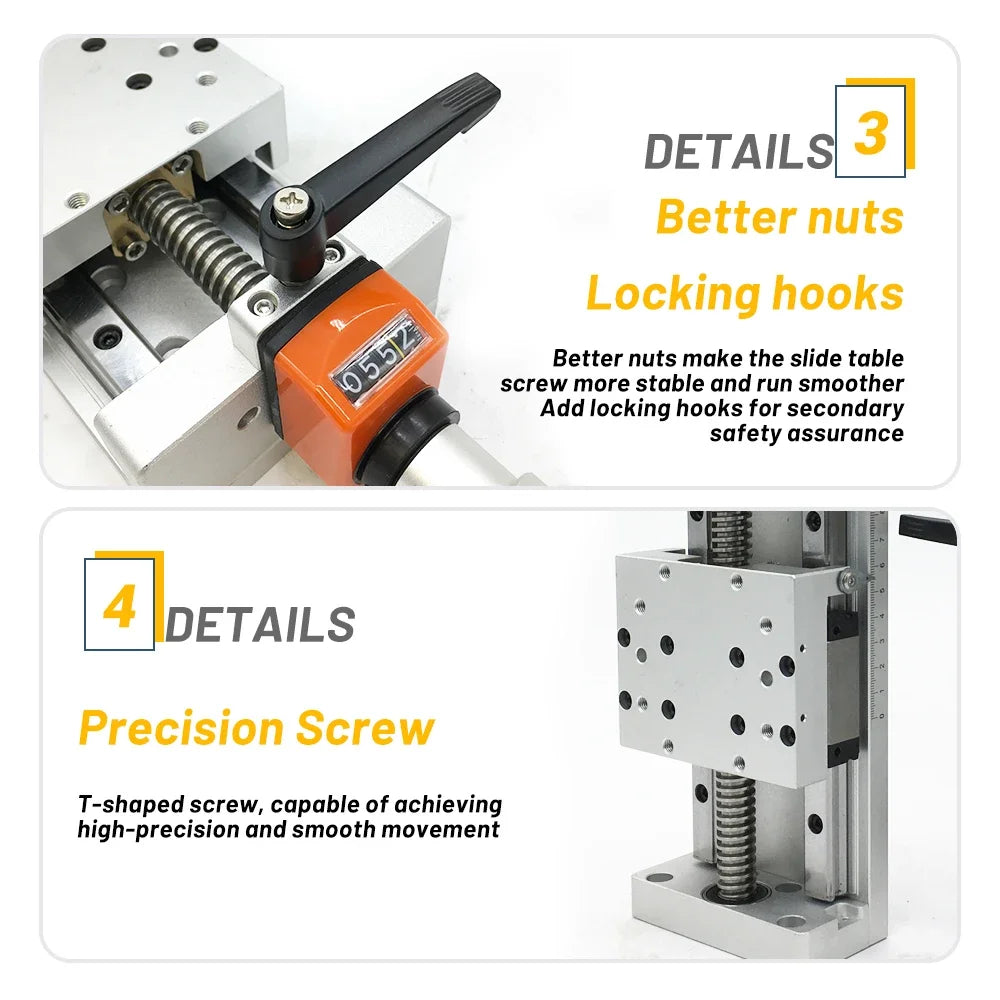

- Self-locking mechanism for safer and more stable operation

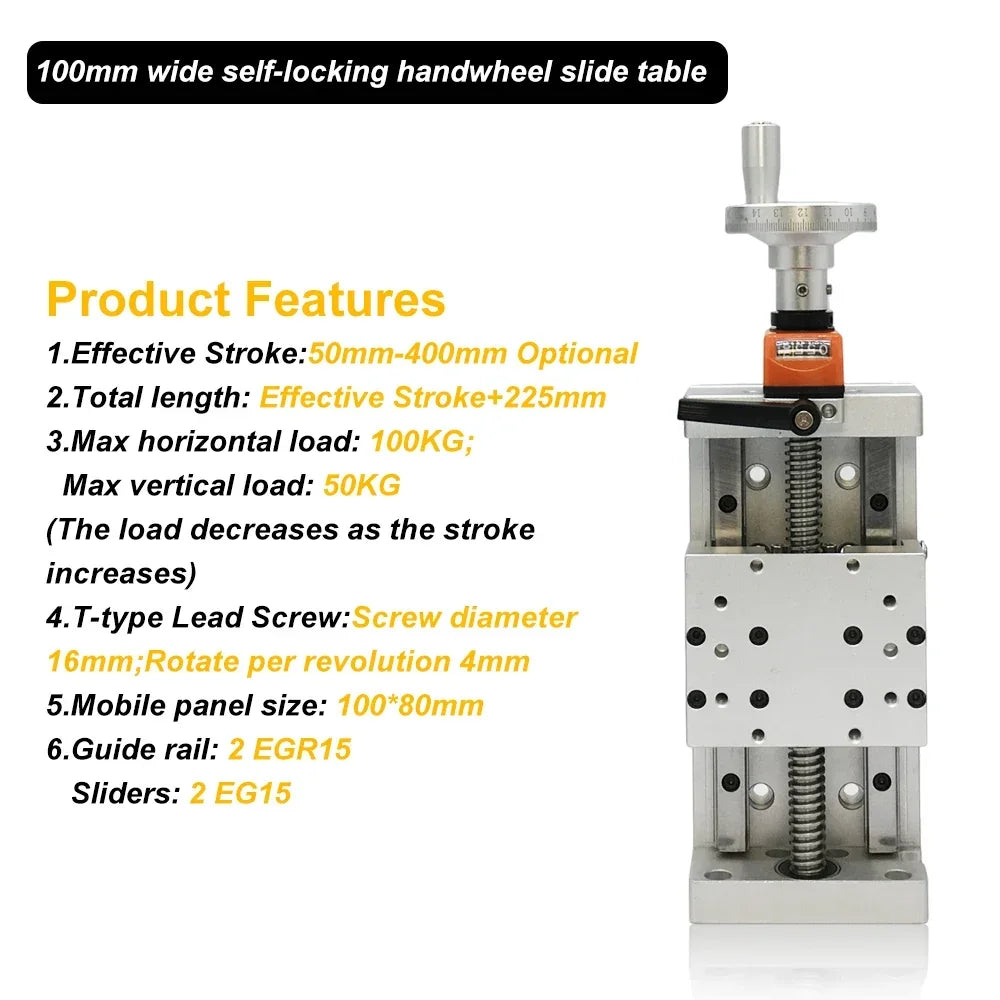

Specifications
- Model: NS100S
- Effective Stroke: 50–400mm (200mm variant available)

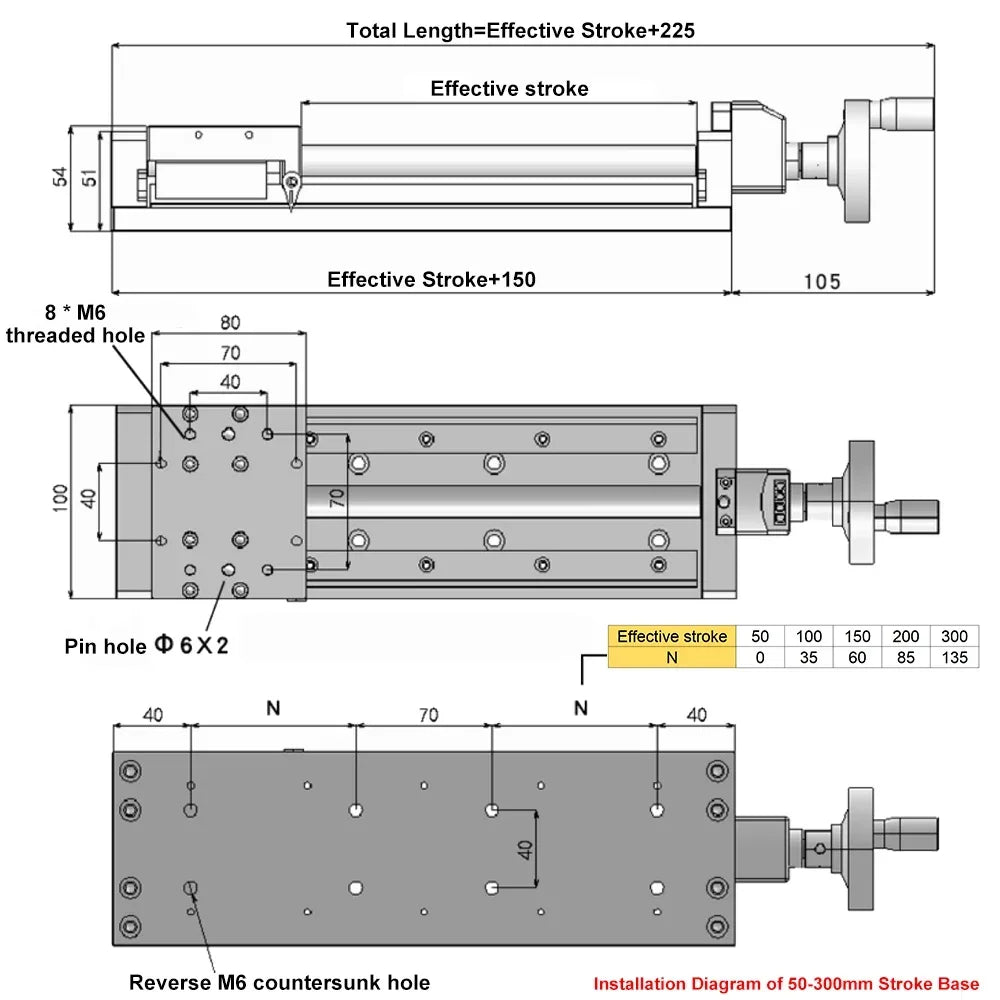

- Total Length: Stroke + 225mm
- Horizontal Load Capacity: Up to 100kg
- Vertical Load Capacity: Up to 50kg

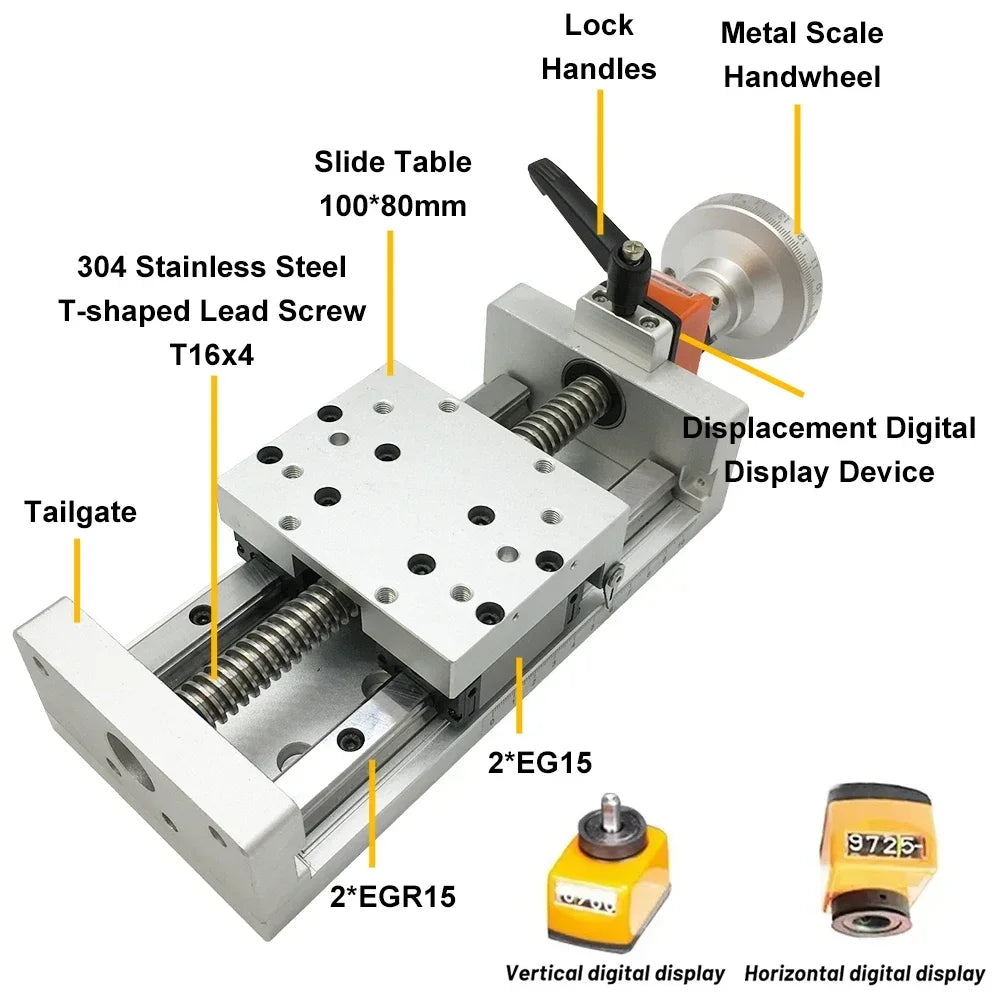

- Lead Screw: 16mm T-type
- Pitch: 4mm per rotation

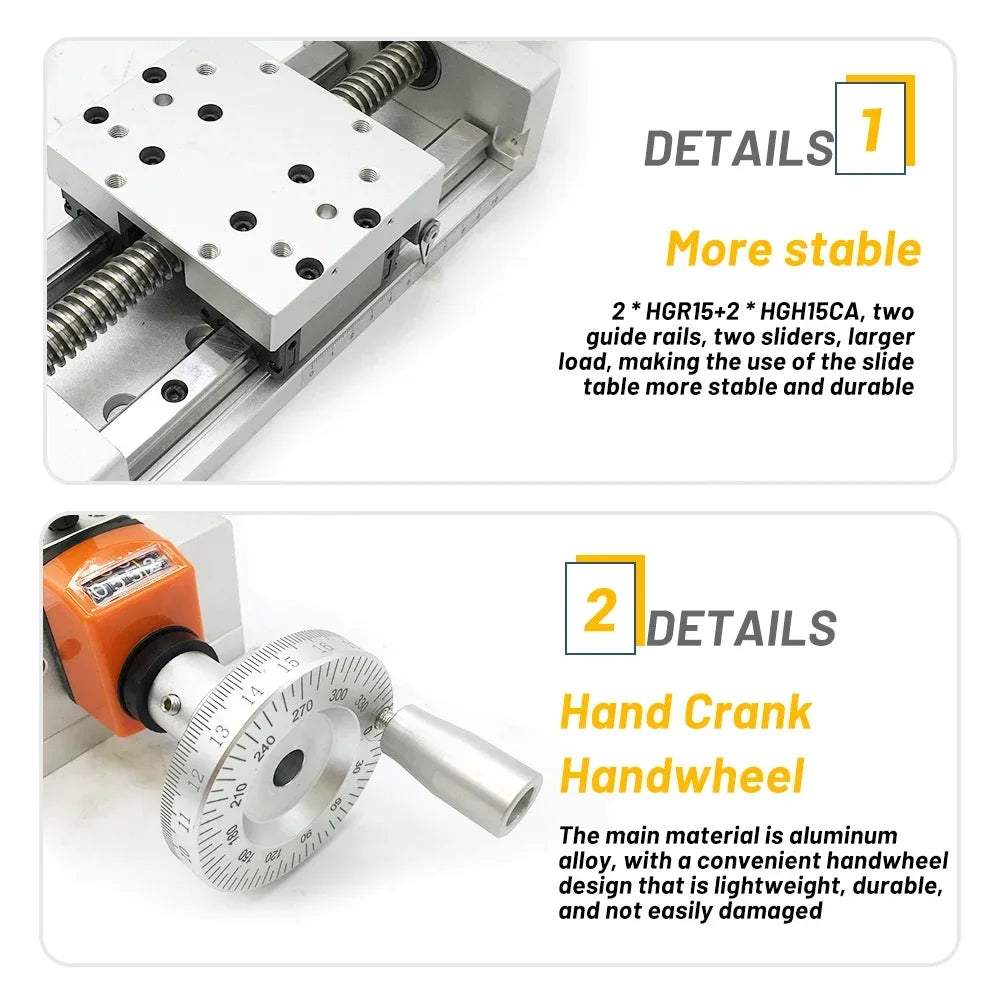

- Guide System: 2 × EGR15 rails
- Module Width: 100 × 80mm
- Screw Material: 304 stainless steel
- Nut Material: Brass (H95)
- Construction: Double rail sliding system
- High-concerned chemical: None

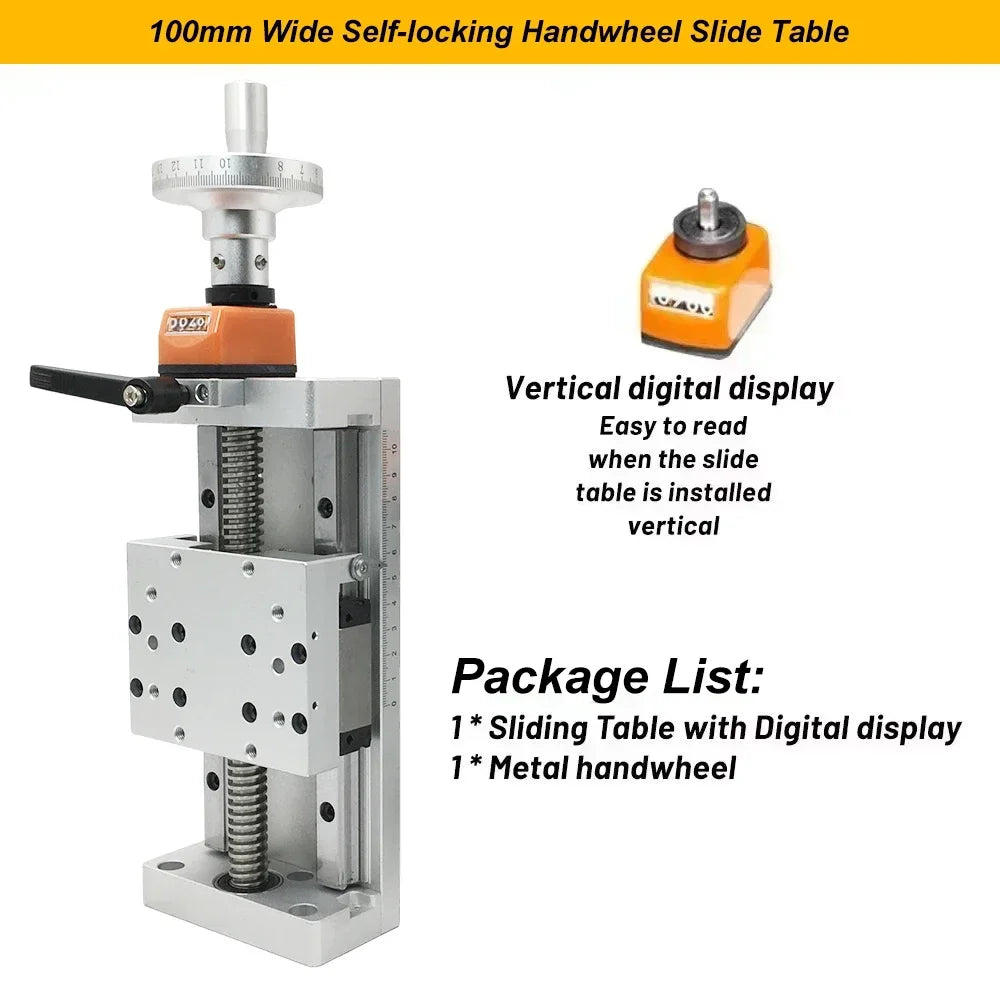

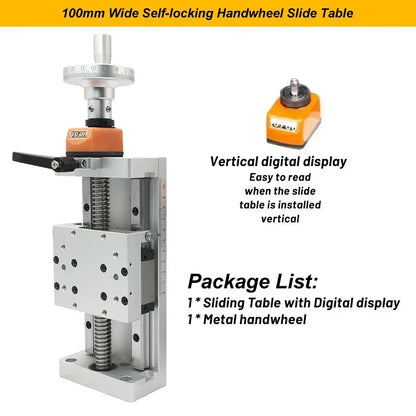

Package Contents
- 1 × Manual Sliding Table with Digital Display (200mm stroke)
- 1 × Metal Handwheel
What Makes This a Smart Buy:
This slide table delivers precise manual control with real-time digital feedback, making it ideal for accurate positioning tasks. Its strong load capacity and stable rail system ensure dependable performance in both workshop and industrial environments.
