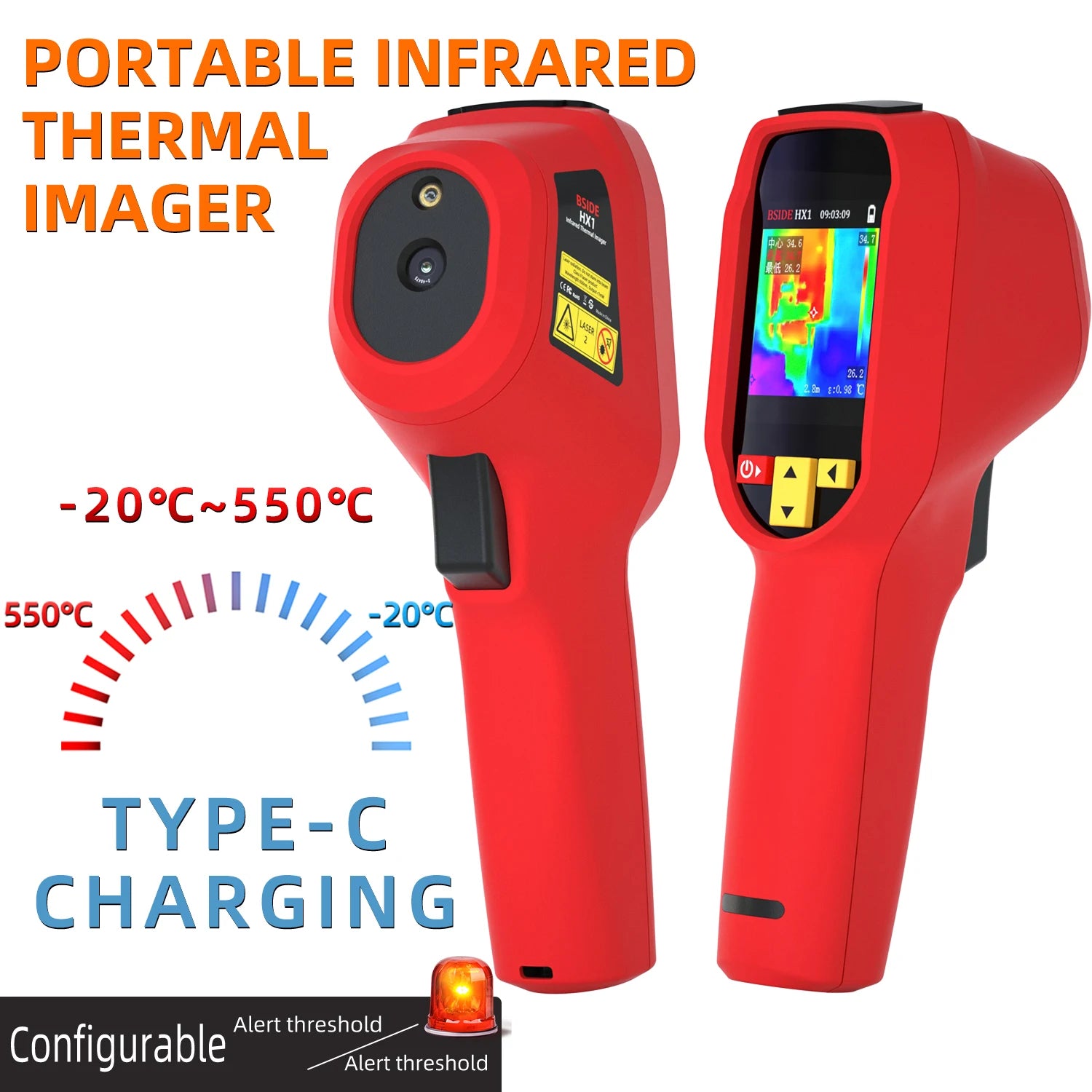

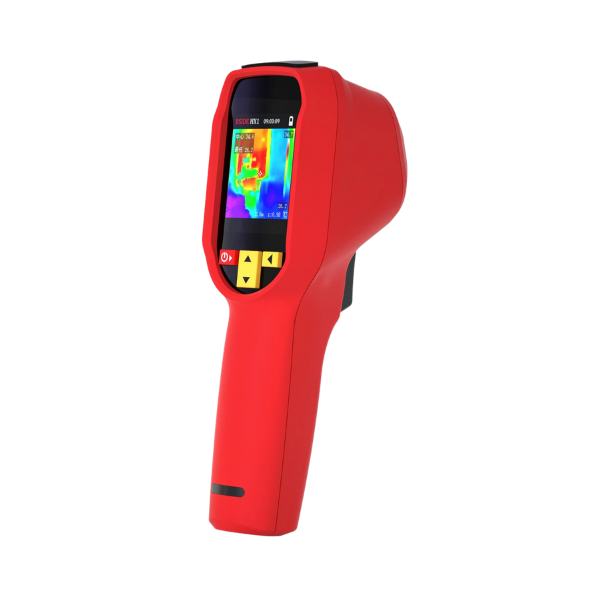

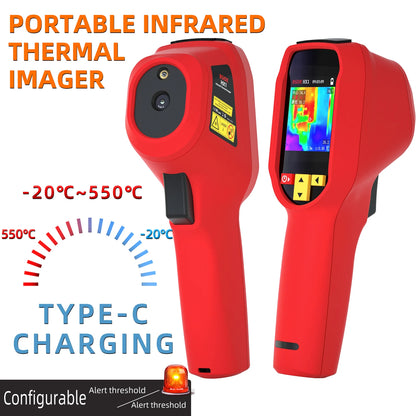

240×240 Thermal Imaging Camera Infrared Temperature Meter

Identify heat patterns quickly and accurately with this handheld thermal imaging camera, featuring a 240 × 240 thermal resolution and a wide -20°C to 550°C measurement range. Its compact design, built-in laser pointer and rechargeable battery make it a practical tool for electrical, mechanical, building and maintenance inspections.

Key Features

• 240 × 240 Thermal Resolution: Produces detailed thermal images to help identify temperature differences and heat patterns.
• Wide Temperature Range: Measures temperatures from -20°C to 550°C, suitable for a broad range of inspection tasks.
• 25Hz Imaging: Provides smooth thermal image updates for easier monitoring of changing heat sources.
• Accurate Temperature Measurement: Offers accuracy of ±2°C or ±2% of the reading, whichever is greater.
• 2.4-Inch TFT LCD: View thermal images and temperature readings clearly on the built-in colour display.
• Centre & High/Low Temperature Tracking: Quickly identify the centre-point temperature and locate the hottest or coldest areas.
• Adjustable Emissivity: Supports emissivity settings from 0.01 to 1.00 for more flexible temperature measurement.
• Multiple Colour Palettes: Choose from a range of thermal display modes to make heat variations easier to interpret.
• Built-In Laser Pointer: Helps indicate inspection areas and identify specific measurement points.

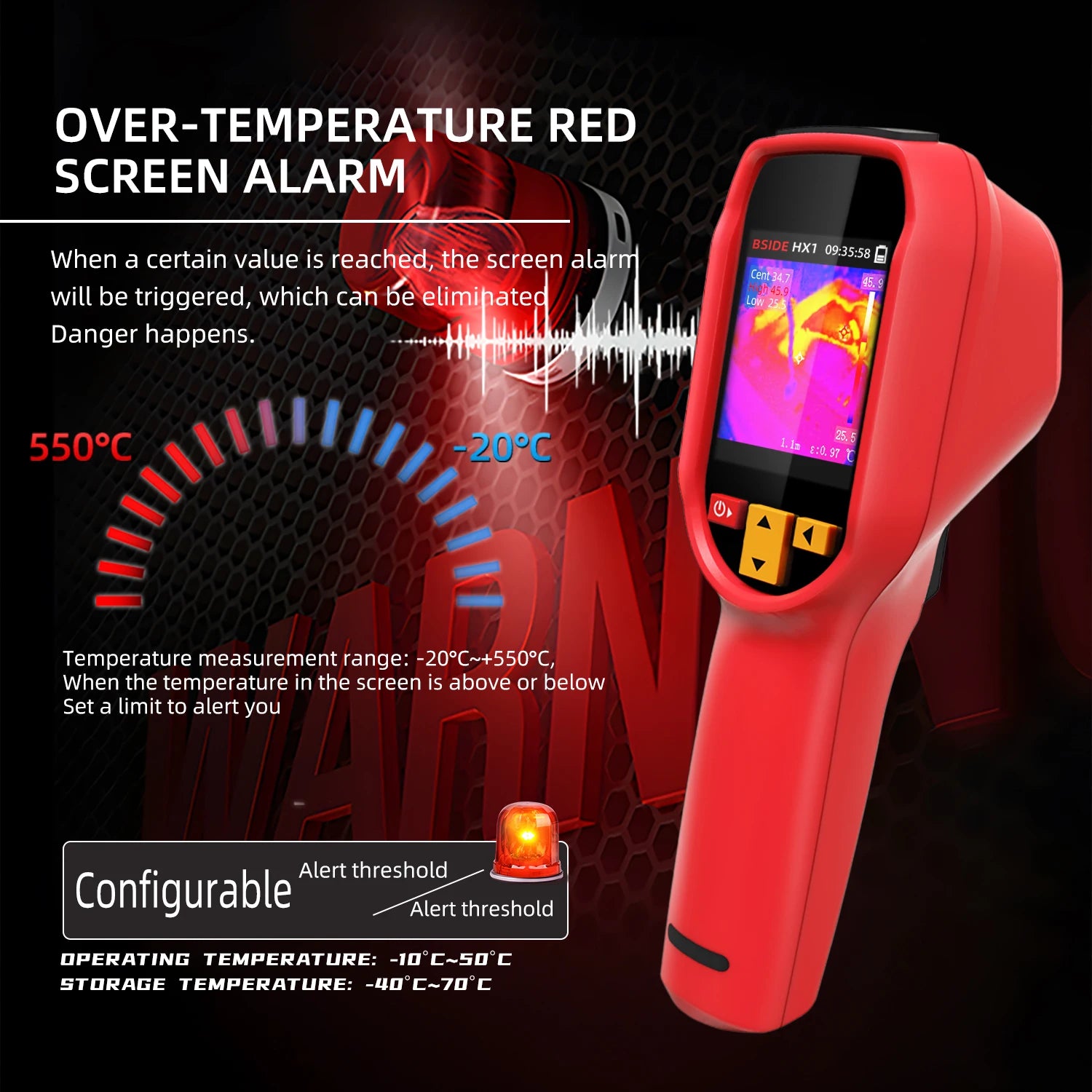

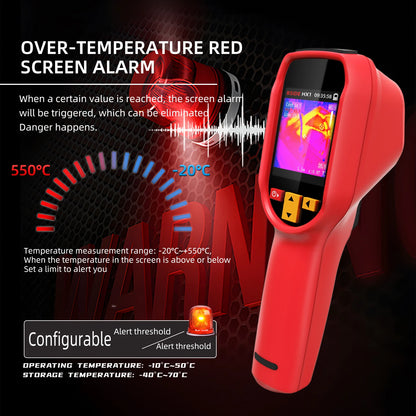

• Temperature Alarm: Provides visual temperature alerts to help highlight heat conditions.

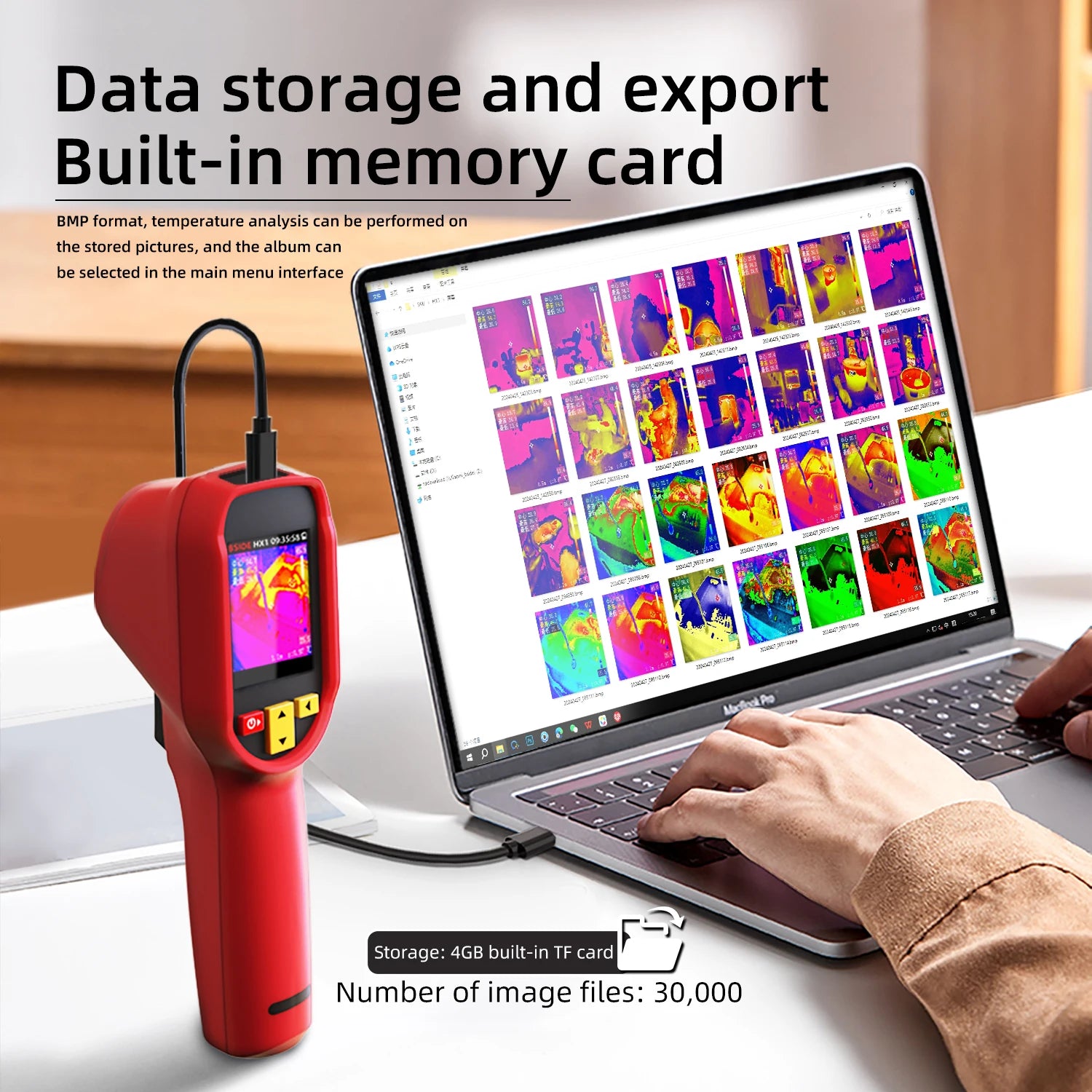

• Large Image Storage: Built-in memory can store up to 30,000 thermal images in BMP format.
• Rechargeable Battery: Powered by a 2500mAh lithium battery with more than 7 hours of operating time under specified conditions.
• IP54 Protection: Designed to provide protection against dust and water splashes for everyday inspection environments.
• Auto Focus: Automatically adjusts focus for convenient thermal imaging.
• Tripod Mount: Includes a UNC-20 tripod mounting interface for hands-free inspection setups.
• Lightweight Handheld Design: At approximately 277g, it is easy to carry between inspection locations.
• Multi-Language Support: Supports English, Chinese, German, Italian, French, Spanish and Japanese.

Specifications

• Product Type: Handheld Thermal Imaging Camera
• Thermal Resolution: 240 × 240 pixels
• Display Resolution: 320 × 240 pixels
• Display: 2.4-Inch TFT LCD
• Temperature Range: -20°C to 550°C
• Temperature Accuracy: ±2°C or ±2% of reading
• Temperature Resolution: 0.1°C
• Frame Rate: 25Hz
• Sensor: VOx Microbolometer
• Response Band: 8–14μm

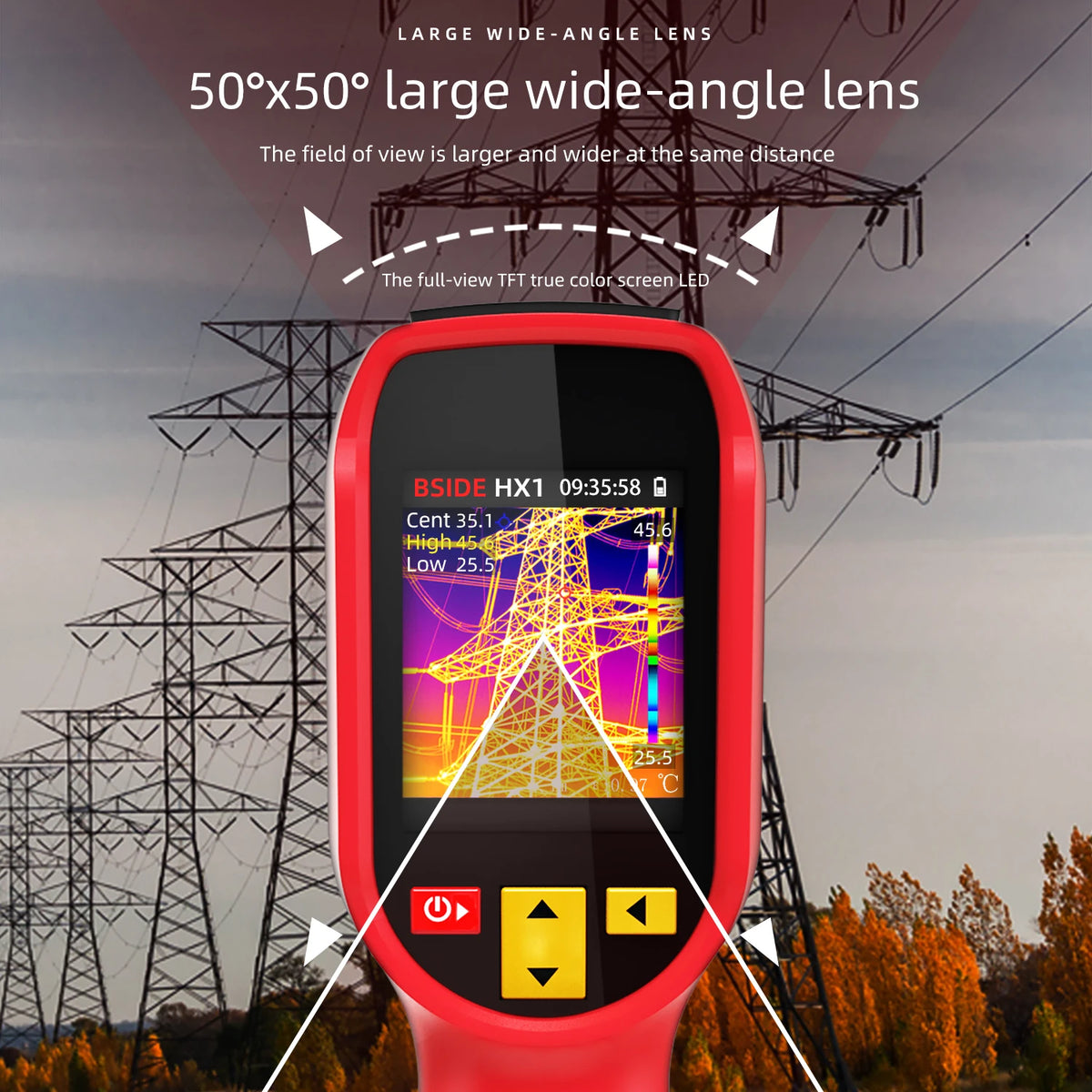

• Field of View: 50° × 50° horizontal/vertical, 72.1° diagonal
• Spatial Resolution: 8.89mrad
• Temperature Measurement Distance: 0.3m–3m adjustable
• Emissivity: 0.01–1.00 adjustable
• Temperature Units: Celsius, Fahrenheit and Kelvin
• Image Storage: Built-in memory
• Maximum Image Files: Up to 30,000
• Image Format: BMP
• Focus: Automatic
• Laser Pointer: Yes
• Temperature Alarm: Yes
• Protection Rating: IP54
• Tripod Mount: UNC-20
• Interface: USB Type-C
• Battery: Rechargeable 3.7V 2500mAh lithium battery
• Operating Time: More than 7 hours at 25°C
• Charging Time: Less than 3 hours
• Charging: 5V/2A
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -40°C to 70°C

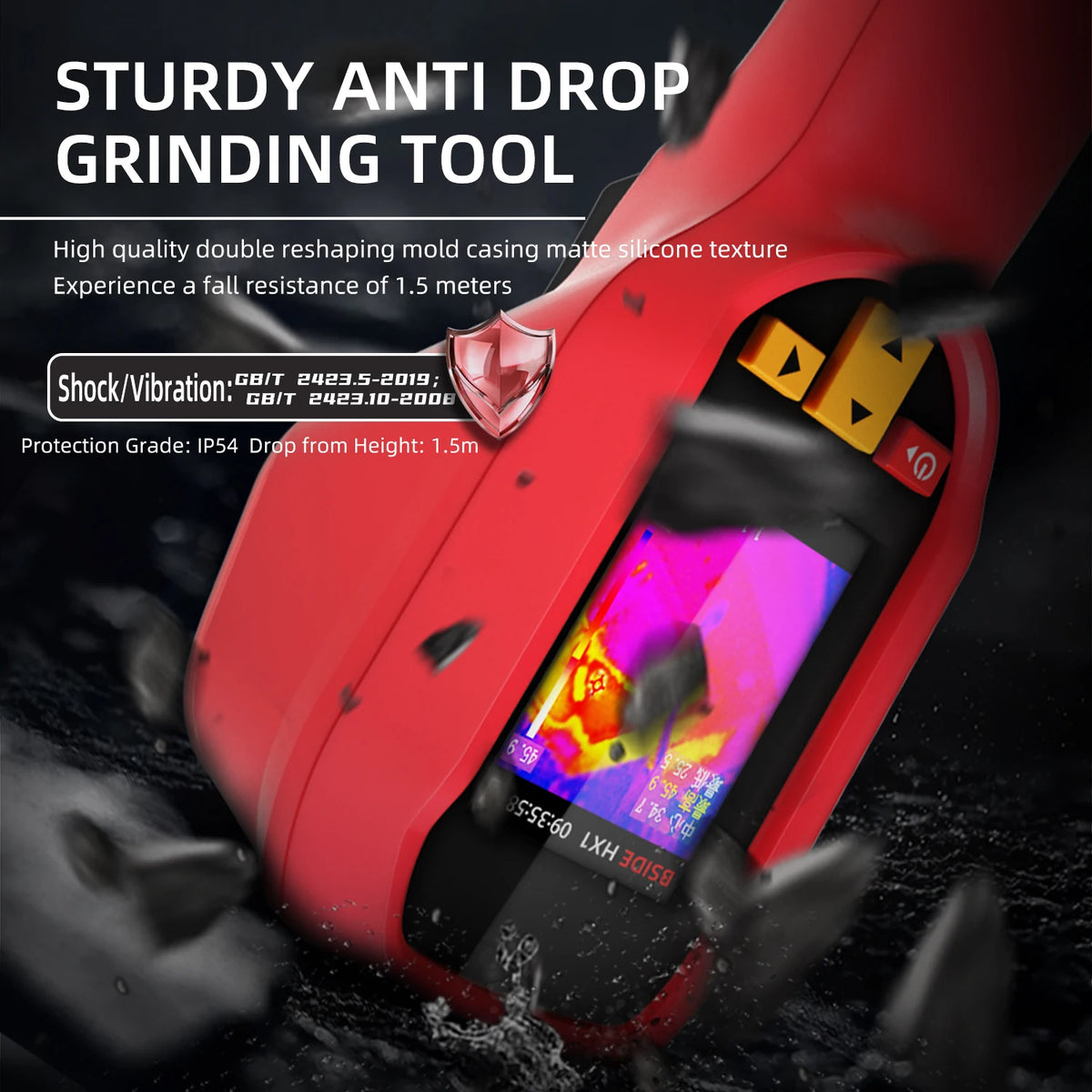

• Maximum Drop Resistance: 1.5m

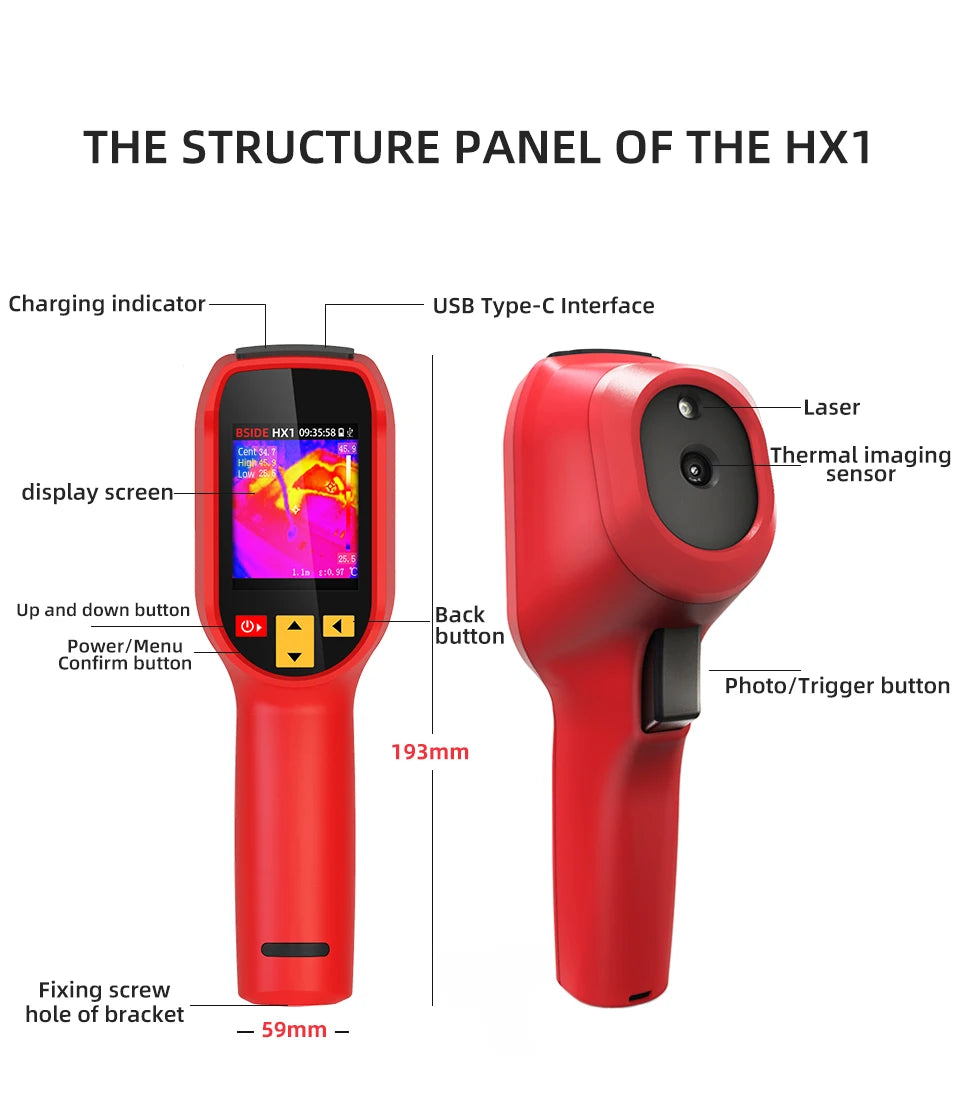

• Dimensions: 193.4 × 59.4 × 77.4mm
• Weight: 277g
• Material: Plastic

Package Contents

• 1 x Thermal Imaging Camera
• 1 x USB Type-C Cable
• 1 x User Manual

What Makes This a Smart Buy:

With 240 × 240 thermal imaging, a -20°C to 550°C measurement range and over 7 hours of battery operation, this camera is built for practical heat detection wherever you need it. From electrical troubleshooting to building and equipment inspections, it puts useful thermal information into a compact handheld tool.
