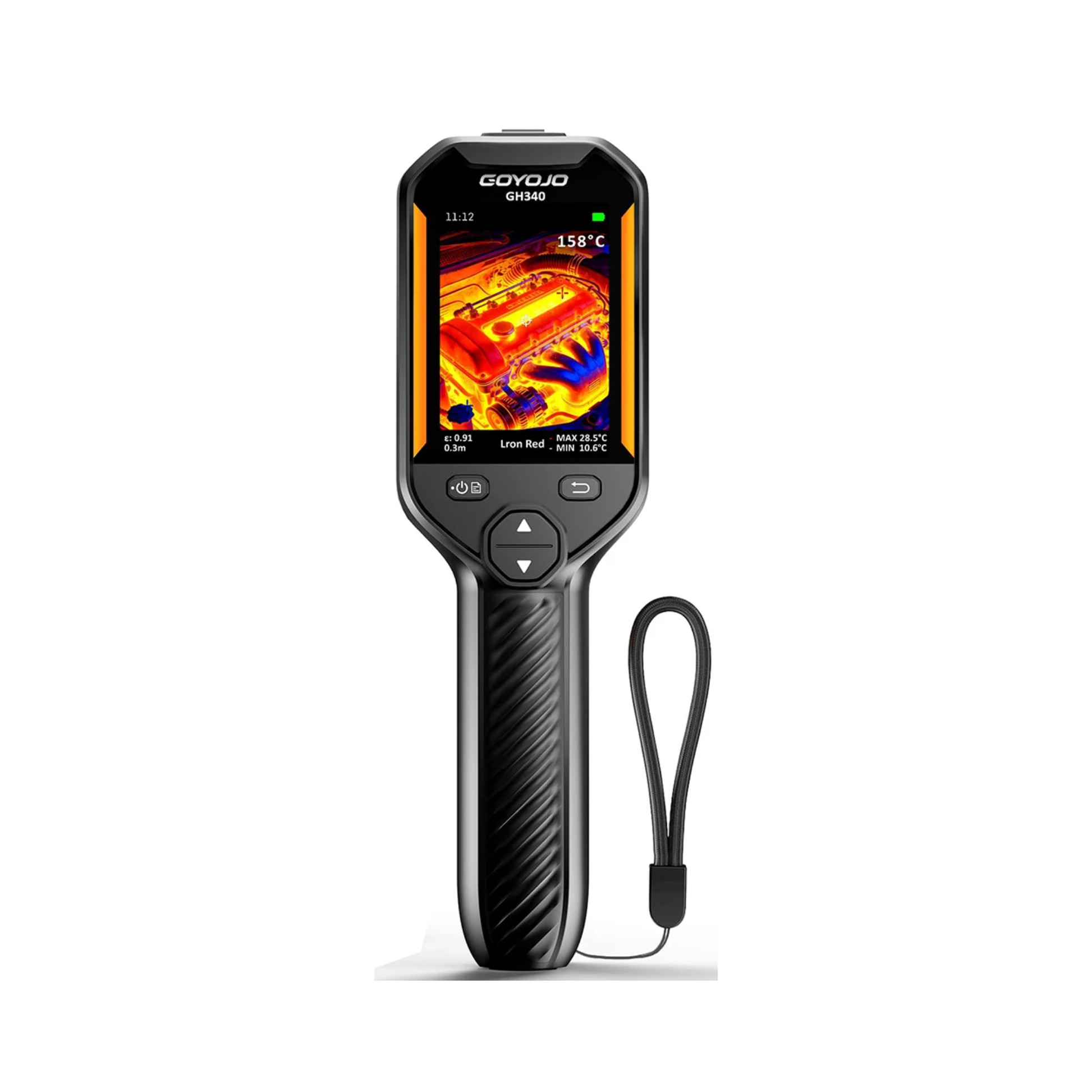

256x192 Thermal Imaging Camera with 2MP Visual

Capture detailed thermal and visual data with this 256x192 thermal imaging camera. Perfect for HVAC, electrical inspections, and building diagnostics, it combines high-resolution thermal imaging with a 2MP visual camera for precise troubleshooting.

Key Features

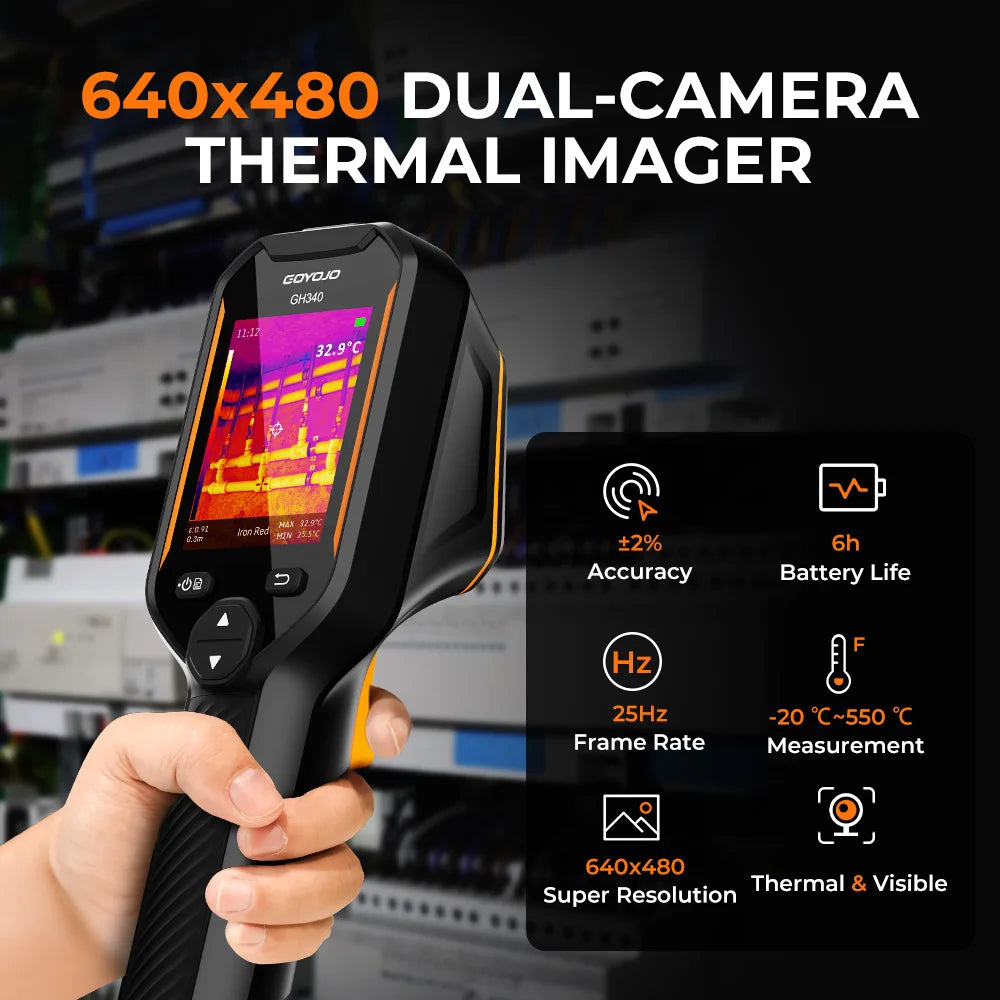

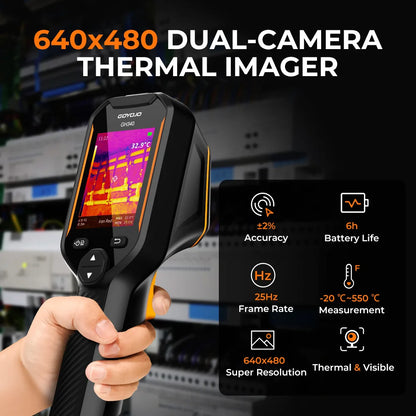

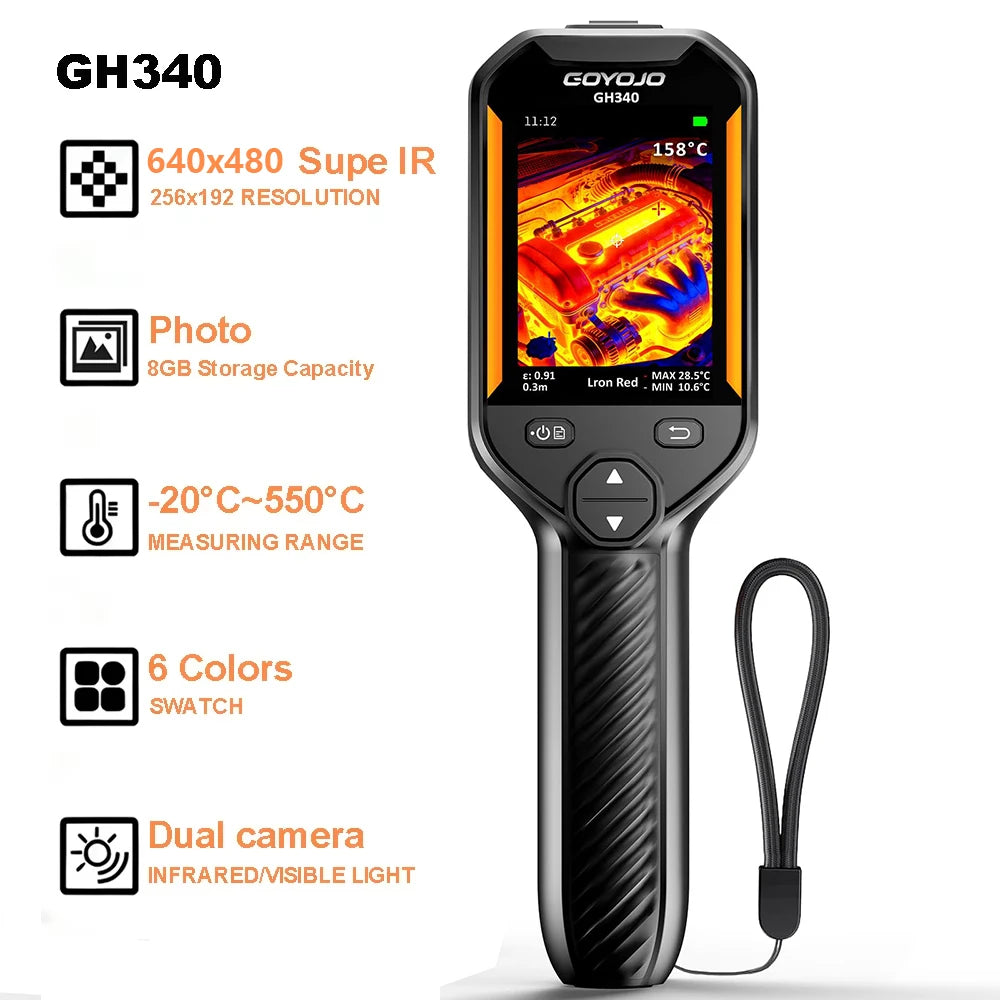

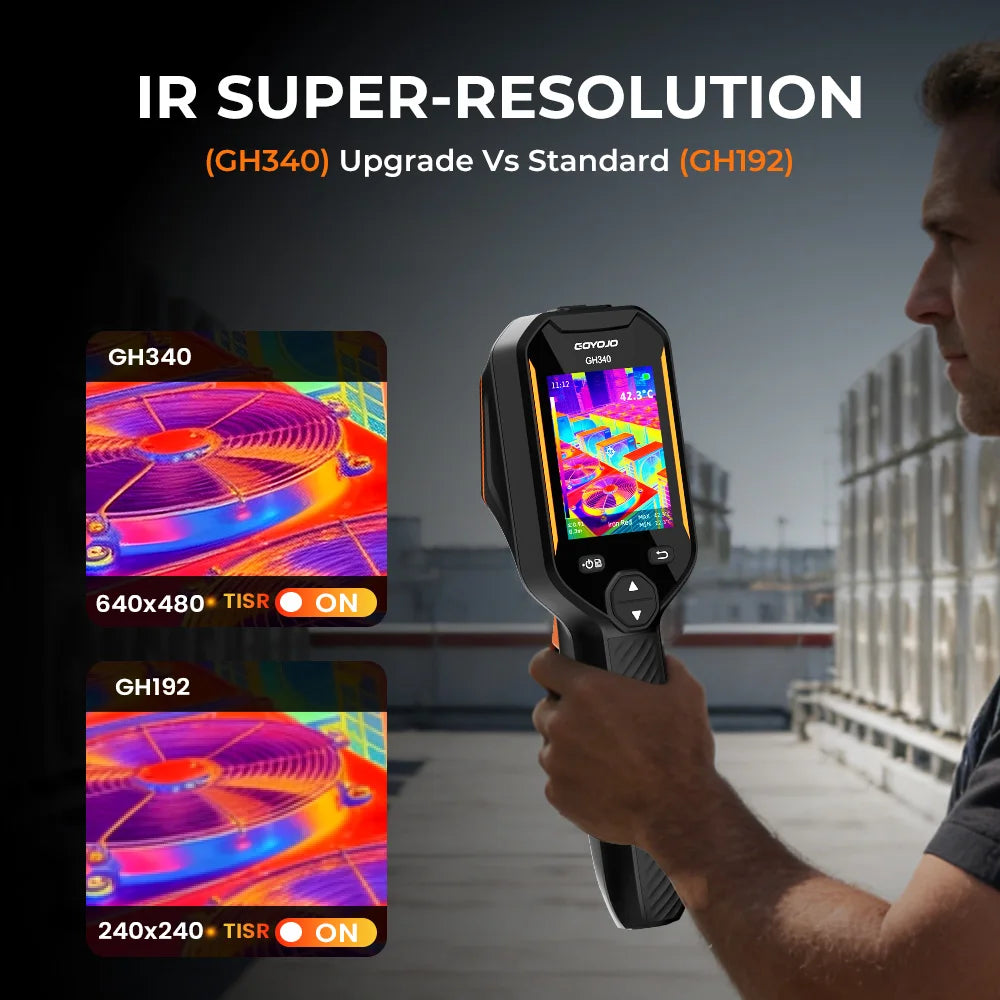

• 256x192 thermal detector enhanced to 640x480 via Super Resolution algorithm

• Dual-camera system: thermal + 2MP visible light camera

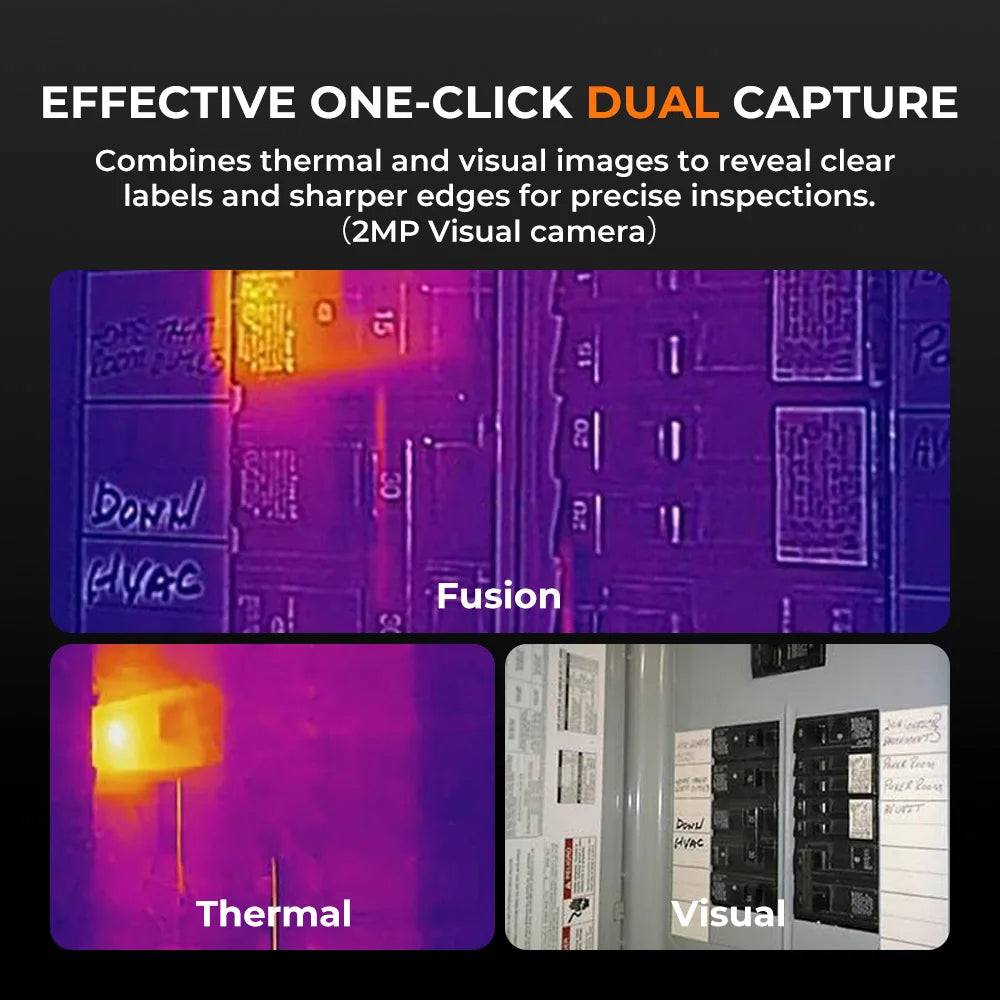

• Real-time Fusion, Thermal, and Visual imaging modes

• Six selectable color palettes for clear visual distinction

• High thermal sensitivity (<40 mK) for precise anomaly detection

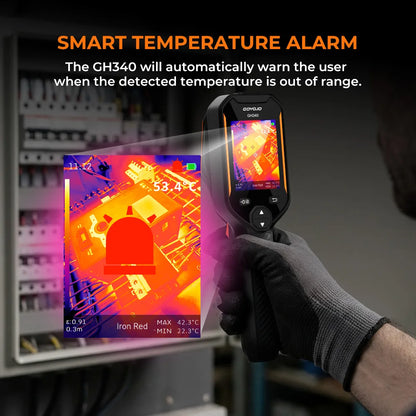

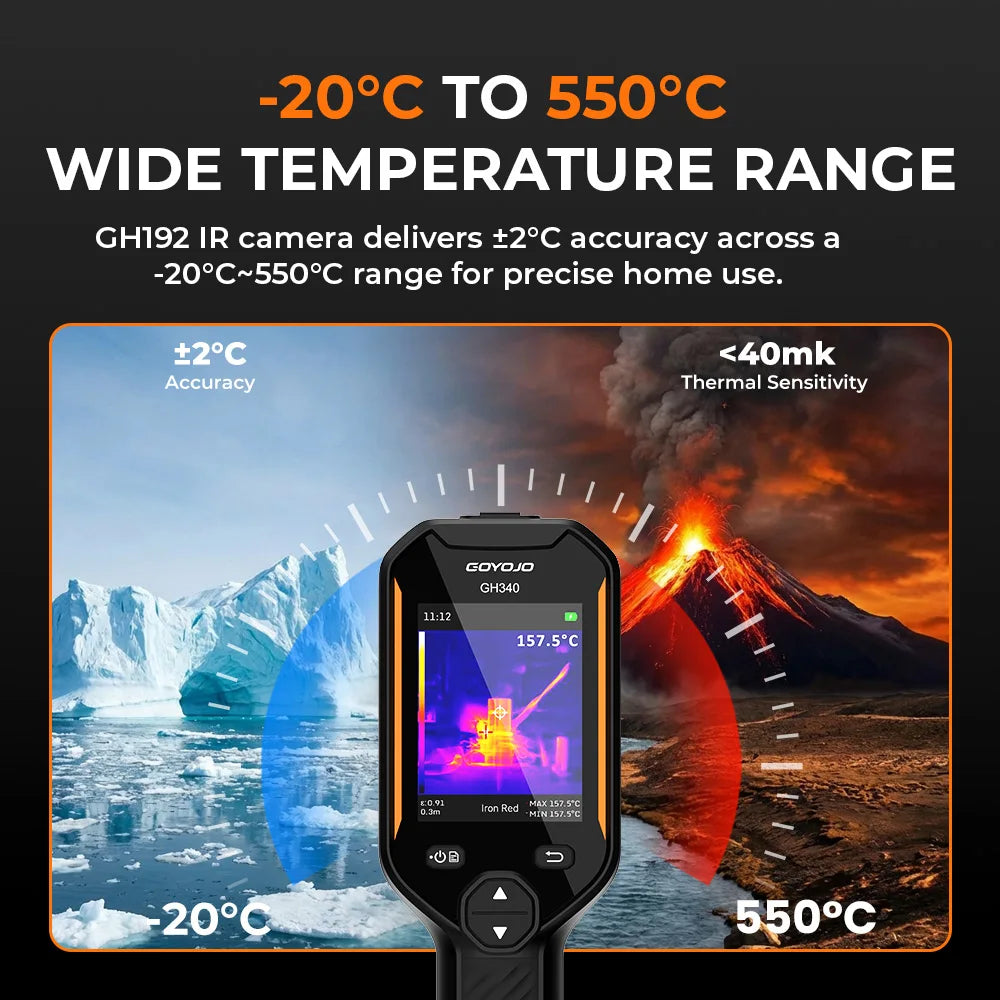

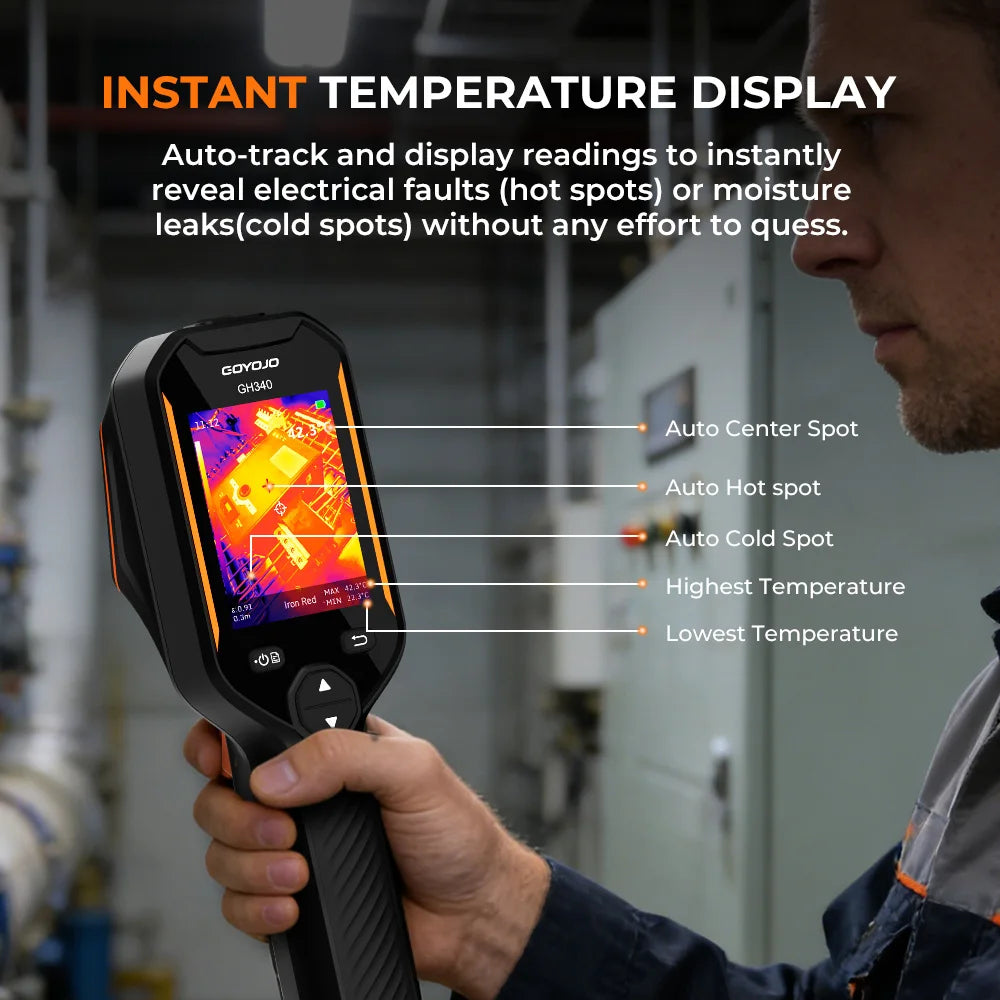

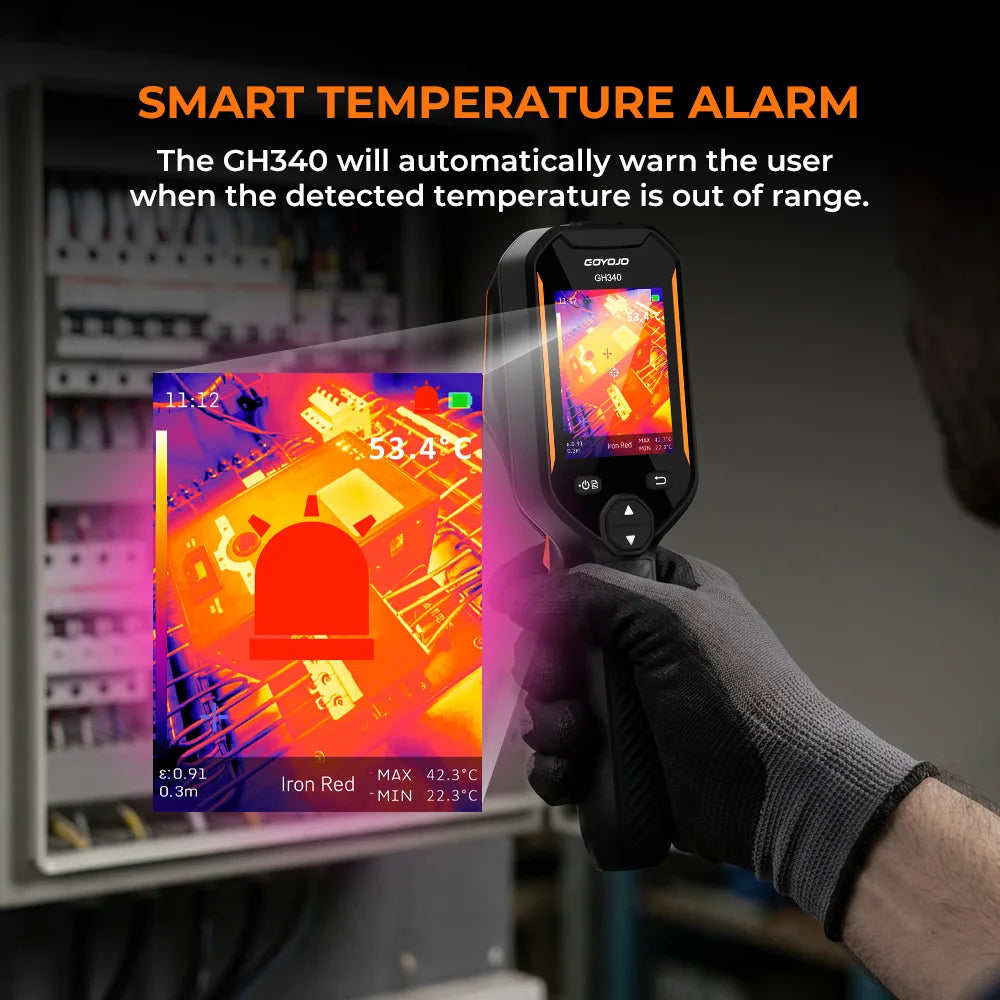

• Wide temperature range: -20°C to 550°C with hot/cold spot alerts

• IP54 rated for dust and water resistance

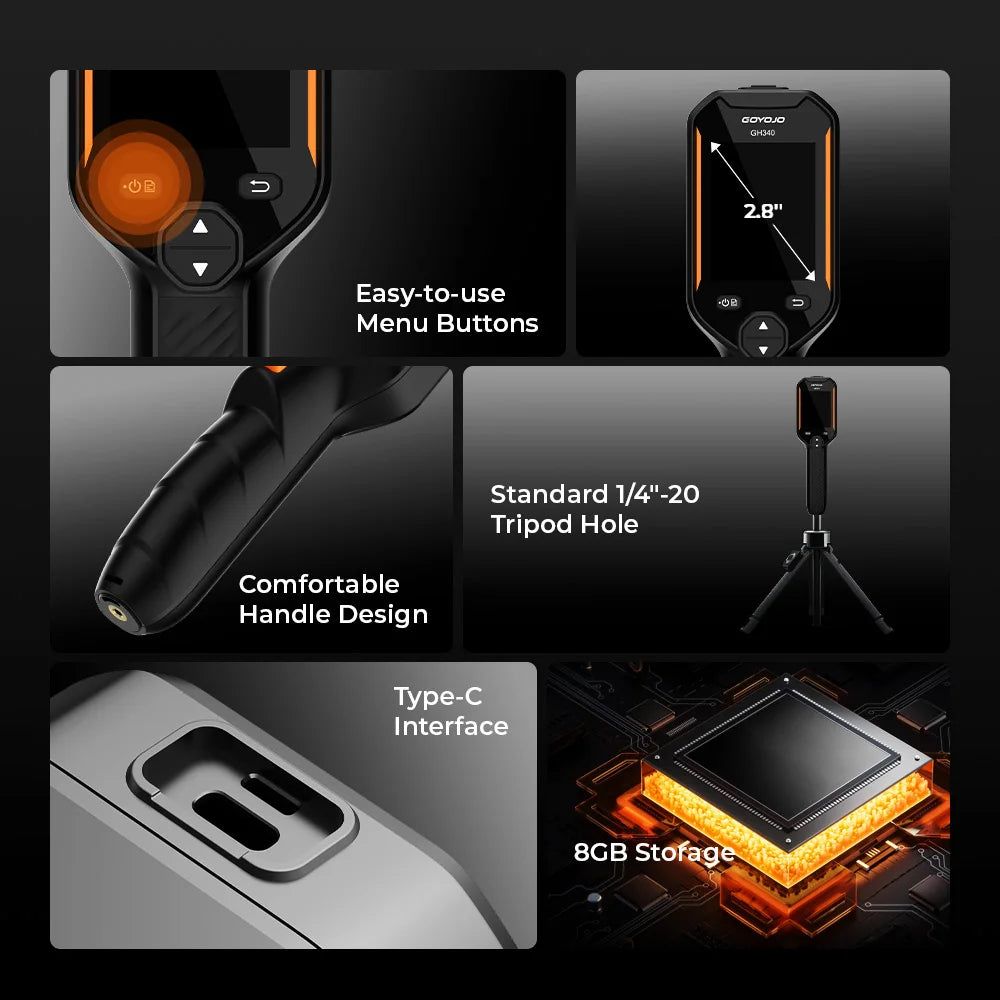

• 2.8-inch LCD display with 25Hz frame rate for smooth viewing

• Accurate temperature measurements within ±2%

• Supports manual photo capture and recording of temperature data

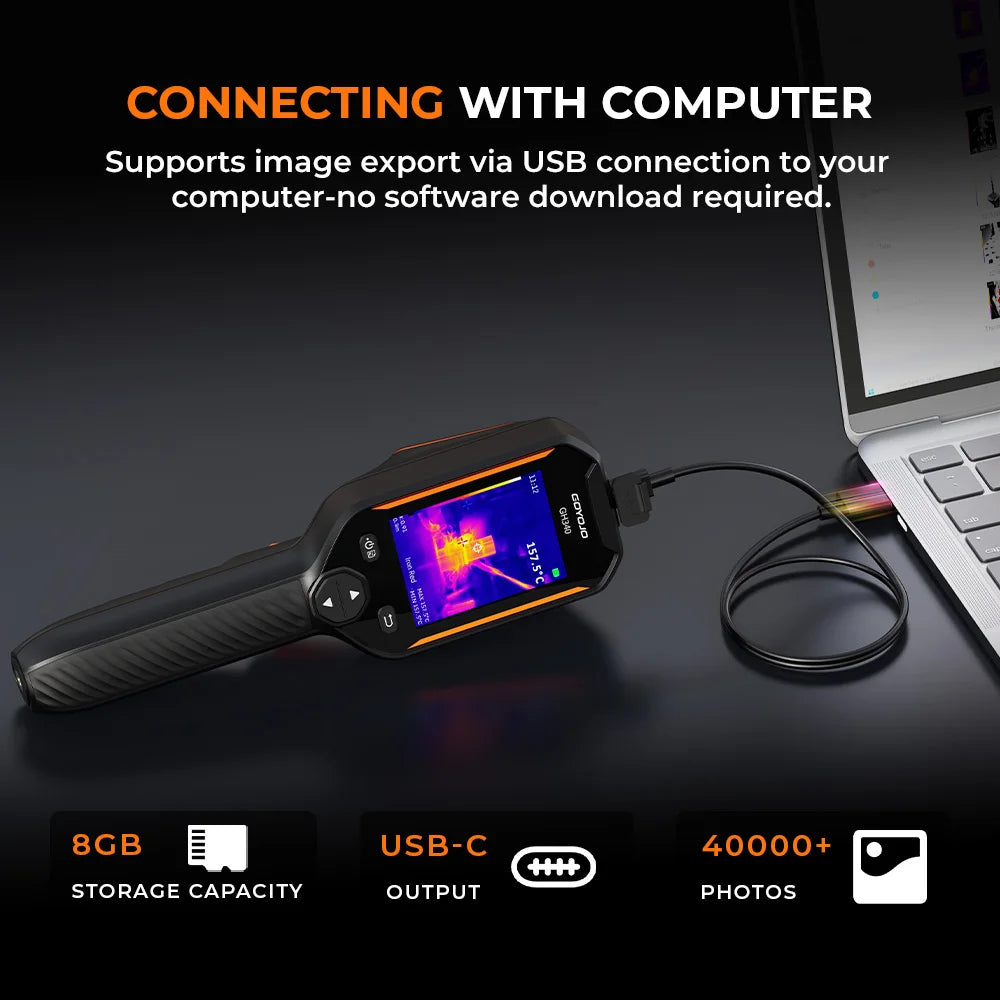

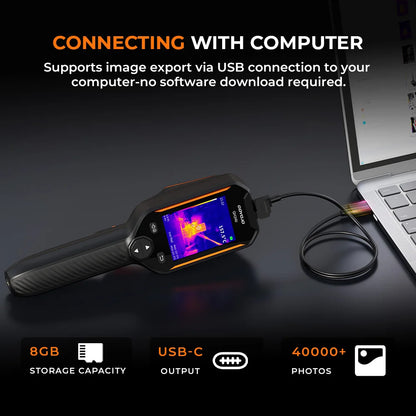

• USB Type-C port and 8GB internal storage

Specifications

• Resolution: 256x192 (detector), 640x480 (super-resolution)

• Visible Camera: 2MP, fixed focus

• NETD: ≤40 mK@25°C, F/1.0

• Field of View: 50° × 37.2°

• IFOV: 3.3 mrad

• Operating Temperature: -10°C–50°C

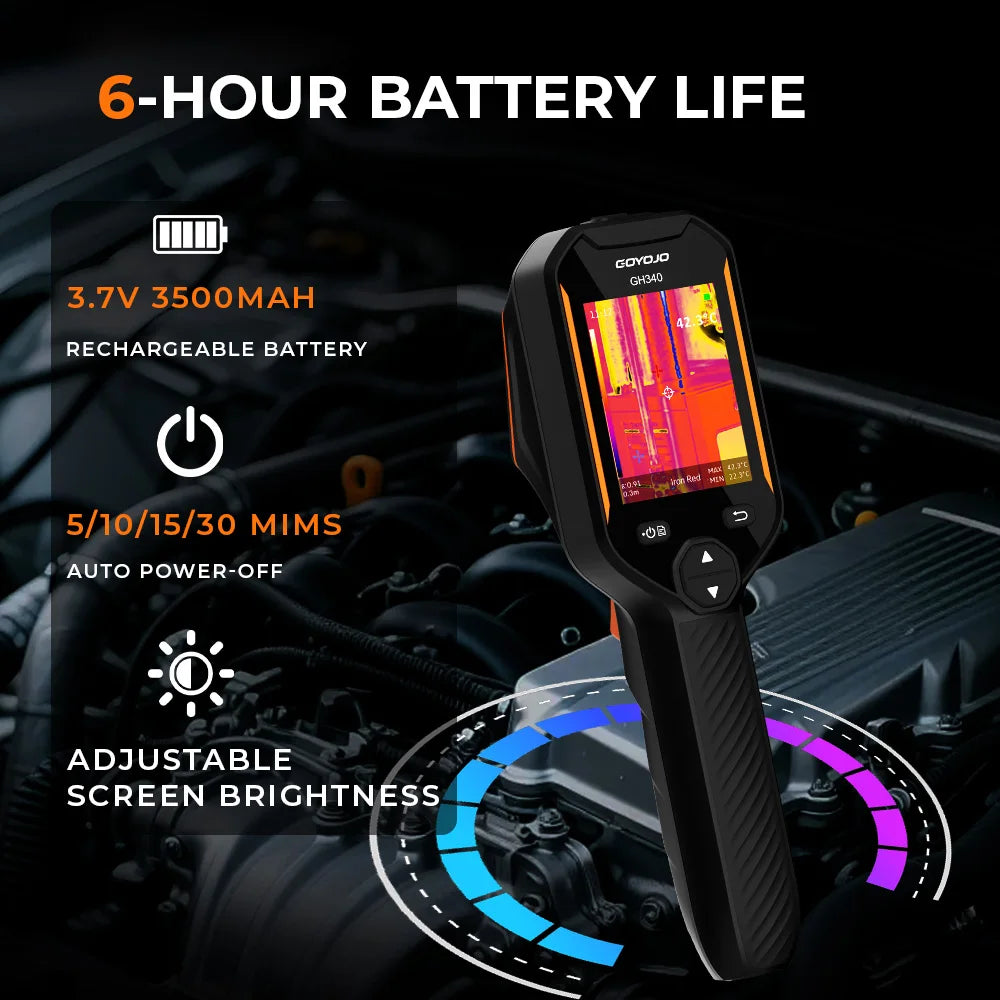

• Battery: 3.7V, 3500mAh 18650 Lithium, ≥6 hours runtime

• Dimensions: 223 × 65.6 × 67 mm

• Emissivity: Default 0.95, adjustable

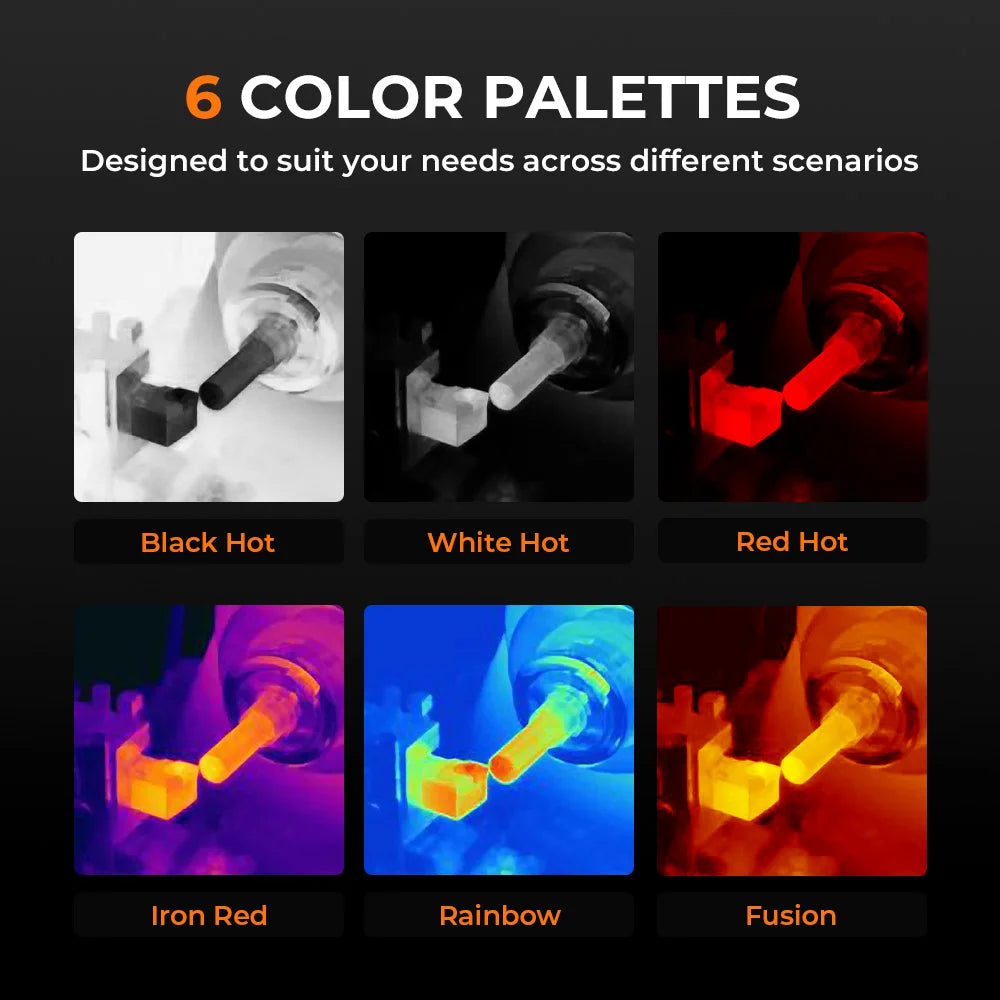

• Color Palettes: White hot, Black hot, Iron Red, Rainbow, Red hot, Fusion

• Protection Level: IP54

Package Contents

• 1 × 256x192 Thermal Imaging Camera

• 1 × USB Type-C Charging Cable

• 1 × User Manual

• 1 × Protective Case

What Makes This a Smart Buy:
With super-resolution thermal imaging, dual cameras, and precise temperature detection, this camera is ideal for professionals who need accurate, high-quality diagnostics for HVAC, electrical, and building inspections.
