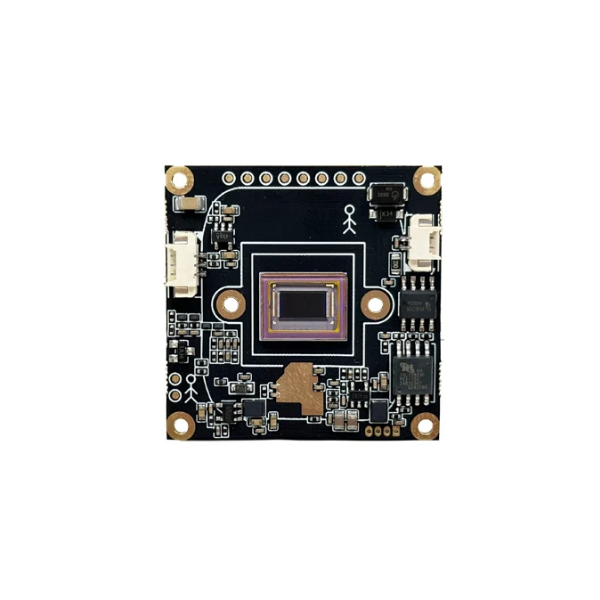

2MP Starlight IP Camera Module IMX662 60FPS Night Vision

Build a compact, high-performance network camera system with this 2MP starlight IP camera module. Featuring a sensitive IMX662 CMOS sensor, 60FPS video and advanced low-light performance, it’s designed for surveillance projects, embedded applications and custom camera builds.

Key Features

• 2MP IMX662 CMOS Sensor: Delivers detailed Full HD imaging with strong low-light sensitivity
• STARVIS 2 Technology: Back-illuminated sensor technology helps capture clearer images with reduced noise in challenging lighting
• 60FPS Video: High frame rate helps produce smoother footage and clearer capture of moving subjects

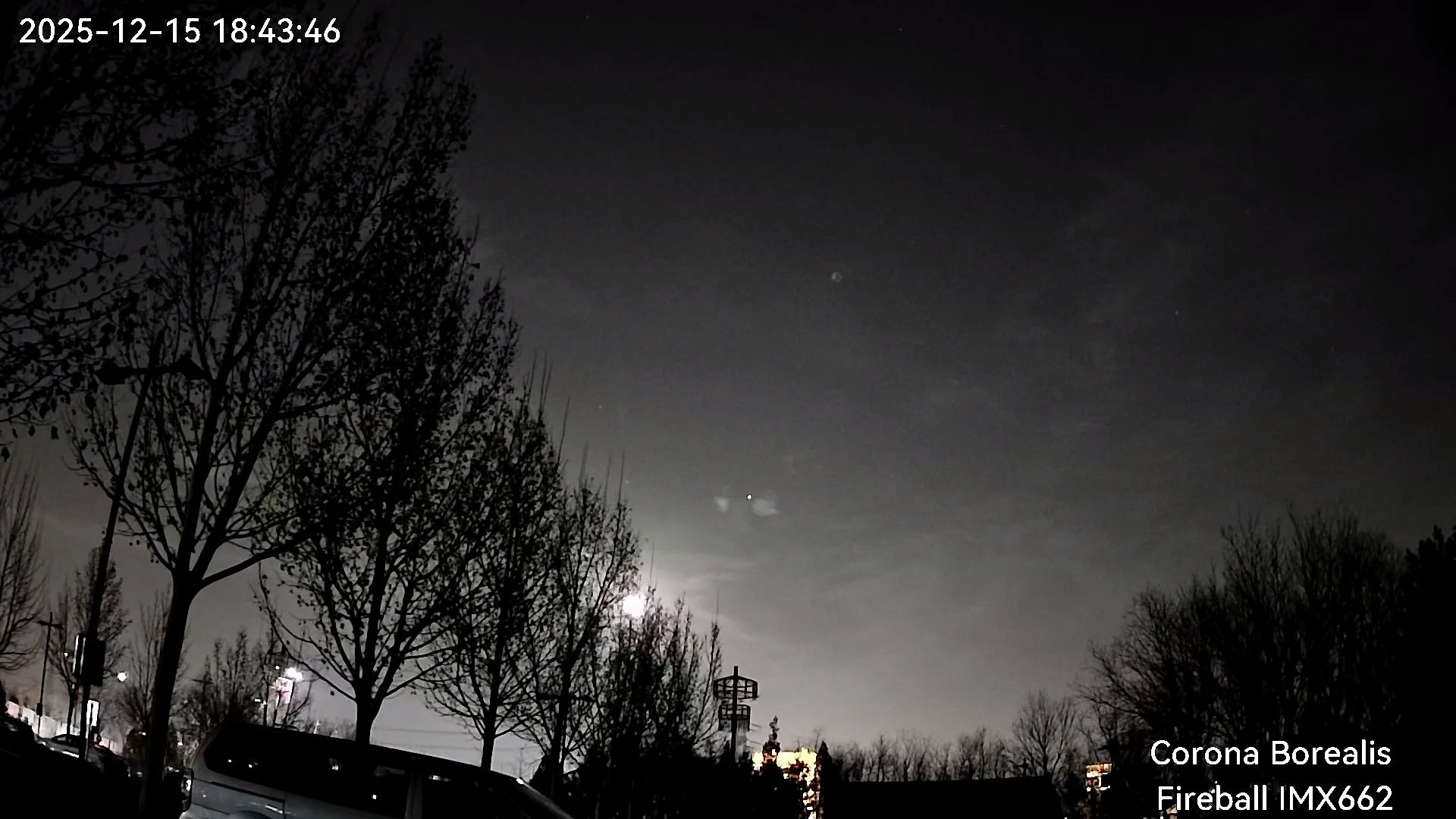

• Ultra-Low-Light Performance: Minimum illumination as low as 0.0001Lux @ F1.2 helps maintain usable imagery in very dark conditions
• H.265 & H.264 Compression: Supports efficient video encoding to help reduce bandwidth and storage requirements
• Network Connectivity: Wired IP connectivity allows integration into compatible network surveillance systems
• ONVIF Support: Designed for integration with compatible network video recorders and surveillance software
• RTSP, API & SDK Support: Provides flexible connectivity options for custom installations and software integration
• UVC Support: Can be configured for USB camera use with a suitable USB cable and compatible computer software
• Image Enhancement: Supports DWDR, 3D noise reduction and white balance functions for improved image quality
• Adjustable Camera Settings: Shutter, image parameters and menu settings can be adjusted to suit different applications
• Compact Embedded Design: Measuring just 38 × 38mm, the module is suited to space-conscious custom installations
• Optional Storage Expansion: Compatible expansion hardware can provide storage support of up to 512GB
• Broad System Compatibility: Supports Android, iOS, Windows and macOS environments depending on the connection and application

Specifications

• Product Type: Mini Network IP Camera Module
• Image Resolution: 2MP
• Sensor: 1/2.8-inch CMOS
• Sensor Type: IMX662
• Sensor Technology: STARVIS 2
• Frame Rate: Up to 60FPS
• Minimum Illumination: 0.0001Lux @ F1.2
• Video Compression: H.264, H.265, H.265+ and MJPEG
• Connectivity: Wired IP/Network
• Protocols: ONVIF, RTSP, API, SDK, GB28181 and CGI
• USB Function: UVC supported with suitable USB connection
• Image Features: DWDR, 3DNR and white balance

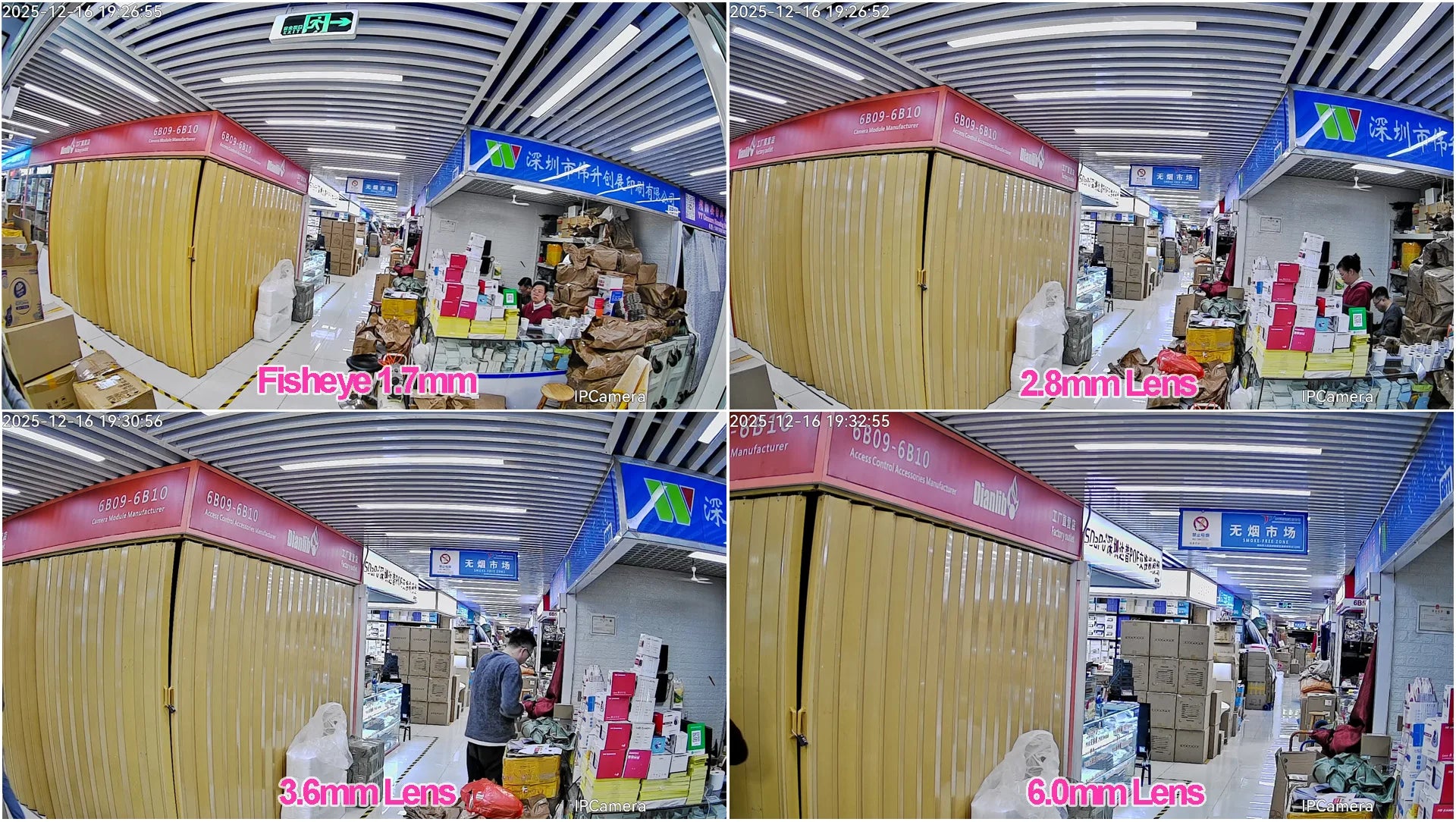

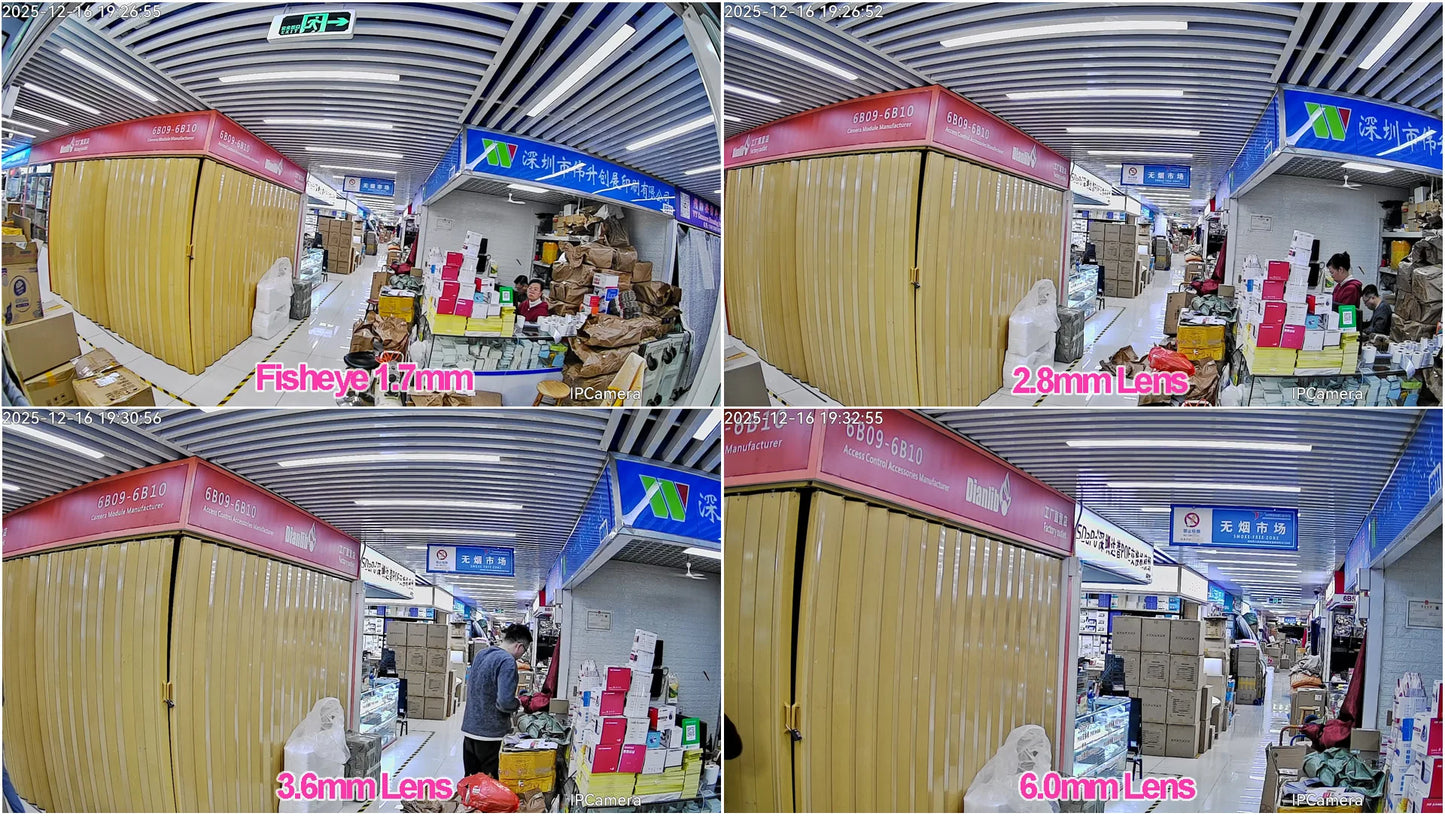

• Lens Options: 2.7-13.5mm
• Internal Storage: None
• Expansion Storage: Up to 512GB with compatible expansion board
• Power Supply: 12V
• Power Consumption: Approx. 3W
• Dimensions: 38 × 38mm
• Zoom: None
• Installation: Embedded/standard installation
• Supported Mobile Systems: Android, iOS
• Supported Operating Systems: Windows 7, Windows 8, Windows 10 and macOS

Package Contents

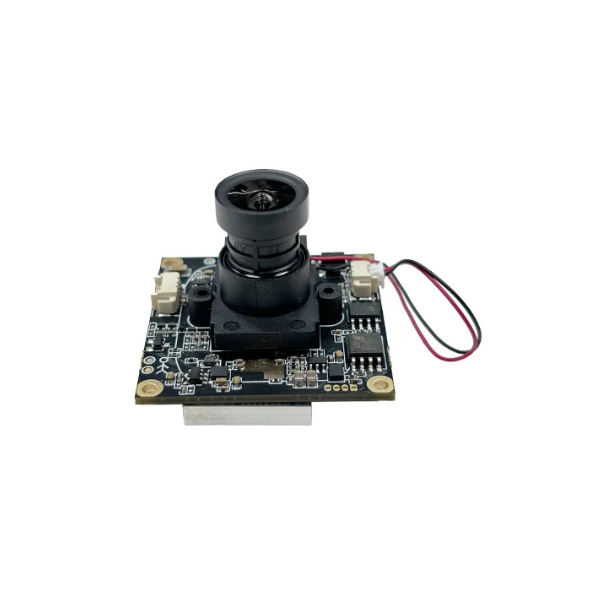

• 1 × 2MP Network IP Camera Module (2.7-13.5mm)

What Makes This a Smart Buy:

This compact camera module combines 2MP imaging, 60FPS performance and excellent low-light sensitivity in a flexible embedded design. With ONVIF, RTSP and UVC support, it’s a versatile foundation for custom surveillance, streaming and network camera projects.
