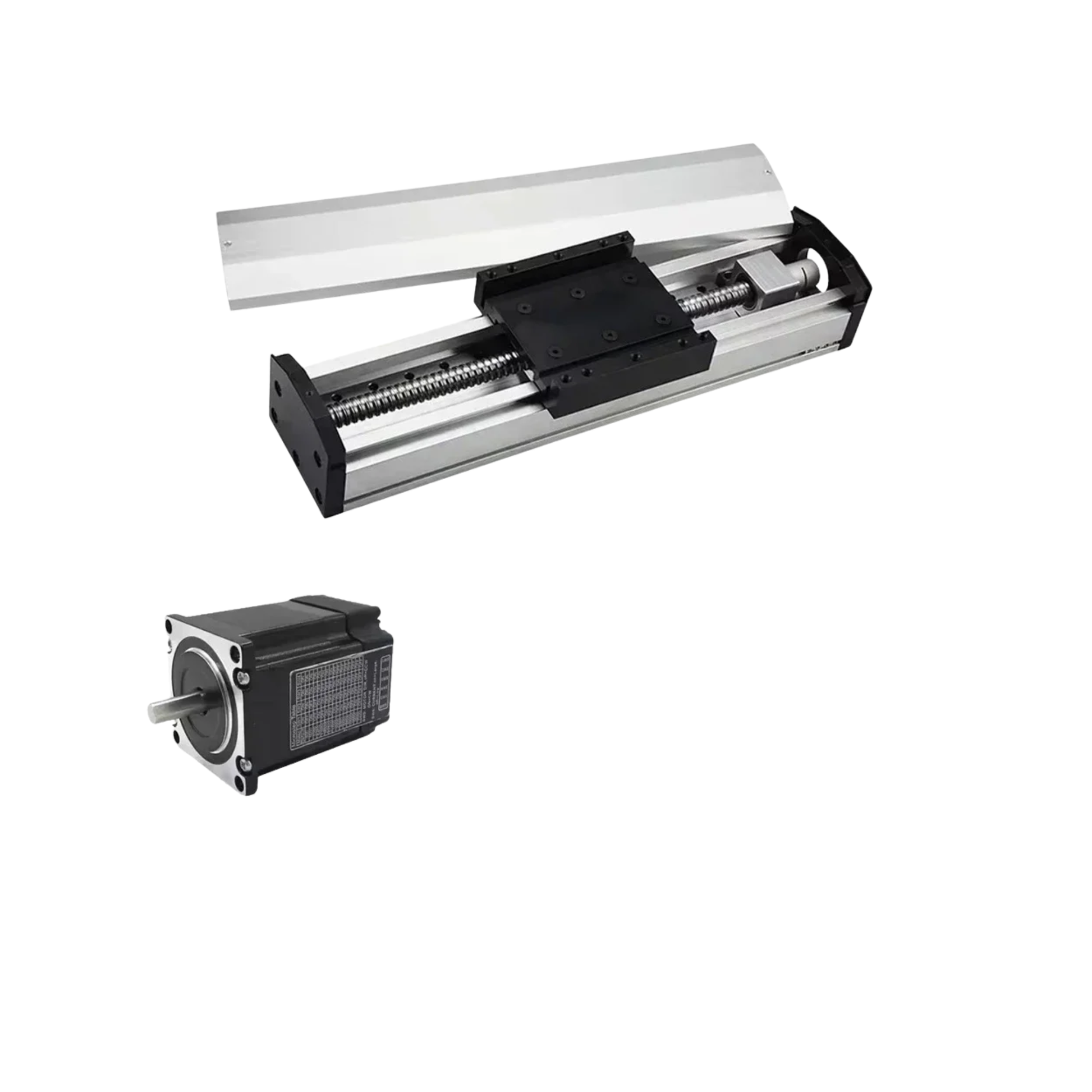

2Nm Ball Screw Linear Actuator 100mm Stroke

Boost productivity and precision with this 2Nm all-in-one linear actuator. Its compact design and reliable closed-loop motor make it perfect for CNC machines, automation setups, and DIY projects.

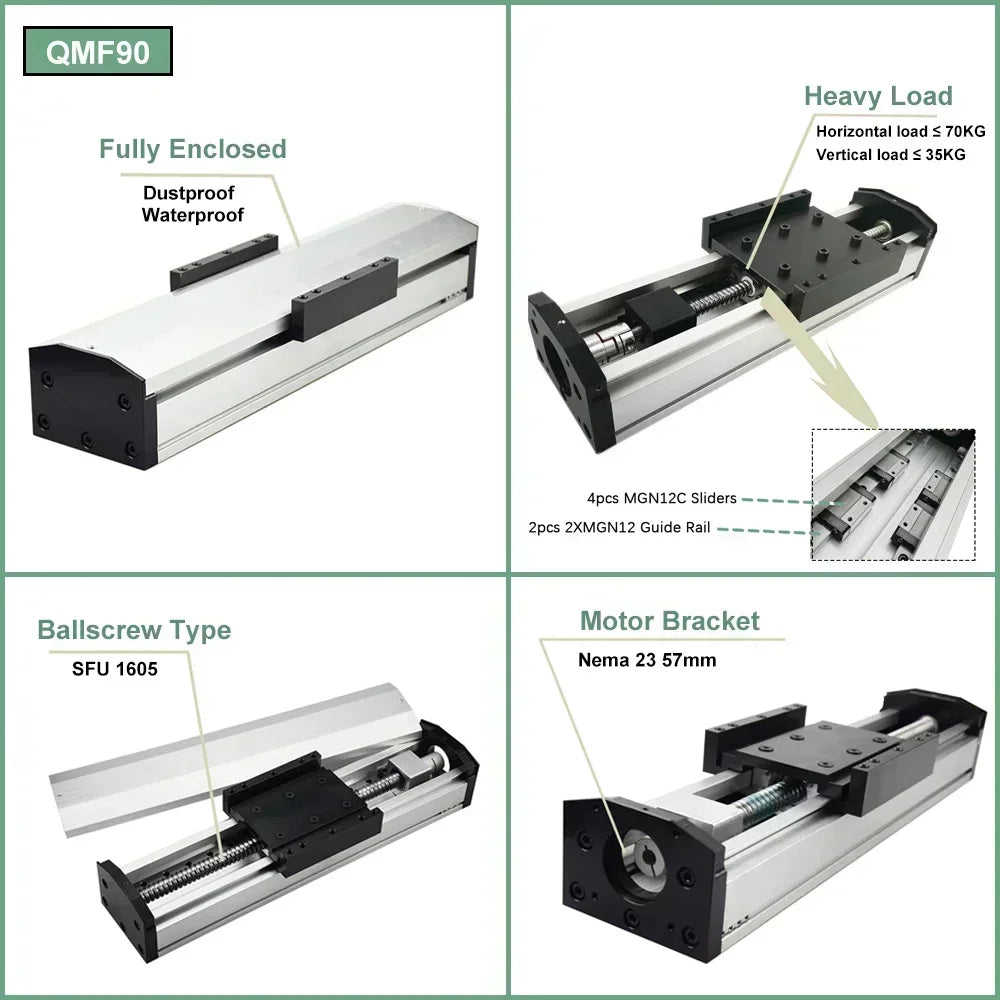

Key Features

• 2Nm closed-loop stepper motor with integrated drive

• Smooth, precise movement with SFU1605 ball screw and MGN12C rails

• Fully enclosed linear slide protects against dust and debris

• Ideal for CNC, robotics, and precision positioning tasks

• Supports horizontal loads up to 70kg and vertical loads up to 35kg

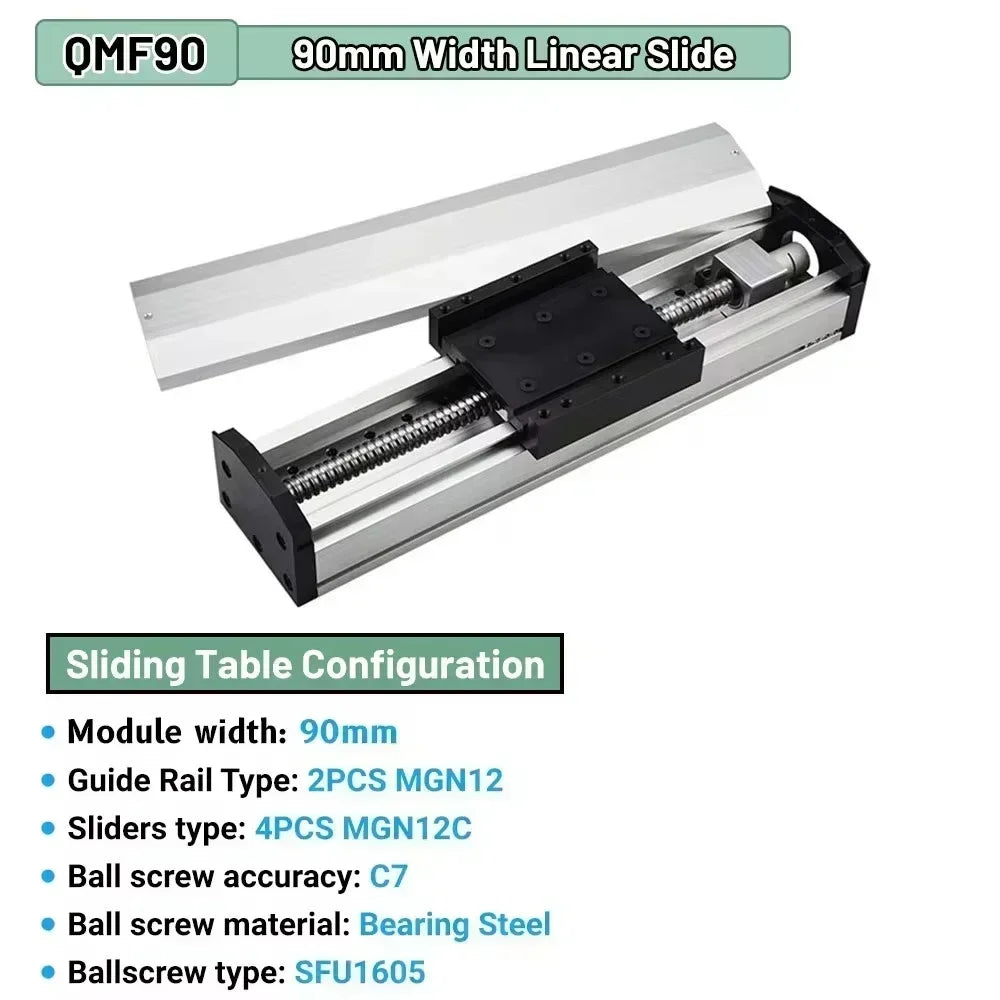

Specifications

• Motor: Nema23 57mm closed-loop, 2Nm holding torque

• Ball screw accuracy: C7, type SFU1605

• Repeat positioning accuracy: 0.03–0.05mm

• Module width: 90mm, industrial aluminum profile

• Effective stroke: 100mm (adjustable to 300mm)

• Total length: Effective stroke + 170mm

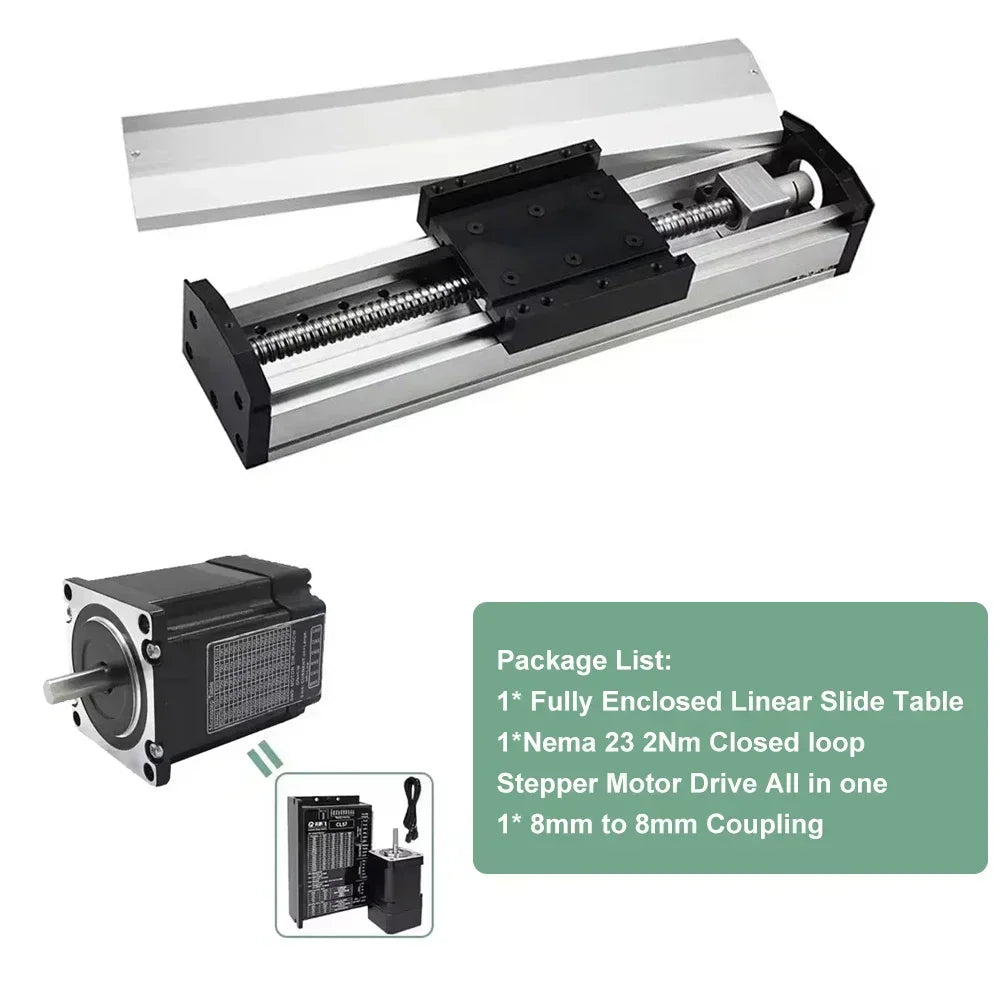

Package Contents

• 1 × Fully enclosed linear slide table (2Nm All in one kit)

• 1 × Nema23 57mm closed-loop motor drive

• 1 × 8mm-to-8mm coupling

What Makes This a Smart Buy:
Reliable, precise, and easy to install, this actuator is perfect for automating tasks without compromising on accuracy or load capacity.
