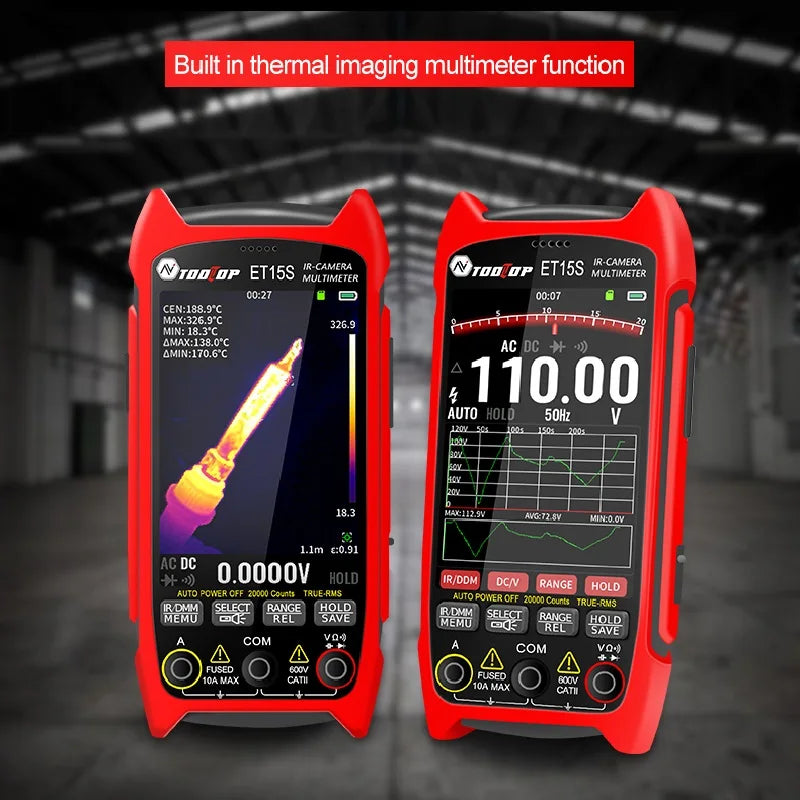

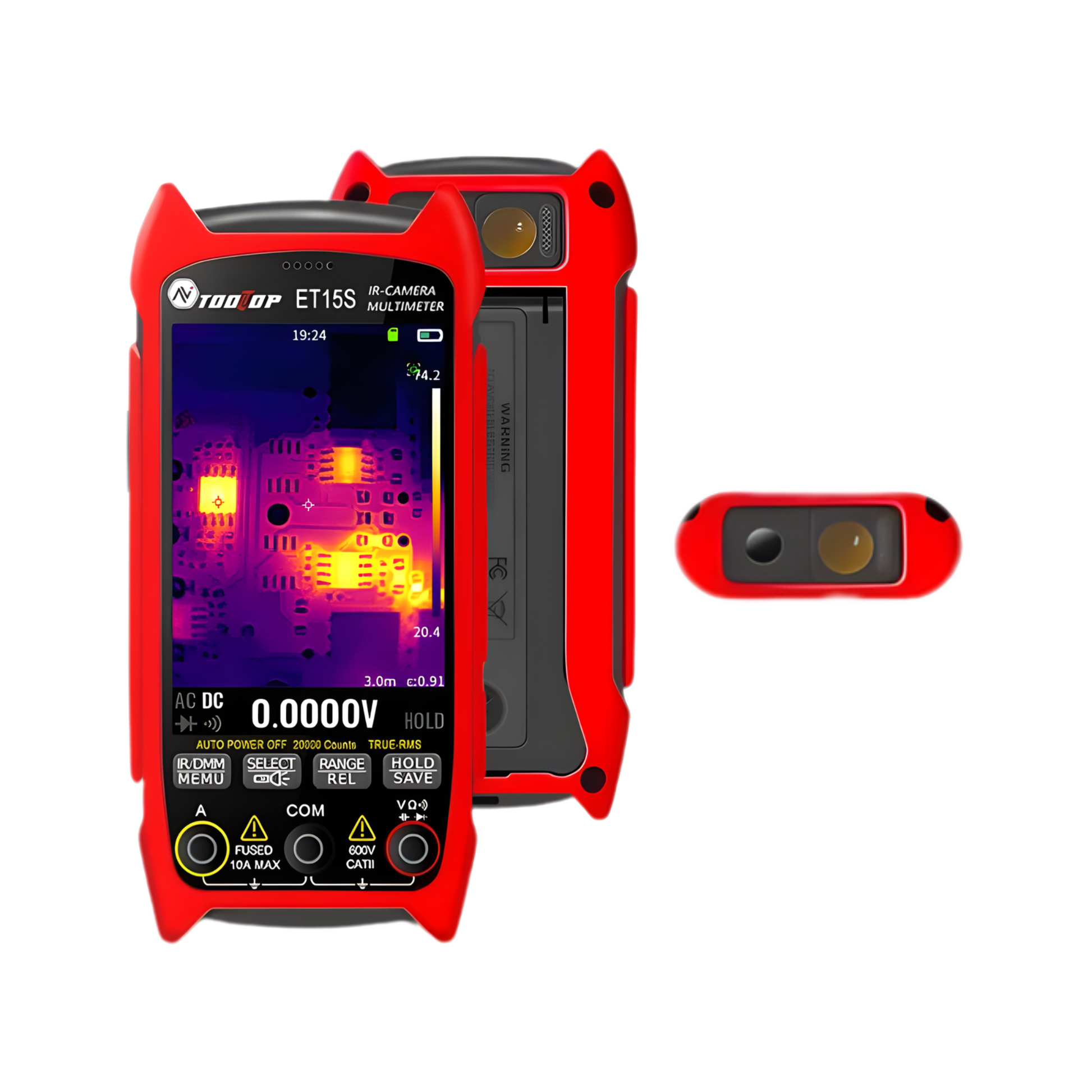

3.5 Inch Thermal Imager with Macro Lens Precision Electrical Scanner

Take thermal imaging and electrical diagnostics to the next level with a thermal camera featuring a macro lens. Designed for PCB inspection, electronics repair, and HVAC work, it captures even the smallest details with pinpoint accuracy.

Key Features

• Industrial-grade thermal camera with 256x192 resolution and 25Hz sensor

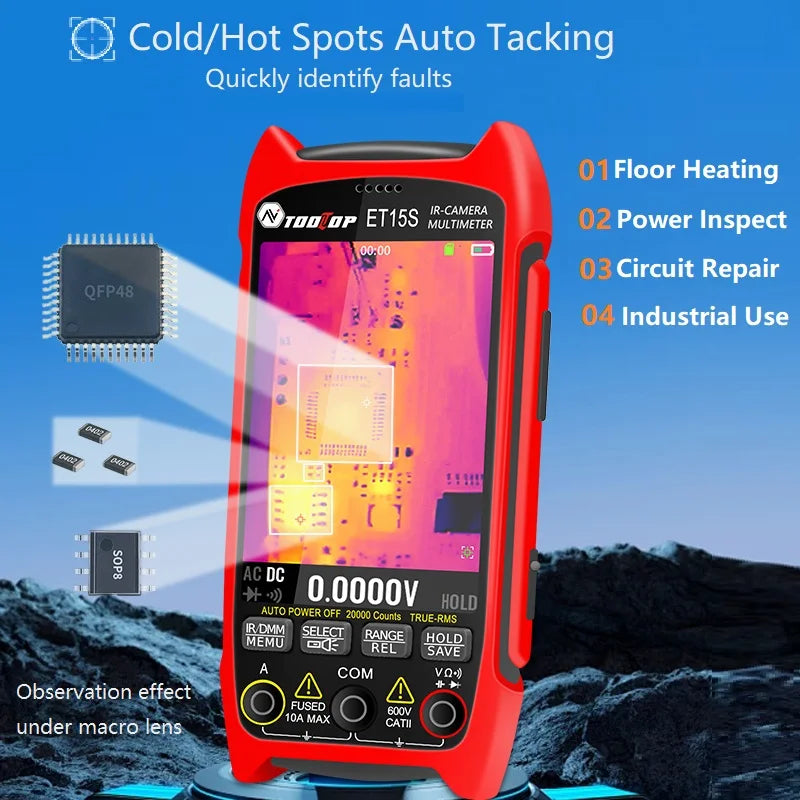

• Optional macro lens captures fine details as small as 1mm × 1mm, ideal for PCB and smartphone repairs

• High-precision multimeter with 19,999 counts for accurate voltage, current, resistance, capacitance, diode, frequency, NCV, and temperature readings

• 3.5-inch IPS display with 15 selectable color palettes for clear thermal visualization

• Waveform visualization for easy fault diagnosis and trend tracking

• Detachable 18650 lithium-ion battery with up to 8 hours runtime, USB Type-C charging

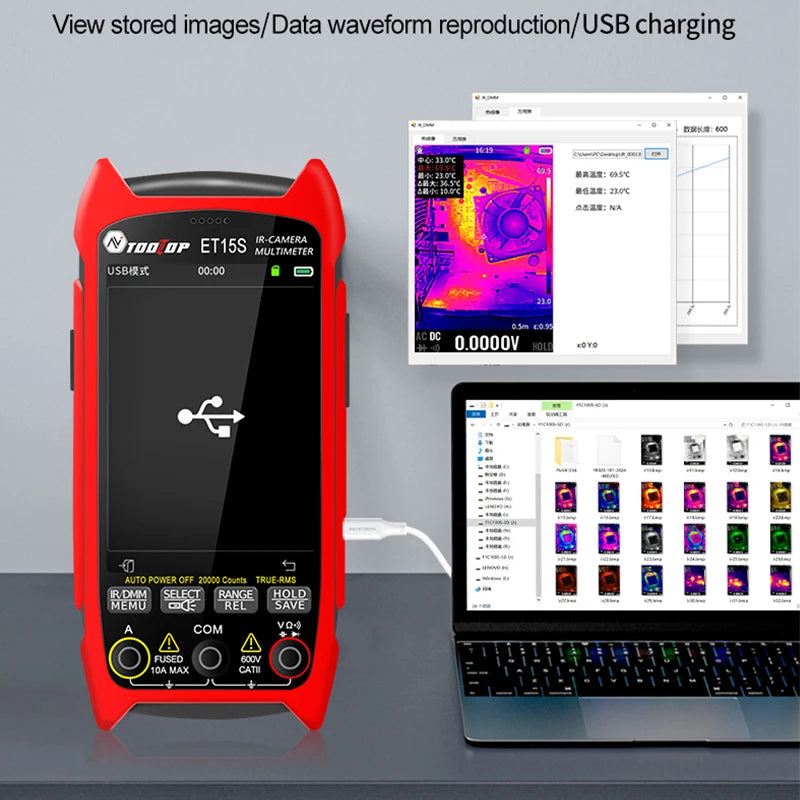

• Supports PC software for thermal image and multimeter data analysis

• Lightweight, compact design for on-the-go inspections

• Available in 11 languages

Specifications

• Thermal imaging: 256x192 pixels, Sensor: Vanadium oxide (VOx), FOV: 50° × 37.2°

• Temperature range: -20℃ ~ +550℃, Accuracy: ±2℃ or ±2%, Resolution: 0.1℃/0.1℉

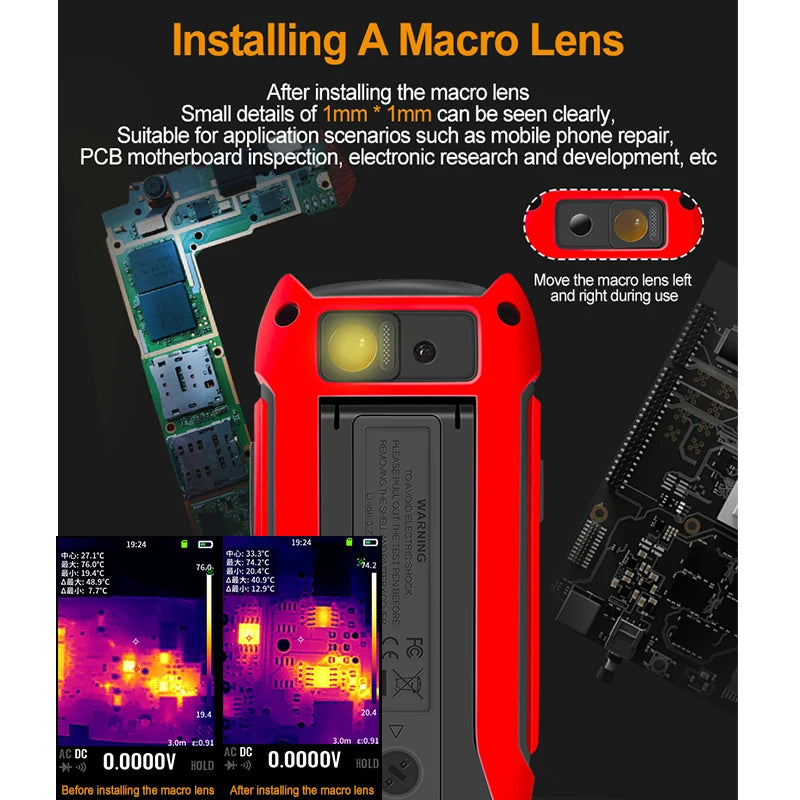

• Macro lens working distance: ~5cm, automatically switch to standard thermal mode for greater distance

• Multimeter: DC max 1000V, AC max 750V, Max current 10A, Max resistance 99.99MΩ, Max capacitance 199.99mF

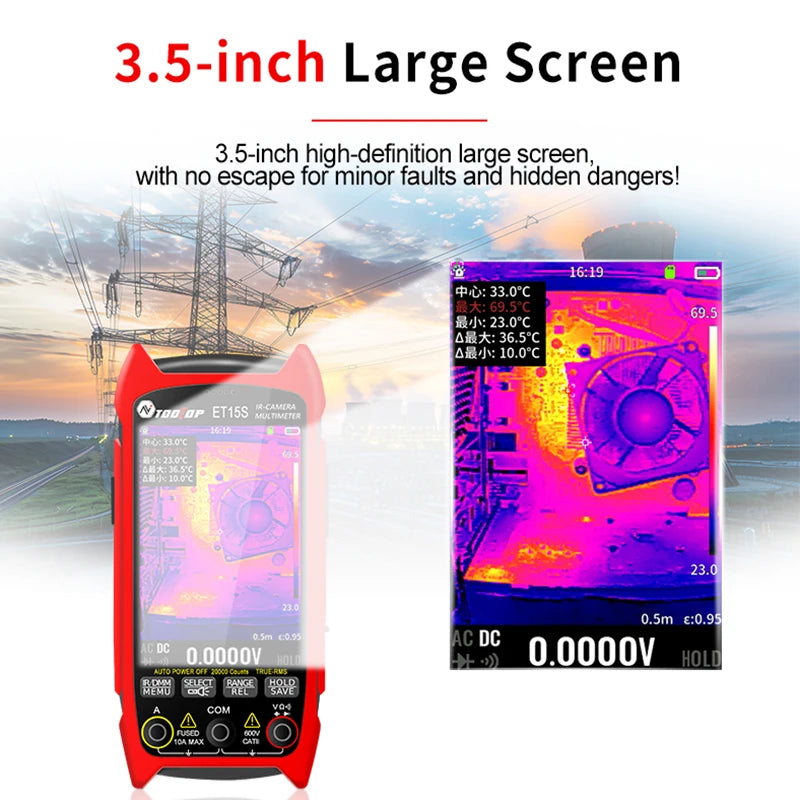

• Display: 3.5-inch 320×480 IPS screen

• Storage: Supports 4G TF card, up to 64G (not included)

• Weight: 198g (with battery), Size: 134×64×28 mm

Package Contents

• 1 x Thermal Camera Multimeter

• 1 x Macro Lens

• 1 x Data Line

• 1 x Multimeter Probe

• 1 x Storage Bag

• 1 x User Manual

What Makes This a Smart Buy:
The macro lens enables precise inspection of even the tiniest components, while the integrated multimeter provides comprehensive diagnostics. This all-in-one tool delivers unmatched convenience and value for professionals and electronics enthusiasts.
