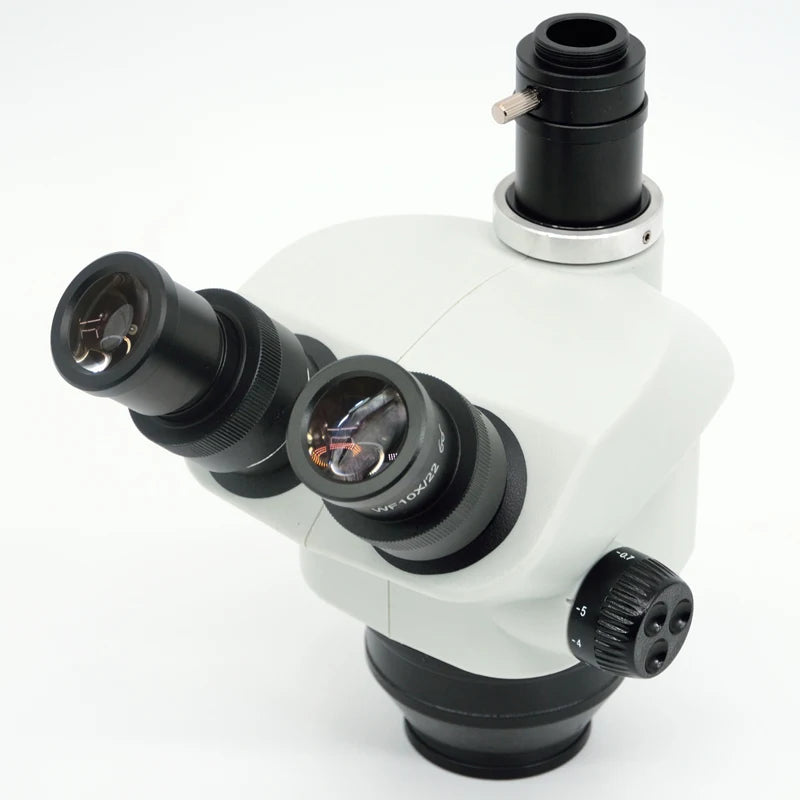

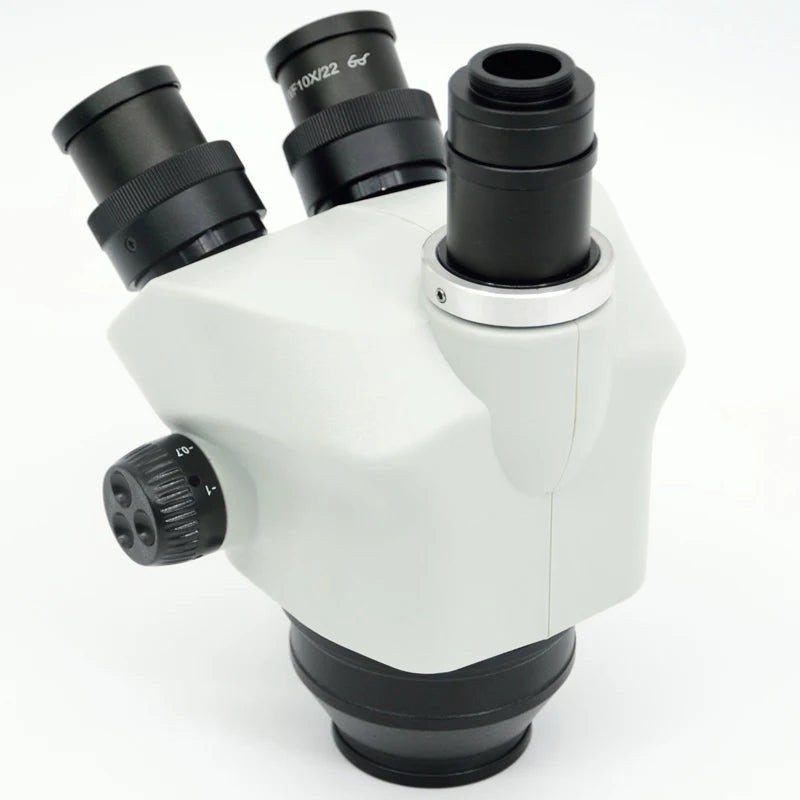

3.5X-100X Trinocular Stereo Microscope Head with Eyepiece

Achieve clear, detailed stereo viewing with this professional trinocular microscope head, designed for inspection, imaging, electronics, repair and precision work. Its simultaneous viewing design lets you observe through the eyepieces while capturing images or video through the trinocular port without repeatedly refocusing.

Key Features

• Simul-focal trinocular design enables simultaneous eyepiece viewing and camera imaging
• 7X-50X zoom magnification provides flexible observation across different applications
• Compatible with optional 0.5X and 2.0X auxiliary lenses for expanded magnification ranges

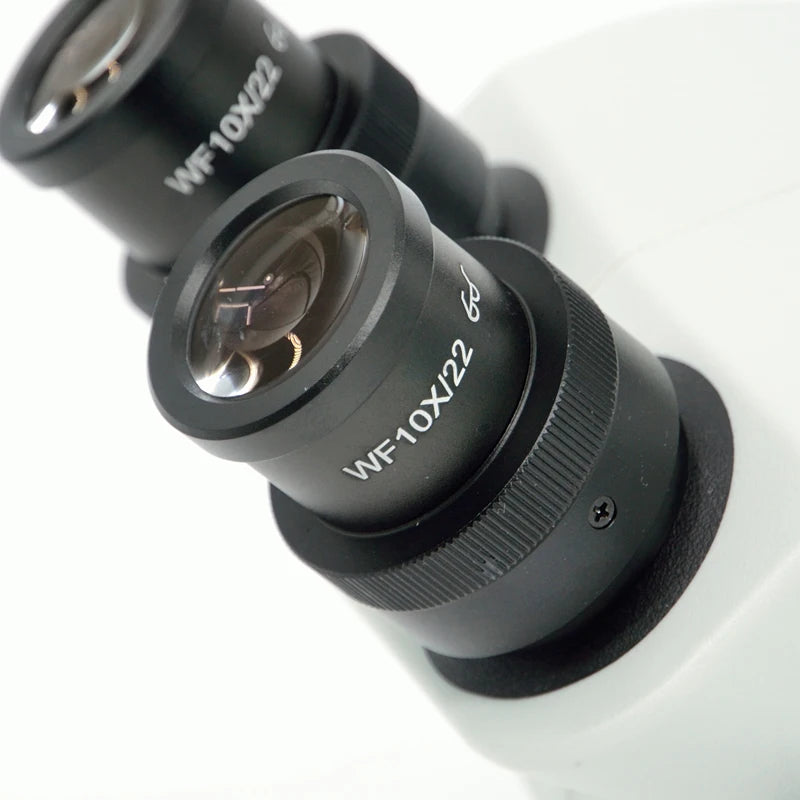

• WF10X/22mm wide-field eyepieces provide a broad viewing area and comfortable observation
• 45° inclined viewing head helps provide a more ergonomic working position
• 360° rotatable head allows flexible positioning during inspection
• Adjustable interpupillary distance from 54-75mm accommodates different users
• Dioptre adjustment helps achieve sharp, comfortable viewing for individual eyesight
• 105mm working distance provides useful space for handling and inspecting subjects
• Metal construction offers a sturdy and durable platform for regular use
• Trinocular port supports compatible camera, USB and video imaging setups
• Suitable for electronics repair, jewellery inspection, laboratory work, hobby projects and precision tasks

Specifications

• Type: Stereo Zoom Microscope Head
• Model: Simul-Focal Trinocular

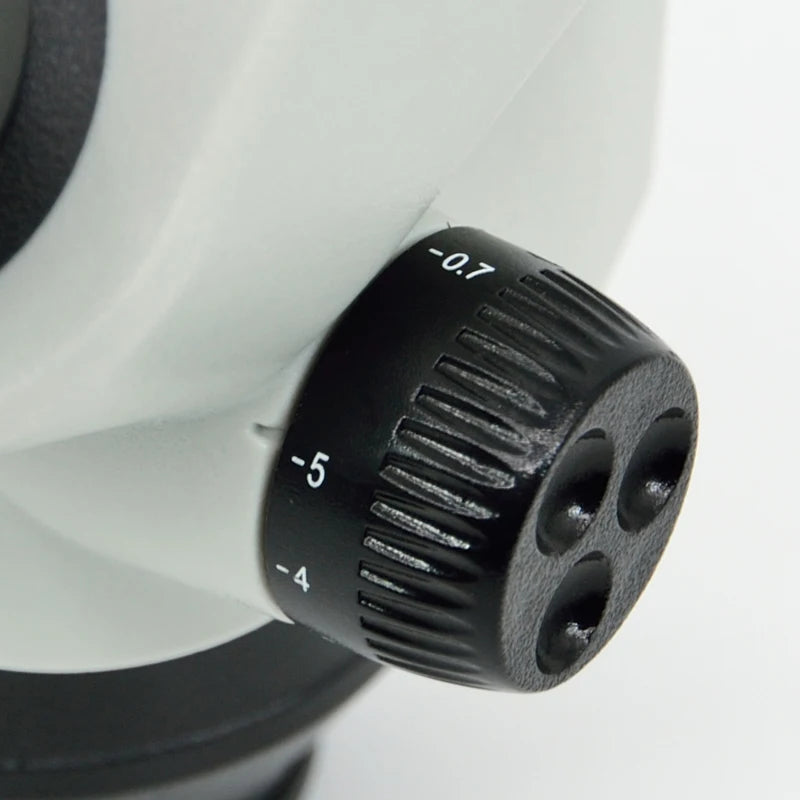

• Zoom Range: 0.7X-5X
• Standard Magnification: 7X-50X
• Extended Magnification: Up to 3.5X-100X with auxiliary lenses
• Eyepieces: WF10X/22mm
• Trinocular Tube: 360° Rotatable, 45° Inclined
• Interpupillary Distance: 54-75mm
• Working Distance: Approx. 105mm
• Auxiliary Lens Options: 0.5X / 2.0X
• Material: Metal
• Camera Adapter: 1X CTV Adapter
• Battery Required: No
• Smart Device: No

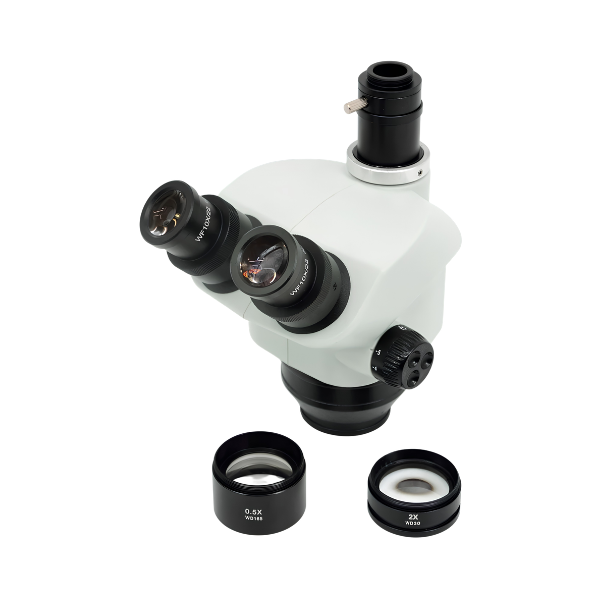

Package Contents

• 1 x Trinocular Stereo Zoom Head
• 1 x Pair of WF10X/22mm Widefield Eyepieces
• 1 x 1X CTV Camera Adapter
• 1 x Pair of Eye Guards
• 1 x Dust Cover
• 1 x User Manual
• 1 x 2.0x Microscope Auxiliary Objective
• 1 x 0.5x Microscope Auxiliary lens

What Makes This a Smart Buy:
The simul-focal trinocular design makes it easy to inspect a subject through the eyepieces while recording or displaying the view through a compatible camera. With flexible zoom, wide-field eyepieces and optional auxiliary lenses, it offers versatility for detailed inspection and precision applications.
