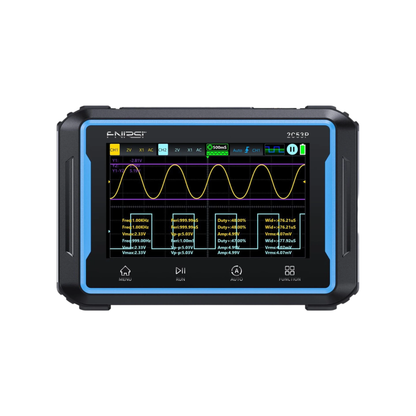

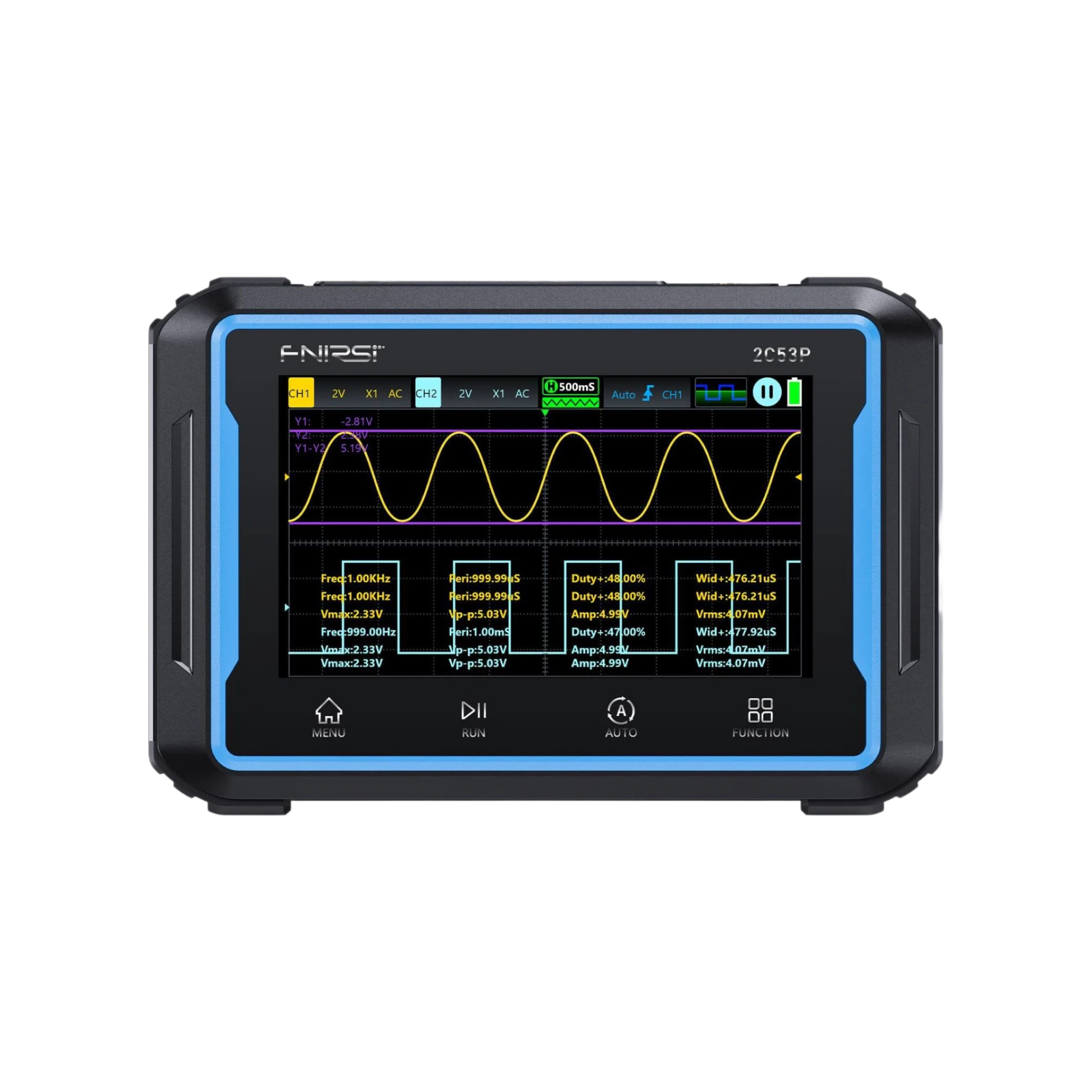

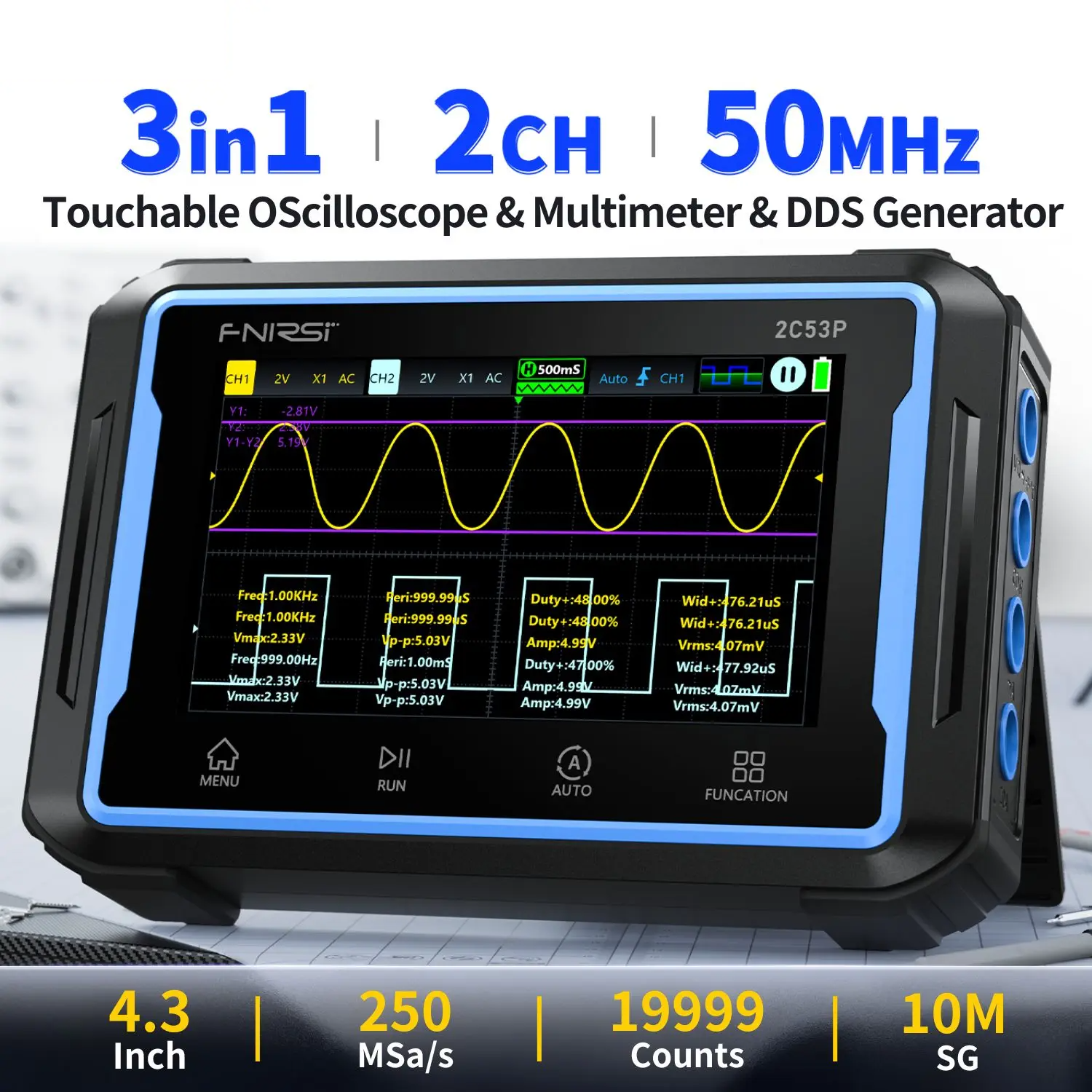

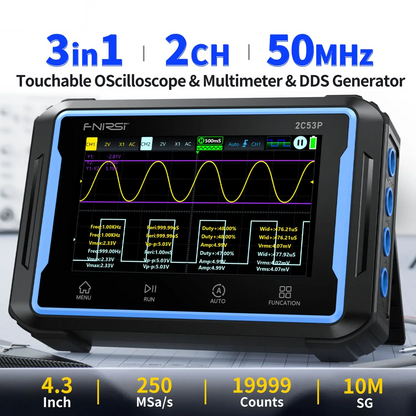

3-in-1 50MHz Digital Oscilloscope with Multimeter Touchscreen

3-in-1 50MHz Digital Oscilloscope with Multimeter Touchscreen

$238.06
$404.71 $238.06
Sale Sold out

Unlock precise and versatile measurement with this 3-in-1 digital testing tool. Combining an oscilloscope, multimeter, and signal generator in a compact touchscreen design, it’s perfect for engineers, hobbyists, and students who need reliable, portable diagnostics.

Key Features

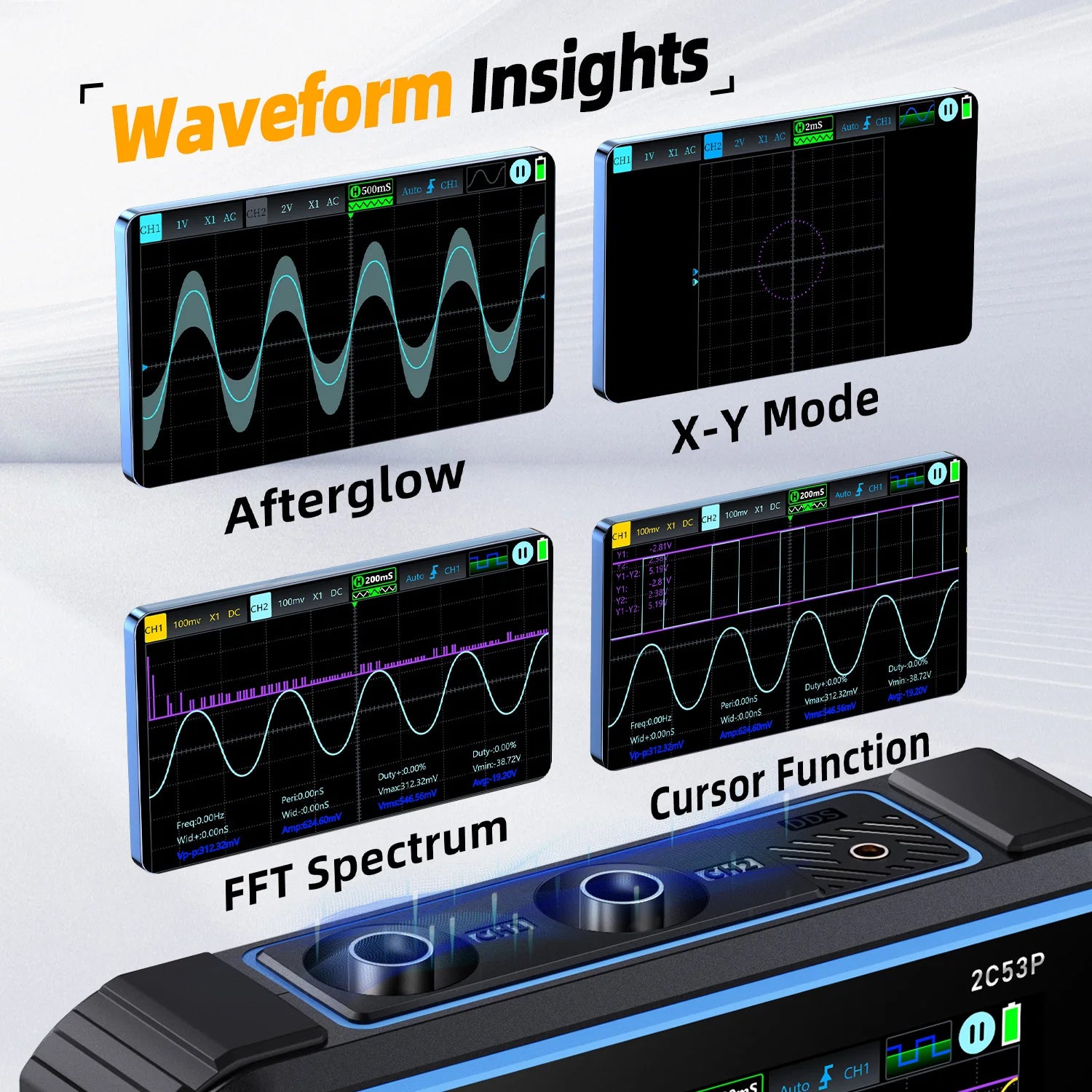

  • Dual-Channel Oscilloscope: 50MHz bandwidth, 250MS/s real-time sampling for accurate waveform analysis.

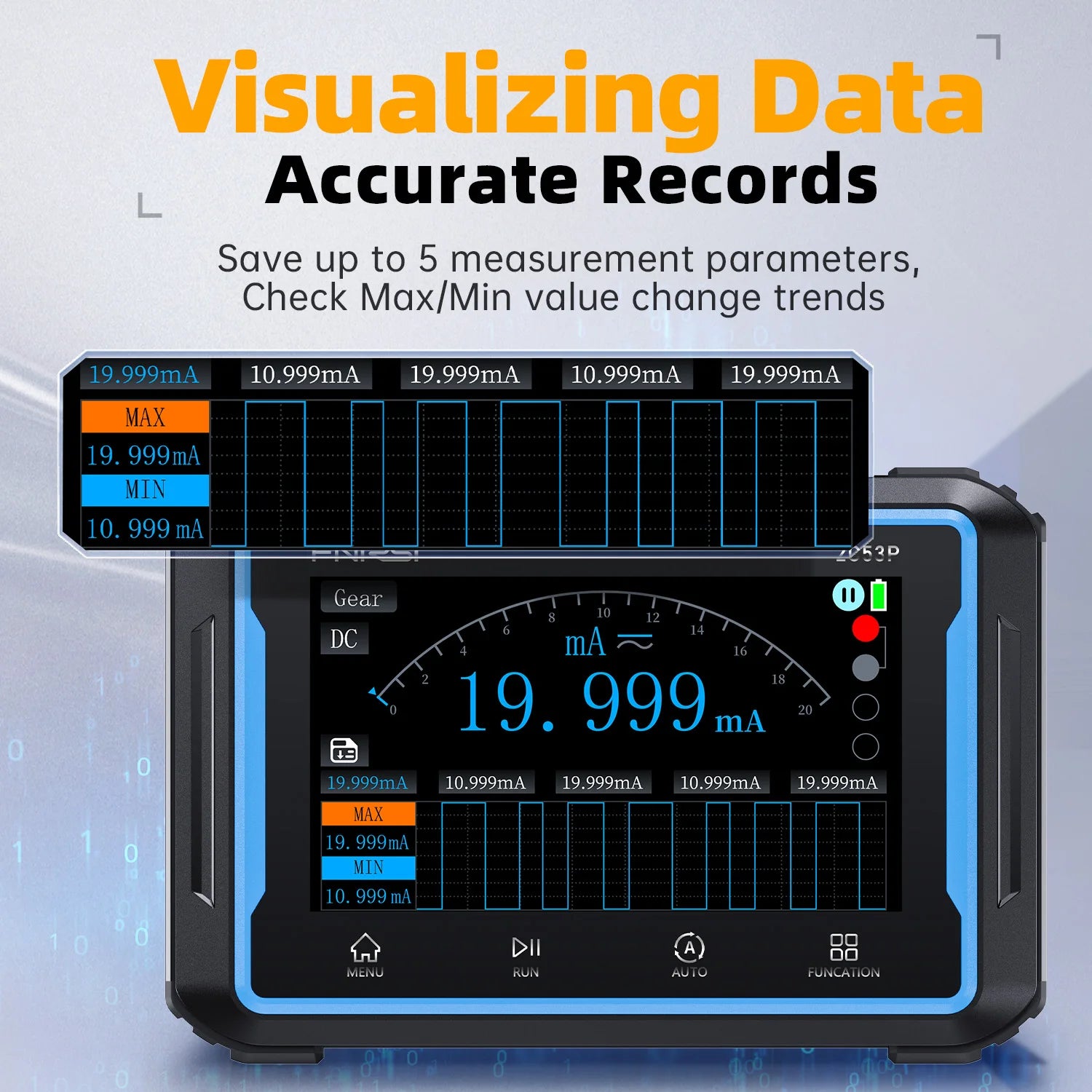

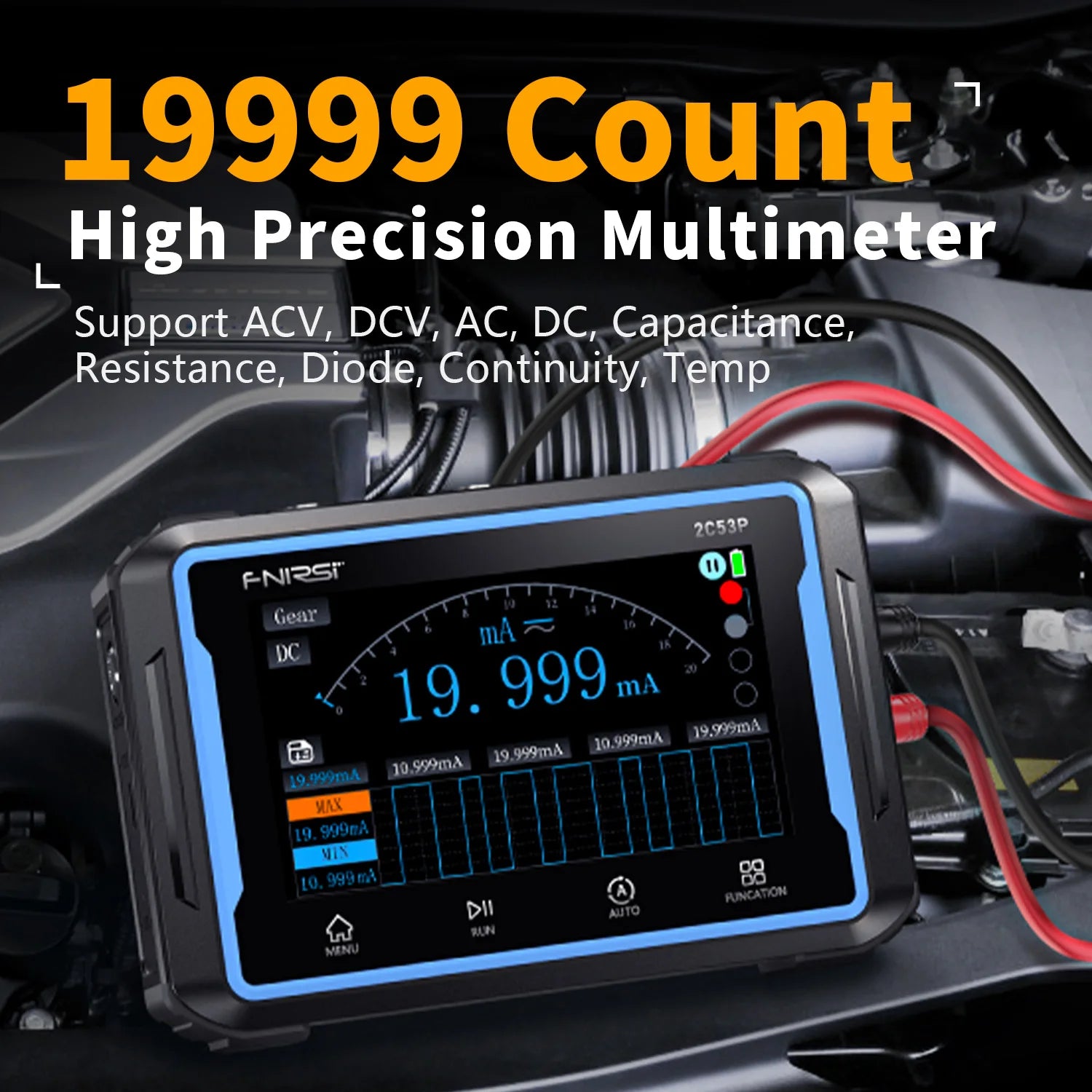

  • Multimeter Functions: Measures AC/DC voltage, current, resistance, capacitance, temperature, diode, and continuity.

  • Signal Generator: Outputs 12 waveform types with adjustable frequency (0–10MHz), amplitude, and duty cycle.

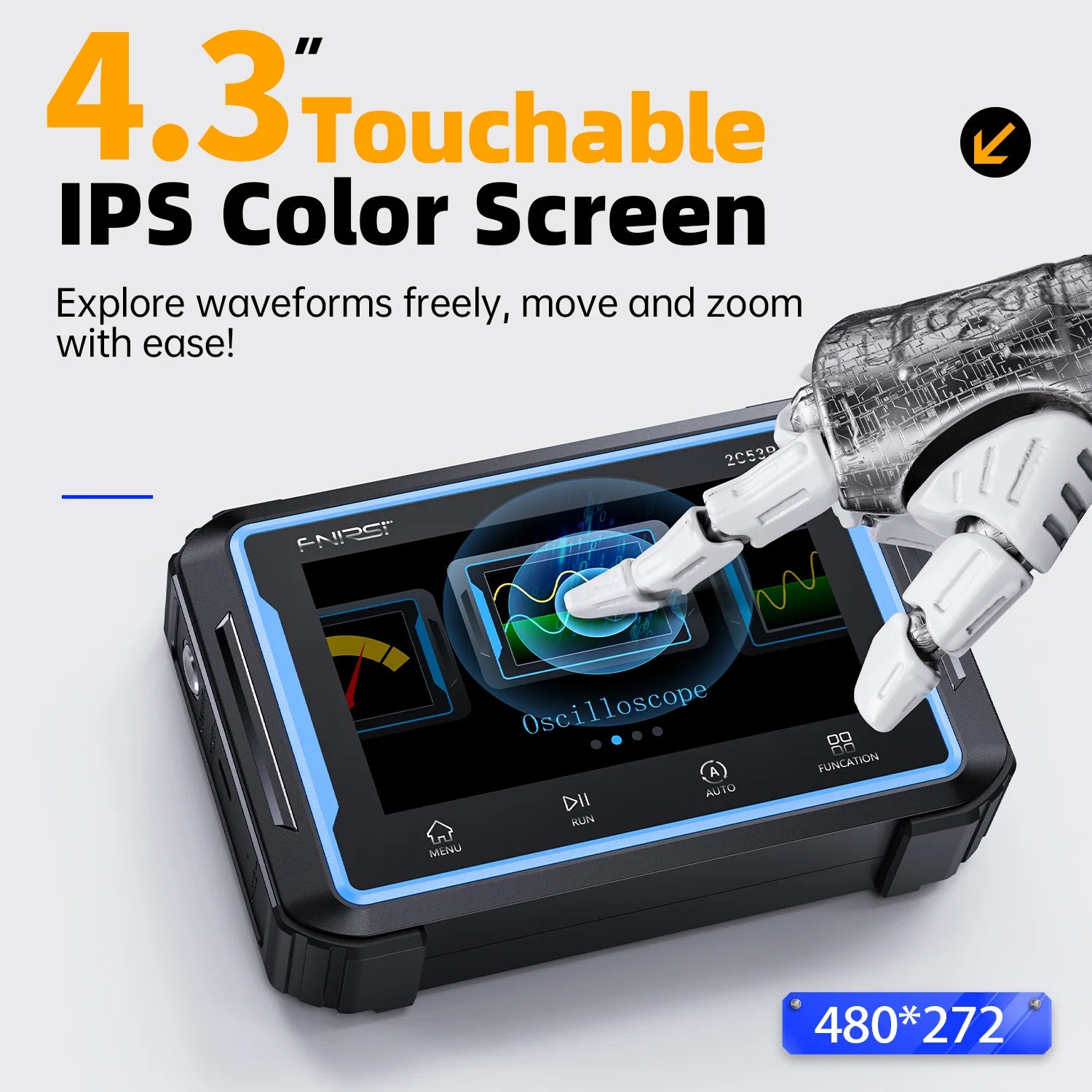

  • Touchscreen Display: 4.3-inch 480×272 pixel colour screen with intuitive navigation and waveform screenshot capability.

  • Portable Design: Lightweight 360g device with 4000mAh rechargeable battery and Type-C charging.

  • High Safety Standards: Built-in high-voltage protection and waveform storage for secure, long-term use.

Specifications

  • Oscilloscope: Dual channel, ±400V max, 10ns–10s/div time base, 10mV–10V/div vertical sensitivity.

  • Multimeter: DC/AC voltage up to 1000V/750V, DC/AC current up to 9.999A, resistance up to 19.999MΩ.

  • Signal Generator: Single channel, 0–10MHz, multiple waveforms, 0.1V–3V amplitude, duty cycle 0–100%.

  • Screen: 4.3-inch IPS colour touchscreen, tempered glass surface.

  • Battery: 4000mAh lithium battery, ~4-hour standby.

  • Device Size: 145×98×35mm, Weight: 360g.

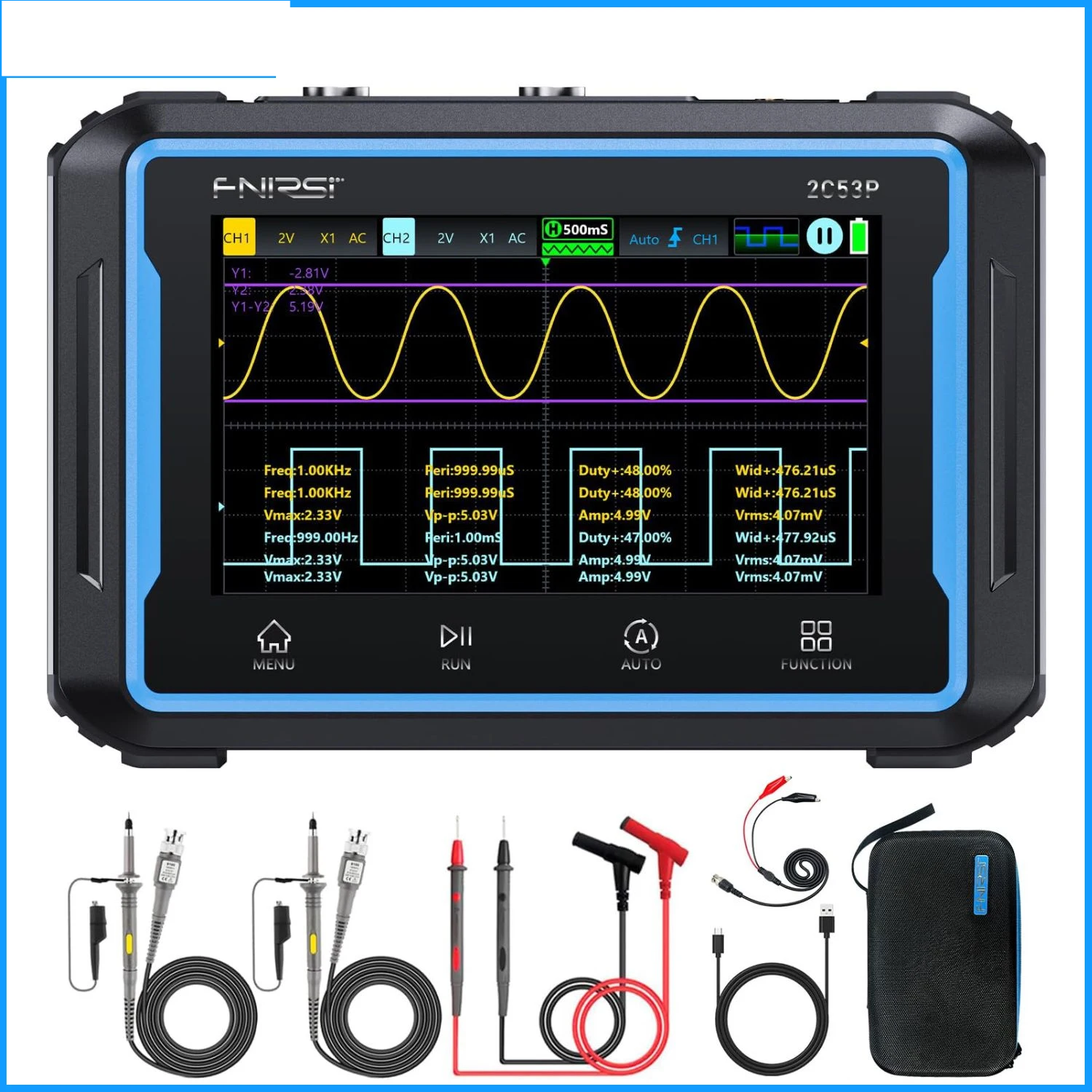

Package Contents

  • 1× 2C53P Oscilloscope/Multimeter/Signal Generator Device

  • 2× P6100 Oscilloscope Probe

  • 1× Multimeter Probe

  • 1× Alligator Clip Probe

  • 1× Data Cable

  • 1× User Manual

What Makes This a Smart Buy:
This all-in-one 3-in-1 tool streamlines your testing workflow with professional-grade oscilloscope, multimeter, and signal generator functions. Its portable touchscreen design and rechargeable battery make it ideal for lab, workshop, or on-the-go diagnostics, delivering exceptional versatility and convenience in one compact device.
