3 Phase Energy Monitor with Smart Wi-Fi and Data Logging

3 Phase Energy Monitor with Smart Wi-Fi and Data Logging

$259.86
$441.76 $259.86
Sale Sold out

Take control of your energy usage with this 3 Phase Energy Monitor, designed for homes, solar systems, and commercial setups. Monitor, log, and optimise your electricity consumption in real time, all from a smart, connected device.

Key Features

  • Real-time monitoring of active and apparent power, energy, and power factor across three phases.

  • Smart Wi-Fi connectivity for remote monitoring and management from your smartphone or tablet.

  • Non-contact current measurements via current transformers for safe and accurate readings.

  • 4-quadrant energy measurement for complete tracking of energy flow.

  • Optical pulse indicators to visually track energy usage at a glance.

  • Supports data export in CSV and JSON formats for easy record-keeping.

  • Real-time clock ensures accurate timestamps even during internet outages.

  • Supports single-phase or three-phase installations, with phase sequence error detection.

  • Stores up to 7 days of 1-minute resolution data for later analysis.

Specifications

  • AC Ammeter: 0–63 A (130 A saturation), accuracy ±1% (2–63 A), ±2% (1–2 A), ±5% (0–1 A)

  • AC Voltmeter: 220–240 V~, accuracy better than ±1%

  • Power Supply: 220–240 V 50/60 Hz

  • Power Consumption: <2 W

  • Communication: Wi-Fi 802.11 b/g/n, Bluetooth 4.2, MQTT support

  • Ambient Temperature: -20°C to 40°C / -5°F to 105°F

  • Humidity: 30–70% RH

  • Max Altitude: 2000 m / 6562 ft

  • RF Range: Up to 30 m indoors / 50 m outdoors

  • External Protection: 63 A, tripping characteristic B or C, 6 kA interrupting rating

  • Accuracy Class: B (IEC 62053-21)

  • Photovoltaic Ready

Package Contents

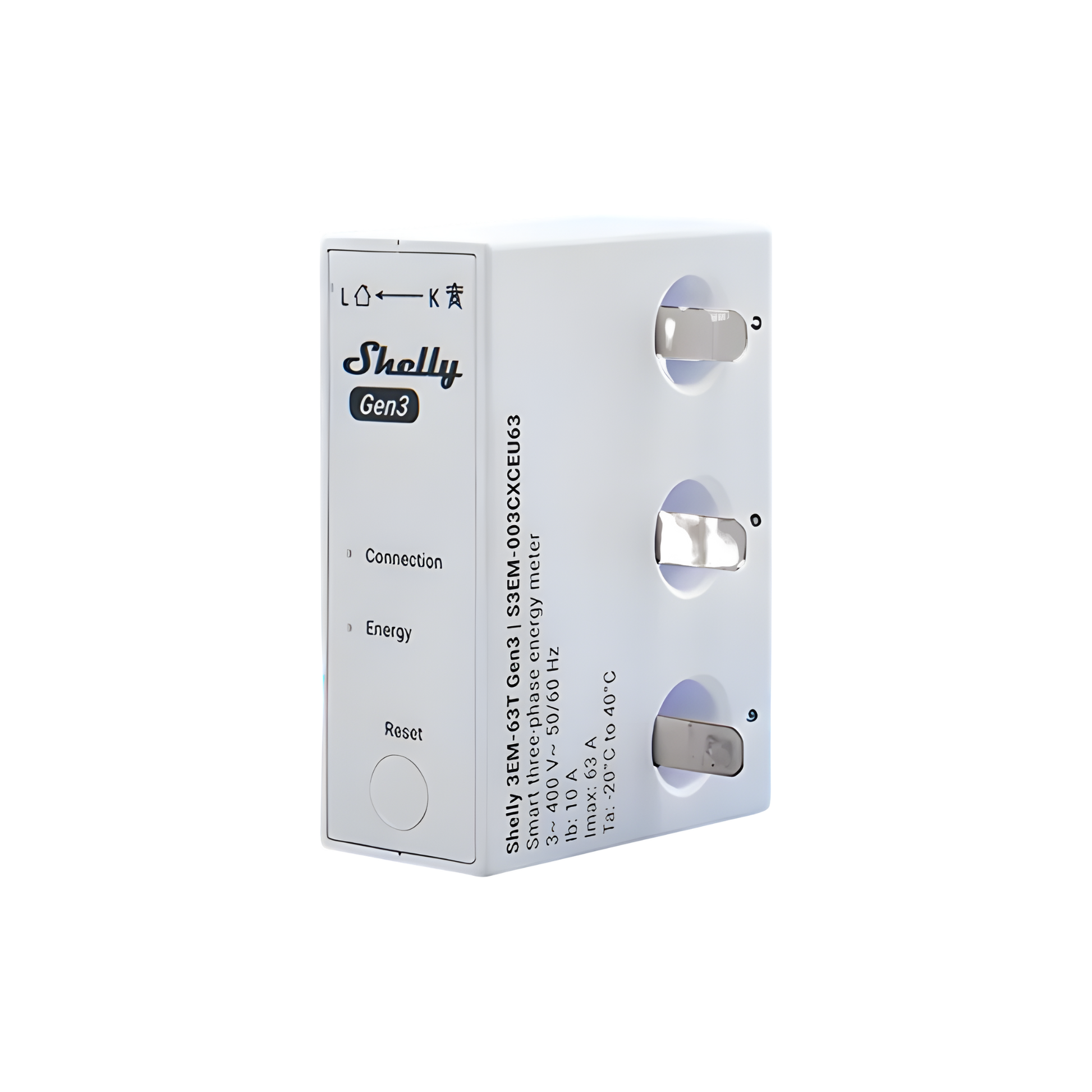

  • 1 x 3 Phase Energy Monitor (3EM 63T)

  • 3 x Compatible Current Transformers (CTs)

  • User Manual and Quick Start Guide

  • Mounting Hardware

What Makes This a Smart Buy:
This energy monitor gives you complete insight into your electricity use, helping you optimise efficiency and reduce costs. Its smart features and real-time data make it ideal for both residential and commercial energy management.
