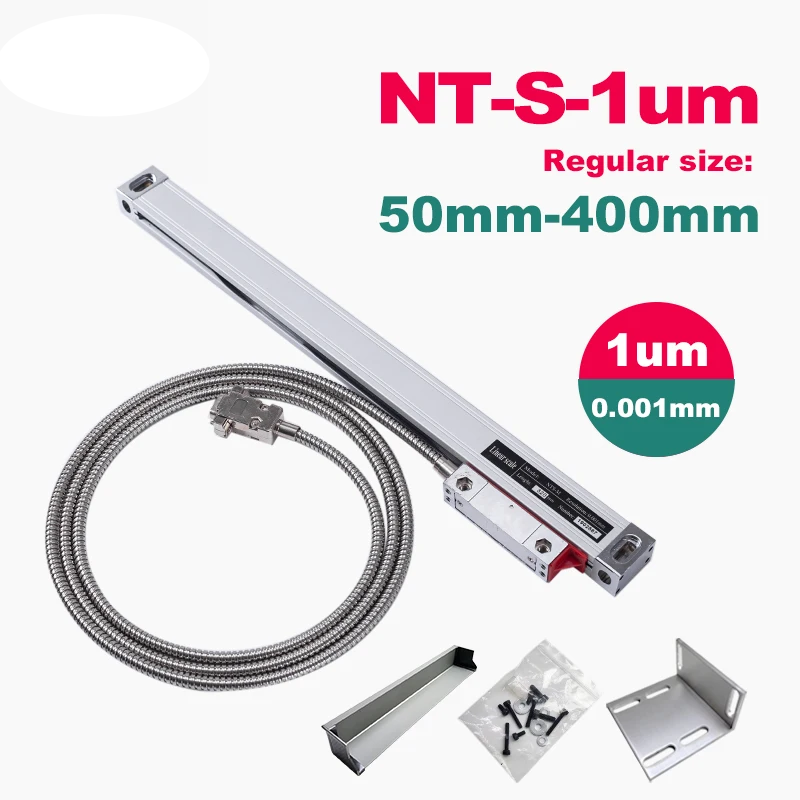

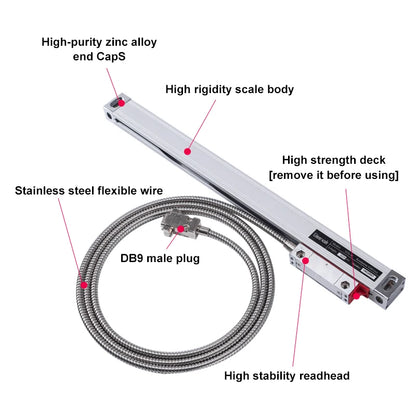

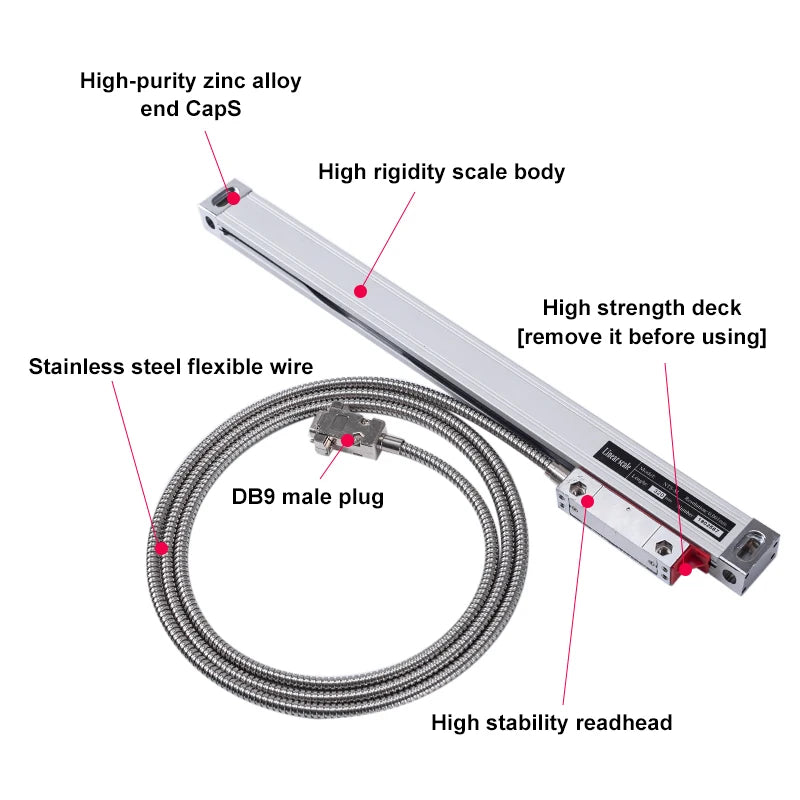

300mm Linear Optical Encoder Ruler for CNC Machines

Upgrade your CNC setup with this 300mm Linear Optical Encoder Ruler. Its slim, high-precision design ensures accurate digital readouts for machining, milling, and grinder applications.

Key Features

• Slim 20×27mm cross-section fits compact CNC setups

• 0.001mm resolution for highly accurate measurements

• TTL output signal compatible with standard DRO systems

• Long 3-meter cable for convenient installation

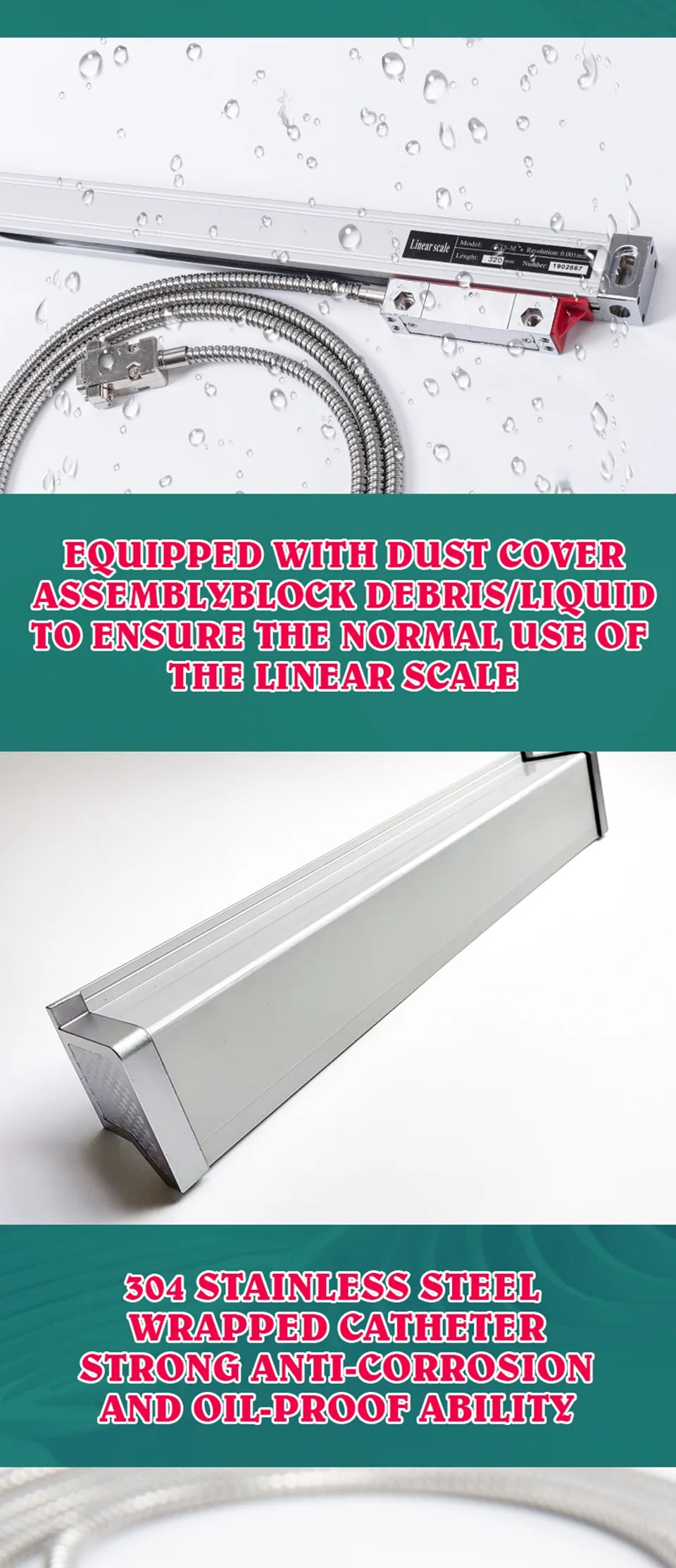

• IP54-rated protection against dust and water ingress

• Supplied with scale cover and mounting hardware

Specifications

• Travel length: 300mm

• Scale overall length: 442mm

• Input voltage: 5VDC ±5%, 100mA

• Max measuring speed: 60m/min

• Operating temperature: 0–50°C

• Interface type: 20µm, DB9

• Protection grade: IP54

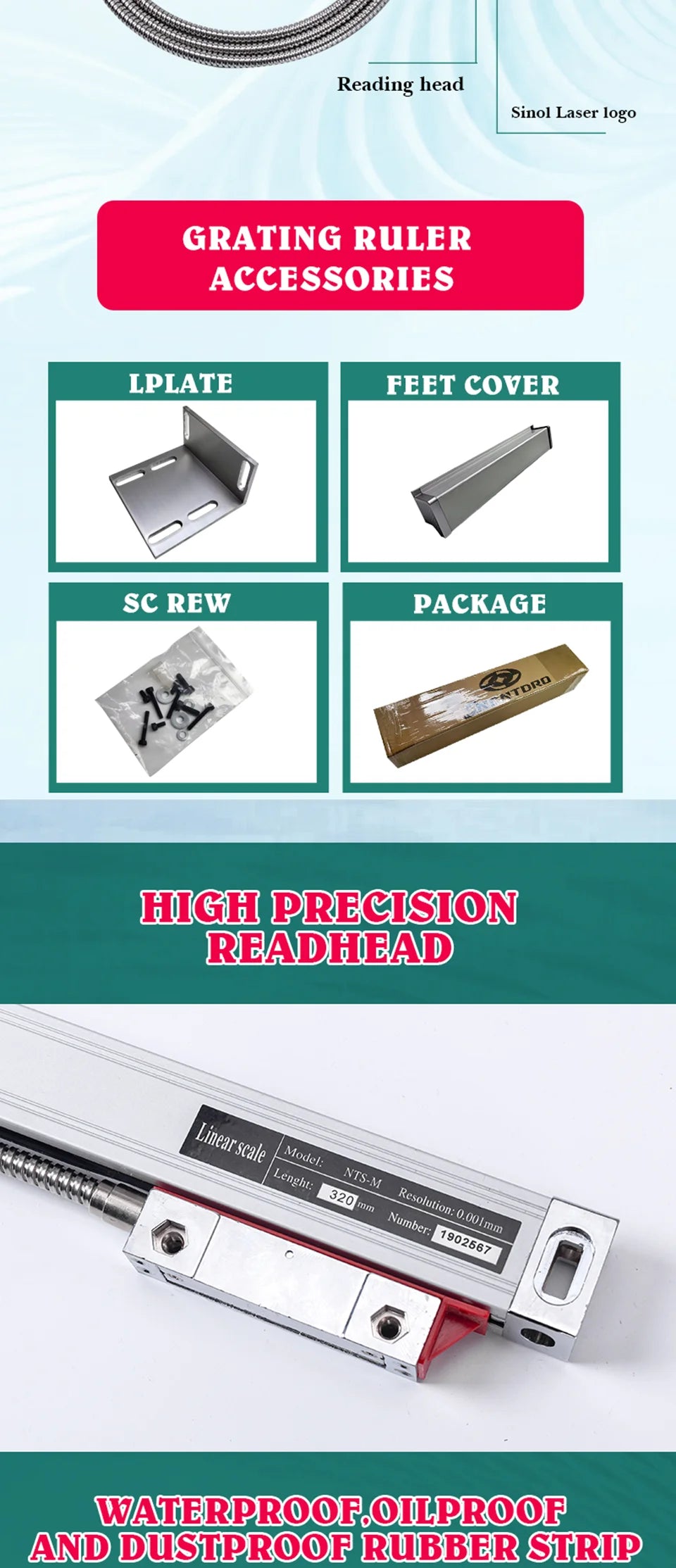

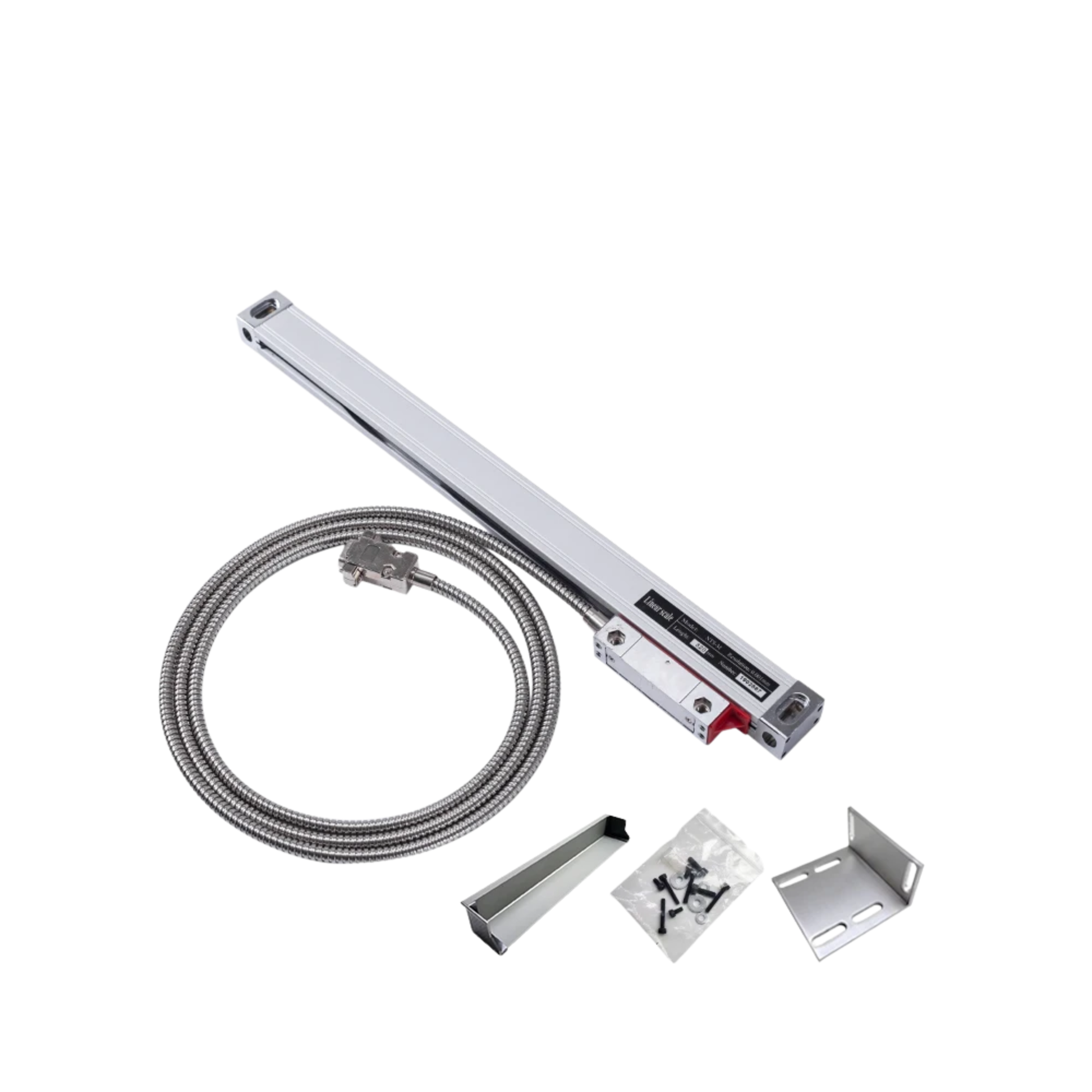

Package Contents

• 1 × 300mm NT-S scale (300mm travel 0.001mm)

• Scale cover

• Mounting bracket

• Screw bag

What Makes This a Smart Buy:
The 300mm ruler offers a balance of length and precision, ideal for CNC machines that require consistent, high-resolution measurements. It’s an upgrade that delivers professional results every time.
