370mm Optical Linear Scale Encoder Precision Measuring Sensor

Improve the accuracy of your machine tools with this slim optical linear scale encoder, designed for precise position measurement and reliable motion feedback. Ideal for CNC machines, milling machines, lathes, and precision engineering applications, it delivers consistent performance in a compact, space-saving design.

Key Features

• High-Precision Measurement – Delivers an accuracy of 5μm (0.005mm) for reliable positioning and repeatable machining results.
• 370mm Measuring Travel – Suitable for machine tools requiring a 370mm measuring range.
• Slim Space-Saving Design – Compact 18 × 20mm profile is ideal for smaller CNC machines and installations with limited space.
• Optical Grating Technology – Provides stable, accurate linear position feedback for improved machining precision.
• TTL Signal Output – Standard TTL output ensures compatibility with a wide range of digital readout (DRO) systems and controllers.
• Fast Measuring Speed – Supports movement speeds up to 60m/min without sacrificing accuracy.
• Reliable 5V DC Operation – Operates from a standard 5V DC power supply for stable performance.
• 3-Metre Connection Cable – Long cable provides flexible installation across various machine configurations.
• Durable Industrial Construction – Built for demanding workshop environments with dependable long-term operation.
• Ideal for Precision Machinery – Suitable for CNC machines, milling machines, drilling machines, lathes, grinders, and other precision equipment.

Specifications

• Product Type: Optical Linear Scale Encoder

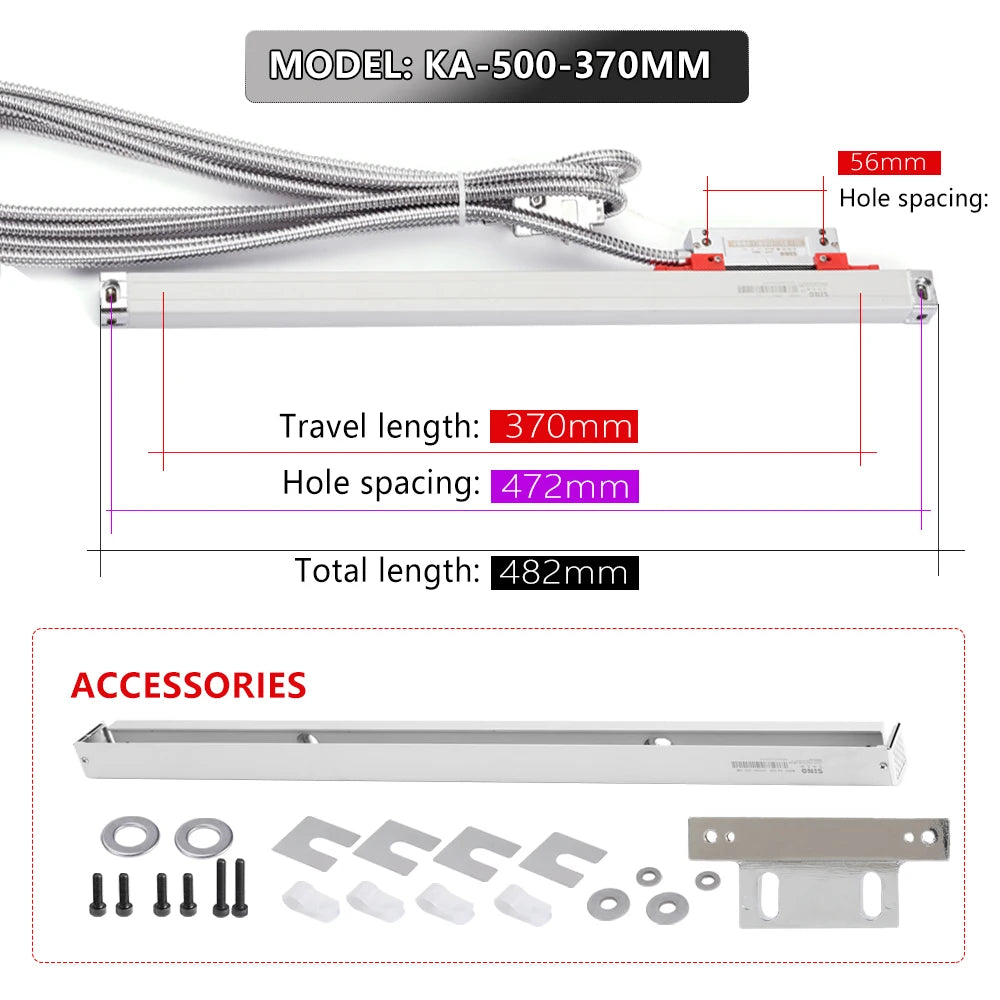

• Measuring Length: 370mm
• Measurement Accuracy: 5μm (0.005mm)
• Resolution: 0.005mm
• Output Signal: TTL
• Input Voltage: DC 5V
• Maximum Measuring Speed: 60m/min
• Cross Section Dimensions: 18 × 20mm
• Interface: DB9
• Cable Length: 3m
• Suitable Applications: CNC Machines, Milling Machines, Lathes, Drilling Machines, Precision Measuring Systems

Package Contents

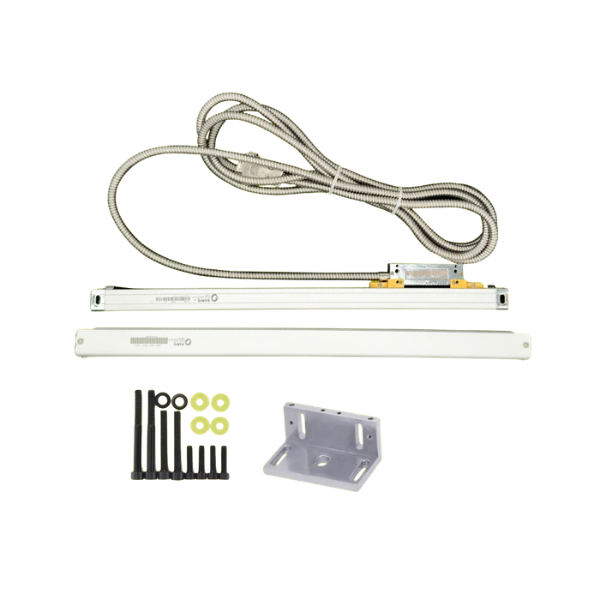

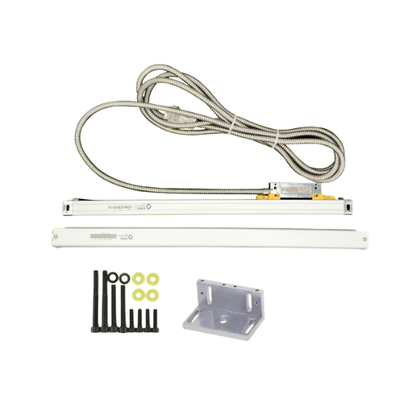

• 1 × 370mm Optical Linear Scale Encoder
• 1 × Scale Cover
• 1 × L-Shaped Mounting Bracket
• 1 × Mounting Screw Kit

What Makes This a Smart Buy:

Designed for precision machining, this slim optical linear scale delivers accurate position feedback in a compact form factor that fits smaller machine tools with ease. Its reliable performance, fast response, and simple installation make it an excellent upgrade for improving machining accuracy and overall productivity.
