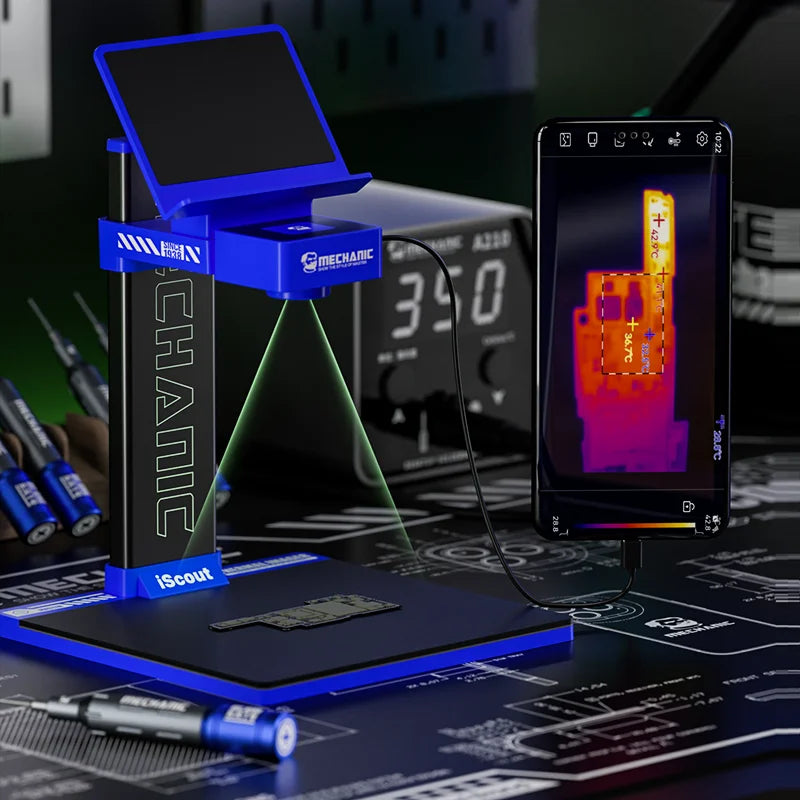

3D Thermal Imaging Analyzer for Motherboard Fault Detection

This 3D thermal imaging analyser provides a clear visual way to identify temperature differences across motherboards, circuit boards and electronic components. With a high-resolution thermal sensor and broad temperature range, it helps technicians spot potential hot spots and abnormal heat patterns quickly.

Key Features

• 256 × 192 Thermal Resolution: Delivers detailed thermal images for easier identification of heat variations and hot spots.
• Wide Temperature Range: Measures temperatures from -15°C to 600°C for versatile diagnostic applications.

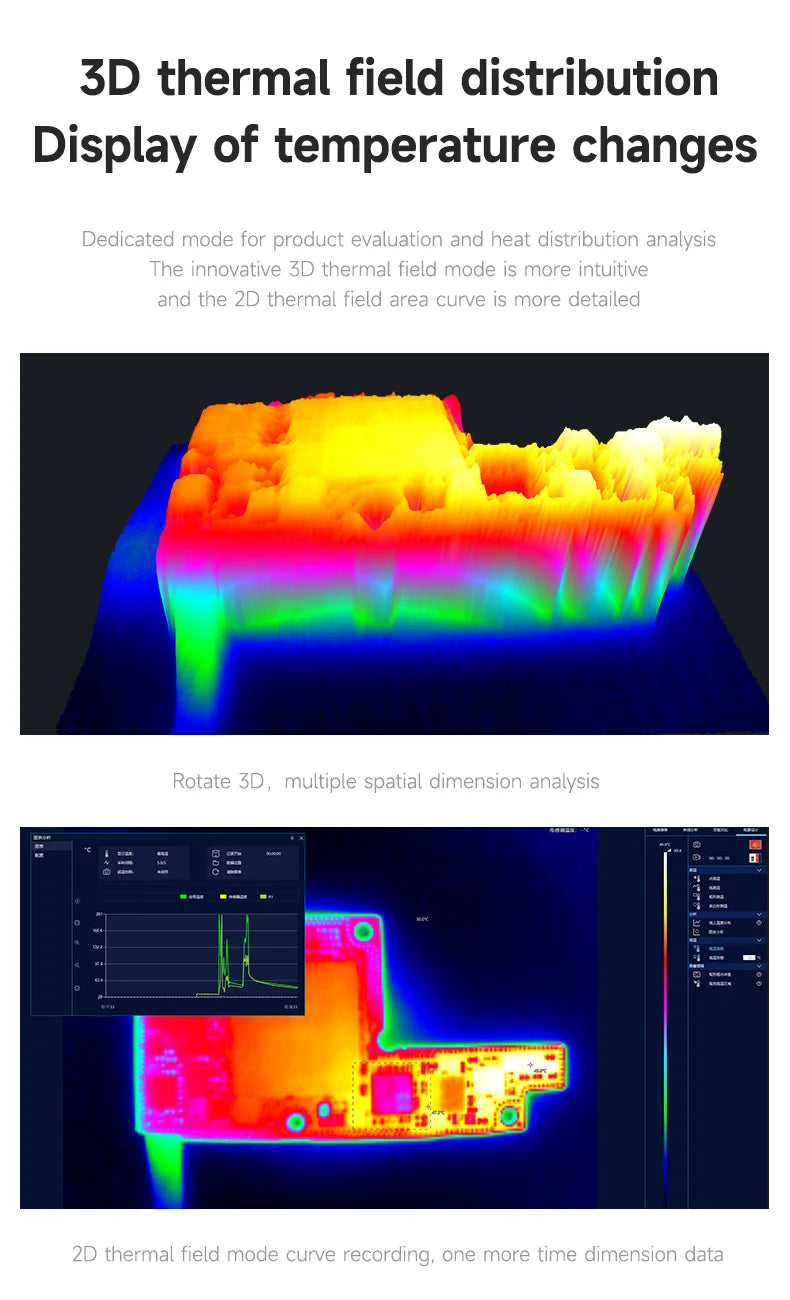

• 3D Thermal Analysis: Designed to provide enhanced visual inspection of heat distribution across electronic components.
• Motherboard Fault Detection: Useful for locating abnormal heating that may indicate potential component or circuit issues.
• 56° × 42° Field of View: Provides a broad viewing area for efficient inspection.
• Close-Range Testing: Optimised for measurement distances of approximately 10–15cm.

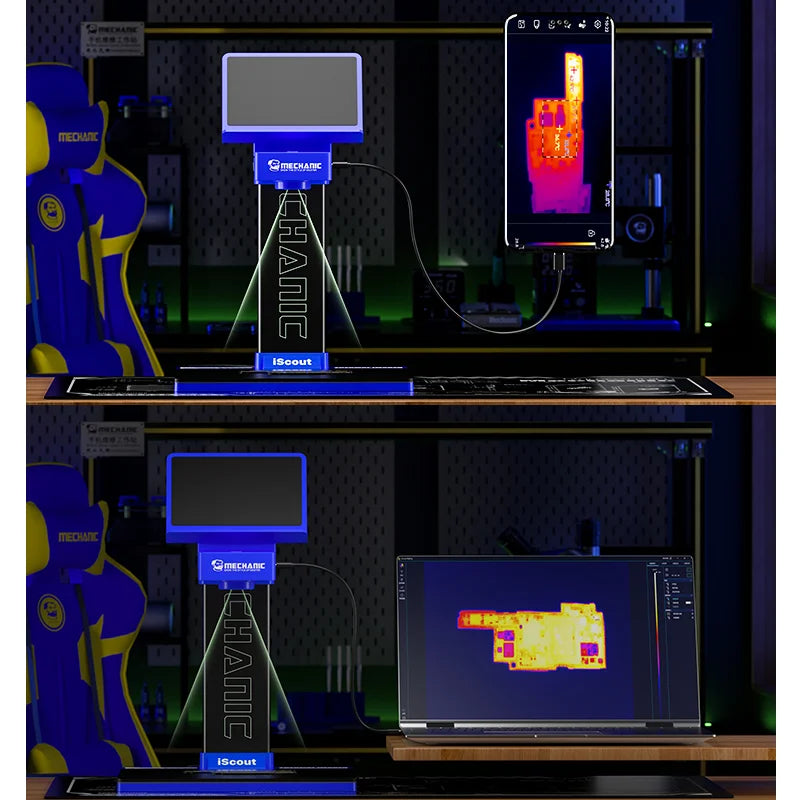

• Image & Video Recording: Supports JPG image storage and MP4 video recording for documenting inspections.

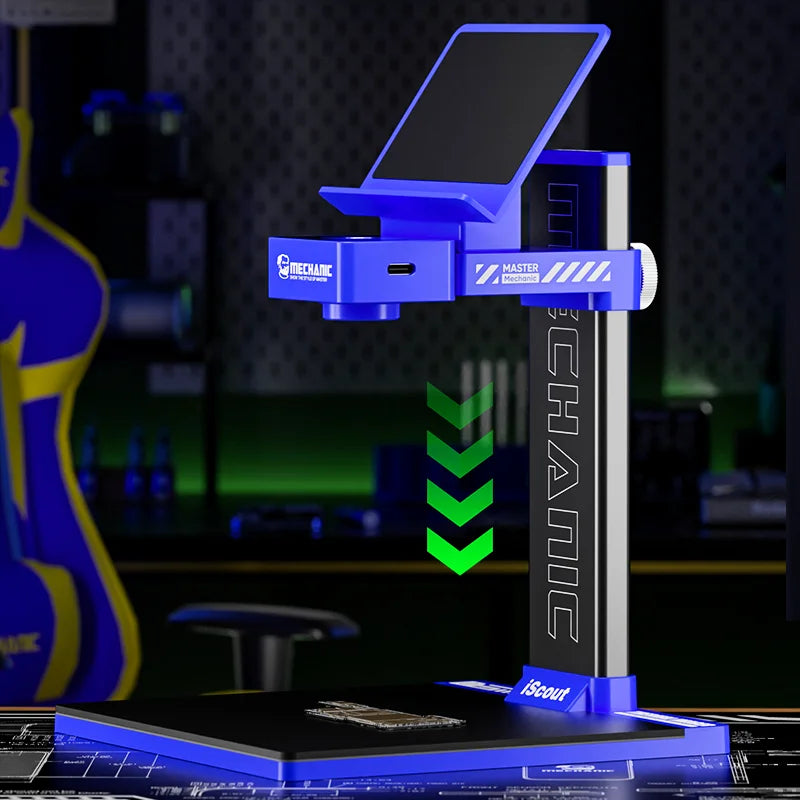

• Standing Design: Stable benchtop format makes it suitable for workshop, repair bench and electronics testing environments.
• Professional Diagnostic Tool: Ideal for electronics repair, PCB inspection, component testing and thermal troubleshooting.

Specifications

• Product Type: 3D Thermal Imaging Analyzer
• Thermal Resolution: 256 × 192 pixels
• Temperature Range: -15°C to 600°C
• Measurement Distance: 10–15cm
• Field of View: 56° × 42°
• Image Format: JPG
• Video Format: MP4

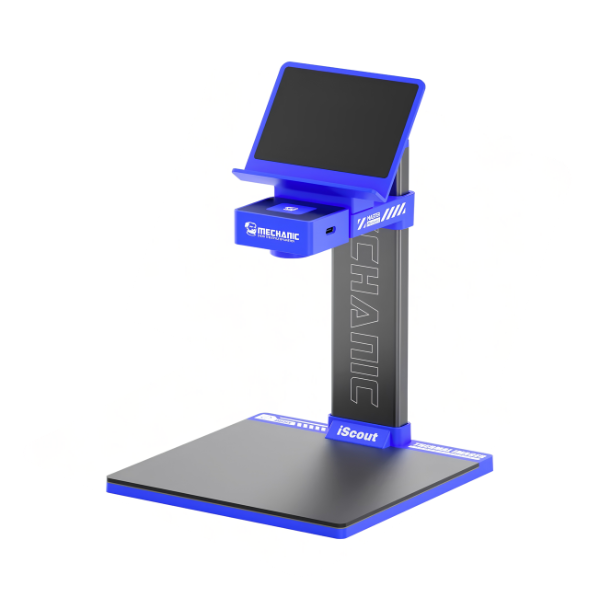

• Design: Standing Station
• Product Size: Approx. 147 × 147 × 217mm
• Net Weight: Approx. 433g
• Gross Weight: Approx. 825g
• Package Size: Approx. 201 × 201 × 90mm

Package Contents

• 1 × 3D Thermal Imaging Analyzer
• 1 × Type-C Data Cable
• 1 × Macro Lens
• 1 × User Manual

What Makes This a Smart Buy:

A practical diagnostic solution for quickly visualising heat patterns that may be difficult to identify with conventional inspection methods. Its high thermal resolution, broad temperature range and recording capability make it a versatile addition to an electronics repair or testing workspace.
