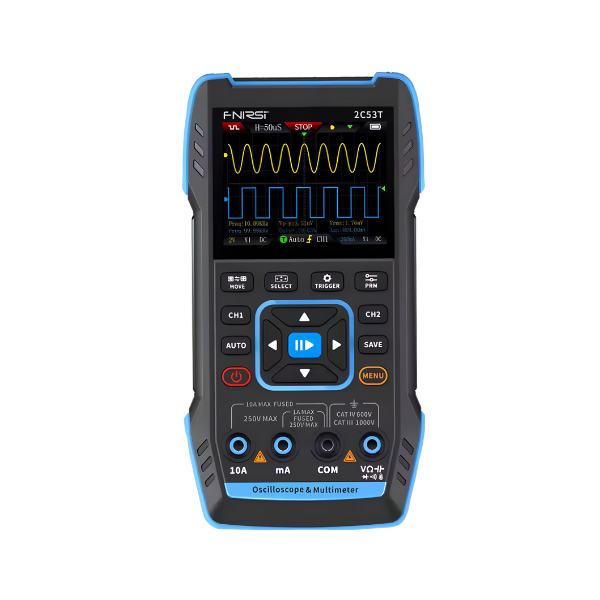

3in1 Digital Oscilloscope Multimeter Signal Generator 50MHz

This compact 3-in-1 digital test instrument combines an oscilloscope, multimeter, and signal generator into one portable device, making it an essential tool for electronics testing, troubleshooting, and development. Whether you're a professional technician, student, or DIY enthusiast, it delivers reliable performance with advanced measurement capabilities in the workshop or on the go.

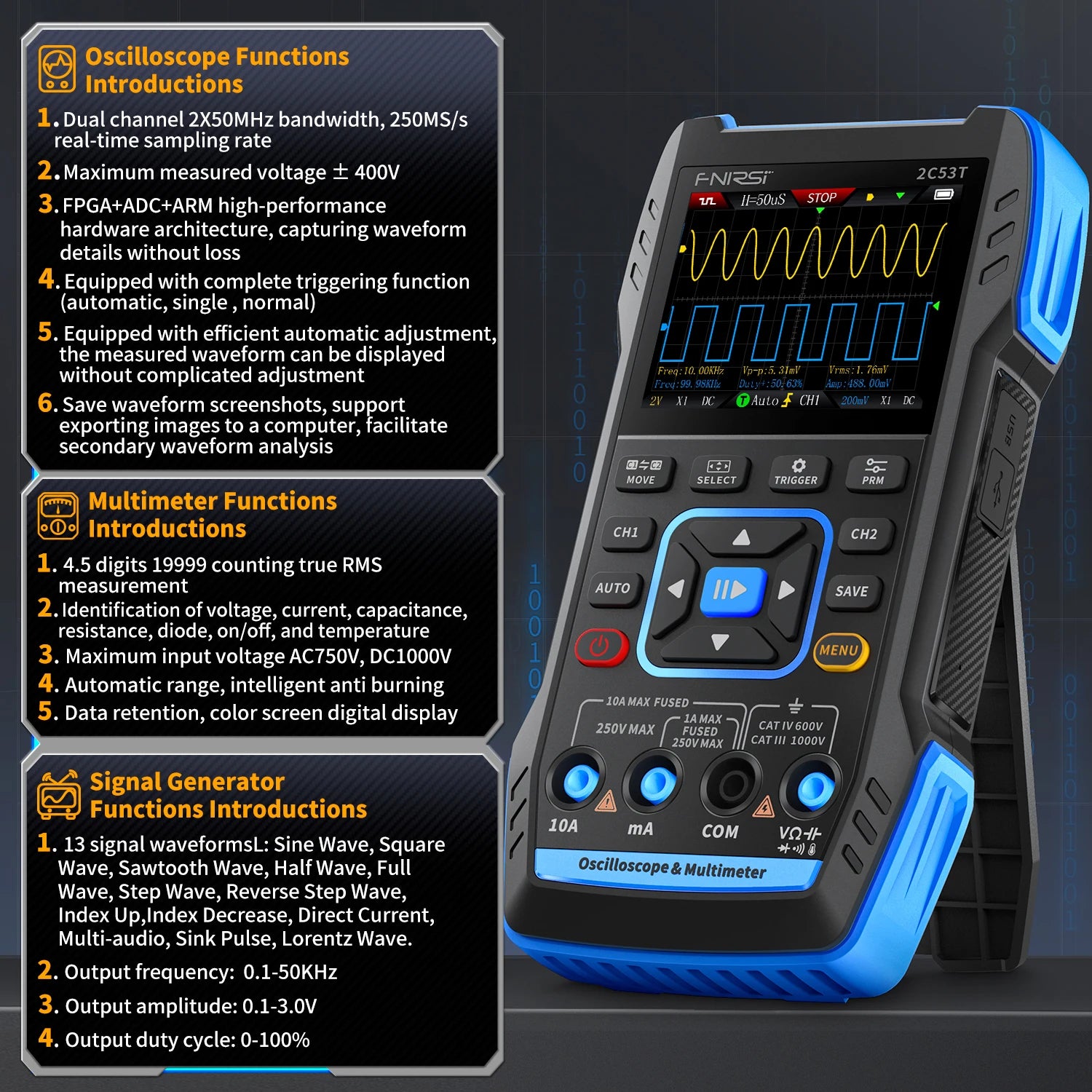

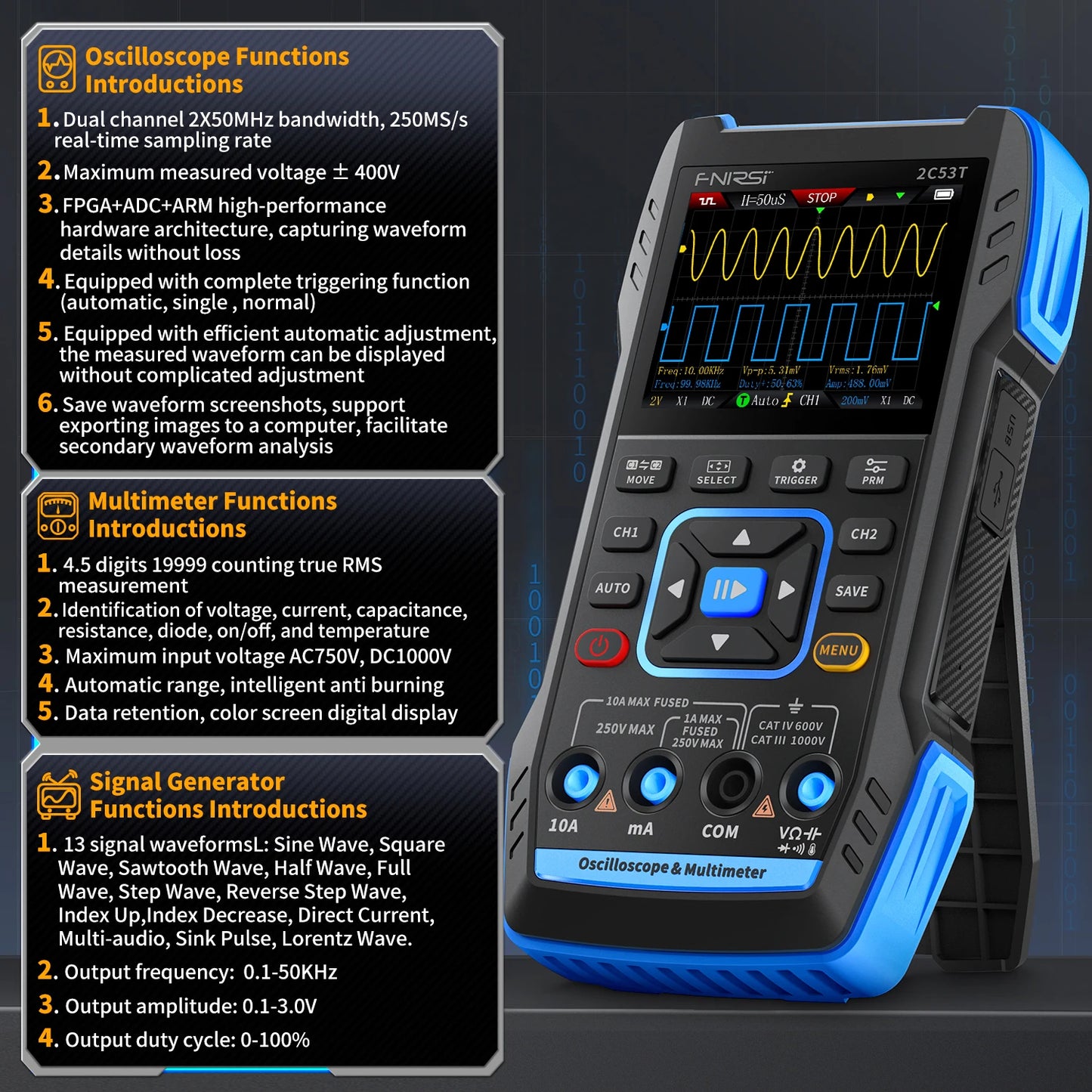

Key Features

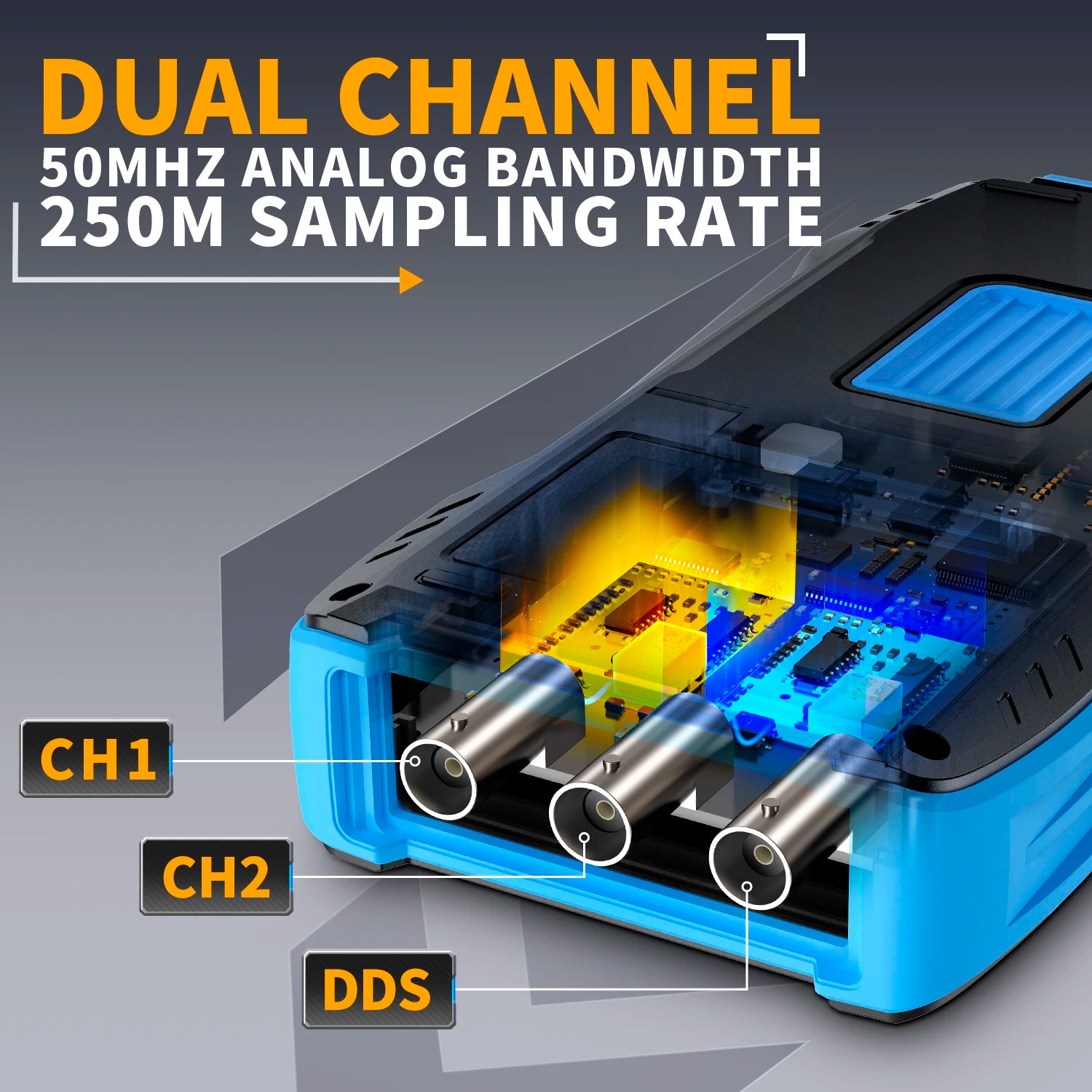

• Dual-channel 50MHz digital oscilloscope for accurate waveform analysis
• High-speed 250MS/s real-time sampling for detailed signal capture

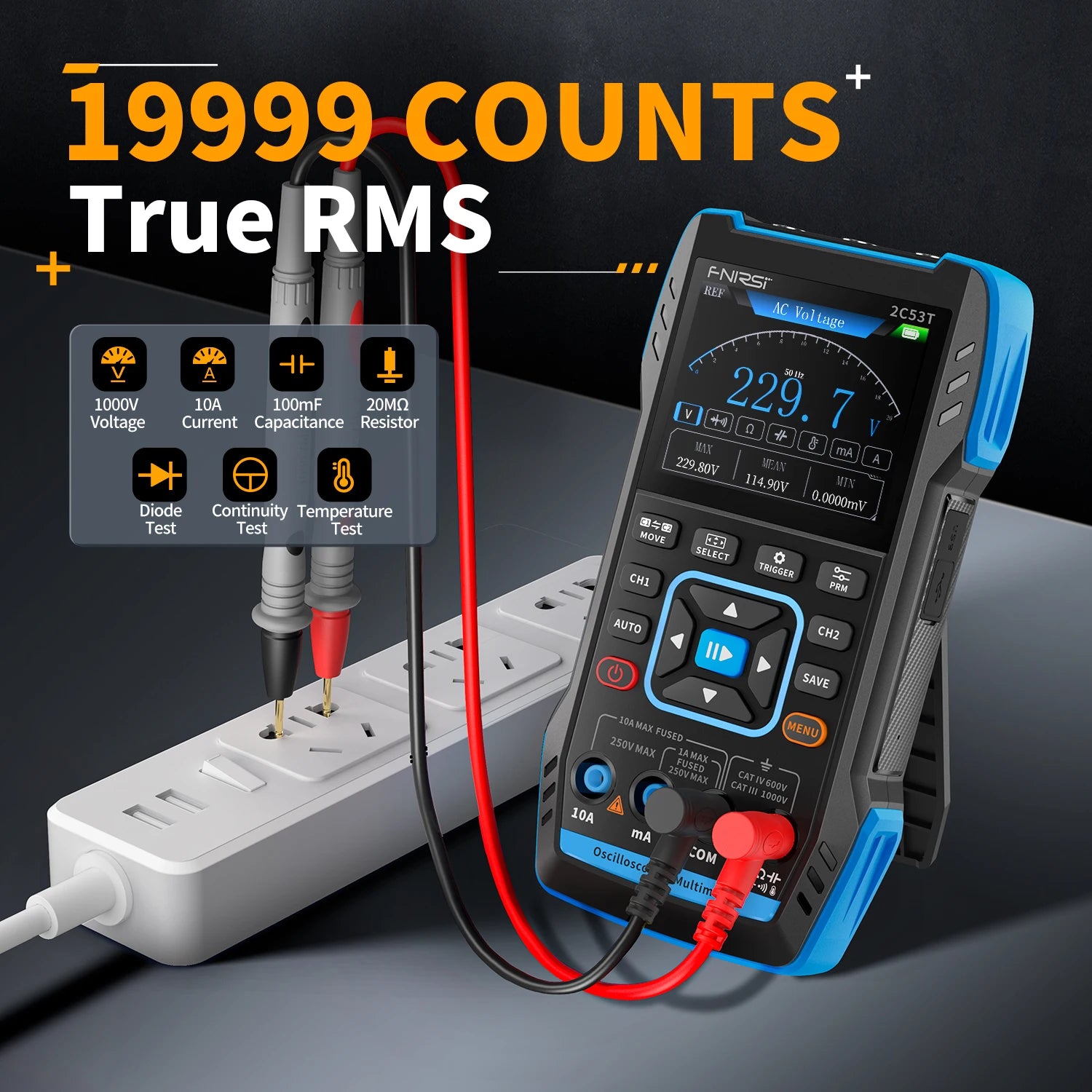

• Integrated digital multimeter with 20,000-count True RMS measurements
• Built-in signal generator with 13 waveform types and adjustable output
• Measures AC/DC voltage, AC/DC current, resistance, capacitance, temperature, continuity and diode
• 2.8-inch HD colour display with clear waveform and measurement viewing
• Supports waveform screenshots and export for easy documentation and analysis

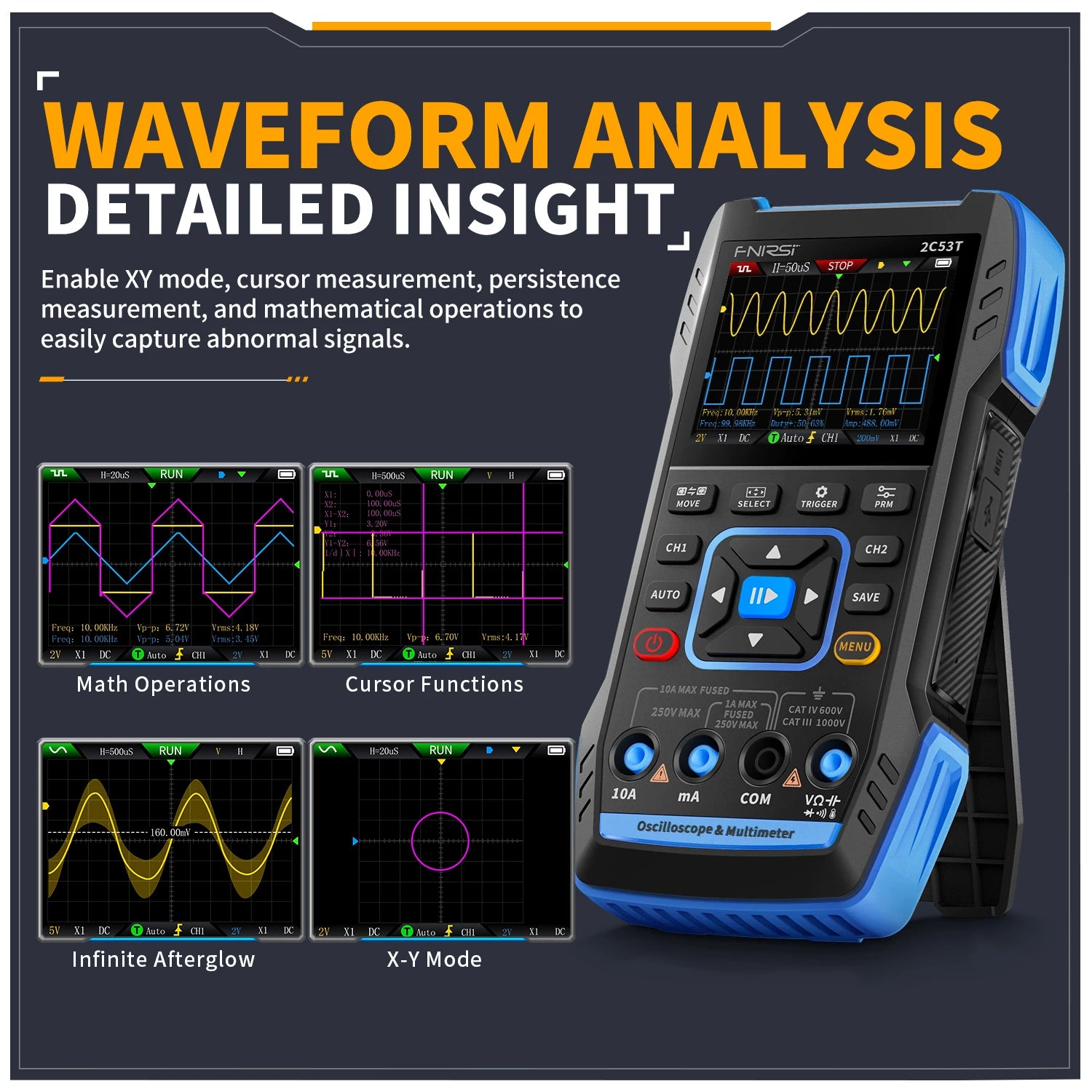

• Advanced functions including FFT analysis, X-Y mode, cursor measurement and persistence display

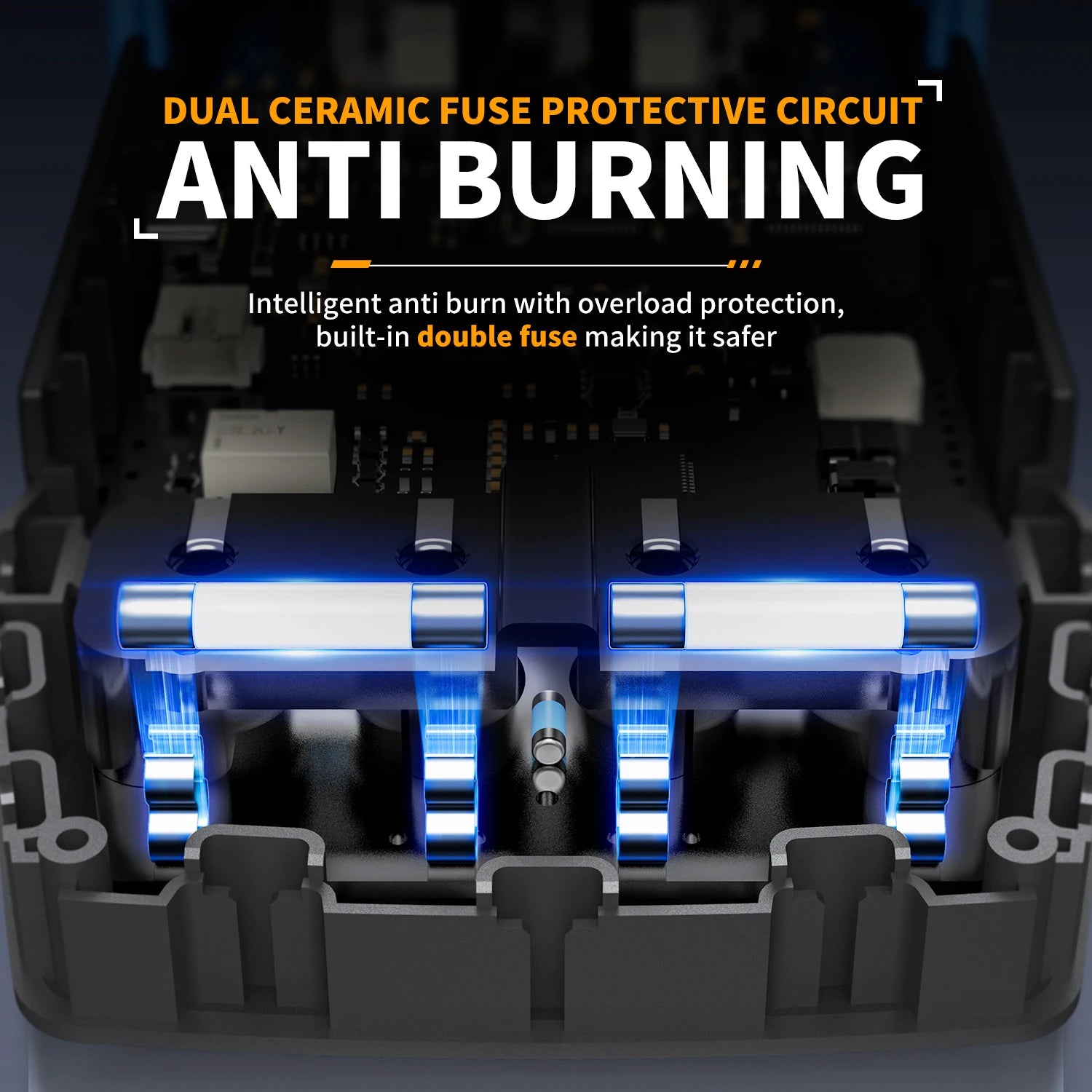

• Dual ceramic fuse protection with intelligent overload safety
• Built-in 3000mAh rechargeable battery provides up to 6 hours of portable operation
• USB Type-C charging for convenient everyday use
• Compact handheld design ideal for field service, laboratories, education and electronics repair

Specifications

• Product Type: 3-in-1 Digital Oscilloscope, Multimeter & Signal Generator
• Oscilloscope Bandwidth: 50MHz
• Channels: Dual Channel
• Real-Time Sampling Rate: 250MS/s
• Display: 2.8-inch HD Colour Screen (320 × 240)
• Time Base: 10ns–20s
• Vertical Sensitivity: 10mV/div–10V/div (X1)
• Maximum Input Voltage: ±400V
• Trigger Modes: Auto, Normal, Single
• Coupling: AC/DC
• Math Functions: FFT and 8 Mathematical Operations
• Waveform Storage: Screenshot Save & Export Supported
• Signal Generator Frequency: 1Hz–50kHz
• Signal Output Amplitude: 0–3V
• Waveform Types: 13
• Multimeter Resolution: 20,000 Counts True RMS
• DC Voltage: Up to 1000V
• AC Voltage: Up to 750V
• DC/AC Current: Up to 9.999A
• Resistance: Up to 19.999MΩ
• Capacitance: Up to 99.99mF
• Temperature Measurement: -55°C to 1300°C
• Battery Capacity: 3000mAh Rechargeable Lithium Battery
• Charging Interface: USB Type-C (5V/1A)

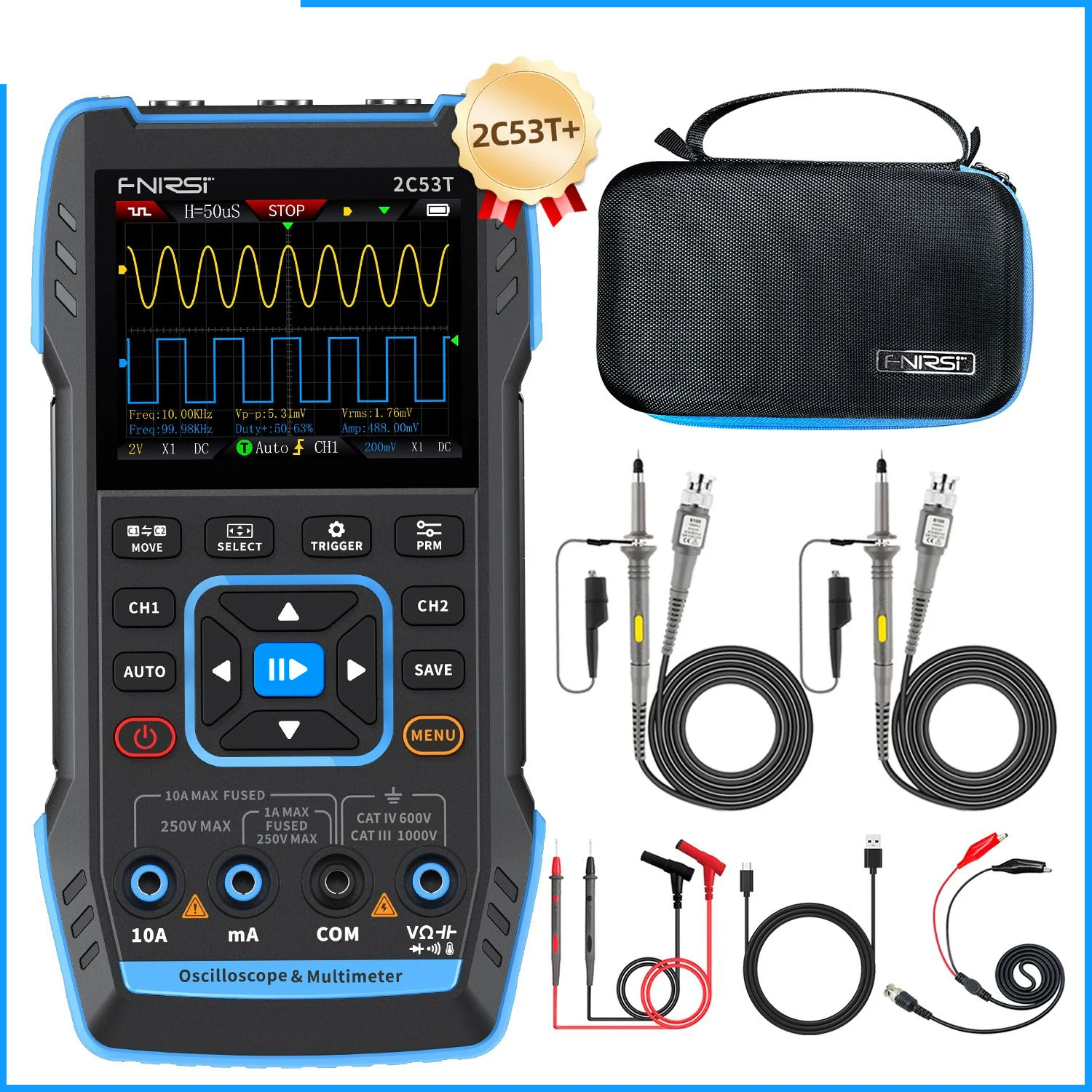

Package Contents

• 1 × 3-in-1 Digital Oscilloscope (2C53T with P6100x2)
• 2 × 10X P6100 Oscilloscope Probes
• 1 × Alligator Clip Probe
• 1 × Multimeter Test Probe Set
• 1 × USB Type-C Charging Cable
• 1 × Storage Bag
• 1 × User Manual

What Makes This a Smart Buy:

Instead of carrying multiple testing devices, this versatile 3-in-1 unit gives you professional-grade measurement, signal generation, and waveform analysis in one compact tool. Its portable design, advanced features, and rechargeable battery make it an excellent choice for electronics repair, maintenance, education, and field diagnostics.
