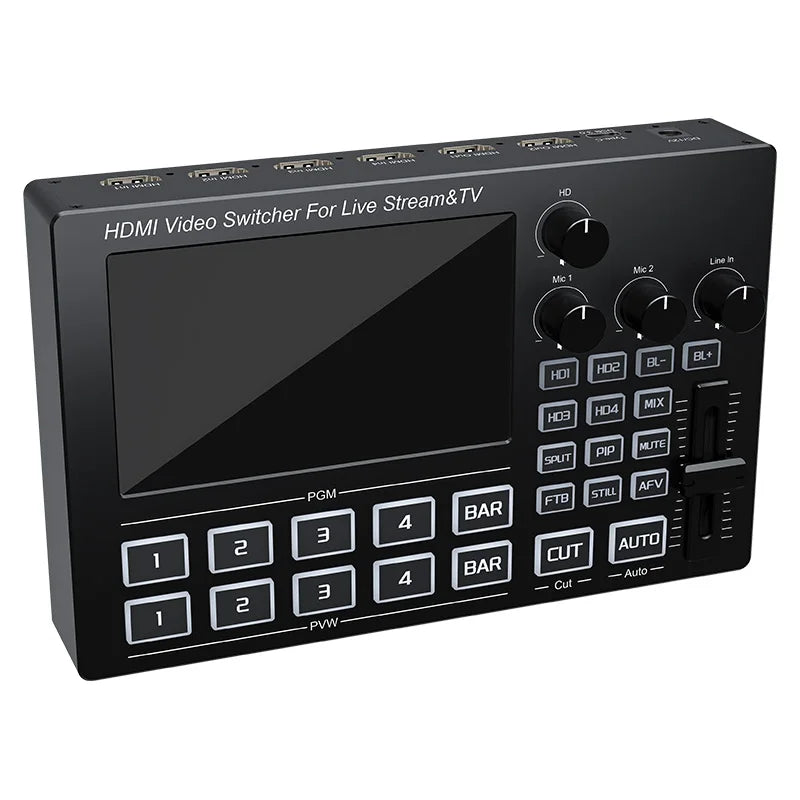

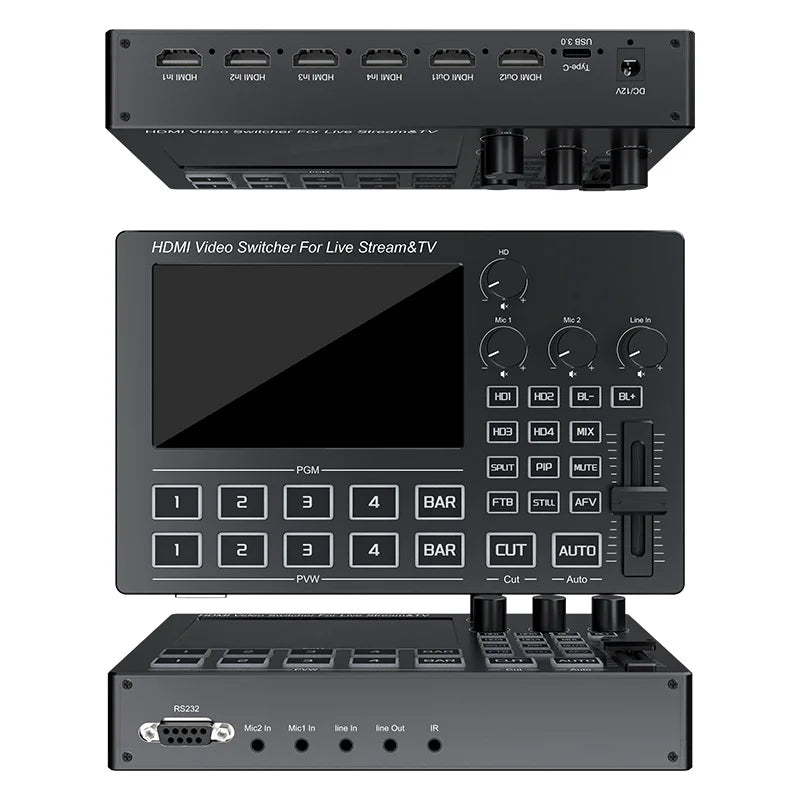

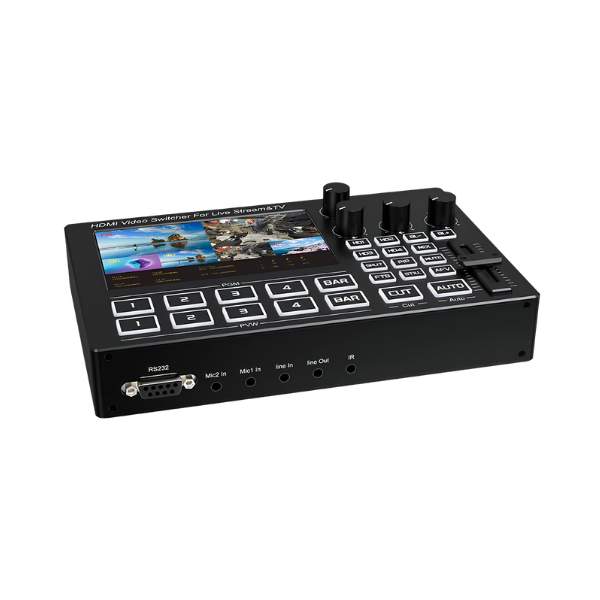

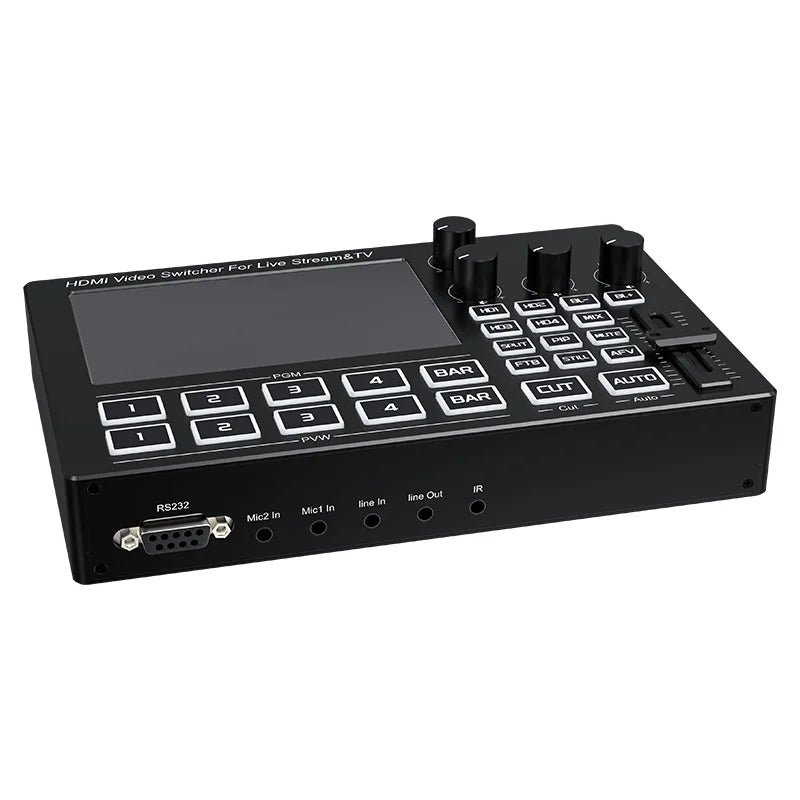

4-Channel HDMI Video Switcher Live Streaming Mixer

Produce professional-quality live streams and video productions with this all-in-one 4-channel HDMI video switcher. Featuring a built-in 5-inch IPS preview screen, real-time monitoring, audio mixing, and USB video capture, it's the ideal solution for livestreams, presentations, interviews, events, and content creation.

Key Features

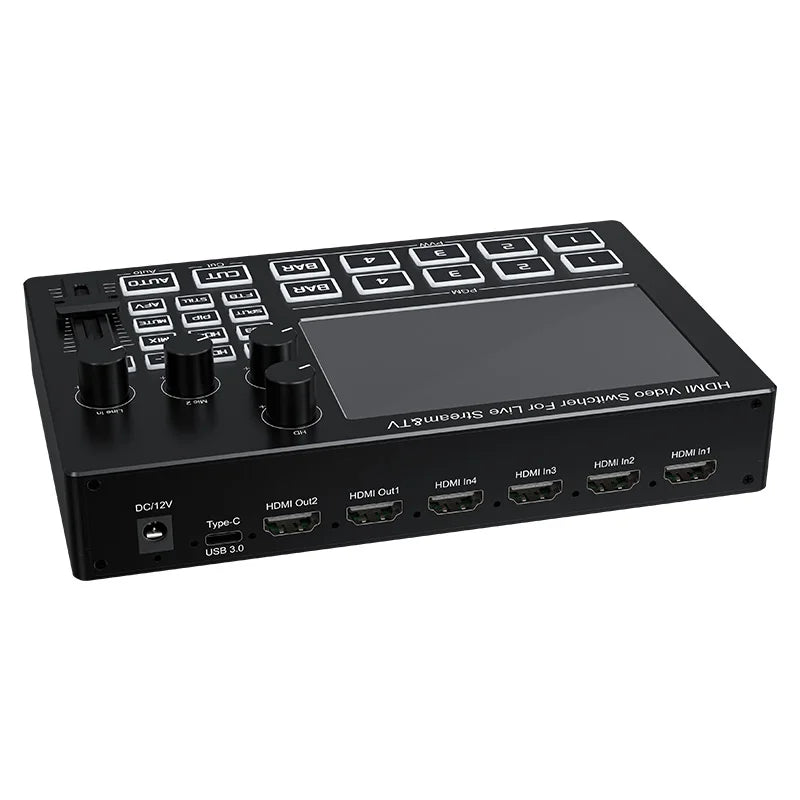

• 4 HDMI Inputs & 2 HDMI Outputs – Connect up to four video sources and switch seamlessly between cameras, laptops, gaming consoles, or media players.

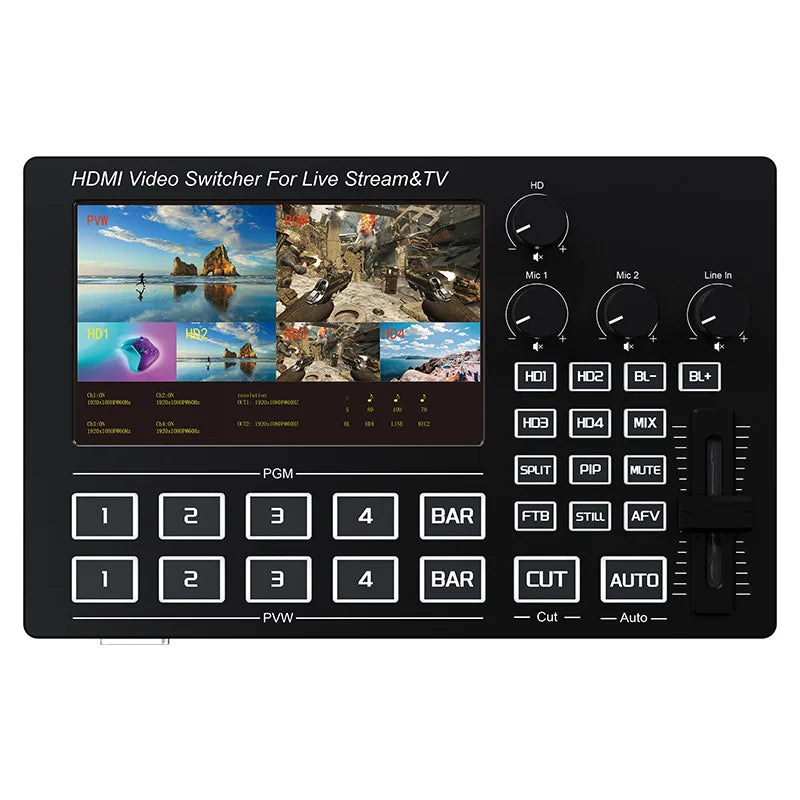

• Built-In 5-Inch IPS Preview Display – Monitor live video sources and program output in real time without requiring an external display.
• Full HD 1080P 60Hz Support – Delivers smooth, high-quality video input and output for professional broadcasts and recordings.
• Integrated USB-C Video Capture – Stream directly to your computer using the built-in USB 3.0 capture interface without additional capture hardware.
• Audio Mixing Function – Mix embedded HDMI audio with external microphone or line-in audio for professional sound production.
• Picture-in-Picture (PIP) Mode – Display multiple video sources simultaneously for engaging presentations and live broadcasts.
• Real-Time Video Switching – Instantly change between connected video sources for smooth, professional transitions.
• On-Screen Display (OSD) – Displays input source, resolution, audio status, and system information for easy operation.
• Adjustable IPS Screen Brightness – Easily customise screen brightness for comfortable viewing in different environments.
• Power-Off Memory – Automatically saves your settings for faster setup the next time you power on.
• Portable Metal Housing – Durable lightweight metal construction is suitable for studio use, mobile productions, conferences, classrooms, and outdoor events.
• Wide Range of Applications – Perfect for live streaming, church services, podcasts, webinars, gaming, education, interviews, conferences, and video production.

Specifications

• Product Type: HDMI Video Switcher
• Video Inputs: 4 × HDMI
• Video Outputs: 2 × HDMI
• Preview Display: 5-Inch IPS Screen
• Screen Resolution: 800 × 480
• HDMI Input Resolution: Up to 1920 × 1080 @ 60Hz
• HDMI Output Resolution: Up to 1920 × 1080 @ 60Hz
• USB Capture Interface: USB Type-C 3.0
• Capture Formats: YUY2, MJPEG
• Audio Input: HDMI Embedded Audio, Microphone, Line-In
• Audio Output: HDMI Embedded Audio, Analog Audio
• Audio Format: PCM
• Picture Modes: Picture-in-Picture (PIP), Program/Preview Split View
• HDMI Standard: HDMI 1.4
• HDCP Support: HDCP 1.4
• Maximum Transmission Bandwidth: 148.5MHz
• Maximum Transmission Rate: 1.65 × 3Gbps
• Recommended HDMI Cable Length: Up to 15m (1080P 60Hz)
• Operating Temperature: 0°C to 45°C
• Dimensions: 200 × 130 × 52mm

Package Contents

• 1 × 4-Channel HDMI Video Switcher
• 1 × USB Type-C to USB-A 3.0 Cable
• 1 × Power Adapter (AU Plug)
• 1 × Remote Control
• 1 × User Manual

What Makes This a Smart Buy:

This compact video switcher combines multi-camera switching, live preview, audio mixing, and USB capture into one powerful unit. It's an excellent choice for creators, educators, businesses, and event organisers looking to produce polished live streams and professional video content without a complicated setup.
