4 Quadrant Power Meter for Solar and Electrical Systems

Take full control of your energy usage with this 4 Quadrant Power Meter, designed for both solar setups and conventional electrical systems. Monitor, analyse, and optimise your power consumption with ease, all from a single intelligent device. Perfect for homeowners, installers, or anyone serious about energy efficiency.

Key Features

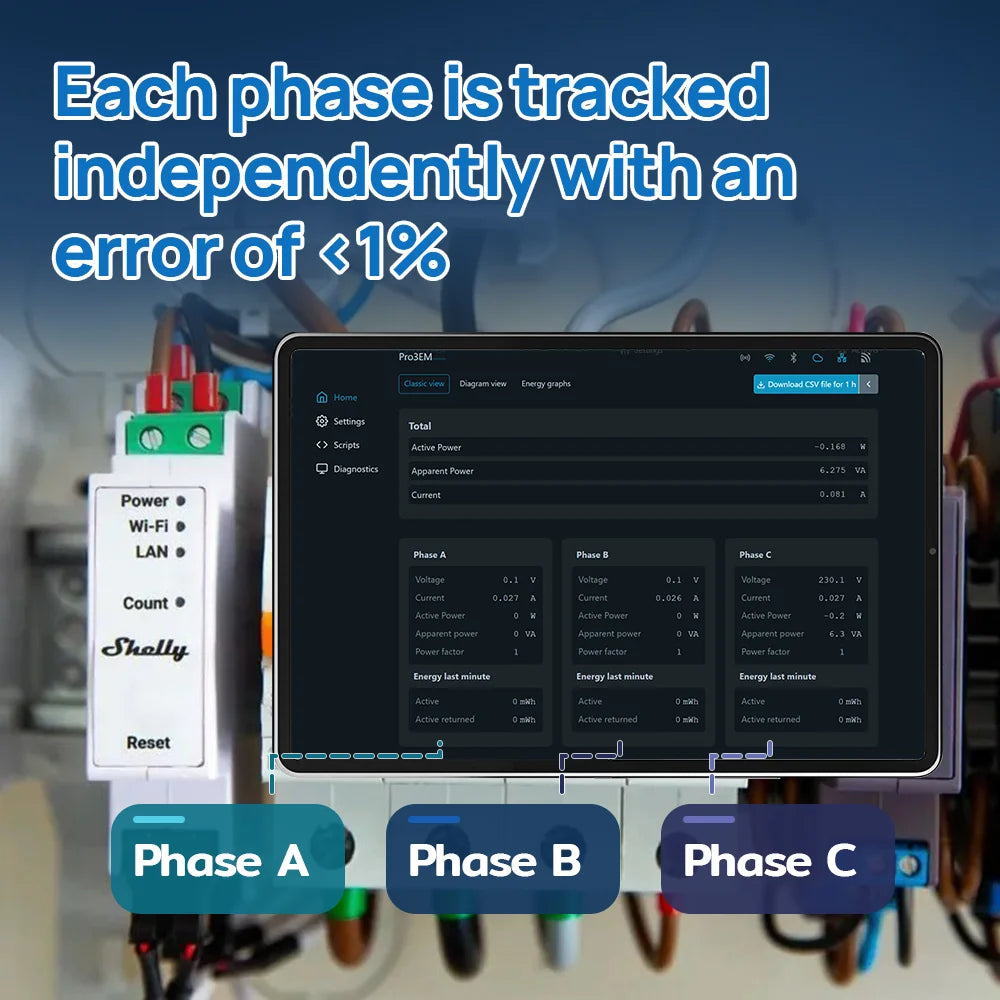

• Real-time monitoring of active and apparent power and energy across three channels.

• Compatible with solar and traditional electrical systems for versatile use.

• Built-in internal temperature sensor and humidity tolerance of 30–70% RH.

• Bluetooth and Wi-Fi connectivity for remote monitoring and control.

• Supports data export in CSV and JSON formats for easy record-keeping.

• MQTT support and scripting capability for advanced automation.

• Channel-to-channel calibration ensures accurate readings with a minimum load of 500 W per channel.

• Low power consumption of under 3 W keeps your system efficient.

Specifications

• AC Ammeter: 0–63 A, accuracy ±1% (2–63 A), ±2% (1–2 A), ±5% (0–1 A)

• AC Voltmeter: 100–260 V, accuracy ±1%

• Power Supply: 100–260 V~, 50/60 Hz

• Measurement Storage: At least 60 days at 1-minute resolution

• RF Band: 2400–2495 MHz, range up to 30 m indoors / 50 m outdoors

• Max. RF Power: <20 dBm

• Ambient Temperature: -20°C to 40°C / -5°F to 105°F

• Max Altitude: 2000 m / 6562 ft

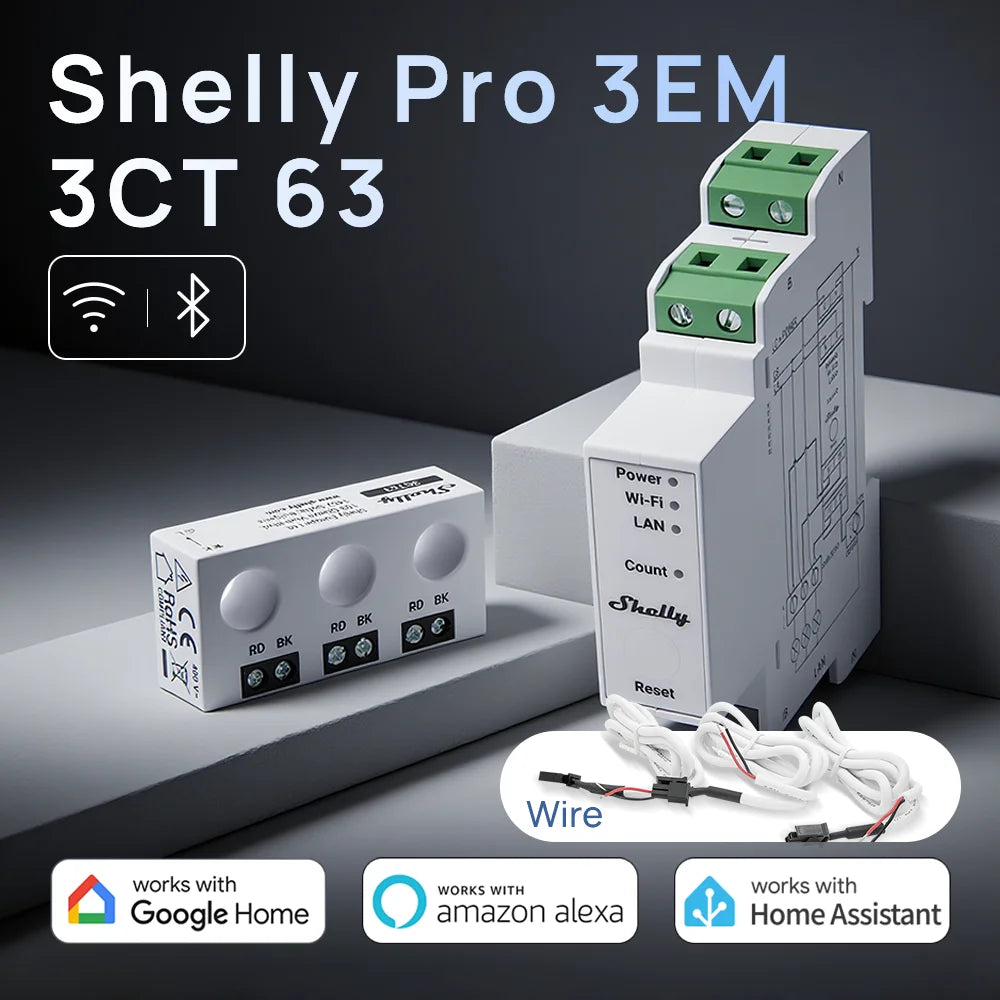

• Supported Current Transformers: 3CT63

• External Protection: Tripping characteristic B or C, 16A max rated current

Package Contents

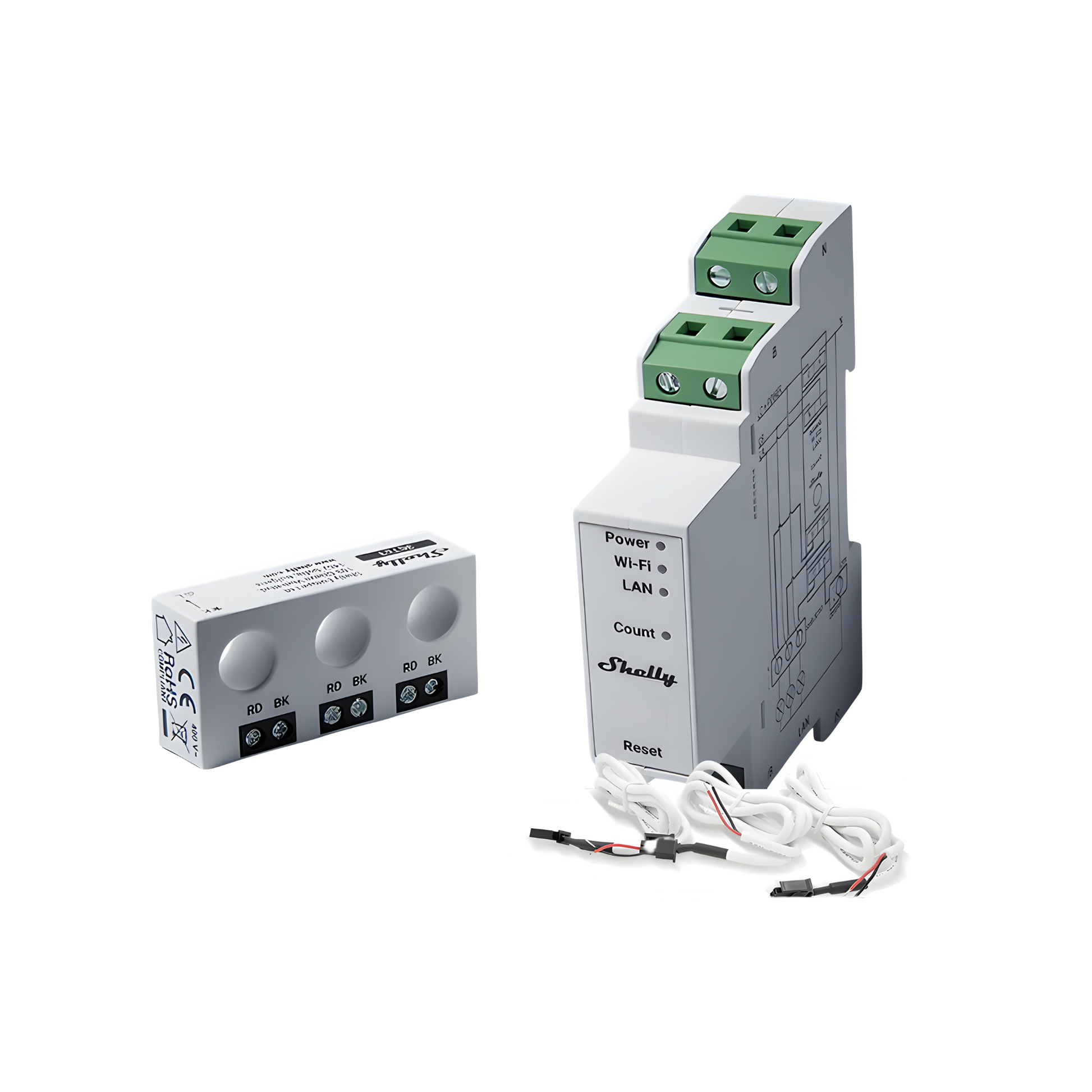

• 1 x 4 Quadrant Power Meter

• 3 x Compatible Current Transformers (CTs)

• User manual and quick-start guide

• Mounting hardware

What Makes This a Smart Buy:
This power meter simplifies energy management, giving you precise, real-time insights into your electricity usage. Its multi-channel monitoring, data logging, and remote access make it a versatile tool that helps save energy and reduce costs while keeping your system running efficiently.
