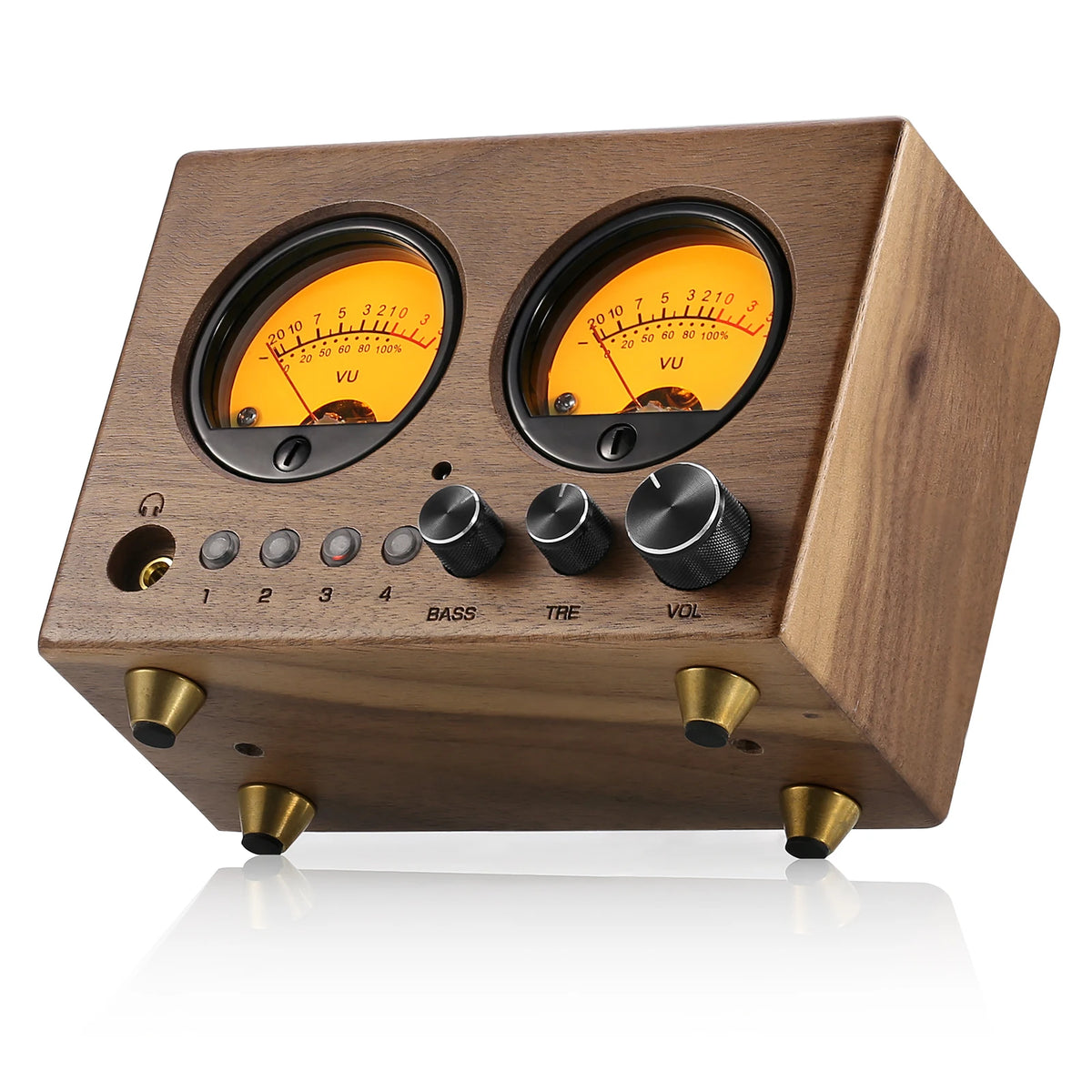

4-Way Audio Switcher 4In1-Out VU Meter Remote

Simplify your desktop audio setup with this 4-in-1-out stereo audio switcher, designed to connect multiple audio sources to a single output. With a built-in VU meter display, remote control and adjustable tone settings, it combines practical audio switching with a stylish visual centrepiece.

Key Features

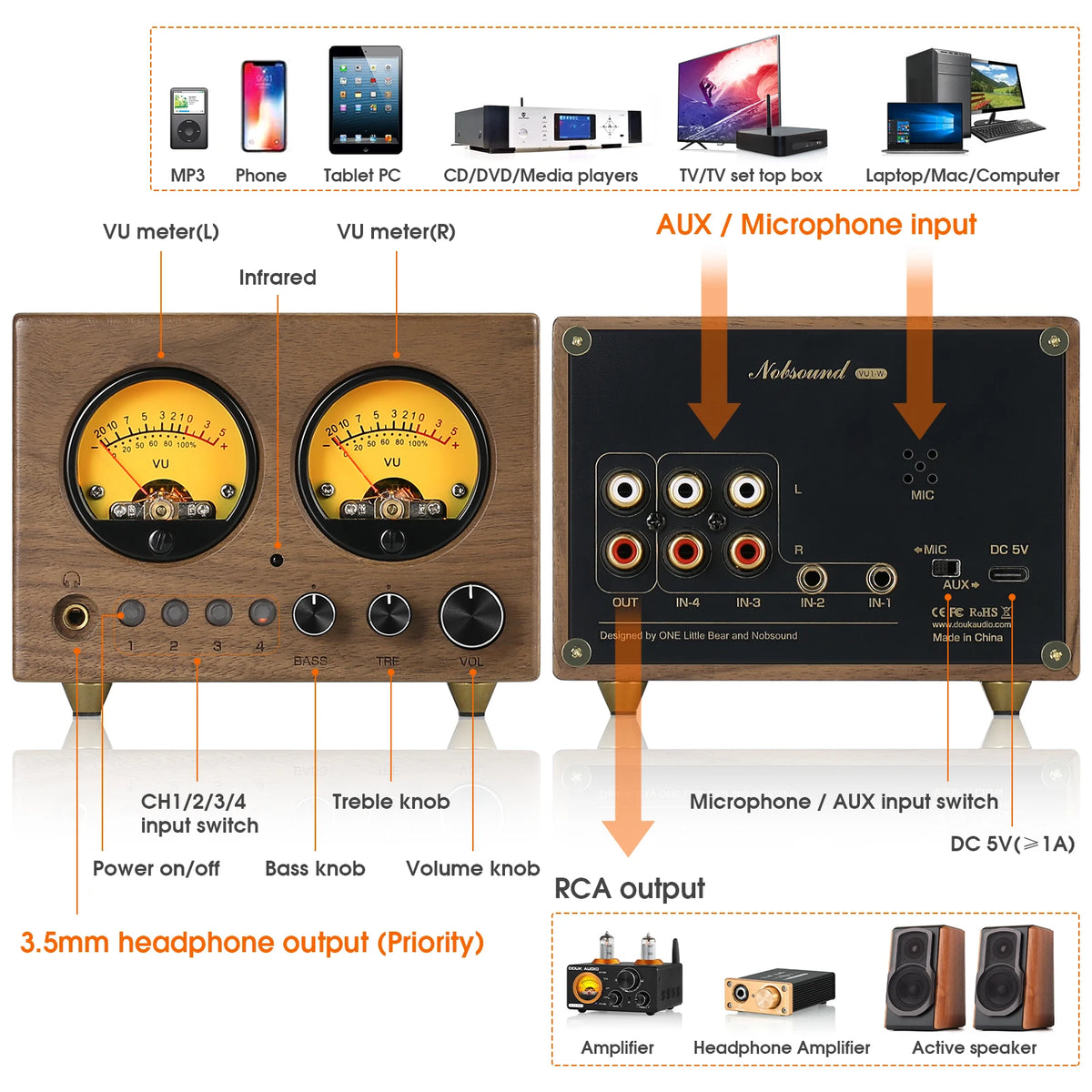

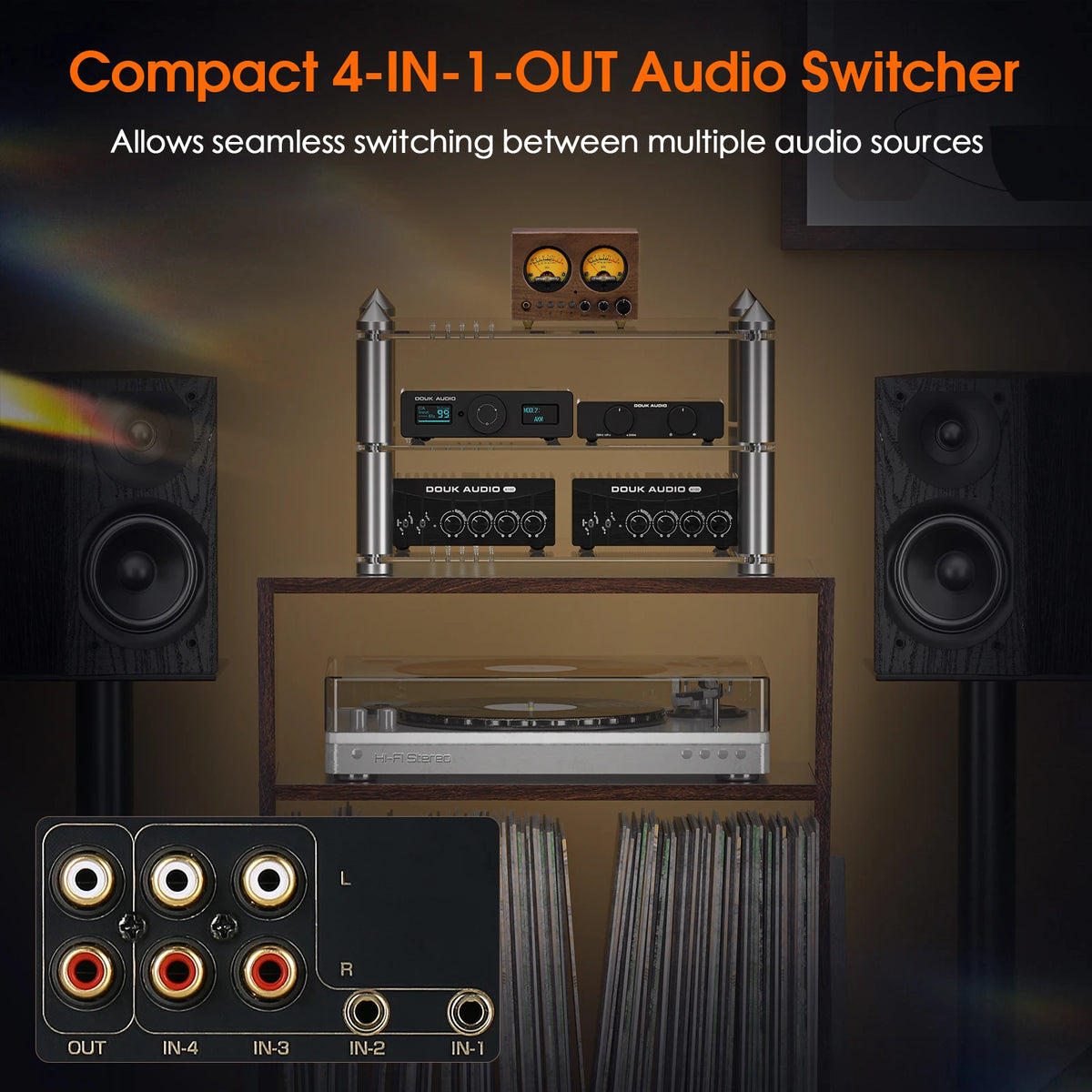

• 4-In-1-Out Audio Switching: Connect up to four stereo audio sources and switch between them conveniently
• Stereo RCA & AUX Inputs: Supports multiple common audio connection options for flexible setup
• VU Meter Display: Dual 45mm VU meters provide a dynamic visual representation of audio activity

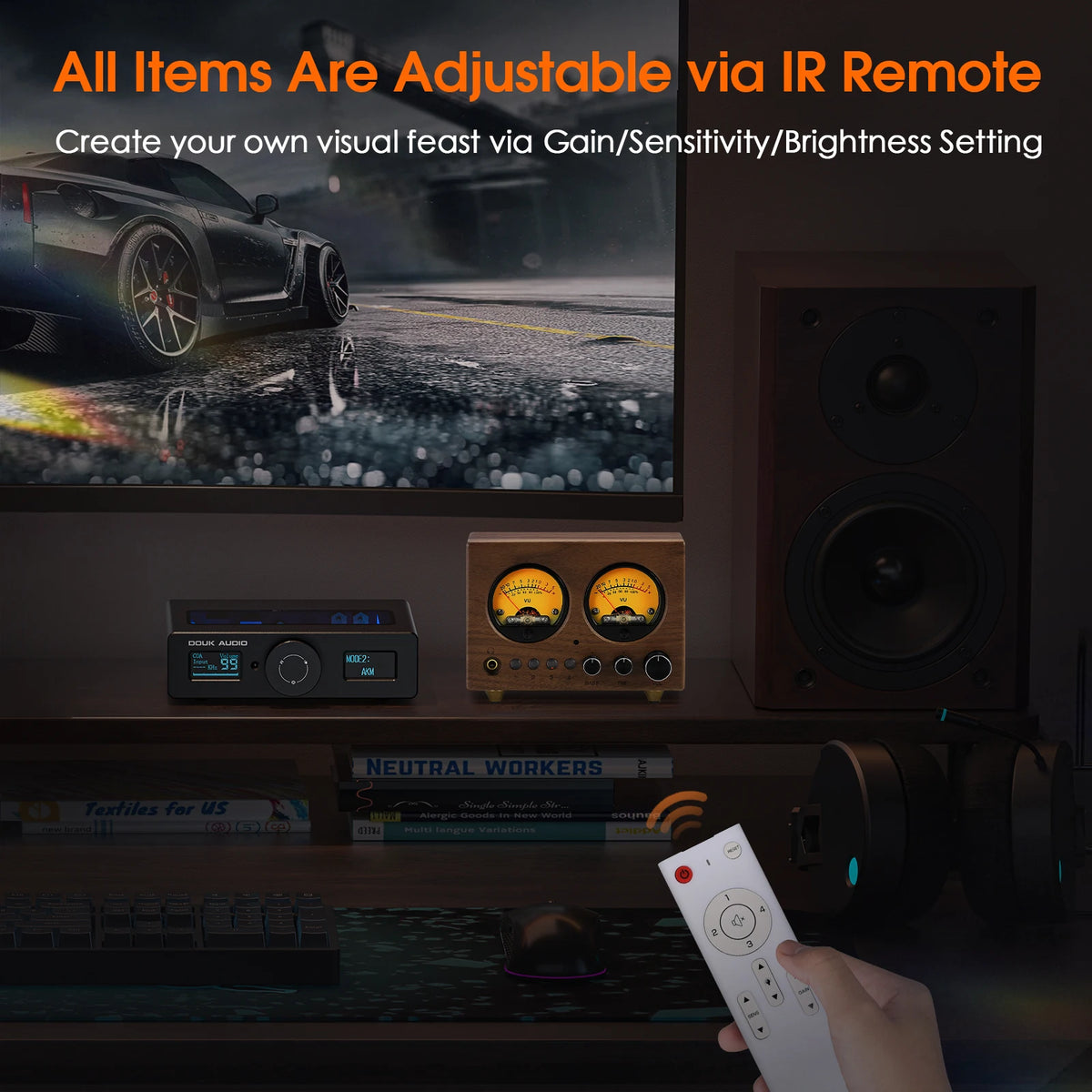

• Remote Control: Adjust settings and switch functions from a convenient distance

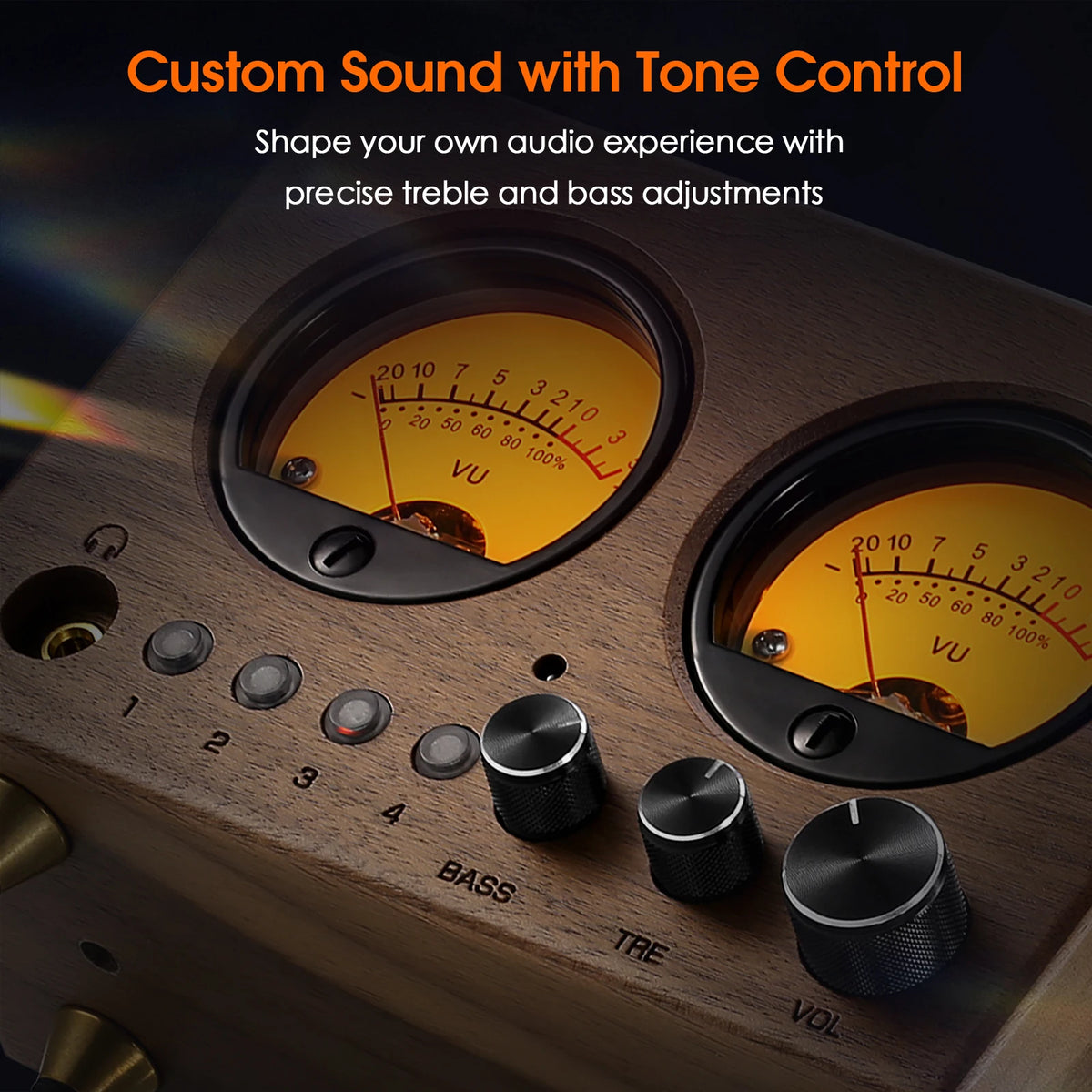

• Bass & Treble Adjustment: Fine-tune the sound to suit your personal listening preferences
• Adjustable Gain: 10 gain levels provide greater control over audio input levels
• Adjustable Sensitivity: 10 sensitivity levels let you customise the VU meter response
• 5-Level Display Brightness: Adjust the VU meter backlight to suit your desktop environment

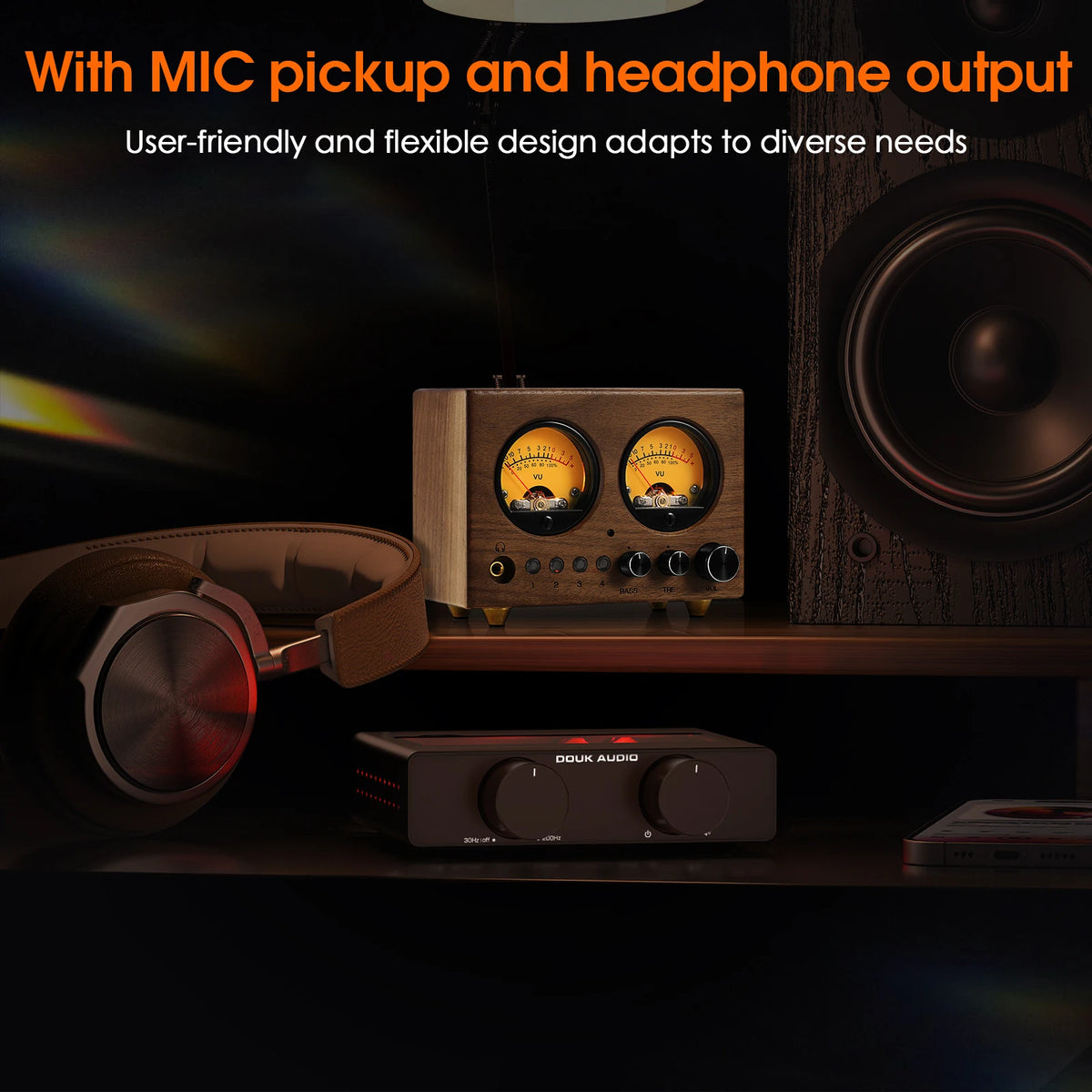

• Headphone Output: 3.5mm headphone connection enables convenient personal listening
• Microphone Pickup: Built-in microphone pickup allows the VU meters to respond to surrounding audio

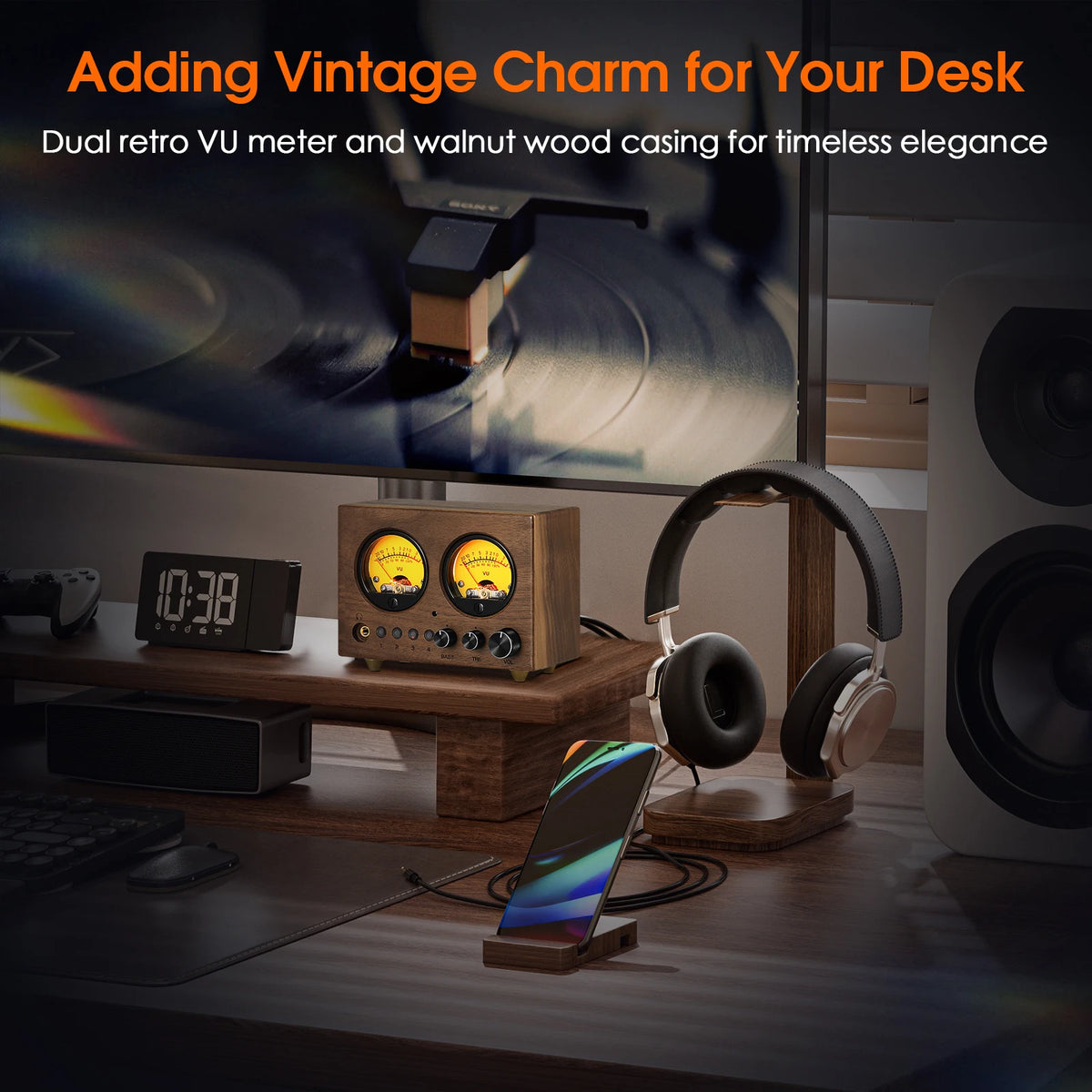

• Solid Walnut Wood Housing: Natural wood construction adds a distinctive vintage-inspired look to your audio setup
• Compact Desktop Design: Small footprint is ideal for home offices, desktop audio systems and entertainment spaces
• Settings Memory: Selected settings are retained after shutdown for convenient everyday use
• USB-C Power: Powered via a standard 5V USB-C connection

Specifications

• Product Type: Stereo Audio Switcher with VU Meter
• Working Mode: 4-IN-1-OUT
• Channels: 2.0 Stereo
• Audio Inputs: Stereo RCA, AUX, Microphone Pickup
• Audio Outputs: Stereo RCA, 3.5mm Headphone Jack
• Frequency Response: 20Hz–20kHz
• THD: 0.01%
• Signal-to-Noise Ratio: >98dB
• Maximum Input Level: 0.775Vrms
• Maximum Output Level: 2.5Vrms
• Headphone Impedance: 16–200Ω
• Headphone Output: 50mW @ 32Ω
• Bass/Treble Adjustment: ±10dB
• Gain Levels: 10
• Sensitivity Levels: 10
• VU Meter Diameter: 45mm
• Backlight Brightness: 5 levels
• Remote Control: Supported
• Microphone Pickup: Supported
• Settings Memory: Supported
• Power: DC 5V ≥1A
• Power Connection: USB-C
• Material: Metal and solid walnut wood
• Dimensions: 121 × 55 × 83mm
• Net Weight: Approx. 321g

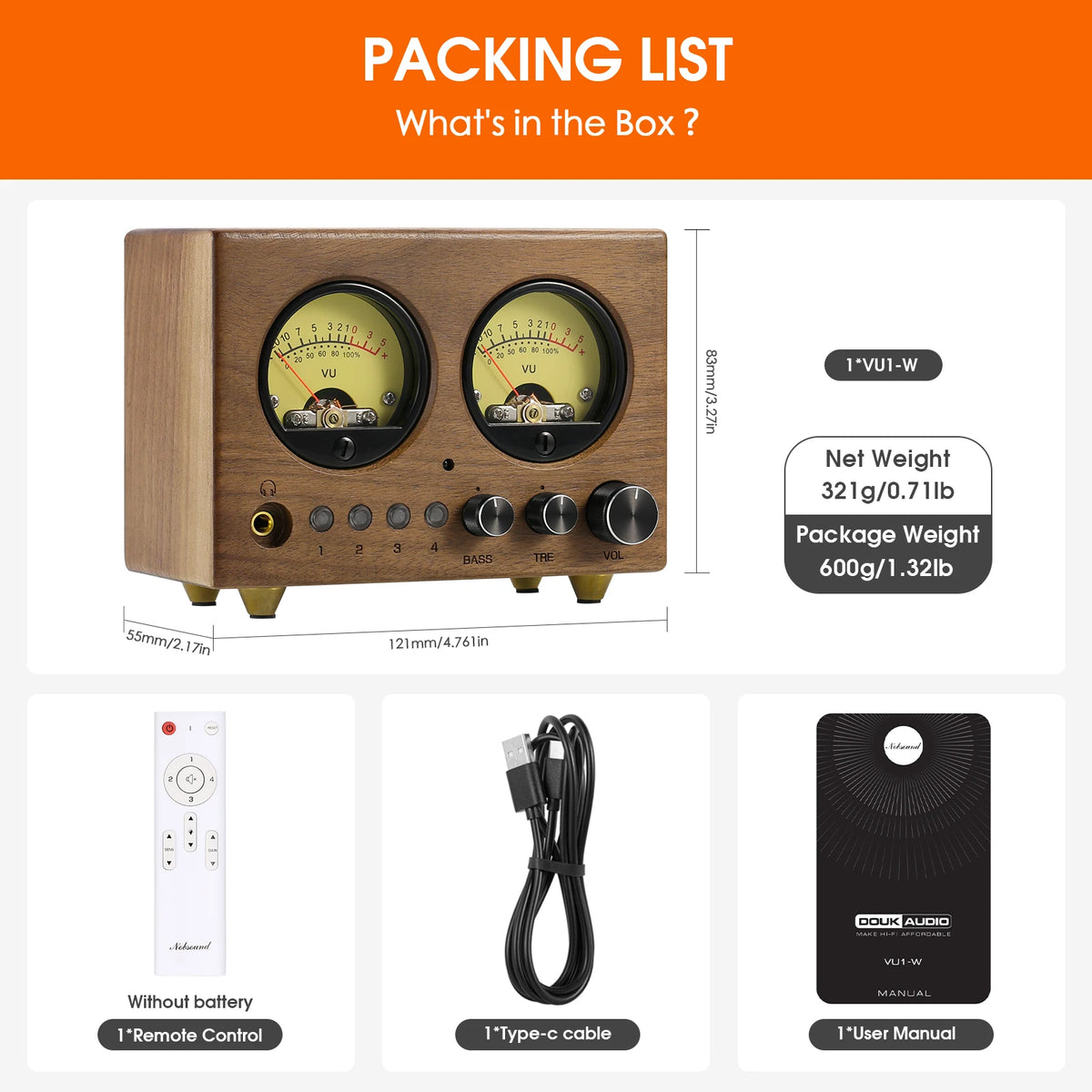

Package Contents

• 1 × 4-Way Audio Switcher with VU Meter
• 1 × Remote Control
• 1 × USB-C Cable
• 1 × User Manual

Important Notes

• The remote control requires 2 × AAA batteries, which are not included.
• The unit requires an independent DC 5V ≥1A USB power supply.
• The 3.5mm headphone output takes priority over the RCA output, so disconnect headphones when using RCA output.
• This unit supports 4-IN-1-OUT operation and does not support 1-IN-4-OUT signal distribution.
• Natural walnut grain patterns may vary between individual units.

What Makes This a Smart Buy:

This compact audio switcher makes it easy to manage multiple stereo sources while adding useful tone controls, headphone listening and a responsive VU meter display. It’s a versatile desktop solution for home audio, studio setups and entertainment systems where both function and presentation matter.
