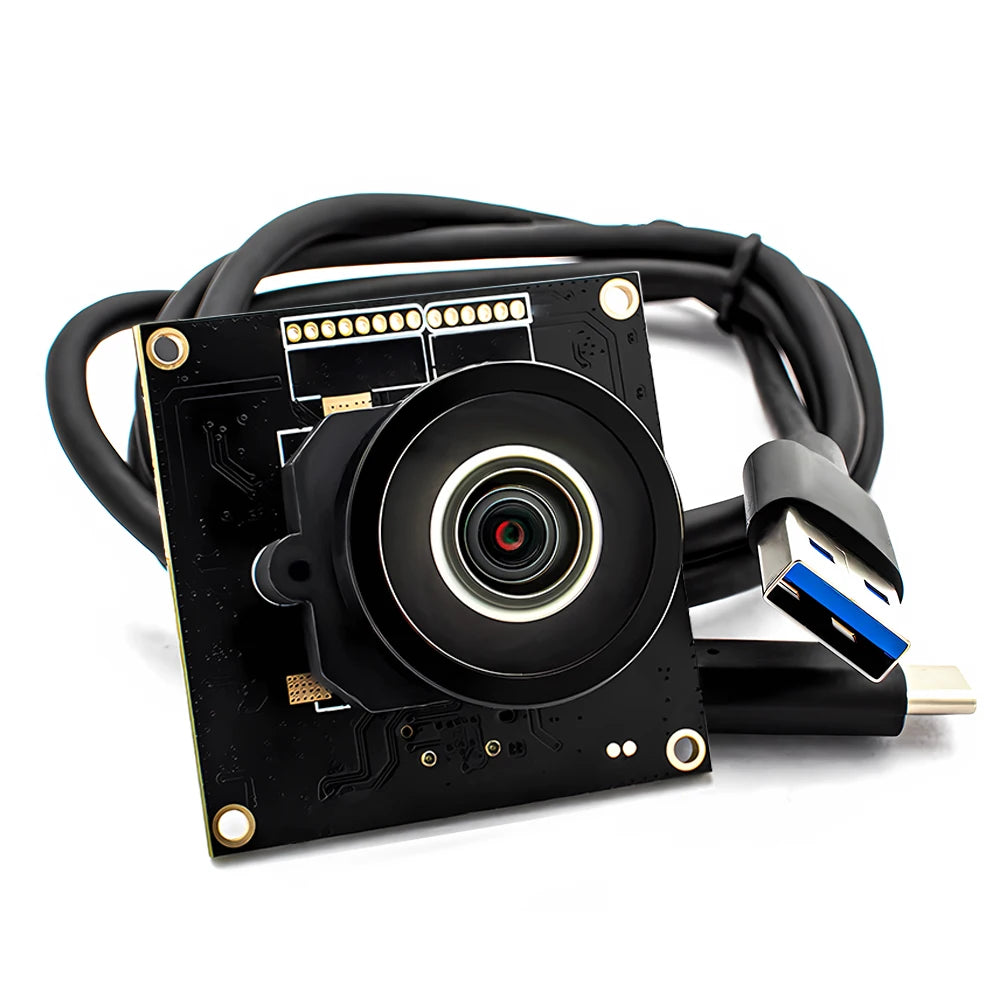

4K 60FPS USB Camera Module IMX678 112 Wide Lens

Get an ultra-wide perspective with this high-performance 4K USB camera module. Built for industrial and development applications, it delivers smooth 60FPS video and a wide 112° field of view, making it ideal for surveillance, robotics, smart devices and machine vision projects.

Key Features

• 4K Ultra HD Recording: Capture clear, high-detail images at 3840 × 2160 resolution

• Smooth 60FPS Performance: Ideal for motion tracking, automation and high-speed imaging

• Wide 112° Viewing Angle: Capture more of the scene in a single frame

• Plug and Play UVC Support: Connect instantly without installing drivers

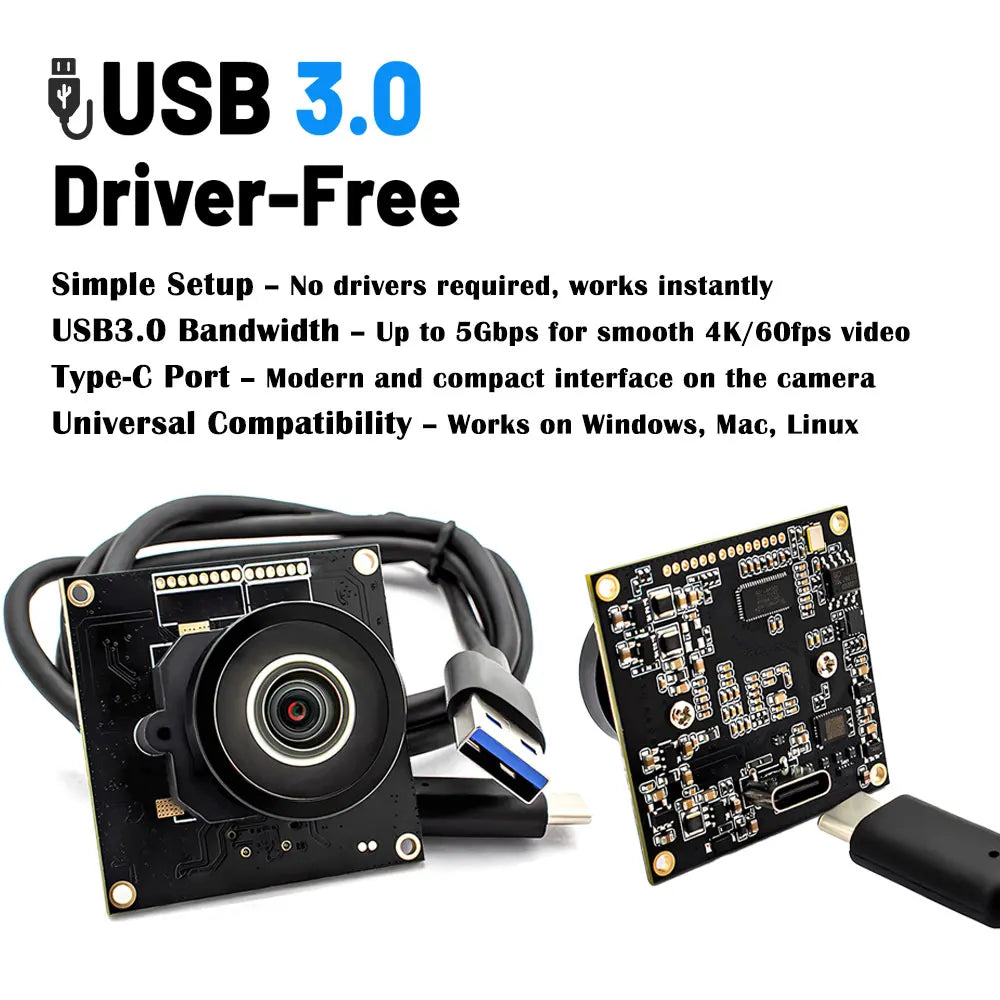

• High-Speed USB 3.0 Interface: Reliable data transfer for stable video streaming

• Advanced Image Controls: Adjust brightness, contrast, gamma, white balance and exposure

• Low Light Capability: Sensitive sensor performs well in dim environments

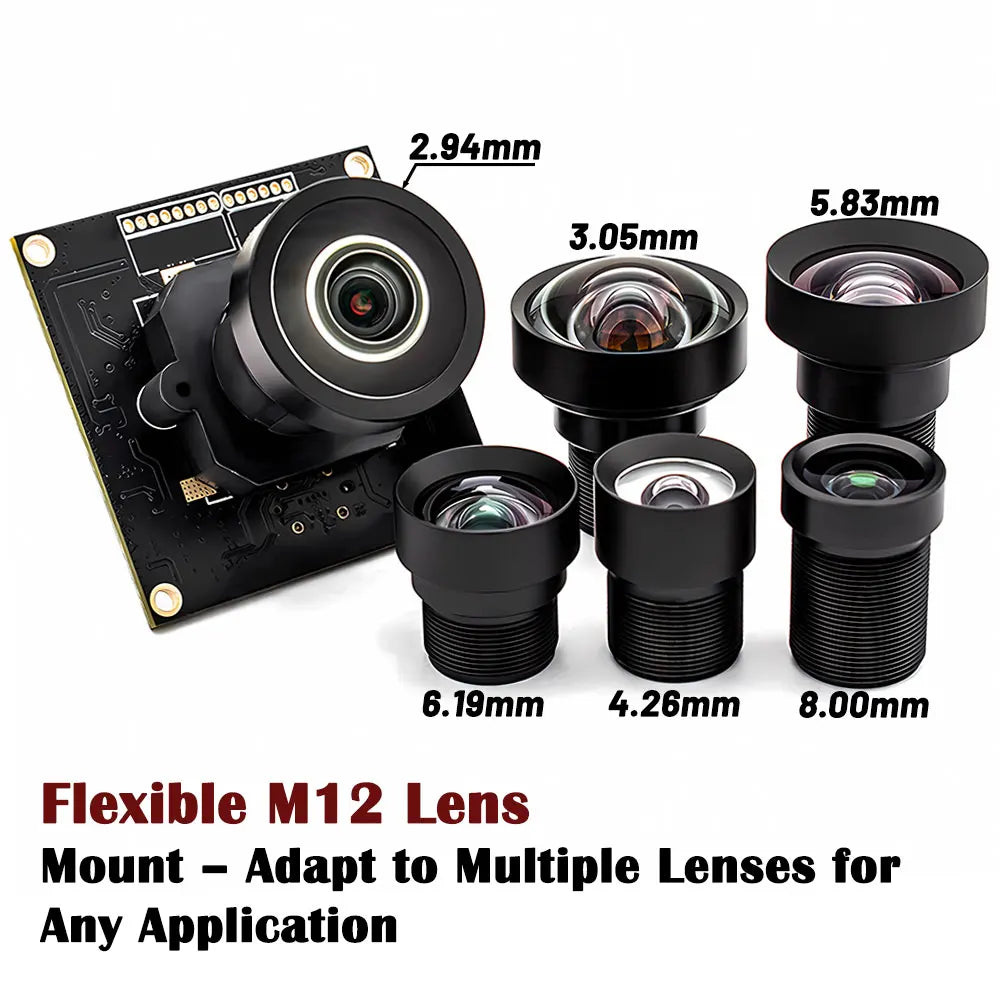

• Interchangeable Lens Support: Compatible with M12 mount lenses for flexible applications

• Compact Integration Design: Easily installs into devices, machines or development boards

Specifications

• Sensor: 1/1.8" CMOS sensor

• Maximum Resolution: 3840 × 2160 (4K)

• Frame Rate: Up to 60FPS

• Lens Type: M12 S-Mount

• Lens: 3.05mm (112° wide angle)

• Focus: Fixed

• Output Formats: MJPEG, YUY2 (YUYV)

• Pixel Size: 2.0µm × 2.0µm

• Minimum Illumination: 0.5 Lux

• Dynamic Range: 73dB

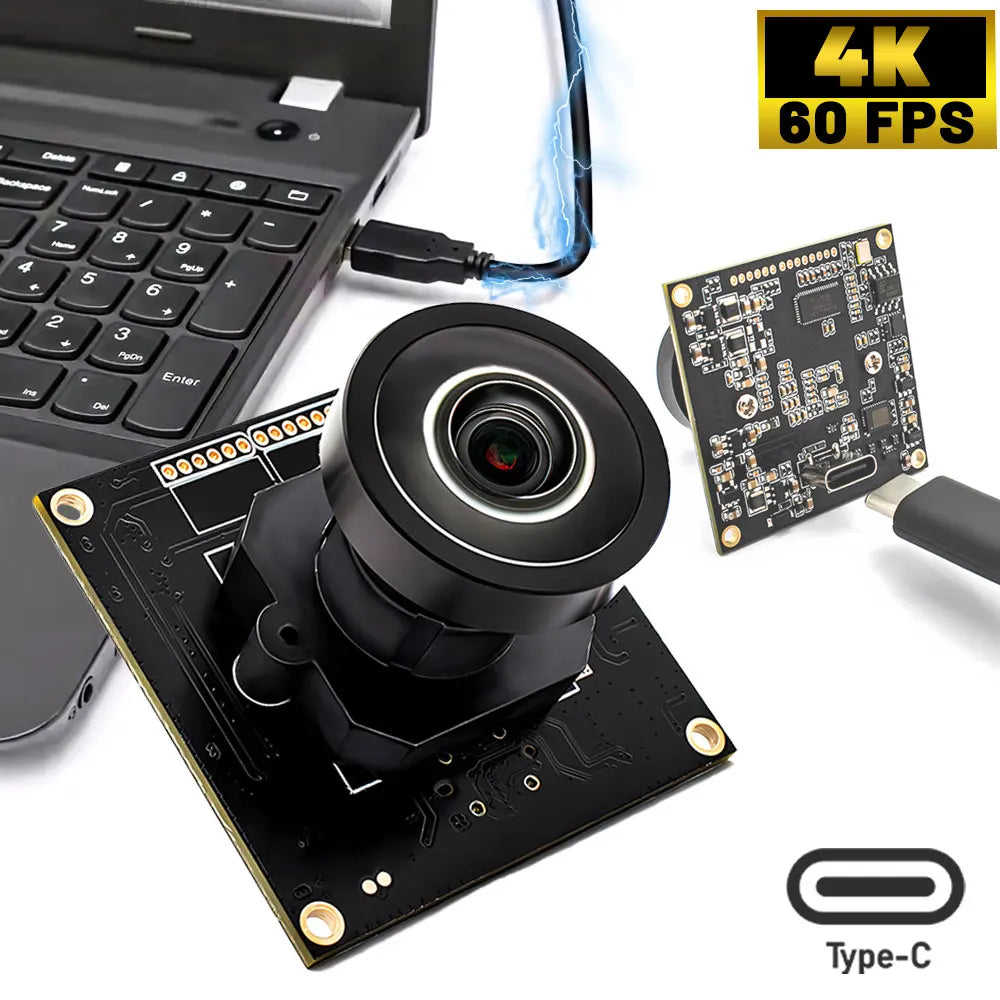

• Interface: USB 3.0 Type-C

• Shutter Type: Rolling Shutter

• Adjustable Image Settings: Brightness, contrast, saturation, hue, gamma, white balance

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -30°C to 85°C

• Dimensions: 38 × 38 × 28mm

• System Compatibility: Windows, Linux, macOS, Android

Package Contents

• 1 × 4K USB Camera Module with 112° Wide Lens

• 1 × USB Cable (1m)

What Makes This a Smart Buy:
The wide-angle lens captures more detail across a larger area, making this camera module perfect for automation, monitoring systems and custom tech projects where visibility and smooth 4K video matter most.
