4K HDMI Video Mixer Switcher 4 Channel Live Streaming

Take your live productions to the next level with this 4-channel HDMI video mixer switcher. Designed for streamers, content creators, educators and event producers, it lets you switch between multiple video sources, mix audio and broadcast professional-quality Full HD streams with ease.

Key Features

• Supports up to four HDMI video sources for multi-camera production
• Accepts 4K HDMI input signals up to 4K at 30Hz
• Outputs smooth Full HD 1080p at 60Hz for live streaming and recording
• USB Type-C 3.0 capture output for direct connection to a computer
• Built-in Picture-in-Picture and split-screen viewing modes
• Preview (PVW) and Program (PGM) outputs for professional live switching
• Mix HDMI audio with microphone and line-level audio inputs
• Audio Follow Video (AFV) function automatically matches audio to the selected video source
• Smooth transition controls with Auto, Cut and manual fade effects
• On-screen display shows video source, resolution and audio status
• Saves settings after power-off for faster setup next time
• Compatible with cameras, action cameras, streaming boxes, laptops, game consoles and audio mixers
• Works seamlessly with popular streaming software for online broadcasts and video production

Specifications

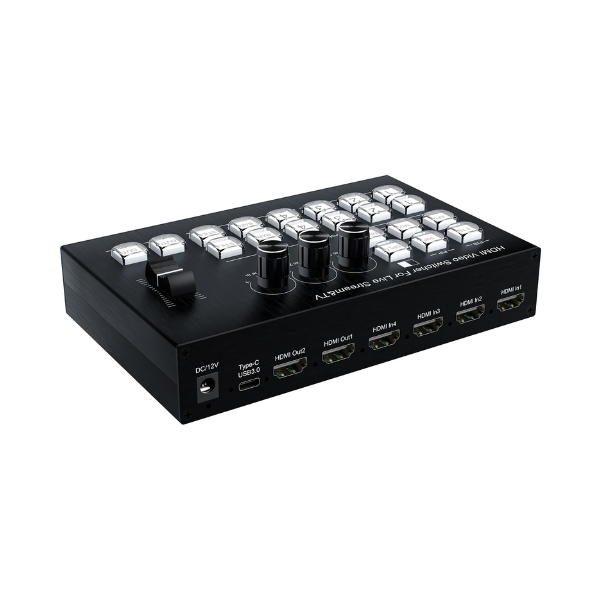

• Product Type: HDMI Video Mixer Switcher
• HDMI Inputs: 4
• HDMI Outputs: 2
• Maximum HDMI Input Resolution: 4K at 30Hz
• HDMI Output Resolution: 1920 × 1080 at 60Hz
• USB Capture Interface: USB Type-C 3.0
• Capture Formats: YUY2, JPEG
• Audio Inputs: HDMI Audio, 2 × Microphone, Line In
• Audio Outputs: HDMI Audio, Line Out
• Audio Format: PCM
• Video Modes:
  • Picture-in-Picture (PIP)
  • Split Screen
  • Preview (PVW)
  • Program (PGM)
• Transition Modes:
  • Auto
  • Cut
  • Manual Fade
• Audio Features:
  • Audio Follow Video (AFV)
  • Audio Mixing
  • Mute Function
• Maximum HDMI Cable Length: Up to 15m (1080p 60Hz)
• Maximum Working Current: 0.7A
• Operating Temperature: -15°C to 55°C
• Dimensions: 180 × 115 × 52mm

Package Contents

• 1 × 4 Channel HDMI Video Mixer Switcher
• 1 × USB Type-C to USB-A 3.0 Cable
• 1 × Power Adapter (AU Plug)
• 1 × User Manual

What Makes This a Smart Buy

This compact video mixer delivers professional switching, audio control and USB streaming in one easy-to-use device. Whether you're producing live events, church services, gaming streams, webinars or online classes, it offers reliable multi-camera production without the complexity of expensive broadcast systems.
