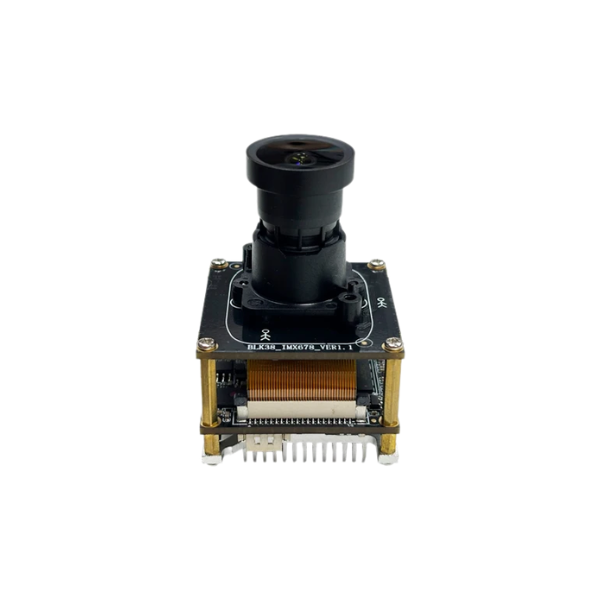

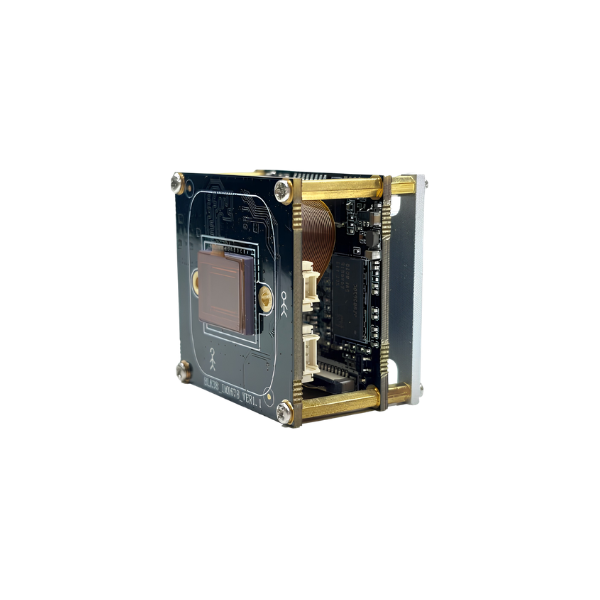

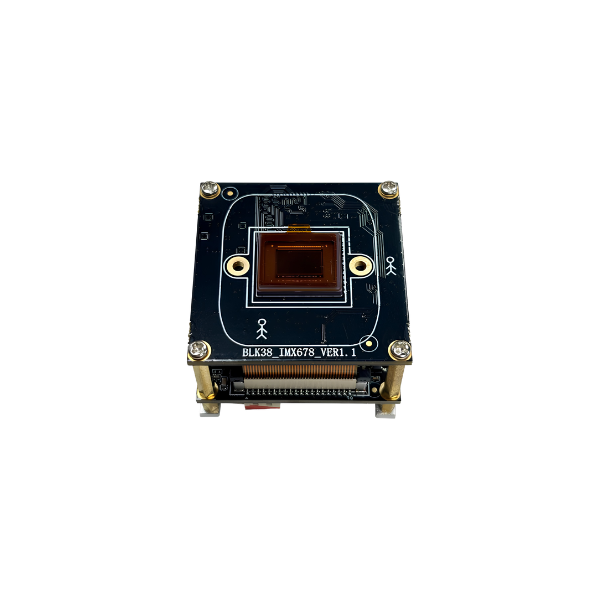

4K Sony Sensor IP Camera Board 8mm Night Vision ONVIF

Designed for professional surveillance performance, this 4K IP Camera Board combines an advanced 8MP imaging sensor with an 8mm lens for sharp long-distance monitoring. With excellent night vision, multiple streaming options and wide protocol support, it's ideal for custom CCTV and security installations.

Key Features

• Ultra HD 8MP (4K) video for outstanding image clarity
• 8mm fixed lens for enhanced long-distance viewing
• Starlight low-light technology with 0.0001 Lux sensitivity
• Smooth recording at up to 30fps
• Efficient H.265+, H.265, H.264 and MJPEG compression
• ONVIF compatible for seamless integration with supported NVR systems
• Supports RTSP, API, SDK, CGI and GB28181 protocols
• Triple-stream output for flexible recording and remote viewing
• Adjustable exposure, white balance, image settings and lens correction
• Built-in support for SMART LEDs
• Supports RS485, Auto IRIS lens control, audio, USB and UART interfaces
• Character overlay for customised surveillance footage
• Compatible with Google Chrome browser
• Works with Android, iOS, Windows and macOS devices
• Compact 38 × 38mm design for easy integration
• Includes 12V power cable for simple installation

Specifications

• Resolution: 8MP (4K)

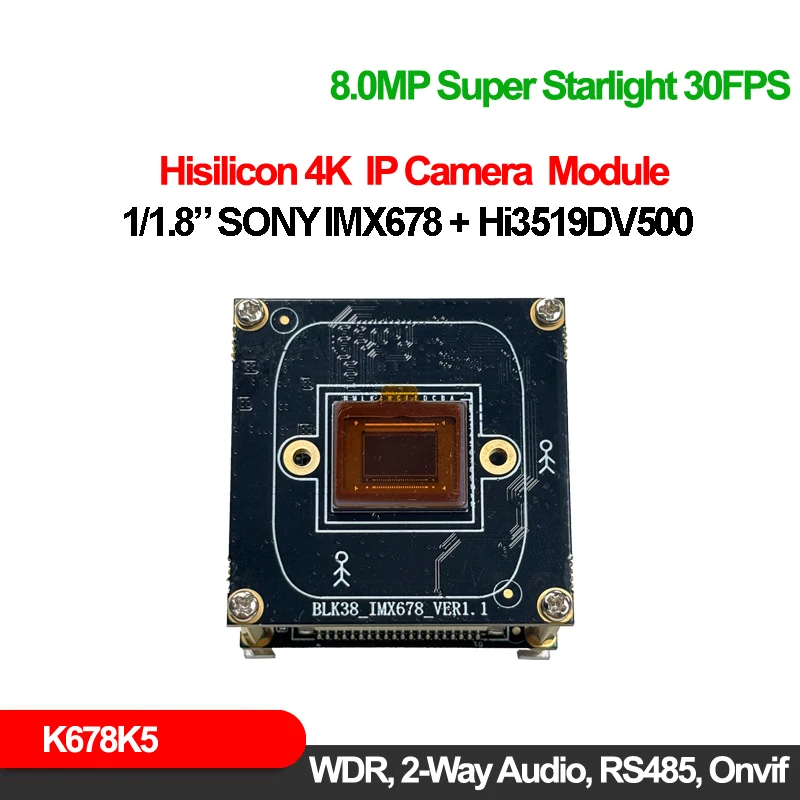

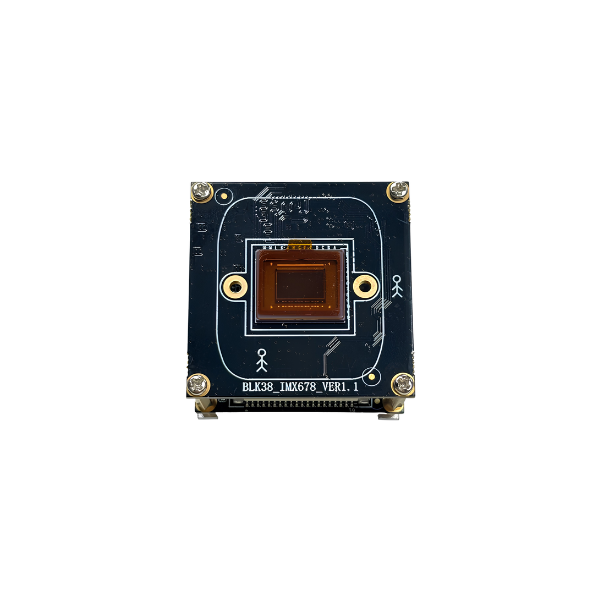

• Image Sensor: 1/1.8-inch CMOS
• Processor: Hi3519DV500

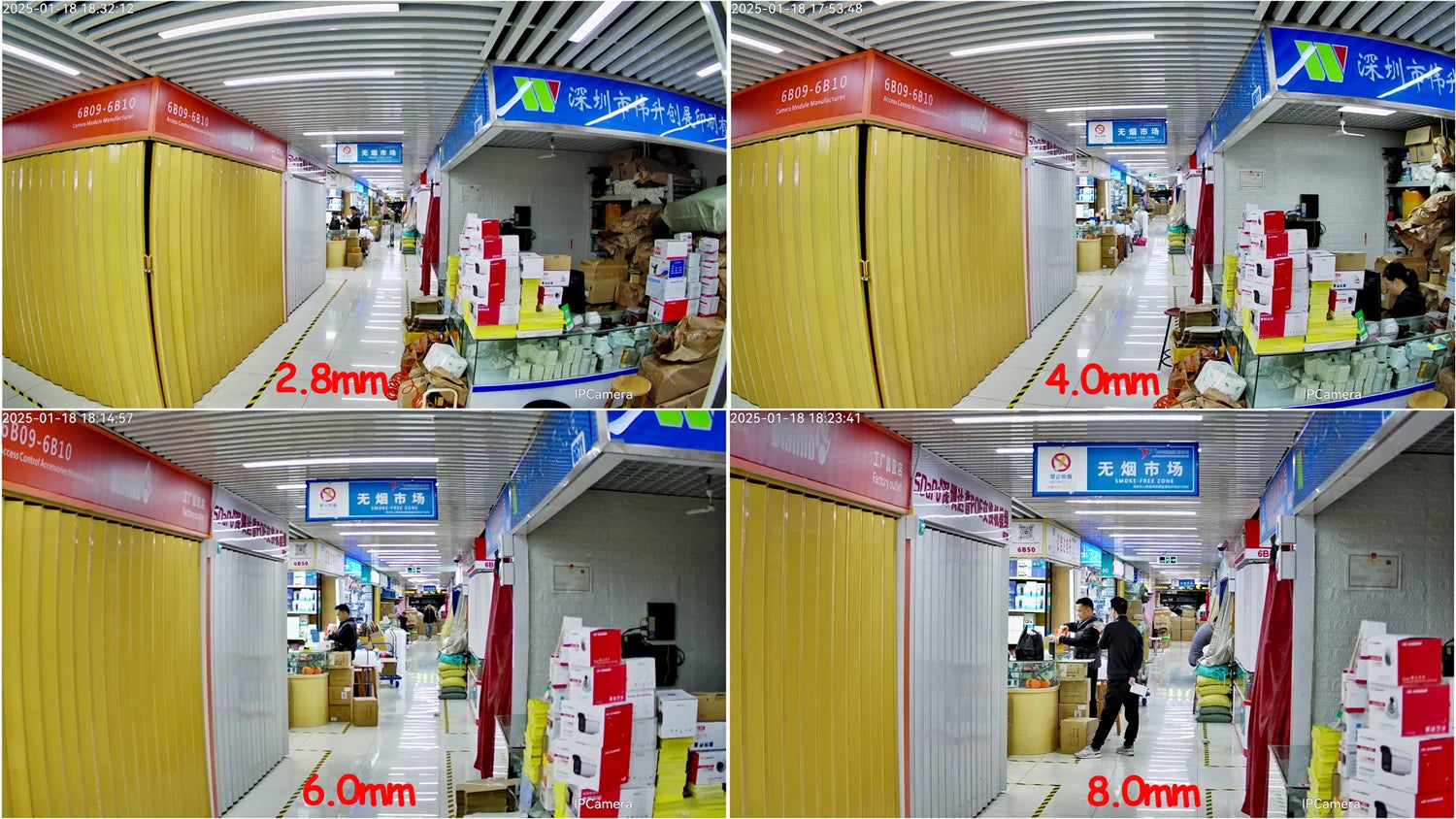

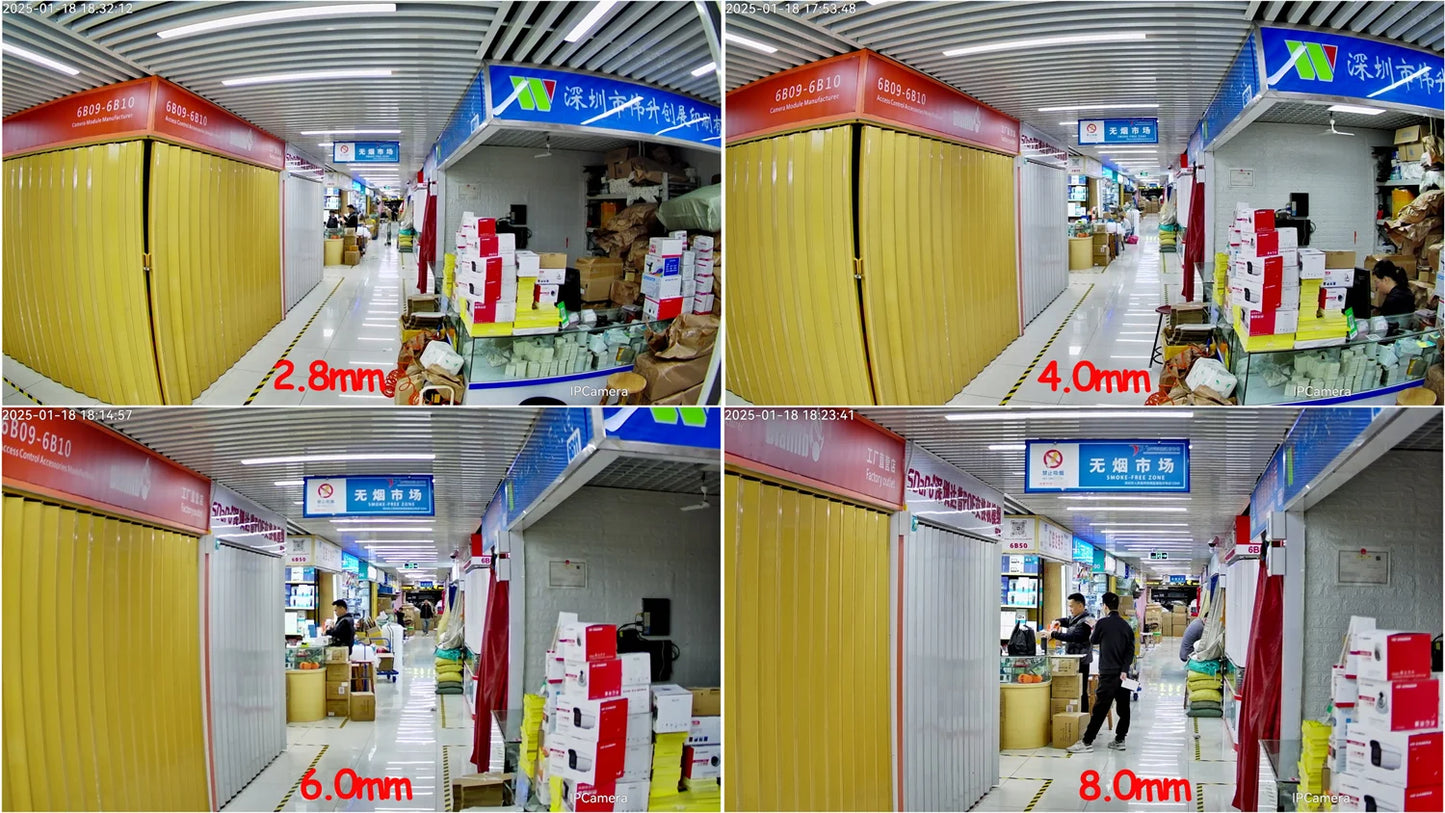

• Lens: 8mm
• Minimum Illumination: 0.0001 Lux @ F1.2
• Video Frame Rate: Up to 30fps
• Video Compression: H.265+, H.265, H.264, MJPEG
• Connectivity: Wired IP Network
• Power Supply: 12V
• Power Consumption: 3W
• Dimensions: 38 × 38mm
• Storage: No onboard storage
• Supported Operating Systems: Windows 7, Windows 8, Windows 10, macOS
• Mobile Compatibility: Android and iOS
• Network Protocols: ONVIF, RTSP, API, SDK, CGI, GB28181
• Browser Support: Google Chrome

Package Contents

• 1 × 4K IP Camera Board Module (8mm)
• 1 × 12V Power Cable

What Makes This a Smart Buy

Offering outstanding 4K image quality, excellent low-light performance and extensive compatibility with surveillance systems, this camera board is a practical choice for custom security projects. Its compact design and reliable networking features make it ideal for both professional and advanced DIY installations.
