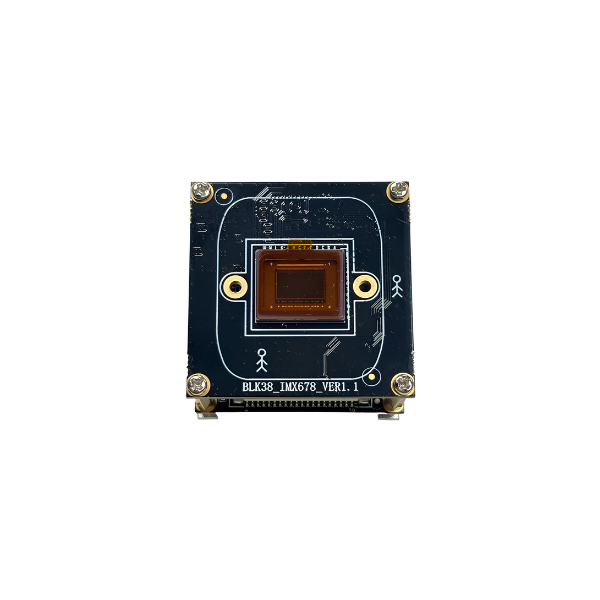

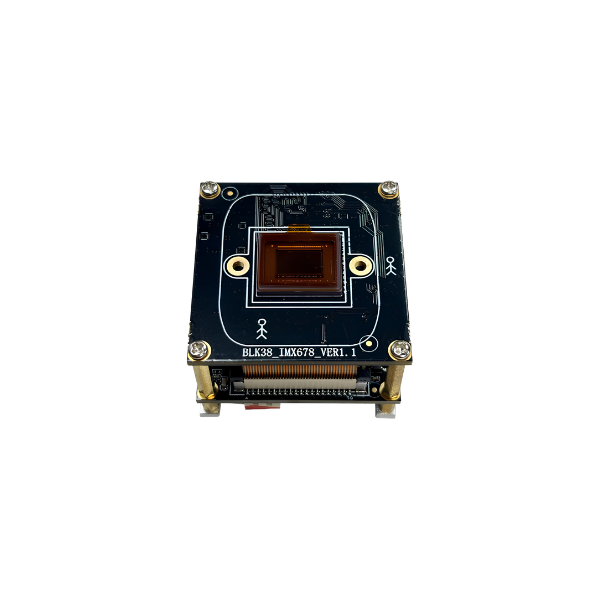

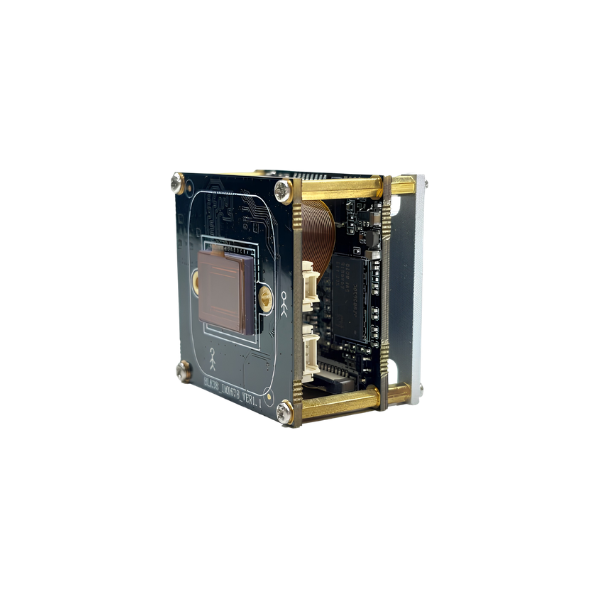

4K Starlight IP Camera Board 6mm Lens with 12V Cable

Capture exceptionally clear surveillance footage day and night with this compact 4K IP Camera Board. Featuring an advanced 8MP CMOS sensor, a 6mm lens and ultra-low light performance, it's an excellent solution for custom security systems, smart monitoring projects and professional CCTV installations.

Key Features

• Ultra HD 8MP (4K) resolution for crisp, detailed video
• 6mm fixed lens for focused long-range viewing
• Exceptional starlight night vision with 0.0001 Lux low-light sensitivity
• Advanced H.265+, H.265, H.264 and MJPEG video compression for efficient storage and streaming
• Supports ONVIF, RTSP, API, SDK, CGI and GB28181 for broad system compatibility
• Triple video stream support with multiple resolution options
• Adjustable image settings including shutter, white balance, lens correction, DWDR and 3D noise reduction
• Supports SMART LED integration for enhanced night-time visibility
• RS485 support for expanded surveillance applications
• Audio, USB, UART and Reset interface support
• Character overlay function for customised video display
• Compatible with Google Chrome for convenient browser access
• Supports Android, iOS, Windows and macOS devices
• Compact 38 × 38mm board for easy installation into custom housings
• Includes 12V power cable for straightforward setup

Specifications

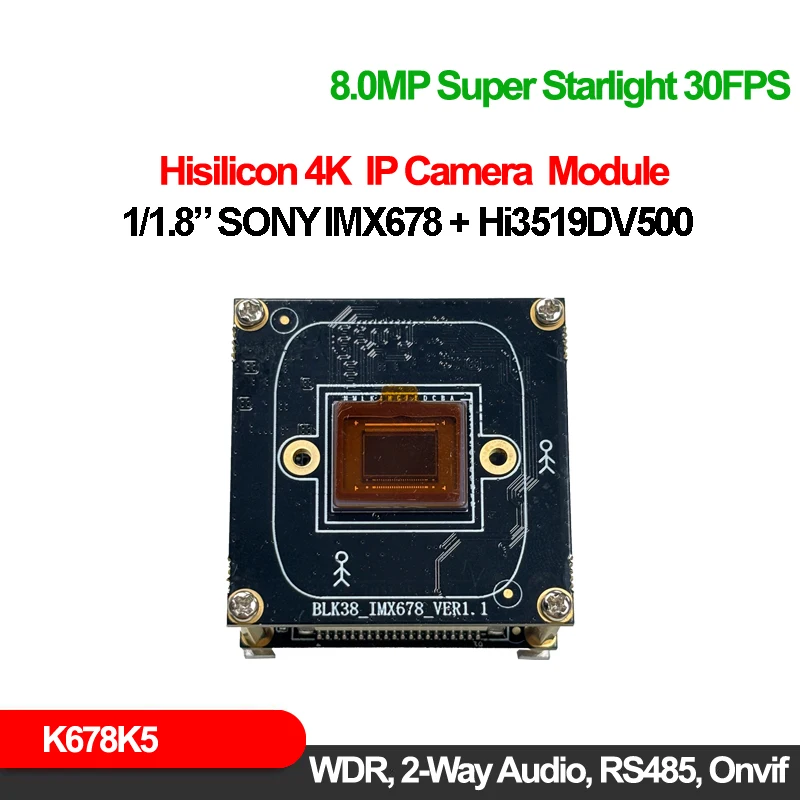

• Resolution: 8MP (4K)
• Image Sensor: 1/1.8-inch CMOS
• Processor: Hi3519DV500

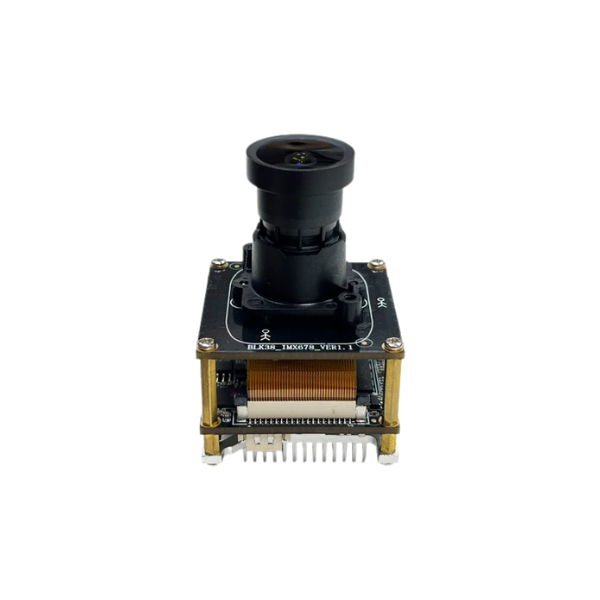

• Lens: 6mm
• Minimum Illumination: 0.0001 Lux @ F1.2
• Video Frame Rate: Up to 30fps
• Video Compression: H.265+, H.265, H.264, MJPEG
• Connectivity: Wired IP Network
• Power Supply: 12V
• Power Consumption: 3W
• Dimensions: 38 × 38mm
• Storage: No onboard storage
• Supported Operating Systems: Windows 7, Windows 8, Windows 10, macOS
• Mobile Compatibility: Android and iOS
• Network Protocols: ONVIF, RTSP, API, SDK, CGI, GB28181
• Browser Support: Google Chrome

Package Contents

• 1 × 4K IP Camera Board Module (6mm)
• 1 × 12V Power Cable

What Makes This a Smart Buy

Whether you're upgrading an existing CCTV system or building a custom surveillance solution, this compact 4K camera board delivers professional image quality, excellent low-light performance and flexible integration. Its broad compatibility and advanced imaging features make it a reliable choice for demanding security applications.
