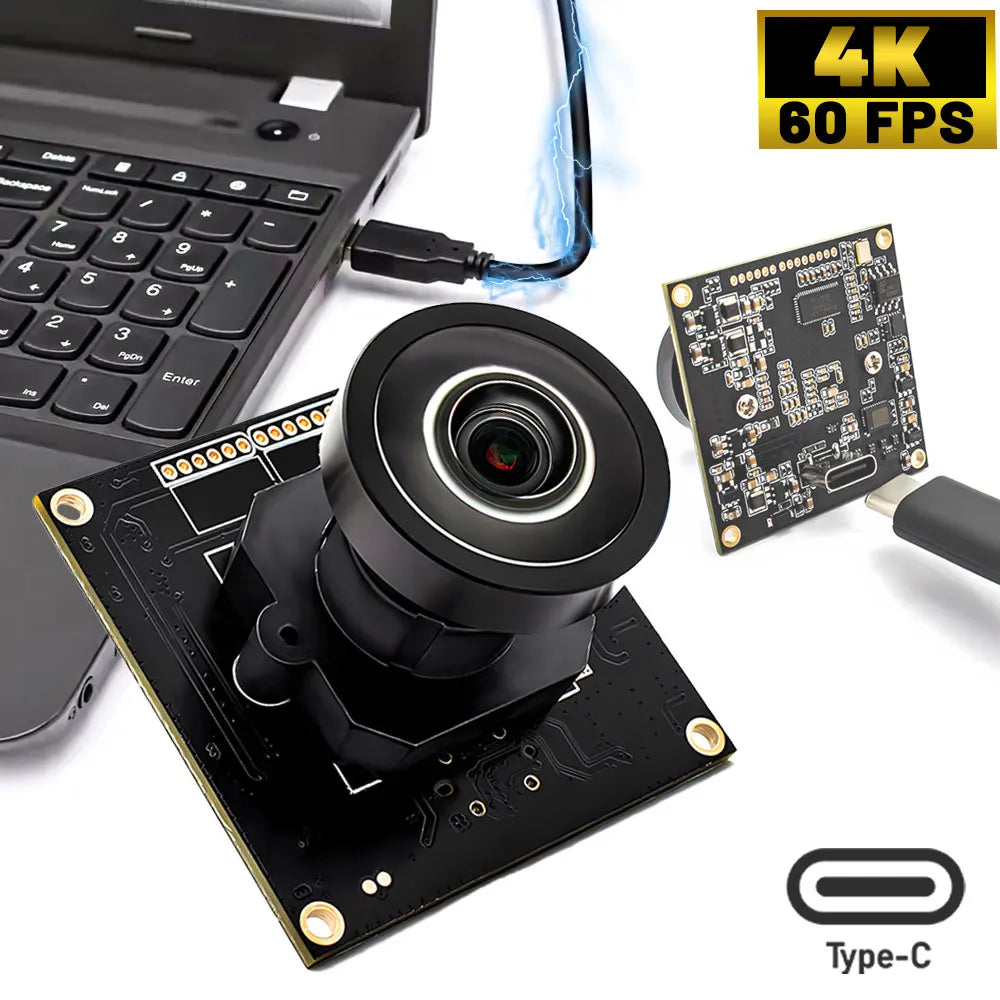

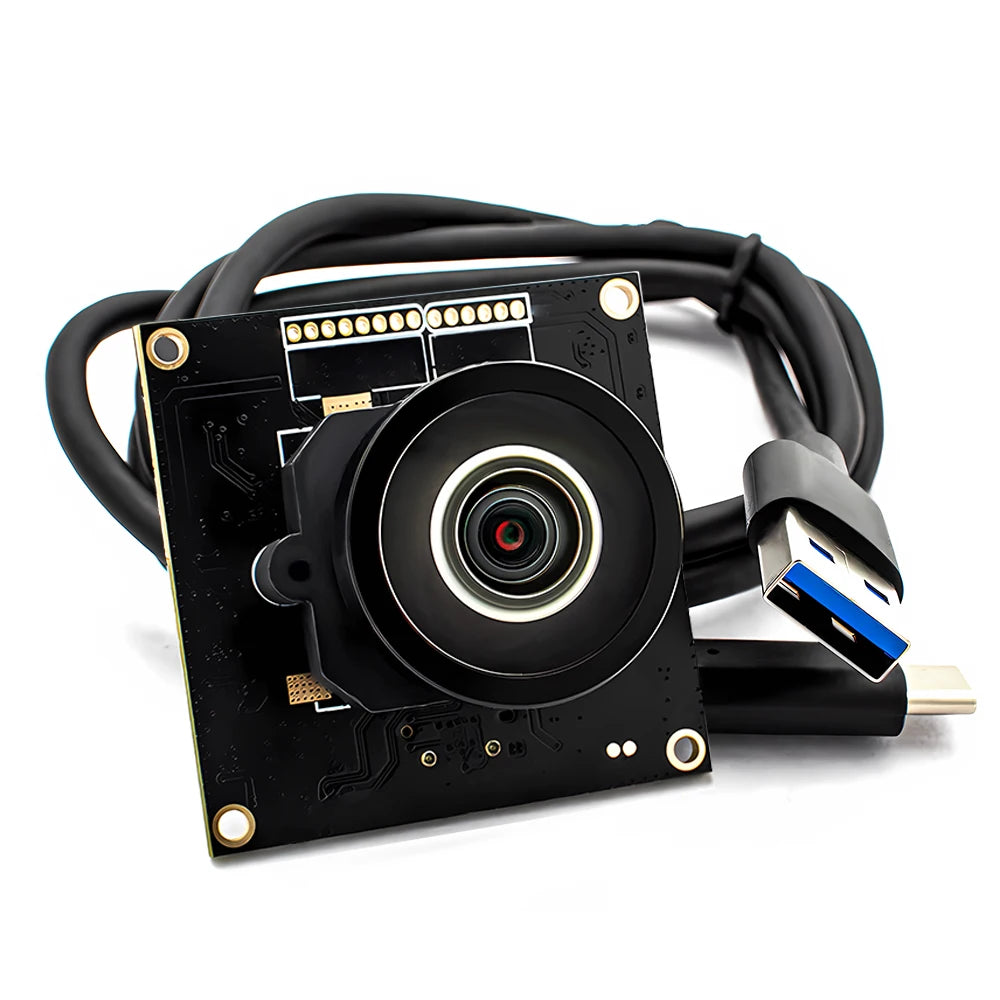

4K UVC Camera Module 60FPS 152° Ultra Wide Lens

Designed for maximum coverage, this 4K USB camera module features an ultra-wide 152° lens that captures a huge field of view. With smooth 60FPS video and plug-and-play compatibility, it’s ideal for security systems, robotics, monitoring solutions and advanced development projects.

Key Features

• Ultra Wide 152° Viewing Angle: Capture expansive scenes with minimal blind spots

• 4K Ultra HD Video: Crisp 3840 × 2160 resolution for detailed imaging

• Smooth 60FPS Capture: Great for motion detection, tracking and real-time monitoring

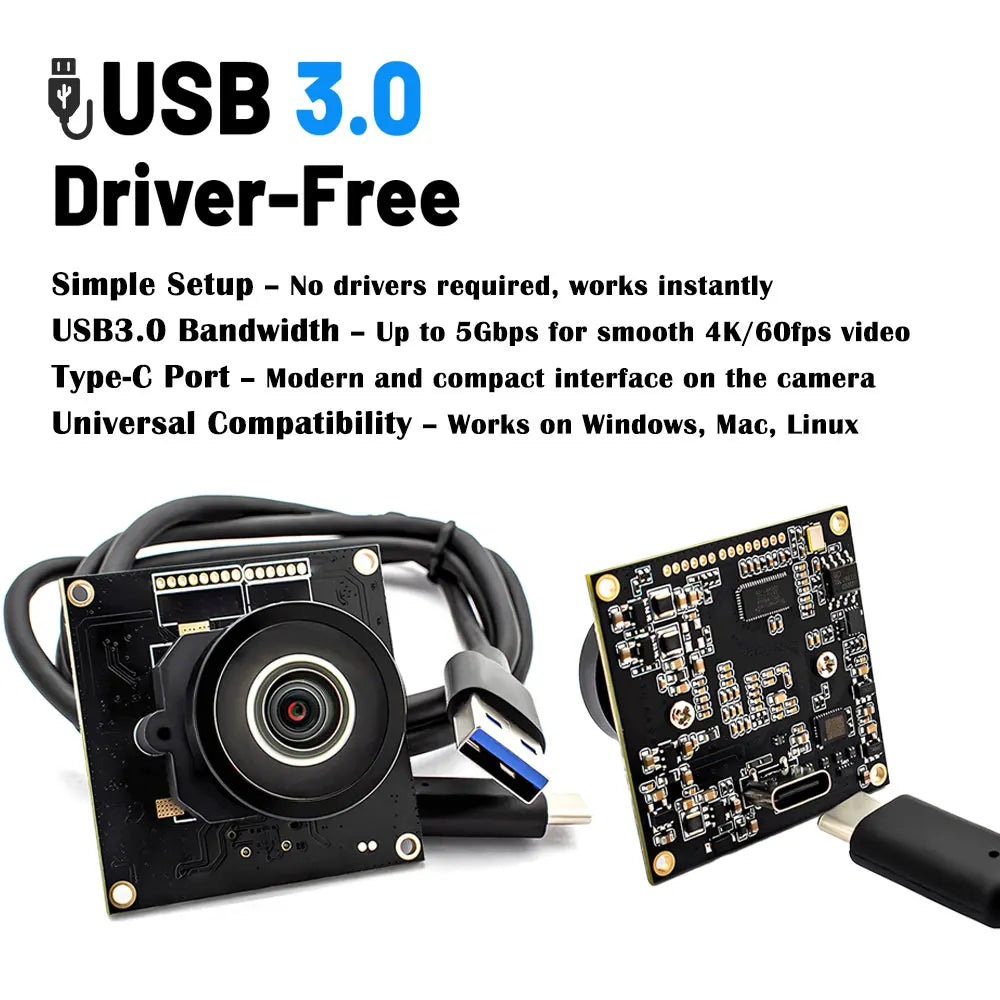

• Driver-Free Operation: UVC protocol enables quick plug-and-play setup

• High-Speed USB 3.0 Connection: Stable data transmission for uninterrupted video

• Low Light Sensitivity: Works effectively in dim lighting conditions

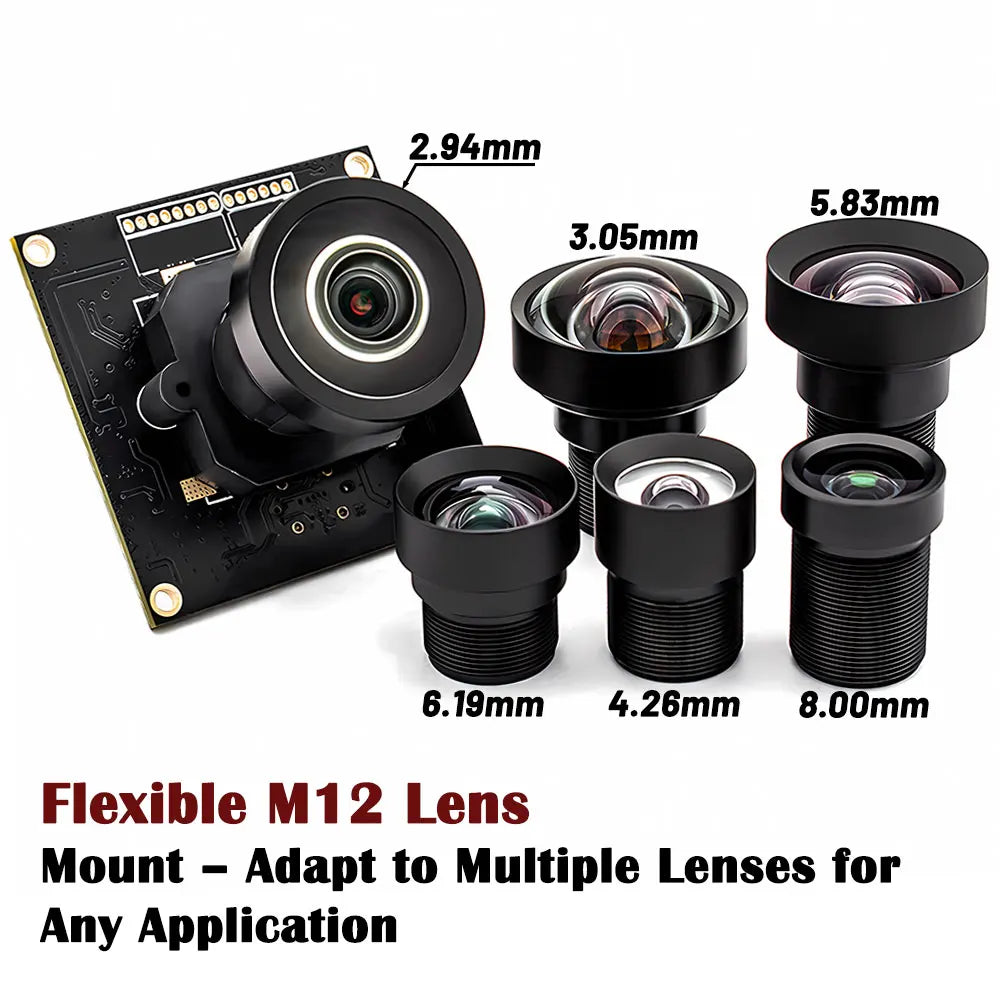

• Flexible Lens System: Supports interchangeable M12 mount lenses

• Automatic Image Adjustment: Includes auto exposure, gain control and white balance

• Compact Industrial Module: Small footprint ideal for embedded devices

Specifications

• Sensor: 1/1.8" CMOS sensor

• Maximum Resolution: 3840 × 2160

• Frame Rate: Up to 60FPS

• Lens Type: M12 S-Mount

• Lens: 2.94mm (152° ultra wide)

• Focus: Fixed

• Output Formats: MJPEG, YUY2

• Pixel Size: 2.0µm × 2.0µm

• Minimum Illumination: 0.5 Lux

• Dynamic Range: 73dB

• Interface: USB 3.0 Type-C

• Shutter: Rolling Shutter

• Operating Temperature: 0°C to 60°C

• Storage Temperature: -30°C to 85°C

• Dimensions: 38 × 38 × 28mm

• System Support: Windows, Linux, macOS, Android

Package Contents

• 1 × 4K USB Camera Module with 152° Ultra Wide Lens

• 1 × USB Cable (1m)

What Makes This a Smart Buy:
With its ultra-wide viewing angle and smooth 4K video output, this camera module captures more detail in a single frame, making it a versatile solution for surveillance, automation and development projects.
